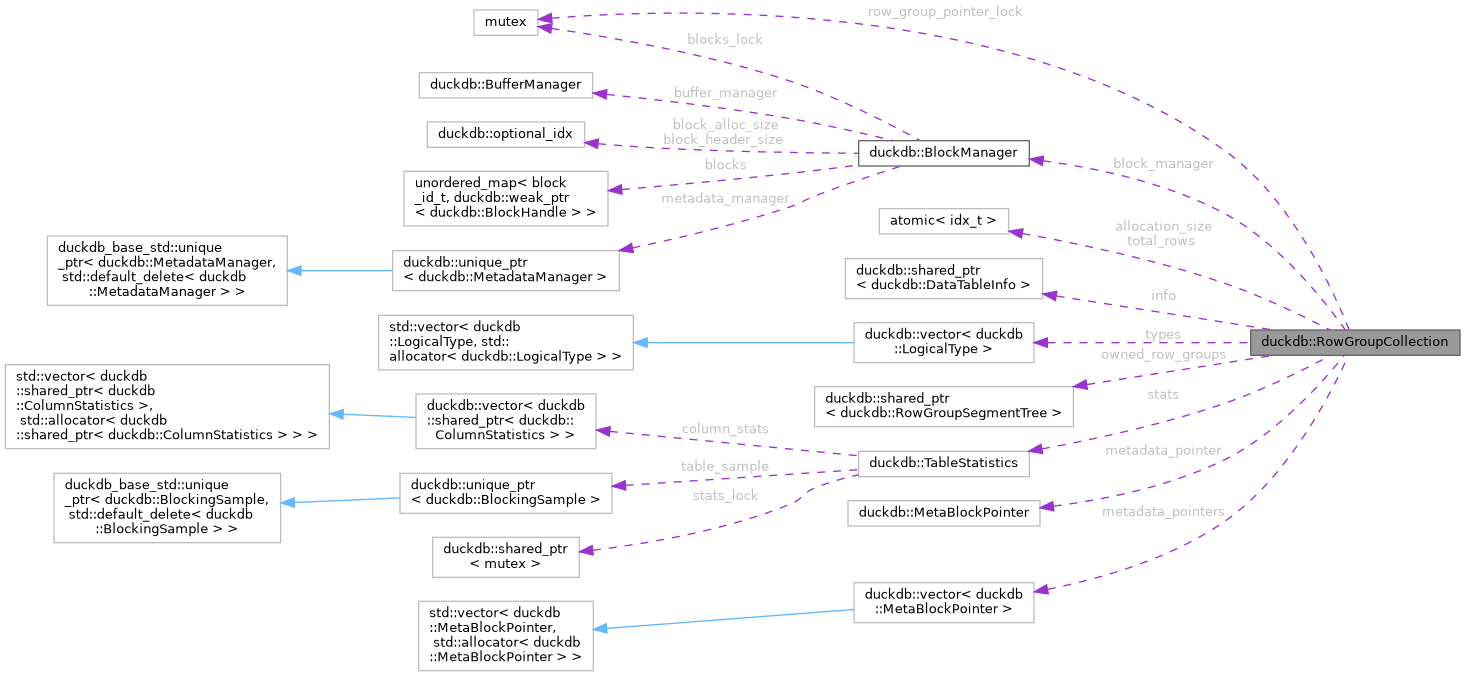

Collaboration diagram for duckdb::RowGroupCollection:

[legend]

Public Member Functions
	RowGroupCollection (shared_ptr< DataTableInfo > info, TableIOManager &io_manager, vector< LogicalType > types, idx_t row_start, idx_t total_rows=0)

	RowGroupCollection (shared_ptr< DataTableInfo > info, BlockManager &block_manager, vector< LogicalType > types, idx_t row_start, idx_t total_rows, idx_t row_group_size)

idx_t	GetTotalRows () const

idx_t	GetRowGroupCount () const

Allocator &	GetAllocator () const

void	Initialize (PersistentCollectionData &data)

void	Initialize (PersistentTableData &data)

void	InitializeEmpty ()

void	FinalizeCheckpoint (MetaBlockPointer pointer, const vector< MetaBlockPointer > &existing_pointers)

bool	IsEmpty () const

void	AppendRowGroup (SegmentLock &l, idx_t start_row)

optional_ptr< RowGroup >	GetRowGroup (int64_t index)
	Get the nth row-group, negative numbers start from the back (so -1 is the last row group, etc)

void	SetRowGroup (int64_t index, shared_ptr< RowGroup > new_row_group)
	Overrides a row group - should only be used if you know what you're doing (will likely be removed in the future)

void	Verify ()

void	Destroy ()

void	InitializeScan (const QueryContext &context, CollectionScanState &state, const vector< StorageIndex > &column_ids, optional_ptr< TableFilterSet > table_filters)

void	InitializeCreateIndexScan (CreateIndexScanState &state)

void	InitializeScanWithOffset (const QueryContext &context, CollectionScanState &state, const vector< StorageIndex > &column_ids, idx_t start_row, idx_t end_row)

void	InitializeParallelScan (ParallelCollectionScanState &state)

bool	NextParallelScan (ClientContext &context, ParallelCollectionScanState &state, CollectionScanState &scan_state)

RowGroupIterationHelper	Chunks (DuckTransaction &transaction)

RowGroupIterationHelper	Chunks (DuckTransaction &transaction, const vector< StorageIndex > &column_ids)

void	Fetch (TransactionData transaction, DataChunk &result, const vector< StorageIndex > &column_ids, const Vector &row_identifiers, idx_t fetch_count, ColumnFetchState &state)

bool	CanFetch (TransactionData, const row_t row_id)
	Returns true, if the row group can fetch the row id for the transaction.

void	InitializeAppend (TableAppendState &state)
	Initialize an append of a variable number of rows. FinalizeAppend must be called after appending is done.

void	InitializeAppend (TransactionData transaction, TableAppendState &state)

bool	Append (DataChunk &chunk, TableAppendState &state)
	Appends to the row group collection. Returns true if a new row group has been created to append to.

void	FinalizeAppend (TransactionData transaction, TableAppendState &state)
	FinalizeAppend flushes an append with a variable number of rows.

void	CommitAppend (transaction_t commit_id, idx_t row_start, idx_t count)

void	RevertAppendInternal (idx_t start_row)

void	CleanupAppend (transaction_t lowest_transaction, idx_t start, idx_t count)

void	MergeStorage (RowGroupCollection &data, optional_ptr< DataTable > table, optional_ptr< StorageCommitState > commit_state)

bool	IsPersistent () const

void	RemoveFromIndexes (const QueryContext &context, TableIndexList &indexes, Vector &row_identifiers, idx_t count, IndexRemovalType removal_type, optional_idx active_checkpoint=optional_idx())

idx_t	Delete (TransactionData transaction, DataTable &table, row_t *ids, idx_t count)

void	Update (TransactionData transaction, DataTable &table, row_t *ids, const vector< PhysicalIndex > &column_ids, DataChunk &updates)

void	UpdateColumn (TransactionData transaction, DataTable &table, Vector &row_ids, const vector< column_t > &column_path, DataChunk &updates)

void	Checkpoint (TableDataWriter &writer, TableStatistics &global_stats)

void	InitializeVacuumState (CollectionCheckpointState &checkpoint_state, VacuumState &state, optional_idx checkpoint_row_group_count)

bool	ScheduleVacuumTasks (CollectionCheckpointState &checkpoint_state, VacuumState &state, idx_t segment_idx, bool schedule_vacuum)

unique_ptr< CheckpointTask >	GetCheckpointTask (CollectionCheckpointState &checkpoint_state, idx_t segment_idx)

void	CommitDropColumn (const idx_t column_index)

void	CommitDropTable ()

vector< PartitionStatistics >	GetPartitionStats () const

vector< ColumnSegmentInfo >	GetColumnSegmentInfo (const QueryContext &context)

const vector< LogicalType > &	GetTypes () const

shared_ptr< RowGroupCollection >	AddColumn (ClientContext &context, ColumnDefinition &new_column, ExpressionExecutor &default_executor)

shared_ptr< RowGroupCollection >	RemoveColumn (idx_t col_idx)

shared_ptr< RowGroupCollection >	AlterType (ClientContext &context, idx_t changed_idx, const LogicalType &target_type, vector< StorageIndex > bound_columns, Expression &cast_expr)

void	VerifyNewConstraint (const QueryContext &context, DataTable &parent, const BoundConstraint &constraint)

void	SetStats (TableStatistics &new_stats)

void	CopyStats (TableStatistics &stats)

unique_ptr< BaseStatistics >	CopyStats (const StorageIndex &column_id)

unique_ptr< BlockingSample >	GetSample ()

void	SetDistinct (column_t column_id, unique_ptr< DistinctStatistics > distinct_stats)

AttachedDatabase &	GetAttached ()

BlockManager &	GetBlockManager ()

MetadataManager &	GetMetadataManager ()

DataTableInfo &	GetTableInfo ()

idx_t	GetAllocationSize () const

idx_t	GetRowGroupSize () const

void	SetAppendRequiresNewRowGroup ()

idx_t	GetSegmentCount ()
	Returns the total amount of segments - use sparingly, as this forces all segments to be loaded.

Static Public Member Functions
static bool	InitializeScanInRowGroup (ClientContext &context, CollectionScanState &state, RowGroupCollection &collection, SegmentNode< RowGroup > &row_group, idx_t vector_index, idx_t max_row)

Private Member Functions
optional_ptr< SegmentNode< RowGroup > >	NextUpdateRowGroup (RowGroupSegmentTree &row_groups, row_t *ids, idx_t &pos, idx_t count) const

shared_ptr< RowGroupSegmentTree >	GetRowGroups () const

void	SetRowGroups (shared_ptr< RowGroupSegmentTree > row_groups)

Private Attributes
BlockManager &	block_manager
	BlockManager.

const idx_t	row_group_size
	The row group size of the row group collection.

atomic< idx_t >	total_rows
	The number of rows in the table.

shared_ptr< DataTableInfo >	info
	The data table info.

vector< LogicalType >	types
	The column types of the row group collection.

mutex	row_group_pointer_lock
	Lock held when accessing or modifying the owned_row_groups pointer.

shared_ptr< RowGroupSegmentTree >	owned_row_groups
	The owning pointer of the segment tree.

TableStatistics	stats
	Table statistics.

atomic< idx_t >	allocation_size
	Allocation size, only tracked for appends.

MetaBlockPointer	metadata_pointer
	Root metadata pointer, if the collection is loaded from disk.

vector< MetaBlockPointer >	metadata_pointers
	Other metadata pointers.

bool	requires_new_row_group
	Whether or not we need to append a new row group prior to appending.

Member Function Documentation

◆ InitializeAppend()

void duckdb::RowGroupCollection::InitializeAppend	(	TransactionData	transaction,
		TableAppendState &	state
	)

Initialize an append with a variable number of rows. FinalizeAppend should not be called after appending is done.

◆ GetBlockManager()

BlockManager & duckdb::RowGroupCollection::GetBlockManager ( )

inline

                                    {
        return block_manager;
    }

◆ GetTableInfo()

DataTableInfo & duckdb::RowGroupCollection::GetTableInfo ( )

inline

                                  {
        return *info;
    }

◆ GetAllocationSize()

idx_t duckdb::RowGroupCollection::GetAllocationSize ( ) const

inline

                                    {
        return allocation_size;
    }

◆ GetRowGroupSize()

idx_t duckdb::RowGroupCollection::GetRowGroupSize ( ) const

inline

                                  {
        return row_group_size;
    }

The documentation for this class was generated from the following file:

external/duckdb/duckdb.hpp
