duckdb::ExpressionExecutor Class Reference

ExpressionExecutor is responsible for executing a set of expressions and storing the result in a data chunk. More...

#include <duckdb.hpp>

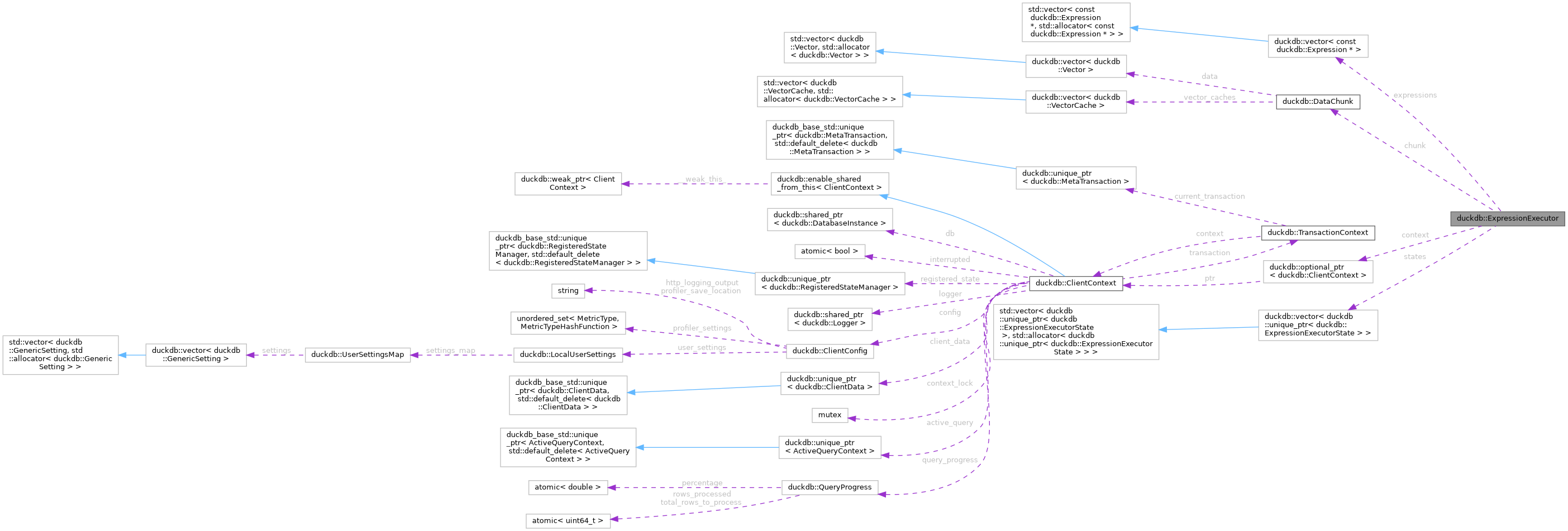

Collaboration diagram for duckdb::ExpressionExecutor:

Public Member Functions
DUCKDB_API	ExpressionExecutor (ClientContext &context)
DUCKDB_API	ExpressionExecutor (ClientContext &context, const Expression *expression)
DUCKDB_API	ExpressionExecutor (ClientContext &context, const Expression &expression)
DUCKDB_API	ExpressionExecutor (ClientContext &context, const vector< unique_ptr< Expression > > &expressions)
	ExpressionExecutor (ExpressionExecutor &&)=delete
bool	HasContext ()
ClientContext &	GetContext ()
Allocator &	GetAllocator ()
DUCKDB_API void	AddExpression (const Expression &expr)
	Add an expression to the set of to-be-executed expressions of the executor.
void	ClearExpressions ()
DUCKDB_API void	Execute (DataChunk *input, DataChunk &result)
	Execute the set of expressions with the given input chunk and store the result in the output chunk.
void	Execute (DataChunk &input, DataChunk &result)
void	Execute (DataChunk &result)
DUCKDB_API void	ExecuteExpression (DataChunk &input, Vector &result)
DUCKDB_API void	ExecuteExpression (Vector &result)
DUCKDB_API idx_t	SelectExpression (DataChunk &input, SelectionVector &sel)
DUCKDB_API idx_t	SelectExpression (DataChunk &input, SelectionVector &result_sel, optional_ptr< SelectionVector > current_sel, idx_t current_count)
DUCKDB_API idx_t	SelectExpression (DataChunk &input, optional_ptr< SelectionVector > true_sel, optional_ptr< SelectionVector > false_sel, optional_ptr< SelectionVector > current_sel, idx_t current_count)
DUCKDB_API void	ExecuteExpression (idx_t expr_idx, Vector &result)
	Execute the expression with index expr_idx and store the result in the result vector.
void	SetChunk (DataChunk *chunk)
void	SetChunk (DataChunk &chunk)
DUCKDB_API vector< unique_ptr< ExpressionExecutorState > > &	GetStates ()

Static Public Member Functions
static DUCKDB_API Value	EvaluateScalar (ClientContext &context, const Expression &expr, bool allow_unfoldable=false)
	Evaluate a scalar expression and fold it into a single value.
static DUCKDB_API bool	TryEvaluateScalar (ClientContext &context, const Expression &expr, Value &result)
	Try to evaluate a scalar expression and fold it into a single value, returns false if an exception is thrown.
static unique_ptr< ExpressionState >	InitializeState (const Expression &expr, ExpressionExecutorState &state)
	Initialize the state of a given expression.

Public Attributes
vector< const Expression * >	expressions
	The expressions of the executor.
DataChunk *	chunk = nullptr

Protected Member Functions
void	Initialize (const Expression &expr, ExpressionExecutorState &state)
void	Execute (const Expression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundBetweenExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundCaseExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundCastExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundComparisonExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundConjunctionExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundConstantExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundFunctionExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundOperatorExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundParameterExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
void	Execute (const BoundReferenceExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, Vector &result)
idx_t	Select (const Expression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, SelectionVector *true_sel, SelectionVector *false_sel)
idx_t	DefaultSelect (const Expression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, SelectionVector *true_sel, SelectionVector *false_sel)
idx_t	Select (const BoundBetweenExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, SelectionVector *true_sel, SelectionVector *false_sel)
idx_t	Select (const BoundComparisonExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, SelectionVector *true_sel, SelectionVector *false_sel)
idx_t	Select (const BoundConjunctionExpression &expr, ExpressionState *state, const SelectionVector *sel, idx_t count, SelectionVector *true_sel, SelectionVector *false_sel)
void	Verify (const Expression &expr, Vector &result, idx_t count)
	Verify that the output of a step in the ExpressionExecutor is correct.
void	FillSwitch (Vector &vector, Vector &result, const SelectionVector &sel, sel_t count)

Static Protected Member Functions
static unique_ptr< ExpressionState >	InitializeState (const BoundReferenceExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundBetweenExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundCaseExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundCastExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundComparisonExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundConjunctionExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundConstantExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundFunctionExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundOperatorExpression &expr, ExpressionExecutorState &state)
static unique_ptr< ExpressionState >	InitializeState (const BoundParameterExpression &expr, ExpressionExecutorState &state)

Private Member Functions
DUCKDB_API	ExpressionExecutor (const vector< unique_ptr< Expression > > &exprs)

Private Attributes
optional_ptr< ClientContext >	context
	Client context.
vector< unique_ptr< ExpressionExecutorState > >	states
	The states of the expression executor; this holds any intermediates and temporary states of expressions.
DebugVectorVerification	debug_vector_verification = DebugVectorVerification::NONE
	The vector verification (debug setting)

Friends
class	BoundIndex

Detailed Description

ExpressionExecutor is responsible for executing a set of expressions and storing the result in a data chunk.

Member Function Documentation

Execute() [1/2]

void duckdb::ExpressionExecutor::Execute ( DataChunk &  input, DataChunk &  result  )

inline

                                                             {
        Execute(&input, result);
    }

Execute() [2/2]

void duckdb::ExpressionExecutor::Execute ( DataChunk &  result )

inline

                                           {
        Execute(nullptr, result);
    }

ExecuteExpression() [1/2]

DUCKDB_API void duckdb::ExpressionExecutor::ExecuteExpression	(	DataChunk &	input,
		Vector &	result
	)

Execute the ExpressionExecutor and put the result in the result vector; this should only be used for expression executors with a single expression

ExecuteExpression() [2/2]

DUCKDB_API void duckdb::ExpressionExecutor::ExecuteExpression

(

Vector &

result

)

Execute the ExpressionExecutor and put the result in the result vector; this should only be used for expression executors with a single expression

SelectExpression()

DUCKDB_API idx_t duckdb::ExpressionExecutor::SelectExpression	(	DataChunk &	input,
		SelectionVector &	sel
	)

Execute the ExpressionExecutor and generate a selection vector from all true values in the result; this should only be used with a single boolean expression

SetChunk() [1/2]

void duckdb::ExpressionExecutor::SetChunk ( DataChunk *  chunk )

inline

                                           {
        this->chunk = chunk;
    }

SetChunk() [2/2]

void duckdb::ExpressionExecutor::SetChunk ( DataChunk &  chunk )

inline

                                           {
        SetChunk(&chunk);
    }

Select()

idx_t duckdb::ExpressionExecutor::Select ( const Expression &  expr, ExpressionState *  state, const SelectionVector *  sel, idx_t  count, SelectionVector *  true_sel, SelectionVector *  false_sel  )

protected

Execute the (boolean-returning) expression and generate a selection vector with all entries that are "true" in the result

Member Data Documentation

chunk

DataChunk* duckdb::ExpressionExecutor::chunk = nullptr

The data chunk of the current physical operator, used to resolve column references and determines the output cardinality

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.hpp
