duckdb::DataChunk Class Reference

A Data Chunk represents a set of vectors. More...

#include <duckdb.hpp>

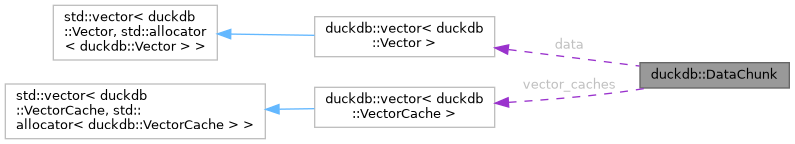

Collaboration diagram for duckdb::DataChunk:

Public Member Functions
DUCKDB_API	DataChunk ()
	Creates an empty DataChunk.
idx_t	size () const
idx_t	ColumnCount () const
void	SetCardinality (idx_t count_p)
void	SetCardinality (const DataChunk &other)
idx_t	GetCapacity () const
void	SetCapacity (idx_t capacity_p)
void	SetCapacity (const DataChunk &other)
DUCKDB_API Value	GetValue (idx_t col_idx, idx_t index) const
DUCKDB_API void	SetValue (idx_t col_idx, idx_t index, const Value &val)
idx_t	GetAllocationSize () const
DUCKDB_API bool	AllConstant () const
	Returns true if all vectors in the DataChunk are constant.
DUCKDB_API void	Reference (DataChunk &chunk)
	Set the DataChunk to reference another data chunk.
DUCKDB_API void	Move (DataChunk &chunk)
	Set the DataChunk to own the data of data chunk, destroying the other chunk in the process.
DUCKDB_API void	InitializeEmpty (const vector< LogicalType > &types)
	Initializes a DataChunk with the given types and without any vector data allocation.
DUCKDB_API void	Initialize (ClientContext &context, const vector< LogicalType > &types, idx_t capacity=STANDARD_VECTOR_SIZE)
DUCKDB_API void	Initialize (Allocator &allocator, const vector< LogicalType > &types, idx_t capacity=STANDARD_VECTOR_SIZE)
DUCKDB_API void	Initialize (ClientContext &context, const vector< LogicalType > &types, const vector< bool > &initialize, idx_t capacity=STANDARD_VECTOR_SIZE)
DUCKDB_API void	Initialize (Allocator &allocator, const vector< LogicalType > &types, const vector< bool > &initialize, idx_t capacity=STANDARD_VECTOR_SIZE)
DUCKDB_API void	Append (const DataChunk &other, bool resize=false, SelectionVector *sel=nullptr, idx_t count=0)
DUCKDB_API void	Destroy ()
	Destroy all data and columns owned by this DataChunk.
DUCKDB_API void	Copy (DataChunk &other, idx_t offset=0) const
	Copies the data from this chunk to another chunk.
DUCKDB_API void	Copy (DataChunk &other, const SelectionVector &sel, const idx_t source_count, const idx_t offset=0) const
DUCKDB_API void	Split (DataChunk &other, idx_t split_idx)
	Splits the DataChunk in two.
DUCKDB_API void	Fuse (DataChunk &other)
	Fuses a DataChunk onto the right of this one, and destroys the other. Inverse of Split.
DUCKDB_API void	ReferenceColumns (DataChunk &other, const vector< column_t > &column_ids)
	Makes this DataChunk reference the specified columns in the other DataChunk.
DUCKDB_API void	Flatten ()
	Turn all the vectors from the chunk into flat vectors.
DUCKDB_API unsafe_unique_array< UnifiedVectorFormat >	ToUnifiedFormat ()
DUCKDB_API void	Slice (const SelectionVector &sel_vector, idx_t count)
DUCKDB_API void	Slice (const DataChunk &other, const SelectionVector &sel, idx_t count, idx_t col_offset=0)
DUCKDB_API void	Slice (idx_t offset, idx_t count)
	Slice a DataChunk from "offset" to "offset + count".
DUCKDB_API void	Reset ()
DUCKDB_API void	Serialize (Serializer &serializer, bool compressed_serialization=true) const
DUCKDB_API void	Deserialize (Deserializer &source)
DUCKDB_API void	Hash (Vector &result)
	Hashes the DataChunk to the target vector.
DUCKDB_API void	Hash (vector< idx_t > &column_ids, Vector &result)
	Hashes specific vectors of the DataChunk to the target vector.
DUCKDB_API vector< LogicalType >	GetTypes () const
	Returns a list of types of the vectors of this data chunk.
DUCKDB_API string	ToString () const
	Converts this DataChunk to a printable string representation.
DUCKDB_API void	Print () const
	DataChunk (const DataChunk &)=delete
DUCKDB_API void	Verify ()

Public Attributes
vector< Vector >	data
	The vectors owned by the DataChunk.

Private Attributes
idx_t	count
	The amount of tuples stored in the data chunk.
idx_t	capacity
	The amount of tuples that can be stored in the data chunk.
idx_t	initial_capacity
	The initial capacity of this chunk set during Initialize, used when resetting.
vector< VectorCache >	vector_caches
	Vector caches, used to store data when Initialize is called.

Detailed Description

A Data Chunk represents a set of vectors.

The data chunk class is the intermediate representation used by the execution engine of DuckDB. It effectively represents a subset of a relation. It holds a set of vectors that all have the same length.

DataChunk is initialized using the DataChunk::Initialize function by providing it with a vector of TypeIds for the Vector members. By default, this function will also allocate a chunk of memory in the DataChunk for the vectors and all the vectors will be referencing vectors to the data owned by the chunk. The reason for this behavior is that the underlying vectors can become referencing vectors to other chunks as well (i.e. in the case an operator does not alter the data, such as a Filter operator which only adds a selection vector).

In addition to holding the data of the vectors, the DataChunk also owns the selection vector that underlying vectors can point to.

Member Function Documentation

size()

idx_t duckdb::DataChunk::size ( ) const

inline

                              { // NOLINT
        return count;
    }

ColumnCount()

idx_t duckdb::DataChunk::ColumnCount ( ) const

inline

                                     {
        return data.size();
    }

SetCardinality() [1/2]

void duckdb::DataChunk::SetCardinality ( idx_t  count_p )

inline

                                              {
        D_ASSERT(count_p <= capacity);
        this->count = count_p;
    }

SetCardinality() [2/2]

void duckdb::DataChunk::SetCardinality ( const DataChunk &  other )

inline

                                                       {
        SetCardinality(other.size());
    }

GetCapacity()

idx_t duckdb::DataChunk::GetCapacity ( ) const

inline

                                     {
        return capacity;
    }

SetCapacity() [1/2]

void duckdb::DataChunk::SetCapacity ( idx_t  capacity_p )

inline

                                              {
        this->capacity = capacity_p;
    }

SetCapacity() [2/2]

void duckdb::DataChunk::SetCapacity ( const DataChunk &  other )

inline

                                                    {
        SetCapacity(other.capacity);
    }

Initialize()

DUCKDB_API void duckdb::DataChunk::Initialize	(	ClientContext &	context,
		const vector< LogicalType > &	types,
		idx_t	capacity = STANDARD_VECTOR_SIZE
	)

Initializes a DataChunk with the given types. Then, if the corresponding boolean in the initialize-vector is true, it initializes the vector for that data type.

Append()

DUCKDB_API void duckdb::DataChunk::Append	(	const DataChunk &	other,
		bool	resize = false,
		SelectionVector *	sel = nullptr,
		idx_t	count = 0
	)

Append the other DataChunk to this one. The column count and types of the two DataChunks have to match exactly. Throws an exception if there is not enough space in the chunk and resize is not allowed.

Slice()

DUCKDB_API void duckdb::DataChunk::Slice	(	const DataChunk &	other,
		const SelectionVector &	sel,
		idx_t	count,
		idx_t	col_offset = 0
	)

Slice all Vectors from other.data[i] to data[i + 'col_offset'] Turning all Vectors into Dictionary Vectors, using 'sel'

Reset()

DUCKDB_API void duckdb::DataChunk::Reset

(

)

Resets the DataChunk to its state right after the DataChunk::Initialize function was called. This sets the count to 0, the capacity to initial_capacity and resets each member Vector to point back to the data owned by this DataChunk.

Verify()

DUCKDB_API void duckdb::DataChunk::Verify

(

)

Verify that the DataChunk is in a consistent, not corrupt state. DEBUG FUNCTION ONLY!

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.hpp
