duckdb::PhysicalArrowBatchCollector Class Reference

Inheritance diagram for duckdb::PhysicalArrowBatchCollector:

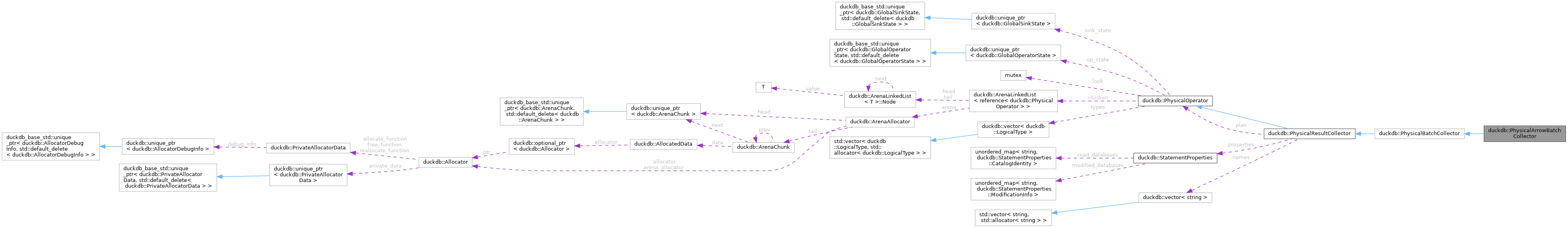

Collaboration diagram for duckdb::PhysicalArrowBatchCollector:

Public Member Functions
	PhysicalArrowBatchCollector (PhysicalPlan &physical_plan, PreparedStatementData &data, idx_t batch_size)
SinkFinalizeType	Finalize (Pipeline &pipeline, Event &event, ClientContext &context, OperatorSinkFinalizeInput &input) const override
unique_ptr< GlobalSinkState >	GetGlobalSinkState (ClientContext &context) const override
Public Member Functions inherited from duckdb::PhysicalBatchCollector
	PhysicalBatchCollector (PhysicalPlan &physical_plan, PreparedStatementData &data)
unique_ptr< QueryResult >	GetResult (GlobalSinkState &state) const override
	The final method used to fetch the query result from this operator.
SinkResultType	Sink (ExecutionContext &context, DataChunk &chunk, OperatorSinkInput &input) const override
SinkCombineResultType	Combine (ExecutionContext &context, OperatorSinkCombineInput &input) const override
SinkFinalizeType	Finalize (Pipeline &pipeline, Event &event, ClientContext &context, OperatorSinkFinalizeInput &input) const override
unique_ptr< LocalSinkState >	GetLocalSinkState (ExecutionContext &context) const override
unique_ptr< GlobalSinkState >	GetGlobalSinkState (ClientContext &context) const override
OperatorPartitionInfo	RequiredPartitionInfo () const override
bool	ParallelSink () const override
Public Member Functions inherited from duckdb::PhysicalResultCollector
	PhysicalResultCollector (PhysicalPlan &physical_plan, PreparedStatementData &data)
bool	IsSink () const override
vector< const_reference< PhysicalOperator > >	GetChildren () const override
void	BuildPipelines (Pipeline &current, MetaPipeline &meta_pipeline) override
bool	IsSource () const override
virtual bool	IsStreaming () const
	Whether this is a streaming result collector.
Public Member Functions inherited from duckdb::PhysicalOperator
	PhysicalOperator (PhysicalPlan &physical_plan, PhysicalOperatorType type, vector< LogicalType > types, idx_t estimated_cardinality)
	PhysicalOperator (const PhysicalOperator &other)=delete
	Deleted copy constructors.
PhysicalOperator &	operator= (const PhysicalOperator &)=delete
virtual string	GetName () const
virtual InsertionOrderPreservingMap< string >	ParamsToString () const
virtual string	ToString (ExplainFormat format=ExplainFormat::DEFAULT) const
void	Print () const
const vector< LogicalType > &	GetTypes () const
	Return a vector of the types that will be returned by this operator.
virtual bool	Equals (const PhysicalOperator &other) const
idx_t	EstimatedThreadCount () const
	Functions to help decide how to set up pipeline dependencies.
bool	CanSaturateThreads (ClientContext &context) const
virtual void	Verify ()
virtual unique_ptr< OperatorState >	GetOperatorState (ExecutionContext &context) const
virtual unique_ptr< GlobalOperatorState >	GetGlobalOperatorState (ClientContext &context) const
virtual OperatorResultType	Execute (ExecutionContext &context, DataChunk &input, DataChunk &chunk, GlobalOperatorState &gstate, OperatorState &state) const
virtual OperatorFinalizeResultType	FinalExecute (ExecutionContext &context, DataChunk &chunk, GlobalOperatorState &gstate, OperatorState &state) const
virtual OperatorFinalResultType	OperatorFinalize (Pipeline &pipeline, Event &event, ClientContext &context, OperatorFinalizeInput &input) const
virtual bool	ParallelOperator () const
virtual bool	RequiresFinalExecute () const
virtual bool	RequiresOperatorFinalize () const
virtual OrderPreservationType	OperatorOrder () const
	The influence the operator has on order (insertion order means no influence)
virtual unique_ptr< LocalSourceState >	GetLocalSourceState (ExecutionContext &context, GlobalSourceState &gstate) const
virtual unique_ptr< GlobalSourceState >	GetGlobalSourceState (ClientContext &context) const
SourceResultType	GetData (ExecutionContext &context, DataChunk &chunk, OperatorSourceInput &input) const
virtual OperatorPartitionData	GetPartitionData (ExecutionContext &context, DataChunk &chunk, GlobalSourceState &gstate, LocalSourceState &lstate, const OperatorPartitionInfo &partition_info) const
virtual bool	ParallelSource () const
virtual bool	SupportsPartitioning (const OperatorPartitionInfo &partition_info) const
virtual OrderPreservationType	SourceOrder () const
	The type of order emitted by the operator (as a source)
virtual ProgressData	GetProgress (ClientContext &context, GlobalSourceState &gstate) const
	Returns the current progress percentage, or a negative value if progress bars are not supported.
virtual ProgressData	GetSinkProgress (ClientContext &context, GlobalSinkState &gstate, const ProgressData source_progress) const
	Returns the current progress percentage, or a negative value if progress bars are not supported.
virtual InsertionOrderPreservingMap< string >	ExtraSourceParams (GlobalSourceState &gstate, LocalSourceState &lstate) const
virtual void	PrepareFinalize (ClientContext &context, GlobalSinkState &sink_state) const
virtual SinkNextBatchType	NextBatch (ExecutionContext &context, OperatorSinkNextBatchInput &input) const
virtual bool	SinkOrderDependent () const
virtual vector< const_reference< PhysicalOperator > >	GetSources () const
bool	AllSourcesSupportBatchIndex () const
template<class TARGET >
TARGET &	Cast ()
template<class TARGET >
const TARGET &	Cast () const

Public Attributes
idx_t	record_batch_size
	User provided batch size.
Public Attributes inherited from duckdb::PhysicalResultCollector
StatementType	statement_type
StatementProperties	properties
QueryResultMemoryType	memory_type
PhysicalOperator &	plan
vector< string >	names
Public Attributes inherited from duckdb::PhysicalOperator
ArenaLinkedList< reference< PhysicalOperator > >	children
	The child operators.
PhysicalOperatorType	type
	The physical operator type.
vector< LogicalType >	types
	The return types.
idx_t	estimated_cardinality
	The estimated cardinality.
unique_ptr< GlobalSinkState >	sink_state
	The global sink state.
unique_ptr< GlobalOperatorState >	op_state
	The global operator state.
mutex	lock
	Lock for (re)setting any of the operator states.

Additional Inherited Members
Static Public Member Functions inherited from duckdb::PhysicalResultCollector
static unique_ptr< PhysicalOperator >	GetResultCollector (ClientContext &context, PreparedStatementData &data)
Static Public Member Functions inherited from duckdb::PhysicalOperator
static void	SetEstimatedCardinality (InsertionOrderPreservingMap< string > &result, idx_t estimated_cardinality)
static idx_t	GetMaxThreadMemory (ClientContext &context)
	The maximum amount of memory the operator should use per thread.
static OperatorCachingMode	SelectOperatorCachingMode (ExecutionContext &context)
	Whether operator caching is allowed in the current execution context.
Static Public Attributes inherited from duckdb::PhysicalResultCollector
static constexpr const PhysicalOperatorType	TYPE = PhysicalOperatorType::RESULT_COLLECTOR
Static Public Attributes inherited from duckdb::PhysicalOperator
static constexpr const PhysicalOperatorType	TYPE = PhysicalOperatorType::INVALID
Protected Member Functions inherited from duckdb::PhysicalResultCollector
unique_ptr< ColumnDataCollection >	CreateCollection (ClientContext &context) const
Protected Member Functions inherited from duckdb::PhysicalOperator
virtual SourceResultType	GetDataInternal (ExecutionContext &context, DataChunk &chunk, OperatorSourceInput &input) const

Constructor & Destructor Documentation

PhysicalArrowBatchCollector()

duckdb::PhysicalArrowBatchCollector::PhysicalArrowBatchCollector ( PhysicalPlan &  physical_plan, PreparedStatementData &  data, idx_t  batch_size  )

inline

        : PhysicalBatchCollector(physical_plan, data), record_batch_size(batch_size) {
    }

Member Function Documentation

Finalize()

SinkFinalizeType duckdb::PhysicalArrowBatchCollector::Finalize ( Pipeline &  pipeline, Event &  event, ClientContext &  context, OperatorSinkFinalizeInput &  input  ) const

overridevirtual

The finalize is called when ALL threads are finished execution. It is called only once per pipeline, and is entirely single threaded. If Finalize returns SinkResultType::Finished, the sink is marked as finished

Reimplemented from duckdb::PhysicalOperator.

                                                                                               {
    auto &gstate = input.global_state.Cast<ArrowBatchGlobalState>();

    auto total_tuple_count = gstate.data.Count();
    if (total_tuple_count == 0) {
        // Create the result containing a single empty result conversion
        gstate.result = make_uniq<ArrowQueryResult>(statement_type, properties, names, types,
                                                    context.GetClientProperties(), record_batch_size);
        return SinkFinalizeType::READY;
    }

    // Already create the final query result
    gstate.result = make_uniq<ArrowQueryResult>(statement_type, properties, names, types, context.GetClientProperties(),
                                                record_batch_size);
    // Spawn an event that will populate the conversion result
    auto &arrow_result = gstate.result->Cast<ArrowQueryResult>();
    auto new_event = make_shared_ptr<ArrowMergeEvent>(arrow_result, gstate.data, pipeline);
    event.InsertEvent(std::move(new_event));

    return SinkFinalizeType::READY;
}

GetGlobalSinkState()

unique_ptr< GlobalSinkState > duckdb::PhysicalArrowBatchCollector::GetGlobalSinkState ( ClientContext &  context ) const

overridevirtual

Reimplemented from duckdb::PhysicalOperator.

                                                                                                        {
    return make_uniq<ArrowBatchGlobalState>(context, *this);
}

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.cpp
