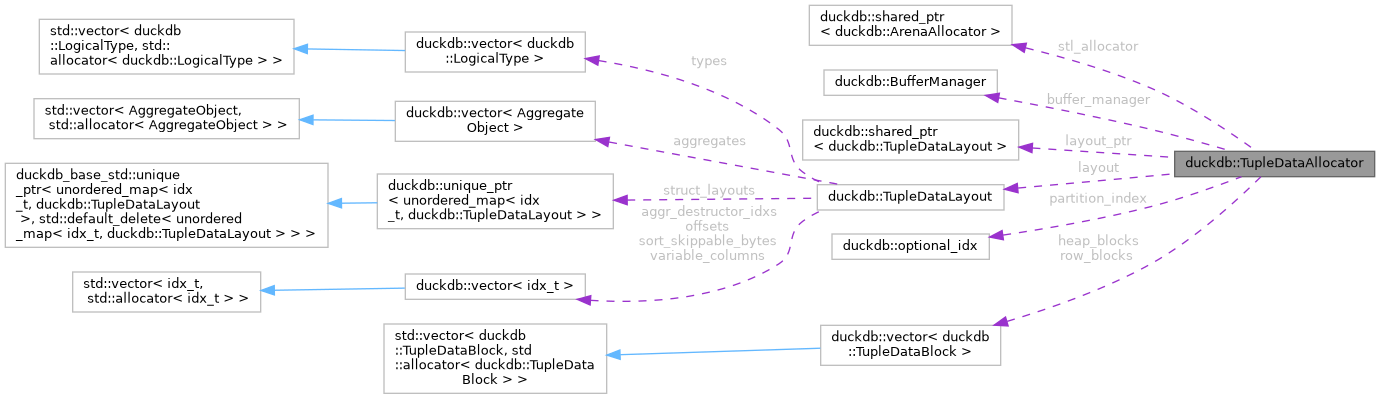

Collaboration diagram for duckdb::TupleDataAllocator:

[legend]

Public Member Functions
	TupleDataAllocator (BufferManager &buffer_manager, shared_ptr< TupleDataLayout > layout_ptr, MemoryTag tag, shared_ptr< ArenaAllocator > stl_allocator)

	TupleDataAllocator (TupleDataAllocator &allocator)

BufferManager &	GetBufferManager ()
	Get the buffer manager.

Allocator &	GetAllocator ()
	Get the buffer allocator.

ArenaAllocator &	GetStlAllocator ()
	Get the STL allocator.

shared_ptr< TupleDataLayout >	GetLayoutPtr () const
	Get the layout.

const TupleDataLayout &	GetLayout () const

idx_t	RowBlockCount () const
	Number of row blocks.

idx_t	HeapBlockCount () const
	Number of heap blocks.

void	SetPartitionIndex (idx_t index)
	Sets the partition index of this tuple data allocator.

void	Build (TupleDataSegment &segment, TupleDataPinState &pin_state, TupleDataChunkState &chunk_state, const idx_t append_offset, const idx_t append_count)
	Builds out the chunks for next append, given the metadata in the append state.

bool	BuildFastPath (TupleDataSegment &segment, TupleDataPinState &pin_state, TupleDataChunkState &chunk_state, const idx_t append_offset, const idx_t append_count)

void	InitializeChunkState (TupleDataSegment &segment, TupleDataPinState &pin_state, TupleDataChunkState &chunk_state, idx_t chunk_idx, bool init_heap, optional_ptr< SortKeyPayloadState > sort_key_payload_state=nullptr)
	Initializes a chunk, making its pointers valid.

void	ReleaseOrStoreHandles (TupleDataPinState &state, TupleDataSegment &segment, TupleDataChunk &chunk, bool release_heap)
	Releases or stores any handles in the management state that are no longer required.

void	ReleaseOrStoreHandles (TupleDataPinState &state, TupleDataSegment &segment)
	Releases or stores ALL handles in the management state.

void	SetDestroyBufferUponUnpin ()
	Sets 'can_destroy' to true for all blocks so they aren't added to the eviction queue.

void	DestroyRowBlocks (idx_t row_block_begin, idx_t row_block_end)
	Destroy the blocks between the given indices.

void	DestroyHeapBlocks (idx_t heap_block_begin, idx_t heap_block_end)

Static Public Member Functions
static void	RecomputeHeapPointers (Vector &old_heap_ptrs, const SelectionVector &old_heap_sel, const data_ptr_t row_locations[], Vector &new_heap_ptrs, const idx_t offset, const idx_t count, const TupleDataLayout &layout, const idx_t base_col_offset)

static void	FindHeapPointers (TupleDataChunkState &chunk_state, SelectionVector &not_found, idx_t &not_found_count, const TupleDataLayout &layout, const idx_t base_col_offset)

Private Member Functions
unsafe_arena_ptr< TupleDataChunkPart >	BuildChunkPart (TupleDataSegment &segment, TupleDataPinState &pin_state, TupleDataChunkState &chunk_state, const idx_t append_offset, const idx_t append_count, TupleDataChunk &chunk)
	Builds out a single part (grabs the lock)

void	InitializeChunkStateInternal (TupleDataPinState &pin_state, TupleDataChunkState &chunk_state, idx_t offset, bool recompute, bool init_heap_pointers, bool init_heap_sizes, unsafe_vector< reference< TupleDataChunkPart > > &parts, optional_ptr< SortKeyPayloadState > sort_key_payload_state=nullptr)
	Internal function for InitializeChunkState.

void	CreateRowBlock (TupleDataSegment &segment)
	Create a row/heap block, extend the pinned handles in the segment accordingly.

void	CreateHeapBlock (TupleDataSegment &segment, idx_t size)

BufferHandle &	PinRowBlock (TupleDataPinState &state, const TupleDataChunkPart &part)
	Pins the given row block.

BufferHandle &	PinHeapBlock (TupleDataPinState &state, const TupleDataChunkPart &part)
	Pins the given heap block.

data_ptr_t	GetRowPointer (TupleDataPinState &state, const TupleDataChunkPart &part)
	Gets the pointer to the rows for the given chunk part.

data_ptr_t	GetBaseHeapPointer (TupleDataPinState &state, const TupleDataChunkPart &part)
	Gets the base pointer to the heap for the given chunk part.

Static Private Member Functions
static void	ReleaseOrStoreHandlesInternal (TupleDataSegment &segment, unsafe_arena_vector< BufferHandle > &pinned_row_handles, buffer_handle_map_t &handles, const ContinuousIdSet &block_ids, unsafe_arena_vector< TupleDataBlock > &blocks, TupleDataPinProperties properties)
	Internal function for ReleaseOrStoreHandles.

Private Attributes
shared_ptr< ArenaAllocator >	stl_allocator
	Shared allocator for STL allocations.

BufferManager &	buffer_manager
	The buffer manager.

shared_ptr< TupleDataLayout >	layout_ptr
	The layout of the data.

const TupleDataLayout &	layout

const MemoryTag	tag
	Memory tag (for keeping track what the allocated memory belongs to)

optional_idx	partition_index
	Partition index (optional, if partitioned)

unsafe_arena_vector< TupleDataBlock >	row_blocks
	Blocks storing the fixed-size rows.

unsafe_arena_vector< TupleDataBlock >	heap_blocks
	Blocks storing the variable-size data of the fixed-size rows (e.g., string, list)

The documentation for this class was generated from the following file:

external/duckdb/duckdb.cpp
