#include <duckdb.hpp>

Inheritance diagram for duckdb::CachingPhysicalOperator:

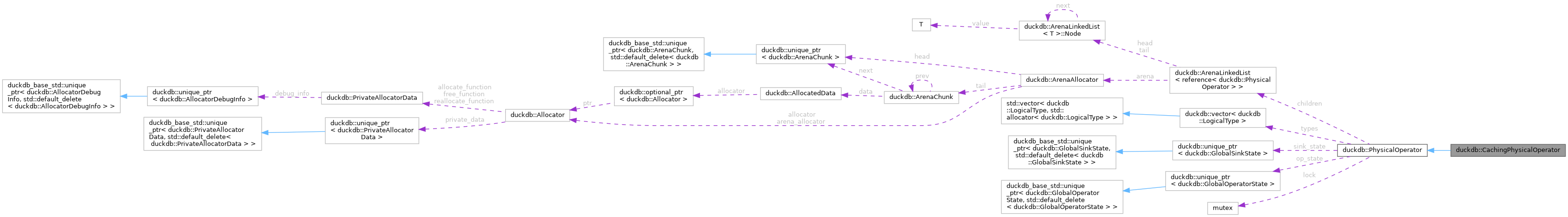

Collaboration diagram for duckdb::CachingPhysicalOperator:

[legend]

Public Member Functions
	CachingPhysicalOperator (PhysicalPlan &physical_plan, PhysicalOperatorType type, vector< LogicalType > types, idx_t estimated_cardinality)

OperatorResultType	Execute (ExecutionContext &context, DataChunk &input, DataChunk &chunk, GlobalOperatorState &gstate, OperatorState &state) const final

OperatorFinalizeResultType	FinalExecute (ExecutionContext &context, DataChunk &chunk, GlobalOperatorState &gstate, OperatorState &state) const final

bool	RequiresFinalExecute () const final

Public Member Functions inherited from duckdb::PhysicalOperator
	PhysicalOperator (PhysicalPlan &physical_plan, PhysicalOperatorType type, vector< LogicalType > types, idx_t estimated_cardinality)

	PhysicalOperator (const PhysicalOperator &other)=delete
	Deleted copy constructors.

PhysicalOperator &	operator= (const PhysicalOperator &)=delete

virtual string	GetName () const

virtual InsertionOrderPreservingMap< string >	ParamsToString () const

virtual string	ToString (ExplainFormat format=ExplainFormat::DEFAULT) const

void	Print () const

virtual vector< const_reference< PhysicalOperator > >	GetChildren () const

const vector< LogicalType > &	GetTypes () const
	Return a vector of the types that will be returned by this operator.

virtual bool	Equals (const PhysicalOperator &other) const

idx_t	EstimatedThreadCount () const
	Functions to help decide how to set up pipeline dependencies.

bool	CanSaturateThreads (ClientContext &context) const

virtual void	Verify ()

virtual unique_ptr< OperatorState >	GetOperatorState (ExecutionContext &context) const

virtual unique_ptr< GlobalOperatorState >	GetGlobalOperatorState (ClientContext &context) const

virtual OperatorFinalResultType	OperatorFinalize (Pipeline &pipeline, Event &event, ClientContext &context, OperatorFinalizeInput &input) const

virtual bool	ParallelOperator () const

virtual bool	RequiresOperatorFinalize () const

virtual OrderPreservationType	OperatorOrder () const
	The influence the operator has on order (insertion order means no influence)

virtual unique_ptr< LocalSourceState >	GetLocalSourceState (ExecutionContext &context, GlobalSourceState &gstate) const

virtual unique_ptr< GlobalSourceState >	GetGlobalSourceState (ClientContext &context) const

SourceResultType	GetData (ExecutionContext &context, DataChunk &chunk, OperatorSourceInput &input) const

virtual OperatorPartitionData	GetPartitionData (ExecutionContext &context, DataChunk &chunk, GlobalSourceState &gstate, LocalSourceState &lstate, const OperatorPartitionInfo &partition_info) const

virtual bool	IsSource () const

virtual bool	ParallelSource () const

virtual bool	SupportsPartitioning (const OperatorPartitionInfo &partition_info) const

virtual OrderPreservationType	SourceOrder () const
	The type of order emitted by the operator (as a source)

virtual ProgressData	GetProgress (ClientContext &context, GlobalSourceState &gstate) const
	Returns the current progress percentage, or a negative value if progress bars are not supported.

virtual ProgressData	GetSinkProgress (ClientContext &context, GlobalSinkState &gstate, const ProgressData source_progress) const
	Returns the current progress percentage, or a negative value if progress bars are not supported.

virtual InsertionOrderPreservingMap< string >	ExtraSourceParams (GlobalSourceState &gstate, LocalSourceState &lstate) const

virtual SinkResultType	Sink (ExecutionContext &context, DataChunk &chunk, OperatorSinkInput &input) const

virtual SinkCombineResultType	Combine (ExecutionContext &context, OperatorSinkCombineInput &input) const

virtual void	PrepareFinalize (ClientContext &context, GlobalSinkState &sink_state) const

virtual SinkFinalizeType	Finalize (Pipeline &pipeline, Event &event, ClientContext &context, OperatorSinkFinalizeInput &input) const

virtual SinkNextBatchType	NextBatch (ExecutionContext &context, OperatorSinkNextBatchInput &input) const

virtual unique_ptr< LocalSinkState >	GetLocalSinkState (ExecutionContext &context) const

virtual unique_ptr< GlobalSinkState >	GetGlobalSinkState (ClientContext &context) const

virtual bool	IsSink () const

virtual bool	ParallelSink () const

virtual OperatorPartitionInfo	RequiredPartitionInfo () const

virtual bool	SinkOrderDependent () const

virtual vector< const_reference< PhysicalOperator > >	GetSources () const

bool	AllSourcesSupportBatchIndex () const

virtual void	BuildPipelines (Pipeline &current, MetaPipeline &meta_pipeline)

template<class TARGET >
TARGET &	Cast ()

template<class TARGET >
const TARGET &	Cast () const

Public Attributes
bool	caching_supported

Public Attributes inherited from duckdb::PhysicalOperator
ArenaLinkedList< reference< PhysicalOperator > >	children
	The child operators.

PhysicalOperatorType	type
	The physical operator type.

vector< LogicalType >	types
	The return types.

idx_t	estimated_cardinality
	The estimated cardinality.

unique_ptr< GlobalSinkState >	sink_state
	The global sink state.

unique_ptr< GlobalOperatorState >	op_state
	The global operator state.

mutex	lock
	Lock for (re)setting any of the operator states.

Static Public Attributes
static constexpr const idx_t	CACHE_THRESHOLD = 64

Static Public Attributes inherited from duckdb::PhysicalOperator
static constexpr const PhysicalOperatorType	TYPE = PhysicalOperatorType::INVALID

Protected Member Functions
virtual OperatorResultType	ExecuteInternal (ExecutionContext &context, DataChunk &input, DataChunk &chunk, GlobalOperatorState &gstate, OperatorState &state) const =0
	Child classes need to implement the ExecuteInternal method instead of the Execute.

Protected Member Functions inherited from duckdb::PhysicalOperator
virtual SourceResultType	GetDataInternal (ExecutionContext &context, DataChunk &chunk, OperatorSourceInput &input) const

Private Member Functions
bool	CanCacheType (const LogicalType &type)

Additional Inherited Members
Static Public Member Functions inherited from duckdb::PhysicalOperator
static void	SetEstimatedCardinality (InsertionOrderPreservingMap< string > &result, idx_t estimated_cardinality)

static idx_t	GetMaxThreadMemory (ClientContext &context)
	The maximum amount of memory the operator should use per thread.

static OperatorCachingMode	SelectOperatorCachingMode (ExecutionContext &context)
	Whether operator caching is allowed in the current execution context.

Detailed Description

Base class that caches output from child Operator class. Note that Operators inheriting from this class should also inherit their state class from the CachingOperatorState.

Member Function Documentation

◆ Execute()

OperatorResultType duckdb::CachingPhysicalOperator::Execute	(	ExecutionContext &	context,
		DataChunk &	input,
		DataChunk &	chunk,
		GlobalOperatorState &	gstate,
		OperatorState &	state
	)		const

finalvirtual

This Execute will prevent small chunks from entering the pipeline, buffering them until a bigger chunk is created.

Reimplemented from duckdb::PhysicalOperator.

◆ FinalExecute()

OperatorFinalizeResultType duckdb::CachingPhysicalOperator::FinalExecute	(	ExecutionContext &	context,
		DataChunk &	chunk,
		GlobalOperatorState &	gstate,
		OperatorState &	state
	)		const

finalvirtual

FinalExecute is used here to send out the remainder of the chunk (< STANDARD_VECTOR_SIZE) that we still had cached.

Reimplemented from duckdb::PhysicalOperator.

◆ RequiresFinalExecute()

bool duckdb::CachingPhysicalOperator::RequiresFinalExecute ( ) const

inlinefinalvirtual

Reimplemented from duckdb::PhysicalOperator.

                                            {
        return caching_supported;
    }

The documentation for this class was generated from the following file:

external/duckdb/duckdb.hpp
