Stores the database in a single file. More...

Inheritance diagram for duckdb::SingleFileStorageManager:

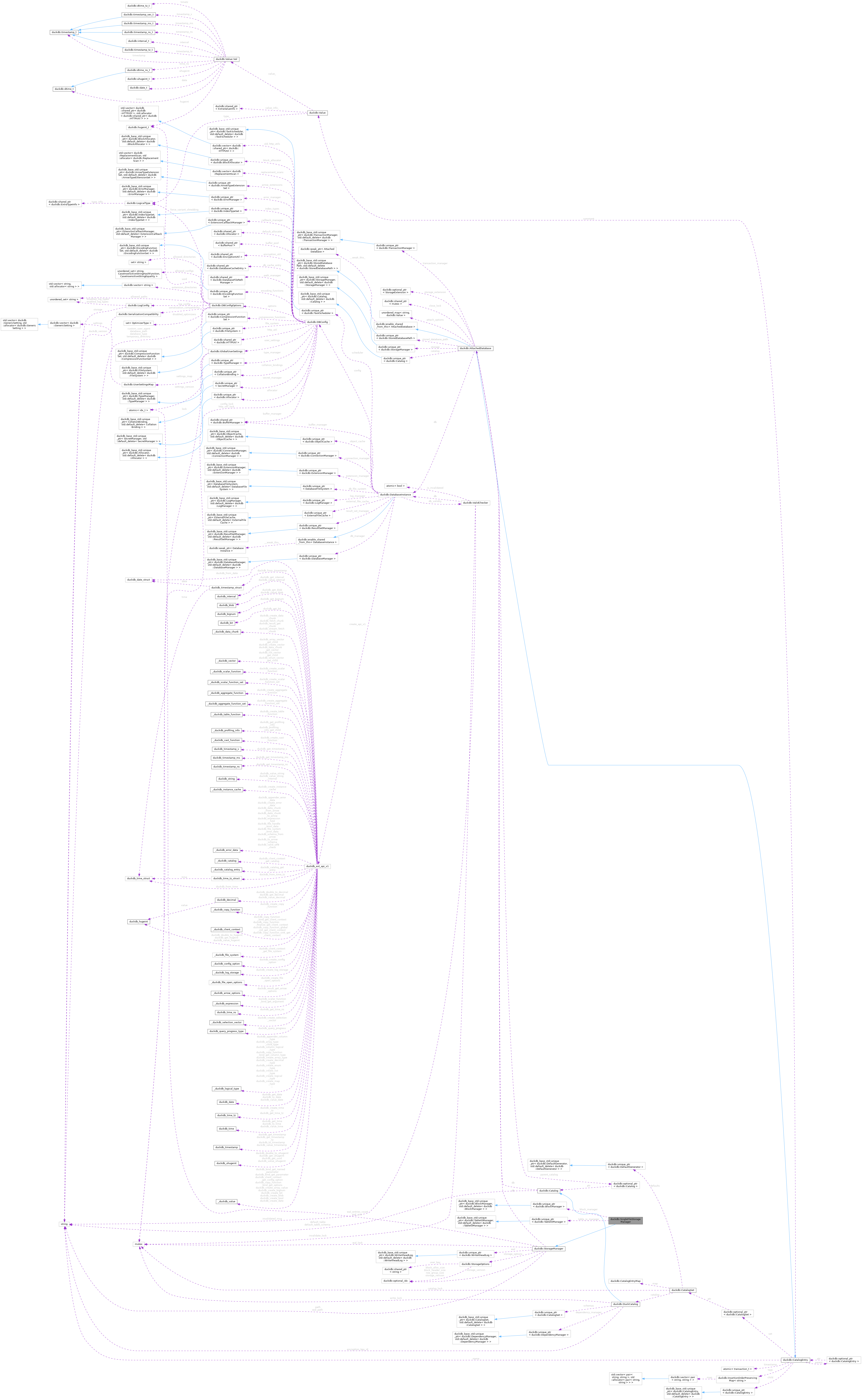

Collaboration diagram for duckdb::SingleFileStorageManager:

[legend]

Public Member Functions
	SingleFileStorageManager (AttachedDatabase &db, string path, AttachOptions &options)

bool	AutomaticCheckpoint (idx_t estimated_wal_bytes) override

unique_ptr< StorageCommitState >	GenStorageCommitState (WriteAheadLog &wal) override

bool	IsCheckpointClean (MetaBlockPointer checkpoint_id) override

void	CreateCheckpoint (QueryContext context, CheckpointOptions options) override

DatabaseSize	GetDatabaseSize () override

vector< MetadataBlockInfo >	GetMetadataInfo () override

shared_ptr< TableIOManager >	GetTableIOManager (BoundCreateTableInfo *info) override

BlockManager &	GetBlockManager () override

void	Destroy () override

Public Member Functions inherited from duckdb::StorageManager
	StorageManager (AttachedDatabase &db, string path, AttachOptions &options)

void	Initialize (QueryContext context)

DatabaseInstance &	GetDatabase ()

AttachedDatabase &	GetAttached () const

idx_t	GetWALSize ()
	Gets the size of the WAL, or zero, if there is no WAL.

bool	HasWAL () const

void	AddWALSize (idx_t size)

void	SetWALSize (idx_t size)

idx_t	GetWALEntriesCount () const
	Gets the number of WAL entries since last checkpoint.

void	ResetWALEntriesCount ()

void	IncrementWALEntriesCount ()

optional_ptr< WriteAheadLog >	GetWAL ()
	Gets the WAL of the StorageManager, or nullptr, if there is no WAL.

bool	WALStartCheckpoint (MetaBlockPointer meta_block, CheckpointOptions &options)
	Write that we started a checkpoint to the WAL if there is one - returns whether or not there is a WAL.

void	WALFinishCheckpoint (lock_guard< mutex > &wal_lock)
	Finishes a checkpoint.

unique_ptr< lock_guard< mutex > >	GetWALLock ()

string	GetDBPath () const
	Returns the database file path.

bool	IsLoaded () const

string	GetWALPath (const string &suffix=".wal")
	The path to the WAL, derived from the database file path.

string	GetCheckpointWALPath ()
	The path to the WAL that is used while a checkpoint is running.

string	GetRecoveryWALPath ()
	The path to the WAL that is used while recovering from a crash involving the checkpoint WAL.

bool	InMemory () const

void	SetStorageVersion (idx_t version)

bool	HasStorageVersion () const

idx_t	GetStorageVersion () const

bool	CompressionIsEnabled () const

EncryptionTypes::CipherType	GetCipher () const

void	SetCipher (EncryptionTypes::CipherType cipher_p)

void	SetEncryptionVersion (EncryptionTypes::EncryptionVersion version)

bool	IsEncrypted () const

EncryptionTypes::EncryptionVersion	GetEncryptionVersion () const

template<class TARGET >
TARGET &	Cast ()

template<class TARGET >
const TARGET &	Cast () const

Public Attributes
unique_ptr< BlockManager >	block_manager
	The BlockManager to read from and write to blocks, both for the metadata and the data itself.

unique_ptr< TableIOManager >	table_io_manager
	The table I/O manager.

Protected Member Functions
void	LoadDatabase (QueryContext context) override

unique_ptr< CheckpointWriter >	CreateCheckpointWriter (QueryContext context, CheckpointOptions options)

Additional Inherited Members
Static Public Member Functions inherited from duckdb::StorageManager
static StorageManager &	Get (AttachedDatabase &db)

static StorageManager &	Get (Catalog &catalog)

Protected Attributes inherited from duckdb::StorageManager
AttachedDatabase &	db
	The attached database managed by this storage manager.

string	path
	The path of the database.

string	wal_path
	The WAL path.

unique_ptr< WriteAheadLog >	wal
	The WriteAheadLog of the storage manager.

mutex	wal_lock
	Mutex used to control writes to the WAL.

bool	read_only
	Whether or not the database is opened in read-only mode.

bool	load_complete = false

optional_idx	storage_version
	The serialization compatibility version when reading and writing from this database.

atomic< idx_t >	wal_size

atomic< idx_t >	wal_entries_count

StorageOptions	storage_options
	Storage options passed in through configuration.
