duckdb::Node Class Reference

Inheritance diagram for duckdb::Node:

Collaboration diagram for duckdb::Node:

Public Member Functions
void	ReplaceChild (const ART &art, const uint8_t byte, const Node child=Node()) const
	Replace the child at byte.
const unsafe_optional_ptr< Node >	GetChild (ART &art, const uint8_t byte) const
	Get the immutable child at byte.
unsafe_optional_ptr< Node >	GetChildMutable (ART &art, const uint8_t byte, const bool unsafe=false) const
	Get the child at byte.
const unsafe_optional_ptr< Node >	GetNextChild (ART &art, uint8_t &byte) const
	Get the first immutable child greater than or equal to the byte.
bool	HasByte (ART &art, const uint8_t byte) const
	Returns true, if the byte exists, else false.
bool	GetNextByte (ART &art, uint8_t &byte) const
	Get the first byte greater than or equal to the byte.
void	Verify (ART &art) const
	Traverses and verifies the node.
void	VerifyAllocations (ART &art, unordered_map< uint8_t, idx_t > &node_counts) const
	Counts each node type.
string	ToString (ART &art, const ToStringOptions &options) const
NType	GetType () const
	Returns the node type.
bool	IsNode () const
	True, if the node is a Node4, Node16, Node48, or Node256.
bool	IsLeafNode () const
	True, if the node is a Node7Leaf, Node15Leaf, or Node256Leaf.
bool	IsAnyLeaf () const
	True, if the node is any leaf.
row_t	GetRowId () const
	Get the row ID (8th to 63rd bit).
void	SetRowId (const row_t row_id)
	Set the row ID (8th to 63rd bit).
GateStatus	GetGateStatus () const
	Returns the gate status of a node.
void	SetGateStatus (const GateStatus status)
	Sets the gate status of a node.
void	operator= (const IndexPointer &ptr)
	Assign operator.
Public Member Functions inherited from duckdb::IndexPointer
	IndexPointer ()
	Constructs an empty IndexPointer.
	IndexPointer (const uint32_t buffer_id, const uint32_t offset)
	Constructs an in-memory IndexPointer with a buffer ID and an offset.
idx_t	Get () const
	Get data (all 64 bits)
void	Set (const idx_t data_p)
	Set data (all 64 bits)
bool	HasMetadata () const
	Returns false, if the metadata is empty.
uint8_t	GetMetadata () const
	Get metadata (Bits 56-63)
void	SetMetadata (const uint8_t metadata)
	Set metadata (Bits 56-63)
idx_t	GetOffset () const
	Get the offset (Bits 32-55)
idx_t	GetBufferId () const
	Get the buffer ID (Bits 0-31)
void	Clear ()
	Resets the IndexPointer.
void	IncreaseBufferId (const idx_t summand)
	Adds an idx_t to a buffer ID, the rightmost 32 bits of data (Bits 0-31) contain the buffer ID.
bool	operator== (const IndexPointer &ptr) const
	Comparison operator.

Static Public Member Functions
static void	New (ART &art, Node &node, const NType type)
	Get a new pointer to a node and initialize it.
static void	FreeNode (ART &art, Node &node)
	Free the node.
static void	FreeTree (ART &art, Node &node)
	Free the node and its children.
static FixedSizeAllocator &	GetAllocator (const ART &art, const NType type)
	Get a reference to the allocator.
static uint8_t	GetAllocatorIdx (const NType type)
	Get the index of a node type's allocator.
template<class NODE >
static NODE &	Ref (const ART &art, const Node ptr, const NType type)
	Get a reference to a node.
template<class NODE >
static unsafe_optional_ptr< NODE >	InMemoryRef (const ART &art, const Node ptr, const NType type)
	Get a node pointer, if the node is in memory, else nullptr.
static void	InsertChild (ART &art, Node &node, const uint8_t byte, const Node child=Node())
	Insert the child at byte.
static void	DeleteChild (ART &art, Node &node, Node &prefix, const uint8_t byte, const GateStatus status, const ARTKey &row_id)
	Delete the child at byte.
static NType	GetNodeType (const idx_t count)
	Returns the node type for a count.
static void	TransformToDeprecated (ART &art, Node &node, TransformToDeprecatedState &state)
	Transform the node storage to deprecated storage.

Static Public Attributes
static constexpr uint8_t	AND_GATE = 0x80
	A gate sets the leftmost bit of the metadata, binary: 1000-0000.
static constexpr idx_t	AND_ROW_ID = 0x00FFFFFFFFFFFFFF
Static Public Attributes inherited from duckdb::IndexPointer
static constexpr idx_t	SHIFT_OFFSET = 32
	Bit-shifting.
static constexpr idx_t	SHIFT_METADATA = 56
static constexpr idx_t	AND_OFFSET = 0x0000000000FFFFFF
	AND operations.
static constexpr idx_t	AND_BUFFER_ID = 0x00000000FFFFFFFF
static constexpr idx_t	AND_METADATA = 0xFF00000000000000

Friends
class	Prefix

Detailed Description

The Node is the pointer class of the ART index. It inherits from the IndexPointer, and adds ART-specific functionality.

Member Function Documentation

Ref()

template<class NODE >

static NODE & duckdb::Node::Ref ( const ART &  art, const Node  ptr, const NType  type  )

inlinestatic

Get a reference to a node.

                                                                              {
        D_ASSERT(ptr.GetType() != NType::PREFIX);
        return *(GetAllocator(art, type).Get<NODE>(ptr, !std::is_const<NODE>::value));
    }

Here is the call graph for this function:

InMemoryRef()

template<class NODE >

static unsafe_optional_ptr< NODE > duckdb::Node::InMemoryRef ( const ART &  art, const Node  ptr, const NType  type  )

inlinestatic

Get a node pointer, if the node is in memory, else nullptr.

                                                                                                          {
        D_ASSERT(ptr.GetType() != NType::PREFIX);
        return GetAllocator(art, type).GetIfLoaded<NODE>(ptr);
    }

Here is the call graph for this function:

ToString()

string duckdb::Node::ToString	(	ART &	art,
		const ToStringOptions &	options
	)		const

Returns the string representation of the node at indentation level.

Parameters:

• art: root node of tree being printed.
• options: Printing options (see ToStringOptions struct for details).

GetType()

NType duckdb::Node::GetType ( ) const

inline

Returns the node type.

                                 {
        return NType(GetMetadata() & ~AND_GATE);
    }

Here is the call graph for this function:

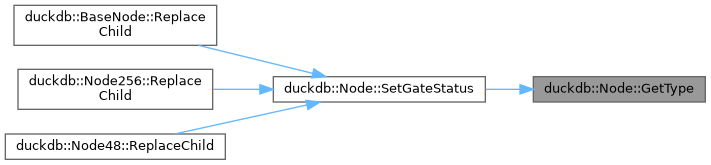

Here is the caller graph for this function:

GetRowId()

row_t duckdb::Node::GetRowId ( ) const

inline

Get the row ID (8th to 63rd bit).

                                  {
        return UnsafeNumericCast<row_t>(Get() & AND_ROW_ID);
    }

Here is the call graph for this function:

SetRowId()

void duckdb::Node::SetRowId ( const row_t  row_id )

inline

Set the row ID (8th to 63rd bit).

                                             {
        Set((Get() & AND_METADATA) | UnsafeNumericCast<idx_t>(row_id));
    }

Here is the call graph for this function:

GetGateStatus()

GateStatus duckdb::Node::GetGateStatus ( ) const

inline

Returns the gate status of a node.

                                            {
        return (GetMetadata() & AND_GATE) == 0 ? GateStatus::GATE_NOT_SET : GateStatus::GATE_SET;
    }

Here is the call graph for this function:

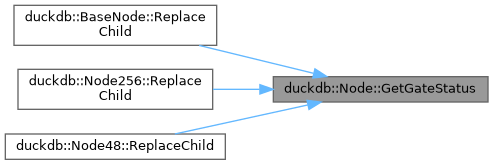

Here is the caller graph for this function:

SetGateStatus()

void duckdb::Node::SetGateStatus ( const GateStatus  status )

inline

Sets the gate status of a node.

                                                       {
        switch (status) {
        case GateStatus::GATE_SET:
            D_ASSERT(GetType() != NType::LEAF_INLINED);
            SetMetadata(GetMetadata() | AND_GATE);
            break;
        case GateStatus::GATE_NOT_SET:
            SetMetadata(GetMetadata() & ~AND_GATE);
            break;
        }
    }

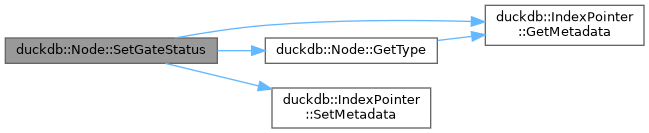

Here is the call graph for this function:

Here is the caller graph for this function:

operator=()

void duckdb::Node::operator= ( const IndexPointer &  ptr )

inline

Assign operator.

                                                   {
        Set(ptr.Get());
    }

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.cpp
