duckdb::PartitionedTupleData Class Reference

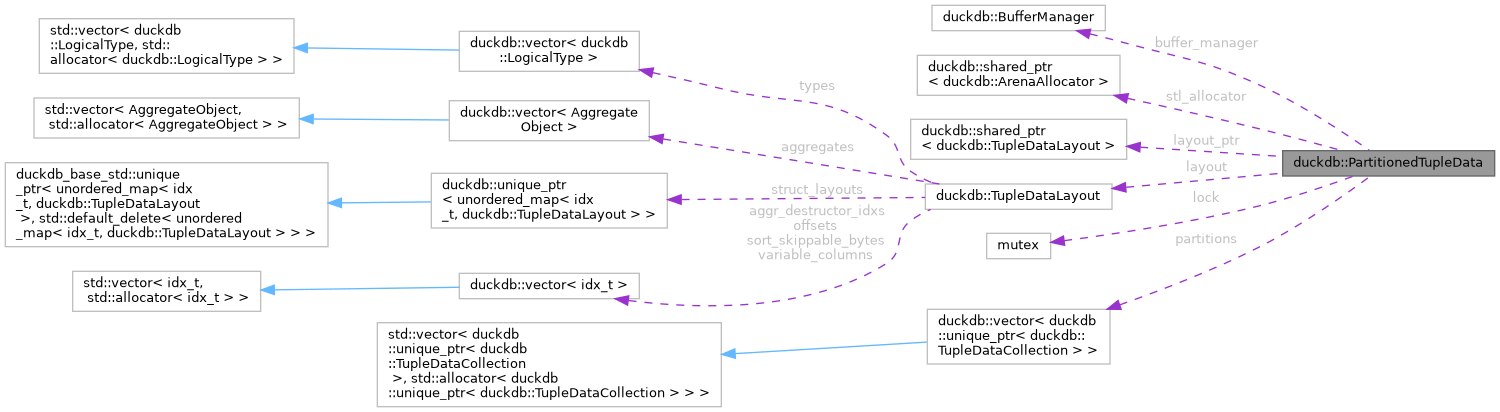

Collaboration diagram for duckdb::PartitionedTupleData:

Public Member Functions
shared_ptr< TupleDataLayout >	GetLayoutPtr () const
	Get the layout of this PartitionedTupleData.
const TupleDataLayout &	GetLayout () const
PartitionedTupleDataType	GetType () const
	Get the partitioning type of this PartitionedTupleData.
void	InitializeAppendState (PartitionedTupleDataAppendState &state, TupleDataPinProperties properties=TupleDataPinProperties::UNPIN_AFTER_DONE) const
	Initializes a local state for parallel partitioning that can be merged into this PartitionedTupleData.
void	Append (PartitionedTupleDataAppendState &state, DataChunk &input, const SelectionVector &append_sel= *FlatVector::IncrementalSelectionVector(), const idx_t append_count=DConstants::INVALID_INDEX)
	Appends a DataChunk to this PartitionedTupleData.
void	AppendUnified (PartitionedTupleDataAppendState &state, DataChunk &input, const SelectionVector &append_sel= *FlatVector::IncrementalSelectionVector(), const idx_t append_count=DConstants::INVALID_INDEX)
void	Append (PartitionedTupleDataAppendState &state, TupleDataChunkState &input, const idx_t count)
	Appends rows to this PartitionedTupleData.
void	FlushAppendState (PartitionedTupleDataAppendState &state)
	Flushes any remaining data in the append state into this PartitionedTupleData.
void	Combine (PartitionedTupleData &other)
	Combine another PartitionedTupleData into this PartitionedTupleData.
void	Reset ()
	Resets this PartitionedTupleData.
void	Repartition (ClientContext &context, PartitionedTupleData &new_partitioned_data)
	Repartition this PartitionedTupleData into the new PartitionedTupleData.
void	Unpin ()
	Unpins the data.
unsafe_vector< unique_ptr< TupleDataCollection > > &	GetPartitions ()
	Get the partitions in this PartitionedTupleData.
unique_ptr< TupleDataCollection >	GetUnpartitioned ()
	Get the data of this PartitionedTupleData as a single unpartitioned TupleDataCollection.
idx_t	Count () const
	Get the count of this PartitionedTupleData.
idx_t	SizeInBytes () const
	Get the size (in bytes) of this PartitionedTupleData.
idx_t	PartitionCount () const
	Get the number of partitions of this PartitionedTupleData.
void	GetSizesAndCounts (vector< idx_t > &partition_sizes, vector< idx_t > &partition_counts) const
	Get the count and size of the largest partition.
string	ToString ()
	Converts this PartitionedTupleData to a string representation.
void	Print ()
	Prints the string representation of this PartitionedTupleData.
template<class TARGET >
TARGET &	Cast ()
template<class TARGET >
const TARGET &	Cast () const

Protected Member Functions
virtual void	InitializeAppendStateInternal (PartitionedTupleDataAppendState &state, TupleDataPinProperties properties) const
	Initialize a PartitionedTupleDataAppendState for this type of partitioning (optional)
virtual void	ComputePartitionIndices (PartitionedTupleDataAppendState &state, DataChunk &input, const SelectionVector &append_sel, const idx_t append_count)
virtual void	ComputePartitionIndices (Vector &row_locations, idx_t append_count, Vector &partition_indices, unique_ptr< Vector > &utility_vector) const
	Compute partition indices from rows (similar to function above)
virtual idx_t	MaxPartitionIndex () const
	Maximum partition index (optional)
virtual void	RepartitionFinalizeStates (PartitionedTupleData &old_partitioned_data, PartitionedTupleData &new_partitioned_data, PartitionedTupleDataAppendState &state, idx_t finished_partition_idx) const
	Finalize states while repartitioning - useful for unpinning blocks that are no longer needed (optional)
	PartitionedTupleData (PartitionedTupleDataType type, BufferManager &buffer_manager, shared_ptr< TupleDataLayout > &layout_ptr, MemoryTag tag)
	PartitionedTupleData can only be instantiated by derived classes.
	PartitionedTupleData (PartitionedTupleData &other)
bool	UseFixedSizeMap () const
	Whether to use fixed size map or regular map.
void	BuildPartitionSel (PartitionedTupleDataAppendState &state, const SelectionVector &append_sel, const idx_t append_count) const
void	BuildBufferSpace (PartitionedTupleDataAppendState &state)
	Builds out the buffer space in the partitions.
template<bool fixed>
void	BuildBufferSpace (PartitionedTupleDataAppendState &state)
unique_ptr< TupleDataCollection >	CreatePartitionCollection ()
	Create a collection for a specific a partition.
void	Verify () const
	Verify count/data size of this PartitionedTupleData.

Static Protected Member Functions
template<bool fixed>
static void	BuildPartitionSel (PartitionedTupleDataAppendState &state, const SelectionVector &append_sel, const idx_t append_count, const idx_t max_partition_idx)

Protected Attributes
PartitionedTupleDataType	type
BufferManager &	buffer_manager
shared_ptr< ArenaAllocator >	stl_allocator
shared_ptr< TupleDataLayout >	layout_ptr
const TupleDataLayout &	layout
const MemoryTag	tag
idx_t	count
idx_t	data_size
mutex	lock
unsafe_vector< unique_ptr< TupleDataCollection > >	partitions

Detailed Description

PartitionedTupleData represents partitioned row data, which serves as an interface for different types of partitioning, e.g., radix, hive

Member Function Documentation

AppendUnified()

void duckdb::PartitionedTupleData::AppendUnified	(	PartitionedTupleDataAppendState &	state,
		DataChunk &	input,
		const SelectionVector &	append_sel = *FlatVector::IncrementalSelectionVector(),
		const idx_t	append_count = DConstants::INVALID_INDEX
	)

Appends a DataChunk to this PartitionedTupleData

• ToUnifiedFormat has already been called

InitializeAppendStateInternal()

virtual void duckdb::PartitionedTupleData::InitializeAppendStateInternal ( PartitionedTupleDataAppendState &  state, TupleDataPinProperties  properties  ) const

inlineprotectedvirtual

Initialize a PartitionedTupleDataAppendState for this type of partitioning (optional)

                                                                                        {
    }

ComputePartitionIndices() [1/2]

virtual void duckdb::PartitionedTupleData::ComputePartitionIndices ( PartitionedTupleDataAppendState &  state, DataChunk &  input, const SelectionVector &  append_sel, const idx_t  append_count  )

inlineprotectedvirtual

Compute the partition indices for this type of partitioning for the input DataChunk and store them in the partition_data of the local state. If this type creates partitions on the fly (for, e.g., hive), this function is also in charge of creating new partitions and mapping the input data to a partition index

                                                                                                      {
        throw NotImplementedException("ComputePartitionIndices for this type of PartitionedTupleData");
    }

ComputePartitionIndices() [2/2]

virtual void duckdb::PartitionedTupleData::ComputePartitionIndices ( Vector &  row_locations, idx_t  append_count, Vector &  partition_indices, unique_ptr< Vector > &  utility_vector  ) const

inlineprotectedvirtual

Compute partition indices from rows (similar to function above)

                                                                                   {
        throw NotImplementedException("ComputePartitionIndices for this type of PartitionedTupleData");
    }

MaxPartitionIndex()

virtual idx_t duckdb::PartitionedTupleData::MaxPartitionIndex ( ) const

inlineprotectedvirtual

Maximum partition index (optional)

                                            {
        return DConstants::INVALID_INDEX;
    }

RepartitionFinalizeStates()

virtual void duckdb::PartitionedTupleData::RepartitionFinalizeStates ( PartitionedTupleData &  old_partitioned_data, PartitionedTupleData &  new_partitioned_data, PartitionedTupleDataAppendState &  state, idx_t  finished_partition_idx  ) const

inlineprotectedvirtual

Finalize states while repartitioning - useful for unpinning blocks that are no longer needed (optional)

                                                                                                                       {
    }

BuildPartitionSel()

void duckdb::PartitionedTupleData::BuildPartitionSel ( PartitionedTupleDataAppendState &  state, const SelectionVector &  append_sel, const idx_t  append_count  ) const

protected

Builds a selection vector in the Append state for the partitions

• returns true if everything belongs to the same partition - stores partition index in single_partition_idx

CreatePartitionCollection()

unique_ptr< TupleDataCollection > duckdb::PartitionedTupleData::CreatePartitionCollection ( )

inlineprotected

Create a collection for a specific a partition.

                                                                {
        return make_uniq<TupleDataCollection>(buffer_manager, layout_ptr, tag, stl_allocator);
    }

Cast() [1/2]

template<class TARGET >

TARGET & duckdb::PartitionedTupleData::Cast ( )

inline

                   {
        DynamicCastCheck<TARGET>(this);
        return reinterpret_cast<TARGET &>(*this);
    }

Cast() [2/2]

template<class TARGET >

const TARGET & duckdb::PartitionedTupleData::Cast ( ) const

inline

                               {
        DynamicCastCheck<TARGET>(this);
        return reinterpret_cast<const TARGET &>(*this);
    }

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.cpp
