VisualizationHandler Class Reference

The VisualizationHandler class manages persistent world state and hosts a 3D web server for interactive visualization. More...

#include <VisualizationHandler.h>

Inheritance diagram for VisualizationHandler:

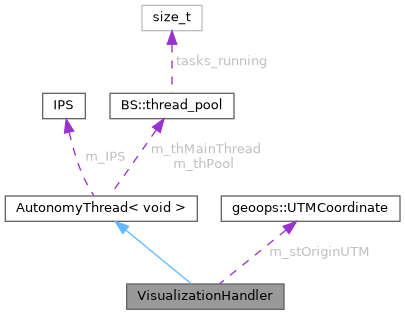

Collaboration diagram for VisualizationHandler:

Classes
struct	DisplayDetection
	Struct representing a persistent detection for visualization. More...
struct	DisplayPoint
	Struct representing a single point in the path history. More...
struct	DisplayWaypoint
	Struct representing a waypoint or goal beacon for visualization. More...

Public Member Functions
	VisualizationHandler (int nPort=8080)
	Construct a new Visualization Handler:: Visualization Handler object.
	~VisualizationHandler ()
	Destroy the Visualization Handler:: Visualization Handler object.
void	SaveVisualization (const std::string &szFilename)
	Save the current visualization to a single HTML file with embedded assets.
Public Member Functions inherited from AutonomyThread< void >
	AutonomyThread ()
	Construct a new Autonomy Thread object.
virtual	~AutonomyThread ()
	Destroy the Autonomy Thread object. If the parent object or main thread is destroyed or exited while this thread is still running, a race condition will occur. Stopping and joining the thread here insures that the main program can't exit if the user forgot to stop and join the thread.
void	Start ()
	When this method is called, it starts a new thread that runs the code within the ThreadedContinuousCode method. This is the users main code that will run the important and continuous code for the class.
void	RequestStop ()
	Signals threads to stop executing user code, terminate. DOES NOT JOIN. This method will not force the thread to exit, if the user code is not written properly and contains WHILE statement or any other long-executing or blocking code, then the thread will not exit until the next iteration.
void	Join ()
	Waits for thread to finish executing and then closes thread. This method will block the calling code until thread is finished.
bool	Joinable () const
	Check if the code within the thread and all pools created by it are finished executing and the thread is ready to be closed.
AutonomyThreadState	GetThreadState () const
	Accessor for the Threads State private member.
std::string	GetThreadUUID () const
	Accessor for the Thread U U I D private member.
IPS &	GetIPS ()
	Accessor for the Frame I P S private member.
void	SetMainThreadPriority (AutonomyThreadPriority ePriority)
	Set the OS priority for the main continuous thread.
void	SetPoolThreadPriority (AutonomyThreadPriority ePriority)
	Set the OS priority for the highly parallelized pool threads.

Private Member Functions
void	UpdatePathHistory (const geoops::UTMCoordinate &stRoverUTM)
	Update the path history with the current rover position.
void	UpdatePlannedPath ()
	Updates the planned path from the waypoint handler.
void	UpdateWaypoints ()
	Updates the waypoints from the waypoint handler.
void	UpdateGoalBeacons (const geoops::UTMCoordinate &stRoverUTM)
	Updates the persistent goal beacons for visualization.
void	UpdateDetections ()
	Updates the persistent detections for visualization.
std::vector< char >	OnRequestTelemetry (const std::string &szQuery)
	Handles telemetry requests from the web server.
std::vector< char >	OnRequestMap (const std::string &szQuery)
	Handles map data requests from the web server.
std::vector< char >	OnRequestPlannedPath (const std::string &szQuery)
	Handles planned path requests from the web server.
std::vector< char >	OnRequestWaypoints (const std::string &szQuery)
	Handles waypoint requests from the web server.
std::vector< char >	OnRequestDetections (const std::string &szQuery)
	Handles detection requests from the web server.
std::vector< char >	OnRequestDetectionList (const std::string &szQuery)
	Handles detection list requests from the web server.
std::vector< char >	OnRequestLibThree (const std::string &szQuery)
	Serves the local three.min.js file.
std::vector< char >	OnRequestLibOrbit (const std::string &szQuery)
	Serves the local OrbitControls.js file.
std::vector< char >	LoadFileToBuffer (const std::string &szPath)
	Helper to load a file into a byte buffer.
std::string	Base64Encode (const std::vector< char > &vData)
	Encodes binary data to a Base64 string.
std::string	GetEmbeddedHtml ()
	Gets the embedded HTML for the visualization page.
std::string	GenerateStaticHtml (const std::vector< LiDARHandler::PointRow > &vLidar)
	Generates a static HTML page with embedded LiDAR data and embedded dependencies.
void	ThreadedContinuousCode () override
	The main continuous code for the VisualizationHandler.
void	PooledLinearCode () override
	The pooled linear code for the VisualizationHandler. This is not used.

Private Attributes
std::unique_ptr< SimpleWebServer >	m_pWebServer
int	m_nPort
geoops::UTMCoordinate	m_stOriginUTM
bool	m_bOriginSet
std::vector< DisplayPoint >	m_vPathHistory
std::mutex	m_muPathMutex
std::vector< DisplayPoint >	m_vPlannedPath
std::mutex	m_muPlannedPathMutex
std::vector< DisplayWaypoint >	m_vWaypoints
std::mutex	m_muWaypointMutex
std::vector< DisplayWaypoint >	m_vGoalBeacons
std::mutex	m_muGoalBeaconMutex
std::vector< DisplayDetection >	m_vDetections
std::mutex	m_muDetectionMutex

Additional Inherited Members
Public Types inherited from AutonomyThread< void >
enum	AutonomyThreadState
enum	AutonomyThreadPriority
Protected Member Functions inherited from AutonomyThread< void >
void	RunPool (const unsigned int nNumTasksToQueue, const unsigned int nNumThreads=2, const bool bForceStopCurrentThreads=false)
	When this method is called, it starts/adds tasks to a thread pool that runs nNumTasksToQueue copies of the code within the PooledLinearCode() method using nNumThreads number of threads. This is meant to be used as an internal utility of the child class to further improve parallelization. Default value for nNumThreads is 2.
void	RunDetachedPool (const unsigned int nNumTasksToQueue, const unsigned int nNumThreads=2, const bool bForceStopCurrentThreads=false)
	When this method is called, it starts a thread pool full of threads that don't return std::futures (like a placeholder for the thread return type). This means the thread will not have a return type and there is no way to determine if the thread has finished other than calling the Join() method. Only use this if you want to 'set and forget'. It will be faster as it doesn't return futures. Runs PooledLinearCode() method code. This is meant to be used as an internal utility of the child class to further improve parallelization.
void	ParallelizeLoop (const int nNumThreads, const N tTotalIterations, F &&tLoopFunction)
	Given a ref-qualified looping function and an arbitrary number of iterations, this method will divide up the loop and run each section in a thread pool. This function must not return anything. This method will block until the loop has completed.
void	ClearPoolQueue ()
	Clears any tasks waiting to be ran in the queue, tasks currently running will remain running.
void	JoinPool ()
	Waits for pool to finish executing tasks. This method will block the calling code until thread is finished.
bool	PoolJoinable () const
	Check if the internal pool threads are done executing code and the queue is empty.
void	SetMainThreadIPSLimit (int nMaxIterationsPerSecond=0)
	Mutator for the Main Thread Max I P S private member.
int	GetPoolNumOfThreads ()
	Accessor for the Pool Num Of Threads private member.
int	GetPoolQueueLength ()
	Accessor for the Pool Queue Size private member.
std::vector< void >	GetPoolResults ()
	Accessor for the Pool Results private member. The action of getting results will destroy and remove them from this object. This method blocks if the thread is not finished, so no need to call JoinPool() before getting results.
int	GetMainThreadMaxIPS () const
	Accessor for the Main Thread Max I P S private member.
Protected Attributes inherited from AutonomyThread< void >
IPS	m_IPS

Detailed Description

The VisualizationHandler class manages persistent world state and hosts a 3D web server for interactive visualization.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-20

Constructor & Destructor Documentation

VisualizationHandler()

VisualizationHandler::VisualizationHandler

(

int

nPort = 8080

)

Construct a new Visualization Handler:: Visualization Handler object.

Parameters

nPort

- The port to host the web server on.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Initialize member variables.
    m_nPort      = nPort;
    m_bOriginSet = false;

    // Start Web Server.
    m_pWebServer = std::make_unique<SimpleWebServer>(m_nPort);

    // Serve the detections folder as static files from the current logging session
    // This allows access via http://ip:port/detections/filename.png
    std::string szDetectionsPath = logging::g_szLoggingOutputPath + "detections";
    m_pWebServer->AddStaticDirectory("/detections", szDetectionsPath);

    // Register Asset Endpoints.
    m_pWebServer->RegisterEndpoint("/lib/three.js", std::bind(&VisualizationHandler::OnRequestLibThree, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/lib/orbit.js", std::bind(&VisualizationHandler::OnRequestLibOrbit, this, std::placeholders::_1));

    // Register Data Endpoints.
    m_pWebServer->SetHtmlContent(this->GetEmbeddedHtml());
    m_pWebServer->RegisterEndpoint("/api/telemetry", std::bind(&VisualizationHandler::OnRequestTelemetry, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/api/map", std::bind(&VisualizationHandler::OnRequestMap, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/api/planned_path", std::bind(&VisualizationHandler::OnRequestPlannedPath, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/api/waypoints", std::bind(&VisualizationHandler::OnRequestWaypoints, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/api/detections", std::bind(&VisualizationHandler::OnRequestDetections, this, std::placeholders::_1));
    m_pWebServer->RegisterEndpoint("/api/detection_list", std::bind(&VisualizationHandler::OnRequestDetectionList, this, std::placeholders::_1));

    // Set main thread's max iteration rate.
    this->SetMainThreadIPSLimit(20);    // 20 Hz
}

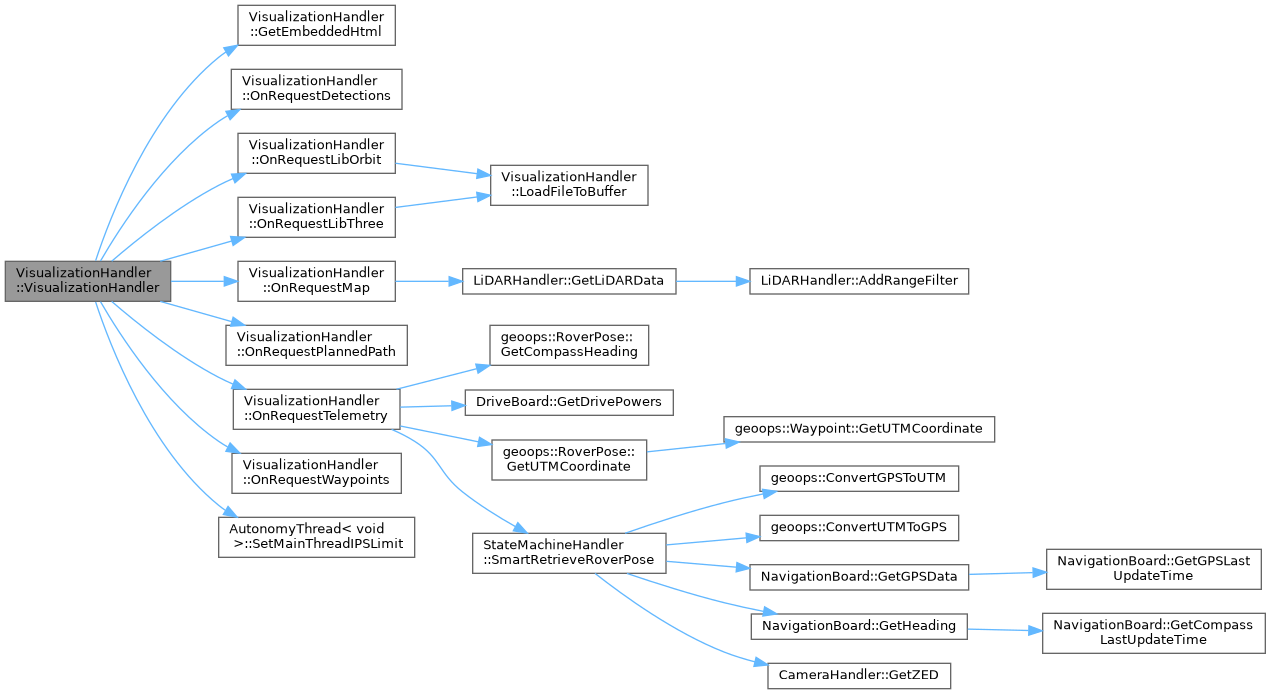

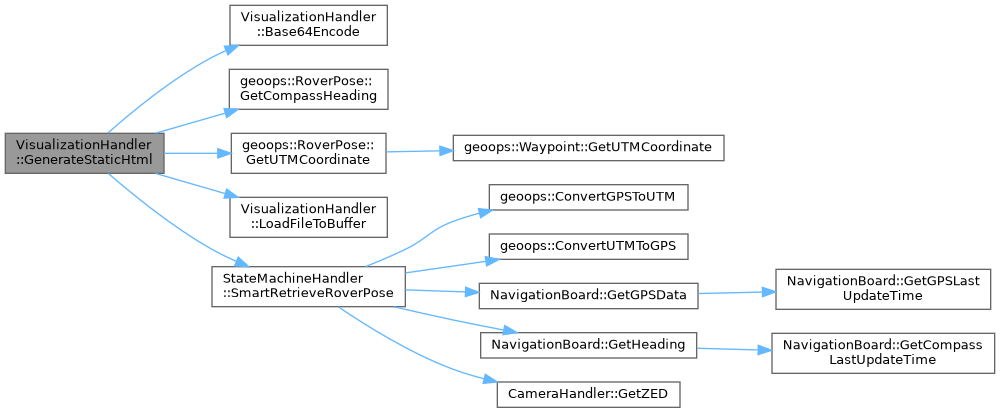

Here is the call graph for this function:

~VisualizationHandler()

VisualizationHandler::~VisualizationHandler

(

)

Destroy the Visualization Handler:: Visualization Handler object.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Stop Web Server.
    m_pWebServer.reset();
}

Member Function Documentation

SaveVisualization()

void VisualizationHandler::SaveVisualization

(

const std::string &

szFilename

)

Save the current visualization to a single HTML file with embedded assets.

Parameters

szFilename

- The filename to save the visualization as.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Check that origin is set.
    if (!m_bOriginSet)
    {
        LOG_WARNING(logging::g_qSharedLogger, "VisualizationHandler: Cannot save, origin not set.");
        return;
    }

    // Submit logger message at start of saving process.
    LOG_INFO(logging::g_qSharedLogger, "VisualizationHandler: Saving visualization to {}...", szFilename);

    // Gather LiDAR Bounds based on Path History
    double dMinE = 1e9, dMaxE = -1e9, dMinN = 1e9, dMaxN = -1e9;

    {
        // Acquire lock to read path history.
        std::lock_guard<std::mutex> lkPathLock(m_muPathMutex);

        // If no path history, use current rover position.
        if (m_vPathHistory.empty())
        {
            geoops::RoverPose stPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
            dMinE = dMaxE = stPose.GetUTMCoordinate().dEasting;
            dMinN = dMaxN = stPose.GetUTMCoordinate().dNorthing;
        }
        else
        {
            // Loop through each point in the path history to find extremes.
            for (const DisplayPoint& stPoint : m_vPathHistory)
            {
                double dAbsE = m_stOriginUTM.dEasting + stPoint.fX;
                double dAbsN = m_stOriginUTM.dNorthing + stPoint.fZ;
                if (dAbsE < dMinE)
                    dMinE = dAbsE;
                if (dAbsE > dMaxE)
                    dMaxE = dAbsE;
                if (dAbsN < dMinN)
                    dMinN = dAbsN;
                if (dAbsN > dMaxN)
                    dMaxN = dAbsN;
            }
        }
    }

    // Calculate LiDAR filter parameters.
    double dBuffer  = 60.0;
    double dCenterE = (dMinE + dMaxE) / 2.0;
    double dCenterN = (dMinN + dMaxN) / 2.0;
    double dRadius  = std::max(dMaxE - dMinE, dMaxN - dMinN) / 2.0 + dBuffer;
    std::vector<LiDARHandler::PointRow> vLidarPoints;
    // Check that global LiDAR handler is valid.
    if (globals::g_pLiDARHandler)
    {
        // Construct point filter.
        LiDARHandler::PointFilter stFilter;
        stFilter.dEasting  = dCenterE;
        stFilter.dNorthing = dCenterN;
        stFilter.dRadius   = dRadius;
        // Get LiDAR data from handler.
        vLidarPoints = globals::g_pLiDARHandler->GetLiDARData(stFilter);
    }

    // Generate HTML content (including embedded JS).
    std::string szHtml = GenerateStaticHtml(vLidarPoints);

    std::ofstream stdOutFile(szFilename);
    if (stdOutFile.is_open())
    {
        // Write file.
        stdOutFile << szHtml;
        stdOutFile.close();

        // Submit logger message that we're done saving.
        LOG_INFO(logging::g_qSharedLogger, "VisualizationHandler: Saved successfully.");
    }
    else
    {
        LOG_ERROR(logging::g_qSharedLogger, "VisualizationHandler: Failed to open file for writing.");
    }
}

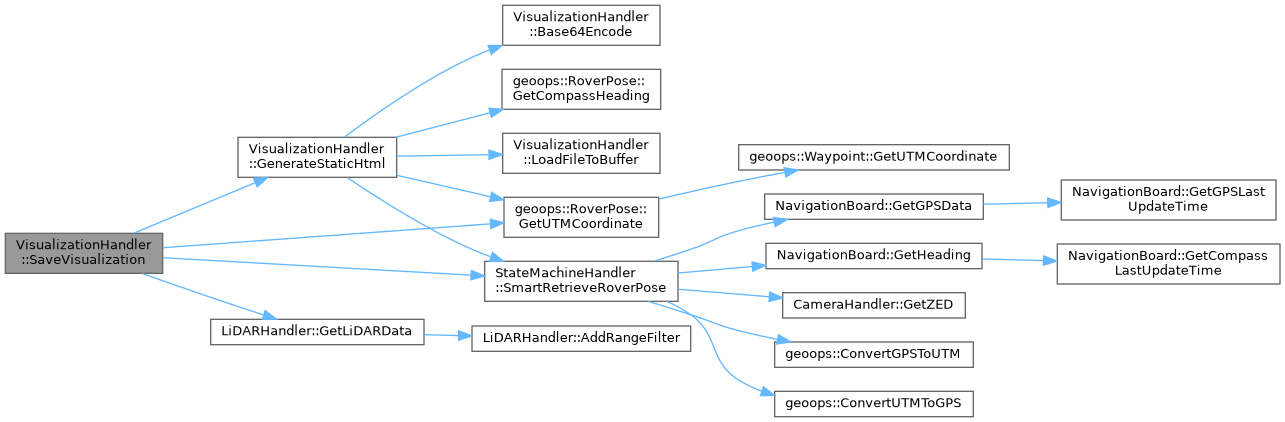

Here is the call graph for this function:

Here is the caller graph for this function:

UpdatePathHistory()

void VisualizationHandler::UpdatePathHistory ( const geoops::UTMCoordinate &  stRoverUTM )

private

Update the path history with the current rover position.

Parameters

stRoverUTM

- The current UTM coordinate of the rover.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Acquire lock to update path history.
    std::lock_guard<std::mutex> lkPathLock(m_muPathMutex);

    // Add new point if moved more than 0.5 meters from last point.
    static geoops::UTMCoordinate stLastPos = {};
    if (std::hypot(stRoverUTM.dEasting - stLastPos.dEasting, stRoverUTM.dNorthing - stLastPos.dNorthing) > 0.5)
    {
        // Create new point, set its values, and append to history.
        DisplayPoint stPoint;
        stPoint.fX     = static_cast<float>(stRoverUTM.dEasting - m_stOriginUTM.dEasting);
        stPoint.fY     = static_cast<float>(stRoverUTM.dAltitude - m_stOriginUTM.dAltitude);
        stPoint.fZ     = static_cast<float>(stRoverUTM.dNorthing - m_stOriginUTM.dNorthing);
        stPoint.fScore = 0.0f;

        // Check if our global state machine handler is valid to get current state.
        if (globals::g_pStateMachineHandler)
        {
            // Set state.
            stPoint.nState = static_cast<int>(globals::g_pStateMachineHandler->GetCurrentState());
        }
        else
        {
            // Default to Idle state.
            stPoint.nState = 0;
        }

        // Append to history and update last position.
        m_vPathHistory.push_back(stPoint);
        stLastPos = stRoverUTM;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

UpdatePlannedPath()

void VisualizationHandler::UpdatePlannedPath ( )

private

Updates the planned path from the waypoint handler.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Check that global waypoint handler is valid.
    if (globals::g_pWaypointHandler == nullptr)
    {
        return;
    }

    // Retrieve raw planned path that the GeoPlanner put in the waypoint handler for us.
    // This may or may not exist or be the active path that the rover is following.
    std::vector<geoops::Waypoint> vRawPath = globals::g_pWaypointHandler->RetrievePath("GeoPlannerPath");

    // Acquire lock and update planned path.
    std::lock_guard<std::mutex> lkPathLock(m_muPlannedPathMutex);
    // Clear the old path and reserve space for the new path.
    m_vPlannedPath.clear();
    m_vPlannedPath.reserve(vRawPath.size());
    // Loop through raw path and convert to DisplayPoint format.
    for (const geoops::Waypoint& stWaypoint : vRawPath)
    {
        const geoops::UTMCoordinate& stUTMCoord = stWaypoint.GetUTMCoordinate();
        DisplayPoint stPoint;
        stPoint.fX     = static_cast<float>(stUTMCoord.dEasting - m_stOriginUTM.dEasting);
        stPoint.fY     = static_cast<float>(stUTMCoord.dAltitude - m_stOriginUTM.dAltitude);
        stPoint.fZ     = static_cast<float>(stUTMCoord.dNorthing - m_stOriginUTM.dNorthing);
        stPoint.fScore = 0.0f;
        m_vPlannedPath.push_back(stPoint);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

UpdateWaypoints()

void VisualizationHandler::UpdateWaypoints ( )

private

Updates the waypoints from the waypoint handler.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Check that global waypoint handler is valid.
    if (globals::g_pWaypointHandler == nullptr)
    {
        return;
    }

    // Retrieve all waypoints and obstacles from the WaypointHandler.
    std::vector<geoops::Waypoint> vTargets   = globals::g_pWaypointHandler->GetAllWaypoints();
    std::vector<geoops::Waypoint> vObstacles = globals::g_pWaypointHandler->GetAllObstacles();

    // Acquire a lock before updating waypoints list and clear existing waypoints.
    std::lock_guard<std::mutex> lkWaypointLock(m_muWaypointMutex);

    // Clear old waypoints from list.
    m_vWaypoints.clear();
    // Helper to process waypoints and obstacles.
    std::function ProcessList = [&](const std::vector<geoops::Waypoint>& vWaypoints)
    {
        // Loop through all the given waypoints and add them to this classes waypoints list.
        for (const geoops::Waypoint& stWaypoint : vWaypoints)
        {
            const geoops::UTMCoordinate& stUTMCoord = stWaypoint.GetUTMCoordinate();
            DisplayWaypoint stPoint;
            stPoint.fX    = static_cast<float>(stUTMCoord.dEasting - m_stOriginUTM.dEasting);
            stPoint.fY    = static_cast<float>(stUTMCoord.dAltitude - m_stOriginUTM.dAltitude);
            stPoint.fZ    = static_cast<float>(stUTMCoord.dNorthing - m_stOriginUTM.dNorthing);
            stPoint.nType = static_cast<int>(stWaypoint.eType);
            m_vWaypoints.push_back(stPoint);
        }
    };

    // Use our utility function to process and add the waypoints and objects from the WaypointHandler to the member variables.
    ProcessList(vTargets);
    ProcessList(vObstacles);
}

Here is the call graph for this function:

Here is the caller graph for this function:

UpdateGoalBeacons()

void VisualizationHandler::UpdateGoalBeacons ( const geoops::UTMCoordinate &  stRoverUTM )

private

Updates the persistent goal beacons for visualization.

Parameters

stRoverUTM

- The current UTM coordinate of the rover.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Check that global multimedia board is valid.
    if (globals::g_pMultimediaBoard == nullptr)
    {
        return;
    }

    // If we are in the ReachedGoal lighting state, add a persistent goal beacon at our current location.
    if (globals::g_pMultimediaBoard->GetCurrentLightingState() == MultimediaBoard::MultimediaBoardLightingState::eReachedGoal)
    {
        // Acquire lock to update goal beacons.
        std::lock_guard<std::mutex> lkBeaconLock(m_muGoalBeaconMutex);
        // Calculate relative position.
        float fCurX = static_cast<float>(stRoverUTM.dEasting - m_stOriginUTM.dEasting);
        float fCurY = static_cast<float>(stRoverUTM.dAltitude - m_stOriginUTM.dAltitude);
        float fCurZ = static_cast<float>(stRoverUTM.dNorthing - m_stOriginUTM.dNorthing);

        // Check for deduplication (within 2 meters).
        bool bAdd = true;
        if (!m_vGoalBeacons.empty())
        {
            // Calculate distance to last added beacon.
            const DisplayWaypoint& stLast = m_vGoalBeacons.back();
            float fDistance               = std::hypot(fCurX - stLast.fX, fCurZ - stLast.fZ);
            // If the distance is less than 2 meters, do not add.
            if (fDistance < 2.0f)
            {
                bAdd = false;
            }
        }

        // Check if our last beacon is in the same location.
        if (bAdd)
        {
            // Construct beacon.
            DisplayWaypoint stWaypoint;
            stWaypoint.fX    = fCurX;
            stWaypoint.fY    = fCurY;
            stWaypoint.fZ    = fCurZ;
            stWaypoint.nType = 8;
            m_vGoalBeacons.push_back(stWaypoint);

            // Submit logger message.
            LOG_DEBUG(logging::g_qSharedLogger, "VisualizationHandler: Added persistent Goal Beacon at current location.");
        }
    }
}

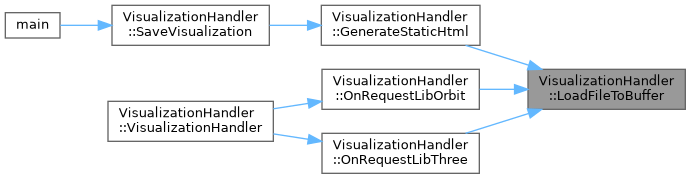

Here is the caller graph for this function:

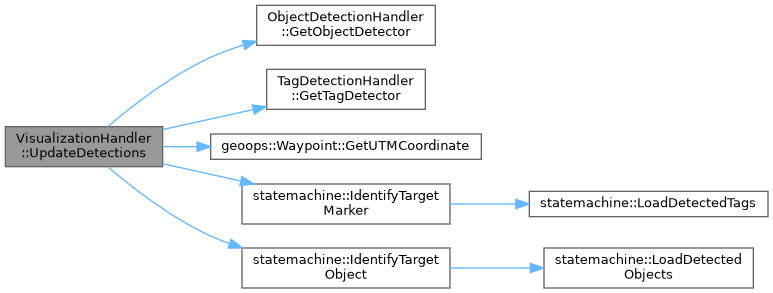

UpdateDetections()

void VisualizationHandler::UpdateDetections ( )

private

Updates the persistent detections for visualization.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Check that required global handlers are valid.
    if (globals::g_pTagDetectionHandler == nullptr || globals::g_pObjectDetectionHandler == nullptr)
    {
        return;
    }

    // Helper to process detections
    std::function ProcessDetection = [&](float fX, float fY, float fZ, int nType)
    {
        // Acquire lock to update detections.
        std::lock_guard<std::mutex> lkDetectionsLock(m_muDetectionMutex);

        // Deduplication.
        for (DisplayDetection& stExistingDetection : m_vDetections)
        {
            // Same type check
            if (stExistingDetection.nType == nType)
            {
                // Calculate the distance between existing detection and new detection.
                float dist = std::hypot(stExistingDetection.fX - fX, stExistingDetection.fZ - fZ);
                // If close to another detection of the same type, update the existing location.
                if (dist < 1.5f)
                {
                    // Update the existing detection's position to be the average of the two detections.
                    stExistingDetection.fX = (stExistingDetection.fX + fX) / 2.0f;
                    stExistingDetection.fY = (stExistingDetection.fY + fY) / 2.0f;
                    stExistingDetection.fZ = (stExistingDetection.fZ + fZ) / 2.0f;

                    return;
                }
            }
        }

        // Construct a new detection and add it to our member list.
        DisplayDetection stDetection;
        stDetection.fX    = fX;
        stDetection.fY    = fY;
        stDetection.fZ    = fZ;
        stDetection.nType = nType;
        m_vDetections.push_back(stDetection);
    };

    // Prepare Detector Vectors
    std::vector<std::shared_ptr<TagDetector>> vTagDetectors    = {globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eHeadMainCam),
                                                                  globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eRearCam)};

    std::vector<std::shared_ptr<ObjectDetector>> vObjDetectors = {
        globals::g_pObjectDetectionHandler->GetObjectDetector(ObjectDetectionHandler::ObjectDetectors::eHeadMainCam),
        globals::g_pObjectDetectionHandler->GetObjectDetector(ObjectDetectionHandler::ObjectDetectors::eRearCam)};

    // Tags.

    // Get the best Aruco and Torch tags.
    tagdetectutils::ArucoTag stBestAruco;
    tagdetectutils::ArucoTag stBestTorchTag;
    statemachine::IdentifyTargetMarker(vTagDetectors, stBestAruco, stBestTorchTag);
    // Process Aruco Tag if valid.
    if (stBestAruco.nID != -1 && stBestAruco.stGeolocatedPosition.eType != geoops::WaypointType::eUNKNOWN)
    {
        geoops::UTMCoordinate stUTM = stBestAruco.stGeolocatedPosition.GetUTMCoordinate();
        float fX                    = static_cast<float>(stUTM.dEasting - m_stOriginUTM.dEasting);
        float fY                    = static_cast<float>(stUTM.dAltitude - m_stOriginUTM.dAltitude);
        float fZ                    = static_cast<float>(stUTM.dNorthing - m_stOriginUTM.dNorthing);
        ProcessDetection(fX, fY, fZ, 10);
    }
    // Process Torch Tag if valid.
    if (stBestTorchTag.nID != -1 && stBestTorchTag.stGeolocatedPosition.eType != geoops::WaypointType::eUNKNOWN)
    {
        geoops::UTMCoordinate stUTM = stBestTorchTag.stGeolocatedPosition.GetUTMCoordinate();
        float fX                    = static_cast<float>(stUTM.dEasting - m_stOriginUTM.dEasting);
        float fY                    = static_cast<float>(stUTM.dAltitude - m_stOriginUTM.dAltitude);
        float fZ                    = static_cast<float>(stUTM.dNorthing - m_stOriginUTM.dNorthing);
        ProcessDetection(fX, fY, fZ, 10);
    }

    // Mallets, Bottles, Picks.

    // Get the best detected object.
    objectdetectutils::Object stObject;
    statemachine::IdentifyTargetObject(vObjDetectors, stObject);
    // Process object if valid.
    if (stObject.dConfidence > 0.6 && stObject.stGeolocatedPosition.eType != geoops::WaypointType::eUNKNOWN)
    {
        geoops::UTMCoordinate stUTM = stObject.stGeolocatedPosition.GetUTMCoordinate();
        float fX                    = static_cast<float>(stUTM.dEasting - m_stOriginUTM.dEasting);
        float fY                    = static_cast<float>(stUTM.dAltitude - m_stOriginUTM.dAltitude);
        float fZ                    = static_cast<float>(stUTM.dNorthing - m_stOriginUTM.dNorthing);

        // Determine type based on detection type.
        int nType = 0;
        switch (stObject.eDetectionType)
        {
            case objectdetectutils::ObjectDetectionType::eMallet: nType = 11; break;
            case objectdetectutils::ObjectDetectionType::eWaterBottle: nType = 12; break;
            case objectdetectutils::ObjectDetectionType::eRockPick: nType = 13; break;
            default: break;
        }

        // If we have a type, process the detection.
        if (nType != 0)
        {
            ProcessDetection(fX, fY, fZ, nType);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

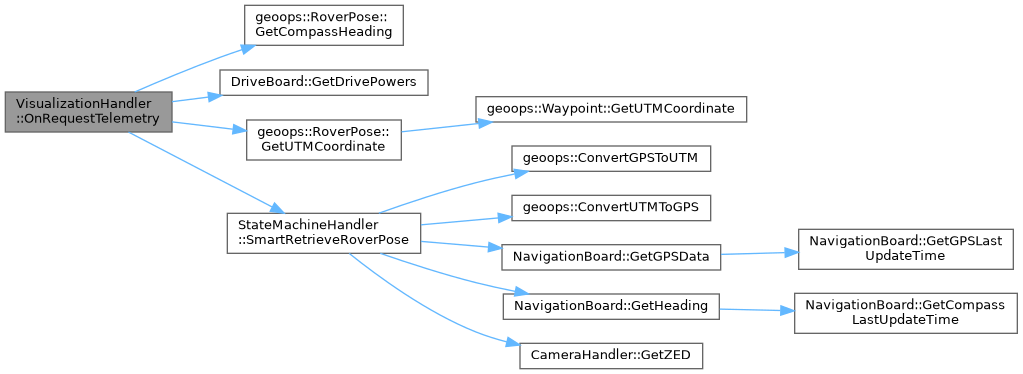

OnRequestTelemetry()

std::vector< char > VisualizationHandler::OnRequestTelemetry ( const std::string &  szQuery )

private

Handles telemetry requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    (void) szQuery;

    // Acquire resource lock for reading the path.
    std::lock_guard<std::mutex> lkPathLock(m_muPathMutex);

    // Calculate buffer size.
    // Header = Pose(3f) + Heading(1f) + LPower(1f) + RPower(1f) + Count(1u)
    size_t siPathBytes = m_vPathHistory.size() * 4 * sizeof(float);
    size_t siHeader    = (6 * sizeof(float)) + (1 * sizeof(uint32_t));
    std::vector<char> vBuffer;
    vBuffer.reserve(siHeader + siPathBytes);

    // Create a util function for adding a float and to the buffer.
    std::function PushFloat = [&](float fFloat)
    {
        const char* pStart = reinterpret_cast<const char*>(&fFloat);
        vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(float));
    };
    // Create a util function for adding a uint32_t to the buffer.
    std::function PushUint = [&](uint32_t unInt32)
    {
        const char* pStart = reinterpret_cast<const char*>(&unInt32);
        vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(uint32_t));
    };

    // Push Rover Pose.
    geoops::RoverPose stPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
    if (m_bOriginSet)
    {
        PushFloat(static_cast<float>(stPose.GetUTMCoordinate().dEasting - m_stOriginUTM.dEasting));
        PushFloat(static_cast<float>(stPose.GetUTMCoordinate().dAltitude - m_stOriginUTM.dAltitude));
        PushFloat(static_cast<float>(stPose.GetUTMCoordinate().dNorthing - m_stOriginUTM.dNorthing));
    }
    else
    {
        PushFloat(0.0f);
        PushFloat(0.0f);
        PushFloat(0.0f);
    }

    // Push Compass Heading.
    PushFloat(static_cast<float>(stPose.GetCompassHeading()));

    // Push Drive Powers.
    diffdrive::DrivePowers stPowers = {0.0, 0.0};
    if (globals::g_pDriveBoard)
    {
        stPowers = globals::g_pDriveBoard->GetDrivePowers();
    }
    PushFloat(static_cast<float>(stPowers.dLeftDrivePower));
    PushFloat(static_cast<float>(stPowers.dRightDrivePower));

    // Push Path History size.
    PushUint(static_cast<uint32_t>(m_vPathHistory.size()));
    // Push each point in the path history.
    for (const DisplayPoint& pt : m_vPathHistory)
    {
        PushFloat(pt.fX);
        PushFloat(pt.fY);
        PushFloat(pt.fZ);
        PushFloat(static_cast<float>(pt.nState));
    }

    return vBuffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

OnRequestMap()

std::vector< char > VisualizationHandler::OnRequestMap ( const std::string &  szQuery )

private

Handles map data requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // Declare instance variables with default values.
    float fCenterX  = 0.0f;
    float fCenterY  = 0.0f;
    float fRadius   = 50.0f;
    float fMinScore = 0.0f;

    // Helper to parse float values from query string.
    std::function ParseVal = [&](std::string szKey) -> float
    {
        size_t siPos = szQuery.find(szKey + "=");
        if (siPos != std::string::npos)
        {
            // Extract substring value.
            size_t siEnd      = szQuery.find("&", siPos);
            std::string szSub = szQuery.substr(siPos + szKey.length() + 1, siEnd - (siPos + szKey.length() + 1));

            // Convert to float.
            try
            {
                return std::stof(szSub);
            }
            catch (...)
            {
                return 0.0f;
            }
        }

        return 0.0f;
    };

    // Parse values from query string.
    fCenterX  = ParseVal("x");
    fCenterY  = ParseVal("y");
    fRadius   = ParseVal("r");
    fMinScore = ParseVal("s");

    // Clamp radius to minimum of 10 meters.
    if (fRadius < 10.0f)
    {
        fRadius = 10.0f;
    }

    // Calculate absolute UTM coordinates for center point.
    double dAbsE         = m_stOriginUTM.dEasting + fCenterX;
    double dAbsN         = m_stOriginUTM.dNorthing + fCenterY;
    double dSearchRadius = fRadius * 1.5;

    // Construct LiDAR point filter.
    LiDARHandler::PointFilter stFilter;
    stFilter.dEasting  = dAbsE;
    stFilter.dNorthing = dAbsN;
    stFilter.dRadius   = dSearchRadius;
    // Retrieve LiDAR points from global LiDAR handler.
    std::vector<LiDARHandler::PointRow> vPoints;
    // Check that global LiDAR handler is valid.
    if (globals::g_pLiDARHandler)
    {
        // Get LiDAR data from handler.
        vPoints = globals::g_pLiDARHandler->GetLiDARData(stFilter);
    }

    // Prepare buffer.
    std::vector<char> vBuffer;
    size_t siBytes = sizeof(uint32_t) + (vPoints.size() * 4 * sizeof(float));
    vBuffer.reserve(siBytes);
    // Insert number of points placeholder.
    uint32_t unPtCount = 0;
    vBuffer.resize(sizeof(uint32_t));

    // Loop through each point and add to buffer if within radius and above min score.
    for (const LiDARHandler::PointRow& stPoint : vPoints)
    {
        // Check traversal score.
        if (stPoint.dTraversalScore < fMinScore)
        {
            continue;
        }

        // Calculate relative coordinates.
        float fRelX = static_cast<float>(stPoint.dEasting - m_stOriginUTM.dEasting);
        float fRelZ = static_cast<float>(stPoint.dNorthing - m_stOriginUTM.dNorthing);
        float fRelY = static_cast<float>(stPoint.dAltitude - m_stOriginUTM.dAltitude);

        // Check if within radius.
        if (std::abs(fRelX - fCenterX) <= fRadius && std::abs(fRelZ - fCenterY) <= fRadius)
        {
            unPtCount++;
            const float aData[4] = {fRelX, fRelY, fRelZ, static_cast<float>(stPoint.dTraversalScore)};
            const char* pStart   = reinterpret_cast<const char*>(aData);
            vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(aData));
        }
    }

    // Write actual point count to the start of the buffer.
    uint32_t* pHead = reinterpret_cast<uint32_t*>(vBuffer.data());
    *pHead          = unPtCount;

    return vBuffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

OnRequestPlannedPath()

std::vector< char > VisualizationHandler::OnRequestPlannedPath ( const std::string &  szQuery )

private

Handles planned path requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    (void) szQuery;

    // Acquire lock to read planned path.
    std::lock_guard<std::mutex> lk(m_muPlannedPathMutex);

    // Prepare buffer.
    std::vector<char> vBuffer;
    size_t siBytes = sizeof(uint32_t) + (m_vPlannedPath.size() * 3 * sizeof(float));
    vBuffer.reserve(siBytes);

    // Insert number of points.
    uint32_t unCount   = static_cast<uint32_t>(m_vPlannedPath.size());
    const char* pCount = reinterpret_cast<const char*>(&unCount);
    vBuffer.insert(vBuffer.end(), pCount, pCount + sizeof(uint32_t));

    // Loop through each of the points in the planned path and add them to the buffer to be sent to the client.
    for (const DisplayPoint& stPoint : m_vPlannedPath)
    {
        const float data[3] = {stPoint.fX, stPoint.fY, stPoint.fZ};
        const char* pStart  = reinterpret_cast<const char*>(data);
        vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(data));
    }

    return vBuffer;
}

Here is the caller graph for this function:

OnRequestWaypoints()

std::vector< char > VisualizationHandler::OnRequestWaypoints ( const std::string &  szQuery )

private

Handles waypoint requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    (void) szQuery;

    // Acquire locks to read waypoints and goal beacons.
    std::lock_guard<std::mutex> lkWaypointLock(m_muWaypointMutex);
    std::lock_guard<std::mutex> lkBeaconLock(m_muGoalBeaconMutex);

    // Get the total number of points.
    size_t siTotalPoints = m_vWaypoints.size() + m_vGoalBeacons.size();

    // Prepare buffer.
    std::vector<char> vBuffer;
    size_t siBytes = sizeof(uint32_t) + (siTotalPoints * (3 * sizeof(float) + sizeof(int)));
    vBuffer.reserve(siBytes);
    // Insert number of points.
    uint32_t unCount   = static_cast<uint32_t>(siTotalPoints);
    const char* pStart = reinterpret_cast<const char*>(&unCount);
    vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(uint32_t));

    // Helper to push a DisplayWaypoint to the buffer.
    std::function PushPoint = [&](const DisplayWaypoint& stWaypoint)
    {
        const char* pX = reinterpret_cast<const char*>(&stWaypoint.fX);
        vBuffer.insert(vBuffer.end(), pX, pX + sizeof(float));

        const char* pY = reinterpret_cast<const char*>(&stWaypoint.fY);
        vBuffer.insert(vBuffer.end(), pY, pY + sizeof(float));

        const char* pZ = reinterpret_cast<const char*>(&stWaypoint.fZ);
        vBuffer.insert(vBuffer.end(), pZ, pZ + sizeof(float));

        const char* pT = reinterpret_cast<const char*>(&stWaypoint.nType);
        vBuffer.insert(vBuffer.end(), pT, pT + sizeof(int));
    };

    // Loop through each of the waypoints and goal beacons and add them to the buffer.
    for (const DisplayWaypoint& stWaypoint : m_vWaypoints)
    {
        PushPoint(stWaypoint);
    }
    for (const DisplayWaypoint& stWaypoint : m_vGoalBeacons)
    {
        PushPoint(stWaypoint);
    }

    return vBuffer;
}

Here is the caller graph for this function:

OnRequestDetections()

std::vector< char > VisualizationHandler::OnRequestDetections ( const std::string &  szQuery )

private

Handles detection requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    (void) szQuery;

    // Acquire lock to read detections.
    std::lock_guard<std::mutex> lkDetectionsLock(m_muDetectionMutex);

    // Prepare buffer.
    std::vector<char> vBuffer;
    size_t siBytes = sizeof(uint32_t) + (m_vDetections.size() * (3 * sizeof(float) + sizeof(int)));
    vBuffer.reserve(siBytes);
    // Insert number of detections.
    uint32_t unCount   = static_cast<uint32_t>(m_vDetections.size());
    const char* pStart = reinterpret_cast<const char*>(&unCount);
    vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(uint32_t));

    // Loop through each of the detections and add them to the buffer.
    for (const DisplayDetection& stDetection : m_vDetections)
    {
        // Insert position data.
        const float aData[3] = {stDetection.fX, stDetection.fY, stDetection.fZ};
        const char* pStart   = reinterpret_cast<const char*>(aData);
        vBuffer.insert(vBuffer.end(), pStart, pStart + sizeof(aData));
        // Insert type data.
        const char* pTypeStart = reinterpret_cast<const char*>(&stDetection.nType);
        vBuffer.insert(vBuffer.end(), pTypeStart, pTypeStart + sizeof(int));
    }

    return vBuffer;
}

Here is the caller graph for this function:

OnRequestDetectionList()

std::vector< char > VisualizationHandler::OnRequestDetectionList ( const std::string &  szQuery )

private

Handles detection list requests from the web server.

Parameters

szQuery

- The query string from the request.

Returns

std::vector<char> - The binary response data.

Author

Targed (ltkli.nosp@m.onel.nosp@m.@gmai.nosp@m.l.co.nosp@m.m)

Date

2026-01-30

{
    (void) szQuery;
    std::string szJson = "[";
    std::string szDir  = logging::g_szLoggingOutputPath + "/detections/";

    // Helper function to escape JSON strings
    std::function<std::string(const std::string&)> fnEscapeJson = [](const std::string& szInput) -> std::string
    {
        std::string szOutput;
        szOutput.reserve(szInput.size());
        for (char c : szInput)
        {
            switch (c)
            {
                case '"': szOutput += "\\\""; break;
                case '\\': szOutput += "\\\\"; break;
                case '\b': szOutput += "\\b"; break;
                case '\f': szOutput += "\\f"; break;
                case '\n': szOutput += "\\n"; break;
                case '\r': szOutput += "\\r"; break;
                case '\t': szOutput += "\\t"; break;
                default:
                    if (static_cast<unsigned char>(c) < 0x20)
                    {
                        // Escape control characters
                        char szBuf[7];
                        snprintf(szBuf, sizeof(szBuf), "\\u%04x", static_cast<unsigned char>(c));
                        szOutput += szBuf;
                    }
                    else
                    {
                        szOutput += c;
                    }
                    break;
            }
        }
        return szOutput;
    };

    // Ensure the directory exists
    if (std::filesystem::exists(szDir) && std::filesystem::is_directory(szDir))
    {
        std::vector<std::filesystem::directory_entry> vEntries;

        // Iterate over files in the directory and collect them
        for (const std::filesystem::directory_entry& stEntry : std::filesystem::directory_iterator(szDir))
        {
            if (stEntry.is_regular_file())
            {
                // Get filename
                std::string szFilename = stEntry.path().filename().string();

                // Simple filter for image extensions
                if (szFilename.ends_with(".png") || szFilename.ends_with(".jpg"))
                {
                    vEntries.push_back(stEntry);
                }
            }
        }

        // Sort entries chronologically by last write time (oldest first, newest last)
        std::sort(vEntries.begin(),
                  vEntries.end(),
                  [](const std::filesystem::directory_entry& a, const std::filesystem::directory_entry& b)
                  { return std::filesystem::last_write_time(a) < std::filesystem::last_write_time(b); });

        bool bFirst = true;
        // Build JSON array using the sorted entries
        for (const std::filesystem::directory_entry& stEntry : vEntries)
        {
            std::string szFilename = stEntry.path().filename().string();

            if (!bFirst)
                szJson += ",";
            // Append escaped filename to JSON array
            szJson += "\"" + fnEscapeJson(szFilename) + "\"";
            bFirst = false;
        }
    }

    szJson += "]";

    // Convert string to vector
    return std::vector<char>(szJson.begin(), szJson.end());
}

Here is the caller graph for this function:

OnRequestLibThree()

std::vector< char > VisualizationHandler::OnRequestLibThree ( const std::string &  szQuery )

private

Serves the local three.min.js file.

Parameters

szQuery

- The query string (unused).

Returns

std::vector<char> - The binary content of the file.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-24

{
    (void) szQuery;
    return LoadFileToBuffer(constants::VISUALIZER_THREEJS_PATH);
}

Here is the call graph for this function:

Here is the caller graph for this function:

OnRequestLibOrbit()

std::vector< char > VisualizationHandler::OnRequestLibOrbit ( const std::string &  szQuery )

private

Serves the local OrbitControls.js file.

Parameters

szQuery

- The query string (unused).

Returns

std::vector<char> - The binary content of the file.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-24

{
    (void) szQuery;
    return LoadFileToBuffer(constants::VISUALIZER_ORBITCONTROLS_PATH);
}

Here is the call graph for this function:

Here is the caller graph for this function:

LoadFileToBuffer()

std::vector< char > VisualizationHandler::LoadFileToBuffer ( const std::string &  szPath )

private

Helper to load a file into a byte buffer.

Parameters

szPath

- The file path.

Returns

std::vector<char> - The file content as a byte buffer.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-24

{
    std::ifstream stdFile(szPath, std::ios::binary);
    if (!stdFile.is_open())
    {
        LOG_ERROR(logging::g_qSharedLogger, "VisualizationHandler: Failed to load asset: {}", szPath);
        return {};
    }

    return std::vector<char>((std::istreambuf_iterator<char>(stdFile)), std::istreambuf_iterator<char>());
}

Here is the caller graph for this function:

Base64Encode()

std::string VisualizationHandler::Base64Encode ( const std::vector< char > &  vData )

private

Encodes binary data to a Base64 string.

Parameters

vData

- The binary data to encode.

Returns

std::string - The Base64 encoded string.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-24

{
    // Create instance variables.
    const std::string szBase64Chars = "ABCDEFGHIJKLMNOPQRSTUVWXYZ"
                                      "abcdefghijklmnopqrstuvwxyz"
                                      "0123456789+/";
    std::string szReturnString;
    int nIter = 0;
    int nJter = 0;
    unsigned char aCharArray3[3];
    unsigned char aCharArray4[4];

    // Loop through each character in the data.
    for (char chCharacter : vData)
    {
        // Fill the 3-byte array.
        aCharArray3[nIter++] = chCharacter;

        // If we have 3 bytes, encode to 4 Base64 characters.
        if (nIter == 3)
        {
            // Convert to Base64.
            aCharArray4[0] = (aCharArray3[0] & 0xfc) >> 2;
            aCharArray4[1] = ((aCharArray3[0] & 0x03) << 4) + ((aCharArray3[1] & 0xf0) >> 4);
            aCharArray4[2] = ((aCharArray3[1] & 0x0f) << 2) + ((aCharArray3[2] & 0xc0) >> 6);
            aCharArray4[3] = aCharArray3[2] & 0x3f;
            // Append to return string.
            for (nIter = 0; (nIter < 4); nIter++)
            {
                szReturnString += szBase64Chars[aCharArray4[nIter]];
            }

            nIter = 0;
        }
    }

    // Handle padding for remaining bytes.
    if (nIter)
    {
        // Fill remaining bytes with zeros.
        for (nJter = nIter; nJter < 3; nJter++)
        {
            aCharArray3[nJter] = '\0';
        }
        // Convert to Base64.
        aCharArray4[0] = (aCharArray3[0] & 0xfc) >> 2;
        aCharArray4[1] = ((aCharArray3[0] & 0x03) << 4) + ((aCharArray3[1] & 0xf0) >> 4);
        aCharArray4[2] = ((aCharArray3[1] & 0x0f) << 2) + ((aCharArray3[2] & 0xc0) >> 6);
        aCharArray4[3] = aCharArray3[2] & 0x3f;
        // Append to return string.
        for (nJter = 0; (nJter < nIter + 1); nJter++)
        {
            szReturnString += szBase64Chars[aCharArray4[nJter]];
        }
        // Add padding '=' characters.
        while ((nIter++ < 3))
        {
            szReturnString += '=';
        }
    }

    return szReturnString;
}

Here is the caller graph for this function:

GetEmbeddedHtml()

std::string VisualizationHandler::GetEmbeddedHtml ( )

private

Gets the embedded HTML for the visualization page.

Returns

std::string - The HTML content as a string.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    return R"RAW_HTML(
<!DOCTYPE html>
<html>
<head>
    <title>MRDT 3D Visualizer</title>
    <style>
        body { margin: 0; overflow: hidden; background: #222; font-family: sans-serif; }
        #ui-layer {
            position: absolute;
            top: 10px;
            left: 10px;
            color: #0f0;
            background: rgba(0,0,0,0.5);
            padding: 10px;
            border-radius: 5px;
            pointer-events: none;
            min-width: 250px;
            z-index: 10;
        }
        #eta-box {
            position: absolute;
            top: 10px;
            left: 50%;
            transform: translateX(-50%);
            color: #0f0;
            background: rgba(0,0,0,0.5);
            padding: 10px;
            border-radius: 5px;
            font-size: 16px;
            font-weight: bold;
            pointer-events: none;
            z-index: 10;
        }
        #marker-layer {
            position: absolute;
            top: 0; left: 0; width: 100%; height: 100%;
            pointer-events: none;
            overflow: hidden;
        }
        .hud-marker {
            position: absolute;
            padding: 4px 8px;
            background: rgba(0, 0, 0, 0.7);
            color: white;
            border: 2px solid white;
            border-radius: 4px;
            font-size: 14px;
            font-weight: bold;
            white-space: nowrap;
            transform: translate(-50%, -50%);
            transition: opacity 0.2s;
        }
        .hud-marker::after {
            content: '';
            position: absolute;
            top: 50%; left: 50%;
            width: 0; height: 0;
        }
        #legend-layer {
            position: absolute;
            bottom: 20px;
            left: 10px;
            color: #fff;
            background: rgba(0,0,0,0.7);
            padding: 10px;
            border-radius: 5px;
            pointer-events: none;
            min-width: 150px;
            z-index: 10;
        }
        .legend-section { margin-bottom: 10px; border-bottom: 1px solid #555; padding-bottom: 5px; }
        .legend-item { display: flex; align-items: center; gap: 10px; margin-bottom: 5px; font-size: 12px; }
        .color-box { width: 15px; height: 15px; border: 1px solid #aaa; }
        .circle-box { width: 12px; height: 12px; border-radius: 50%; }
        .control-group { margin-bottom: 10px; pointer-events: auto; }
        label { display: block; font-size: 12px; color: #aaa; }
        input[type=range] { width: 100%; }
        .val-disp { float: right; color: #fff; }
        .btn-group { position: absolute; bottom: 20px; right: 20px; display: flex; gap: 10px; z-index: 10; }
        .hud-btn { padding: 10px 20px; background: #444; color: white; border: 2px solid #666; cursor: pointer; font-size: 16px; z-index: 999; }
        .hud-btn.active { background: #00aa00; border-color: #00ff00; }
        .key { color: #fff; font-weight: bold; border: 1px solid #666; padding: 2px 5px; border-radius: 3px; background: #333; }
        h3 { margin-top: 0; border-bottom: 1px solid #555; padding-bottom: 5px; }

        #detection-panel { position: absolute; top: 10px; right: 10px; width: auto; background: rgba(0,0,0,0.7); padding: 10px; border-radius: 5px; z-index: 10; transition: width 0.2s; }
        #detection-panel h3 { color: #0f0; margin-top: 0; }
        .gallery-item { cursor: pointer; }
        .gallery-item img { width: 100%; border: 2px solid #666; border-radius: 4px; transition: border-color 0.2s; }
        .gallery-item img:hover { border-color: #0f0; }

        #detection-modal { display: none; position: fixed; z-index: 1000; left: 0; top: 0; width: 100%; height: 100%; background: rgba(0,0,0,0.9); align-items: center; justify-content: center; }
        #detection-modal img { max-width: 90%; max-height: 90%; border: 3px solid #0f0; }
        #modal-caption { position: absolute; bottom: 80px; color: #0f0; font-size: 18px; text-align: center; width: 100%; }
        #modal-open-btn { position: absolute; bottom: 30px; left: 50%; transform: translateX(-50%); padding: 10px 30px; background: #444; color: white; border: 2px solid #0f0; cursor: pointer; font-size: 16px; border-radius: 5px; }
        #modal-open-btn:hover { background: #00aa00; }

        .modal-close { position: absolute; top: 20px; right: 40px; color: #fff; font-size: 40px; font-weight: bold; cursor: pointer; }
        .modal-close:hover { color: #0f0; }

        .modal-nav { position: absolute; top: 50%; transform: translateY(-50%); color: #fff; font-size: 60px; font-weight: bold; cursor: pointer; padding: 20px; user-select: none; z-index: 1001; transition: color 0.2s; }
        .modal-nav:hover { color: #0f0; }
        .modal-nav.left { left: 20px; }
        .modal-nav.right { right: 20px; }
    </style>
    <script type="importmap">
    {
        "imports": {
            "three": "/lib/three.js",
            "three/addons/controls/OrbitControls.js": "/lib/orbit.js"
        }
    }
    </script>
</head>
<body>
    <div id="ui-layer">
        <h3 id="settings-toggle" style="cursor: pointer; pointer-events: auto; margin: 0; border: none; padding: 0; user-select: none;">Settings &#9654;</h3>
        <div id="settings-content" style="display: none; margin-top: 10px; border-top: 1px solid #555; padding-top: 10px;">
            <div class="control-group">
                <label style="color: #ccc; cursor: pointer; display: flex; align-items: center; gap: 5px;">
                    <input type="checkbox" id="cb-ground" checked> Lock Rover to Terrain Height
                </label>
            </div>
            <div class="control-group">
                <label>Load Radius (m) <span id="val-rad" class="val-disp">50</span></label>
                <input type="range" id="sl-rad" min="10" max="200" value="50" step="10">
            </div>
            <div class="control-group">
                <label>Border Tol. (m) <span id="val-tol" class="val-disp">10</span></label>
                <input type="range" id="sl-tol" min="5" max="50" value="10" step="1">
            </div>
            <div class="control-group">
                <label>Min Score <span id="val-score" class="val-disp">0.0</span></label>
                <input type="range" id="sl-score" min="0.0" max="1.0" value="0.0" step="0.05">
            </div>
            <div id="status" style="margin-top:10px; color: #fff;">Status: Free Cam</div>
            <div id="stats" style="margin-top:5px; color: #aaa; font-size:12px;">Points: 0</div>
        </div>
    </div>

    <div id="eta-box">ETA: Calculating...</div>

    <div id="legend-layer">
        <div class="legend-section" id="det-legend">
            <strong>Detections</strong>
        </div>
        <div class="legend-section" id="state-legend">
            <strong>State Key</strong>
        </div>
    </div>

    <div id="detection-panel">
        <h3>Latest Detection</h3>
        <div id="detection-gallery-items"></div>
    </div>

    <div id="detection-modal" onclick="closeDetectionModal()">
        <span class="modal-close" onclick="closeDetectionModal()">&times;</span>
        <div class="modal-nav left" onclick="prevDetection(event)">&#10094;</div>
        <img id="modal-image" src="" alt="Detection" onclick="event.stopPropagation()">
        <div class="modal-nav right" onclick="nextDetection(event)">&#10095;</div>
        <div id="modal-caption"></div>
        <button id="modal-open-btn" onclick="event.stopPropagation()">Open in New Tab</button>
    </div>

    <div id="marker-layer"></div>

    <div class="btn-group">
        <button id="snap-btn" class="hud-btn" onclick="snapToRover()">Snap (Space)</button>
        <button id="follow-btn" class="hud-btn" onclick="toggleFollow()">Follow (F)</button>
    </div>

<script type="module">
    import * as THREE from 'three';
    import { OrbitControls } from 'three/addons/controls/OrbitControls.js';

    let camera, scene, renderer, controls, roverMesh, pathLine, plannedPathLine, currentPoints;
    let waypointGroup, detectionGroup;
    let markerLayer;
    let activeWaypoints = [];
    let leftArrow, rightArrow;
    let beaconGeo, detectionTex;

    let mapCenter = { x: 0, y: 0 };
    let cfgRadius = 50;
    let cfgTolerance = 10;
    let cfgMinScore = 0.0;
    let cfgLockGround = true;
    let isFetchingMap = false;
    let isFollowing = false;
    let targetPos = new THREE.Vector3();
    let targetHeading = 0.0;
    let prevRoverPos = new THREE.Vector3();
    const keys = { w:false, a:false, s:false, d:false, q:false, e:false, shift:false };
    let lastTime = performance.now();

    // ETA Variables
    let lastTelemetryTime = 0;
    let lastTelemetryPos = new THREE.Vector3();
    let avgSpeed = 0.0;
    let pathDistance = 0.0;
    const speedHistory = [];
    let lastPathPoint = null;

    // Detection Gallery Tracking
    let detectionFilenames = [];
    let currentModalIndex = 0;

    const typeColors = {};
    const typeNames = {};

    // State Colors
    const stateColors = {
        0: { name: "Idle", color: "#888888" },
        1: { name: "Navigating", color: "#00ffff" },
        2: { name: "Search Pattern", color: "#0000ff" },
        3: { name: "Approach Marker", color: "#ffffff" },
        4: { name: "Approach Object", color: "#ffaa00" },
        5: { name: "Verify Pos", color: "#00550e" },
        6: { name: "Verify Marker", color: "#06ac00" },
        7: { name: "Verify Object", color: "#78ff66" },
        8: { name: "Reversing", color: "#ff0000" },
        9: { name: "Stuck", color: "#330000" }
    };

    // Detection Colors
    const detectColors = {
        10: { name: "Tag (Aruco)", color: "#aa00ff" }, // Purple
        11: { name: "Mallet", color: "#ffa500" },      // Orange
        12: { name: "Bottle", color: "#0088ff" },      // Blue
        13: { name: "Pick", color: "#ffee00" }         // Yellow
    };

    // Terrain Height Sampler
    function getTerrainHeight(rx, rz, defaultY) {
        if (!currentPoints || !currentPoints.geometry || !currentPoints.geometry.attributes.position) return defaultY;
        const positions = currentPoints.geometry.attributes.position.array;
        let sumY = 0;
        let count = 0;
        const radiusSq = 2.25; // 1.5m radius for averaging terrain

        for (let i = 0; i < positions.length; i += 3) {
            const dx = positions[i] - rx;
            const dz = positions[i+2] - rz;
            if (dx*dx + dz*dz < radiusSq) {
                sumY += positions[i+1];
                count++;
            }
        }
        return count > 0 ? (sumY / count) : defaultY;
    }

    // Thick Line / InstancedMesh Renderer (Replaces Firefox-broken LineBasicMaterial)
    function createThickPath(vertices, colors, radius, defaultColorHex) {
        if (vertices.length < 6) return null;

        const numSegments = (vertices.length / 3) - 1;
        const cylinderGeo = new THREE.CylinderGeometry(radius, radius, 1, 8, 1, false);
        cylinderGeo.translate(0, 0.5, 0);
        cylinderGeo.rotateX(Math.PI / 2);

        const mat = new THREE.MeshBasicMaterial();
        if (!colors) mat.color.setHex(defaultColorHex);

        const mesh = new THREE.InstancedMesh(cylinderGeo, mat, numSegments);
        const p1 = new THREE.Vector3();
        const p2 = new THREE.Vector3();
        const dummy = new THREE.Object3D();
        const col = new THREE.Color();

        for (let i = 0; i < numSegments; i++) {
            const idx = i * 3;
            p1.set(vertices[idx], vertices[idx+1], vertices[idx+2]);
            p2.set(vertices[idx+3], vertices[idx+4], vertices[idx+5]);

            const dist = p1.distanceTo(p2);
            if (dist < 0.001) {
                dummy.scale.set(0, 0, 0);
                dummy.updateMatrix();
                mesh.setMatrixAt(i, dummy.matrix);
                continue;
            }

            dummy.position.copy(p1);
            dummy.lookAt(p2);
            dummy.scale.set(1, 1, dist);
            dummy.updateMatrix();
            mesh.setMatrixAt(i, dummy.matrix);

            if (colors) {
                col.setRGB(colors[idx], colors[idx+1], colors[idx+2]);
                mesh.setColorAt(i, col);
            }
        }

        mesh.instanceMatrix.needsUpdate = true;
        if (colors) mesh.instanceColor.needsUpdate = true;
        return mesh;
    }

    init();
    animate();

    function init() {
        markerLayer = document.getElementById('marker-layer');
        scene = new THREE.Scene();
        scene.background = new THREE.Color(0x111111);
        scene.add(new THREE.GridHelper(100, 100));
        scene.add(new THREE.AxesHelper(2));

        camera = new THREE.PerspectiveCamera(60, window.innerWidth/window.innerHeight, 0.1, 10000);
        camera.position.set(0, 10, -10);

        renderer = new THREE.WebGLRenderer({ antialias: true });
        renderer.setSize(window.innerWidth, window.innerHeight);
        document.body.appendChild(renderer.domElement);

        controls = new OrbitControls(camera, renderer.domElement);
        controls.enableDamping = true;
        controls.maxDistance = 5000;

        const geometry = new THREE.BoxGeometry(1, 0.5, 1.5);
        geometry.translate(0, 0.25, 0);
        const material = new THREE.MeshBasicMaterial({ color: 0xff00ff, wireframe: true });
        roverMesh = new THREE.Mesh(geometry, material);
        scene.add(roverMesh);

        // Drive Vectors (Arrows)
        const arrowDir = new THREE.Vector3(0, 0, -1);
        const arrowOrigin = new THREE.Vector3(0, 0, 0);
        const arrowLen = 1;
        const arrowCol = 0xffff00;
        leftArrow = new THREE.ArrowHelper(arrowDir, arrowOrigin, arrowLen, arrowCol);
        rightArrow = new THREE.ArrowHelper(arrowDir, arrowOrigin, arrowLen, arrowCol);
        roverMesh.add(leftArrow);
        roverMesh.add(rightArrow);
        leftArrow.position.set(-0.6, 0, 0);
        rightArrow.position.set(0.6, 0, 0);

        beaconGeo = new THREE.BoxGeometry(0.5, 10000, 0.5);
        const canvas = document.createElement('canvas');
        canvas.width = 32; canvas.height = 32;
        const ctx = canvas.getContext('2d');
        ctx.beginPath();
        ctx.arc(16,16,14,0,2*Math.PI);
        ctx.fillStyle = 'white';
        ctx.fill();
        detectionTex = new THREE.CanvasTexture(canvas);

        waypointGroup = new THREE.Group();
        scene.add(waypointGroup);

        detectionGroup = new THREE.Group();
        scene.add(detectionGroup);

        const config = [
            { id: 0, name: "NAV", color: "#00ffff" },
            { id: 1, name: "TAG", color: "#ffffff" },
            { id: 2, name: "MALLET", color: "#ffa500" },
            { id: 3, name: "BOTTLE", color: "#0088ff" },
            { id: 4, name: "PICK", color: "#ffee00" },
            { id: 5, name: "OBJ", color: "#aaaaaa" },
            { id: 6, name: "OBSTACLE", color: "#ff0000" },
            { id: 7, name: "UNKNOWN", color: "#000000" },
            { id: 8, name: "GOAL REACHED", color: "#00ff00" }
        ];

        config.forEach(c => {
            typeNames[c.id] = c.name;
            typeColors[c.id] = new THREE.Color(c.color);
        });

        // Legend: Detections
        const detLegendDiv = document.getElementById('det-legend');
        for (const [id, data] of Object.entries(detectColors)) {
            const item = document.createElement('div');
            item.className = 'legend-item';
            item.innerHTML = `<div class="circle-box" style="background:${data.color}"></div><span>${data.name}</span>`;
            detLegendDiv.appendChild(item);
        }

        // Legend: States
        const stateLegendDiv = document.getElementById('state-legend');
        for (const [id, data] of Object.entries(stateColors)) {
            const item = document.createElement('div');
            item.className = 'legend-item';
            item.innerHTML = `<div class="color-box" style="background:${data.color}"></div><span>${data.name}</span>`;
            stateLegendDiv.appendChild(item);
        }

        // Toggles & Inputs
        const cbGround = document.getElementById('cb-ground');
        if (cbGround) {
            cbGround.addEventListener('change', (e) => {
                cfgLockGround = e.target.checked;
                if (cfgLockGround) {
                    targetPos.y = getTerrainHeight(targetPos.x, targetPos.z, targetPos.y);
                }
            });
        }
        document.getElementById('sl-rad').oninput = (e) => {
            cfgRadius = parseInt(e.target.value);
            document.getElementById('val-rad').innerText = cfgRadius;
            checkBoundary(true);
        };
        document.getElementById('sl-tol').oninput = (e) => {
            cfgTolerance = parseInt(e.target.value);
            document.getElementById('val-tol').innerText = cfgTolerance;
        };
        document.getElementById('sl-score').oninput = (e) => {
            cfgMinScore = parseFloat(e.target.value);
            document.getElementById('val-score').innerText = cfgMinScore.toFixed(2);
            checkBoundary(true);
        };

        // UI Layer Collapsible Toggle
        const settingsToggle = document.getElementById('settings-toggle');
        const settingsContent = document.getElementById('settings-content');
        settingsToggle.addEventListener('click', () => {
            if (settingsContent.style.display === 'none') {
                settingsContent.style.display = 'block';
                settingsToggle.innerHTML = 'Settings &#9660;';
            } else {
                settingsContent.style.display = 'none';
                settingsToggle.innerHTML = 'Settings &#9654;';
            }
        });

        window.addEventListener('keydown', (e) => onKey(e, true));
        window.addEventListener('keyup', (e) => onKey(e, false));
        window.addEventListener('resize', onWindowResize);

        window.toggleFollow = () => {
            isFollowing = !isFollowing;
            document.getElementById('follow-btn').classList.toggle('active', isFollowing);
            document.getElementById('status').innerText = isFollowing ? "Status: Locked" : "Status: Free Cam";
            if(isFollowing) controls.target.copy(roverMesh.position);
        };
        window.snapToRover = () => {
            camera.position.copy(roverMesh.position).add(new THREE.Vector3(0,10,-10));
            controls.target.copy(roverMesh.position);
        };

        requestTelemetryLoop();
        setInterval(fetchPlannedPath, 2000);
        setInterval(fetchWaypoints, 2000);
        setInterval(fetchDetections, 1000);
        setInterval(fetchDetectionsList, 5000);
        fetchMapSquare(0, 0);
    }

    // --- RECURSIVE LOOP ---
    async function requestTelemetryLoop() {
        if (!document.hidden) await fetchTelemetry();
        setTimeout(requestTelemetryLoop, 50);
    }

    async function fetchTelemetry() {
        try {
            const response = await fetch('/api/telemetry');
            if (!response.ok) return;
            const buffer = await response.arrayBuffer();
            updateTelemetry(buffer);
        } catch (e) { }
    }

    async function fetchPlannedPath() {
        try {
            const response = await fetch('/api/planned_path');
            const buffer = await response.arrayBuffer();
            updatePlannedPath(buffer);
        } catch(e) {}
    }

    async function fetchWaypoints() {
        try {
            const response = await fetch('/api/waypoints');
            const buffer = await response.arrayBuffer();
            updateWaypoints(buffer);
        } catch(e) {}
    }

    async function fetchDetections() {
        try {
            const response = await fetch('/api/detections');
            const buffer = await response.arrayBuffer();
            updateDetections(buffer);
        } catch(e) {}
    }

    async function fetchDetectionsList() {
        try {
            const response = await fetch('/api/detection_list');
            const filenames = await response.json();
            updateDetectionGallery(filenames);
        } catch(e) {
            console.error('Failed to fetch detection list:', e);
        }
    }

    function updateDetectionGallery(filenames) {
        detectionFilenames = filenames;
        const panel = document.getElementById('detection-panel');
        const gallery = document.getElementById('detection-gallery-items');
        const header = panel ? panel.querySelector('h3') : null;
        if (!gallery) return;

        gallery.innerHTML = '';

        if (filenames.length === 0) {
            if (panel) panel.style.width = 'auto';
            if (header) header.style.display = 'none';
            gallery.innerHTML = '<div style="color:#aaa; font-size:12px; text-align:center;">No detections</div>';
            return;
        }

        if (panel) panel.style.width = '250px';
        if (header) header.style.display = 'block';

        const latestIndex = filenames.length - 1;
        const filename = filenames[latestIndex];

        const item = document.createElement('div');
        item.className = 'gallery-item';

        const img = document.createElement('img');
        img.src = `/detections/${filename}`;
        img.alt = filename;
        img.title = "Click to view full gallery";
        img.addEventListener('click', () => showDetectionModal(latestIndex));

        const info = document.createElement('div');
        info.style.color = '#fff';
        info.style.fontSize = '14px';
        info.style.textAlign = 'center';
        info.style.marginTop = '8px';
        info.innerText = `View all ${filenames.length} images`;

        item.appendChild(img);
        item.appendChild(info);
        gallery.appendChild(item);
    }

    window.showDetectionModal = function(index) {
        const modal = document.getElementById('detection-modal');
        const img = document.getElementById('modal-image');
        const caption = document.getElementById('modal-caption');
        const openBtn = document.getElementById('modal-open-btn');

        if (modal && img && caption && detectionFilenames.length > 0) {
            currentModalIndex = index;
            const filename = detectionFilenames[currentModalIndex];
            const src = `/detections/${filename}`;

            img.src = src;
            caption.innerText = `${filename} (${currentModalIndex + 1} of ${detectionFilenames.length})`;

            if (openBtn) {
                openBtn.onclick = () => window.open(src, '_blank');
            }
            modal.style.display = 'flex';
        }
    }

    window.closeDetectionModal = function() {
        const modal = document.getElementById('detection-modal');
        if (modal) modal.style.display = 'none';
    }

    window.nextDetection = function(e) {
        e.stopPropagation();
        if (detectionFilenames.length === 0) return;
        let newIdx = currentModalIndex + 1;
        if (newIdx >= detectionFilenames.length) newIdx = 0;
        showDetectionModal(newIdx);
    }

    window.prevDetection = function(e) {
        e.stopPropagation();
        if (detectionFilenames.length === 0) return;
        let newIdx = currentModalIndex - 1;
        if (newIdx < 0) newIdx = detectionFilenames.length - 1;
        showDetectionModal(newIdx);
    }

    function updateArrow(arrow, power) {
        const absPwr = Math.abs(power);
        const dir = power >= 0 ? new THREE.Vector3(0, 0, -1) : new THREE.Vector3(0, 0, 1);
        arrow.setDirection(dir);
        arrow.setLength(Math.max(absPwr * 2.0, 0.001), 0.2, 0.1);
        const col = power >= 0 ? 0x00ff00 : 0xff0000;
        arrow.setColor(col);
    }

    function updateTelemetry(buffer) {
        const view = new DataView(buffer);
        const rx = view.getFloat32(0, true);
        const ry = view.getFloat32(4, true);
        const rz = view.getFloat32(8, true);
        const rh = view.getFloat32(12, true);

        // Calculate Speed using actual un-flattened 3D position
        const now = performance.now();
        const newPos = new THREE.Vector3(rx, ry, -rz);
        if (lastTelemetryTime > 0) {
            const dt = (now - lastTelemetryTime) / 1000.0;
            if (dt > 0.1) {
                const dist = newPos.distanceTo(lastTelemetryPos);
                const instSpeed = dist / dt;
                speedHistory.push(instSpeed);
                if (speedHistory.length > 20) speedHistory.shift();
                avgSpeed = speedHistory.reduce((a,b)=>a+b, 0) / speedHistory.length;
            }
        }
        lastTelemetryPos.copy(newPos);
        lastTelemetryTime = now;

        // Drive Powers
        const leftPwr = view.getFloat32(16, true);
        const rightPwr = view.getFloat32(20, true);
        updateArrow(leftArrow, leftPwr);
        updateArrow(rightArrow, rightPwr);

        let targetY = ry;
        if (cfgLockGround) {
            targetY = getTerrainHeight(rx, -rz, ry);
        }
        targetPos.set(rx, targetY, -rz);
        targetHeading = -rh * (Math.PI / 180.0);

        checkBoundary(false);

        const pathCount = view.getUint32(24, true); // Offset 24
        if (pathCount > 0) {
            if (pathLine) {
                scene.remove(pathLine);
                if (pathLine.geometry) pathLine.geometry.dispose();
                if (pathLine.material) pathLine.material.dispose();
            }
            const floats = new Float32Array(buffer, 28, pathCount * 4); // Offset 28
            const vertices = [];
            const colors = [];
            const c = new THREE.Color();

            for(let i=0; i<floats.length; i+=4) {
                vertices.push(floats[i], floats[i+1], -floats[i+2]);
                const state = Math.floor(floats[i+3]);
                const hex = stateColors[state] ? stateColors[state].color : "#ffffff";
                c.set(hex);
                colors.push(c.r, c.g, c.b);
            }

            pathLine = createThickPath(vertices, colors, 0.1, 0xffffff);
            if (pathLine) scene.add(pathLine);
        }
    }

    function updatePlannedPath(buffer) {
        const view = new DataView(buffer);
        const count = view.getUint32(0, true);
        if (plannedPathLine) {
            scene.remove(plannedPathLine);
            if (plannedPathLine.geometry) plannedPathLine.geometry.dispose();
            if (plannedPathLine.material) plannedPathLine.material.dispose();
            plannedPathLine = null;
        }

        pathDistance = 0.0;
        lastPathPoint = null;

        if (count > 0) {
            const floats = new Float32Array(buffer, 4, count * 3);
            const vertices = [];
            for(let i=0; i<floats.length; i+=3) {
                vertices.push(floats[i], floats[i+1], -floats[i+2]);
            }

            // Calculate total path distance (sum of segments)
            // Add distance from rover to first point
            if(vertices.length >= 3) {
                 const firstPt = new THREE.Vector3(vertices[0], vertices[1], vertices[2]);
                 pathDistance += targetPos.distanceTo(firstPt);
                 // Store Last Point
                 const lastIdx = vertices.length - 3;
                 lastPathPoint = new THREE.Vector3(vertices[lastIdx], vertices[lastIdx+1], vertices[lastIdx+2]);
            }
            // Add segments
            for(let i=0; i<vertices.length-3; i+=3) {
                const p1 = new THREE.Vector3(vertices[i], vertices[i+1], vertices[i+2]);
                const p2 = new THREE.Vector3(vertices[i+3], vertices[i+4], vertices[i+5]);
                pathDistance += p1.distanceTo(p2);
            }

            plannedPathLine = createThickPath(vertices, null, 0.1, 0xeeff00);
            if (plannedPathLine) scene.add(plannedPathLine);
        }
    }

    function updateWaypoints(buffer) {
        while(waypointGroup.children.length > 0){
            const child = waypointGroup.children[0];
            waypointGroup.remove(child);
            if (child.material) child.material.dispose();
        }
        markerLayer.innerHTML = '';
        activeWaypoints = [];

        const view = new DataView(buffer);
        const count = view.getUint32(0, true);
        if(count === 0) return;

        let offset = 4;

        for(let i=0; i<count; i++) {
            const x = view.getFloat32(offset, true);
            const y = view.getFloat32(offset+4, true);
            const z = view.getFloat32(offset+8, true);
            const type = view.getInt32(offset+12, true);
            offset += 16;

            const col = typeColors[type] || typeColors[7];
            const beaconMat = new THREE.MeshBasicMaterial({
                color: col,
                transparent: true,
                opacity: 0.3,
                depthTest: false
            });
            const beacon = new THREE.Mesh(beaconGeo, beaconMat);
            beacon.position.set(x, 0, -z);
            waypointGroup.add(beacon);

            const div = document.createElement('div');
            div.className = 'hud-marker';
            div.innerText = typeNames[type] || "UNK";
            div.style.borderColor = "#" + col.getHexString();
            markerLayer.appendChild(div);

            activeWaypoints.push({
                div: div,
                pos: new THREE.Vector3(x, 0, -z)
            });
        }
    }

    function updateDetections(buffer) {
        while(detectionGroup.children.length > 0){
            const child = detectionGroup.children[0];
            detectionGroup.remove(child);
            if (child.geometry) child.geometry.dispose();
            if (child.material) child.material.dispose();
        }

        const view = new DataView(buffer);
        const count = view.getUint32(0, true);
        if(count === 0) return;

        let offset = 4;

        for(let i=0; i<count; i++) {
            const x = view.getFloat32(offset, true);
            const y = view.getFloat32(offset+4, true);
            const z = view.getFloat32(offset+8, true);
            const type = view.getInt32(offset+12, true);
            offset += 16;

            let col = "#ffffff";
            if(detectColors[type]) col = detectColors[type].color;

            const mat = new THREE.PointsMaterial({
                color: col,
                map: detectionTex,
                size: 2.0, // Large persistent dot
                sizeAttenuation: true,
                alphaTest: 0.5,
                transparent: true
            });
            const geo = new THREE.BufferGeometry();
            geo.setAttribute('position', new THREE.Float32BufferAttribute([x, y, -z], 3));

            const pt = new THREE.Points(geo, mat);
            detectionGroup.add(pt);
        }
    }

    function updateHUD() {
        const width = window.innerWidth;
        const height = window.innerHeight;
        const pad = 30;

        // Update ETA Box
        const etaBox = document.getElementById('eta-box');

        // Reached End Logic
        let bReached = false;
        if (lastPathPoint && roverMesh.position.distanceTo(lastPathPoint) < 2.0) {
             bReached = true;
        }

        if (bReached) {
            etaBox.innerText = "Status: Reached End of Path";
            etaBox.style.color = "#00ff00"; // Green
        } else {
            etaBox.style.color = "#0f0"; // Default Green
            if (avgSpeed < 0.05) {
                etaBox.innerText = "ETA: Stopped";
            } else {
                const timeSec = pathDistance / avgSpeed;
                if (!isFinite(timeSec) || timeSec < 0) {
                     etaBox.innerText = "ETA: --:--";
                } else {
                     const min = Math.floor(timeSec / 60);
                     const sec = Math.floor(timeSec % 60);
                     etaBox.innerText = `ETA: ${min}m ${sec}s (${avgSpeed.toFixed(2)} m/s)`;
                }
            }
        }

        activeWaypoints.forEach(wp => {
            const target = wp.pos.clone();
            target.y = roverMesh.position.y + 3.0;
            target.project(camera);

            let x = (target.x * .5 + .5) * width;
            let y = (target.y * -.5 + .5) * height;

            const isBehind = target.z > 1;

            if (isBehind) {
                x = width - x;
                y = height - y;
            }

            const cx = width / 2;
            const cy = height / 2;
            const dx = x - cx;
            const dy = y - cy;

            if (!isBehind && x >= pad && x <= width - pad && y >= pad && y <= height - pad) {
                y -= 40;
                wp.div.style.opacity = "0.9";
            } else {
                let t = Infinity;
                if (dx > 0) t = Math.min(t, (width - pad - cx) / dx);
                if (dx < 0) t = Math.min(t, (pad - cx) / dx);
                if (dy > 0) t = Math.min(t, (height - pad - cy) / dy);
                if (dy < 0) t = Math.min(t, (pad - cy) / dy);

                x = cx + dx * t;
                y = cy + dy * t;
                wp.div.style.opacity = "0.6";
            }

            wp.div.style.left = x + 'px';
            wp.div.style.top = y + 'px';

            // Use 2D horizontal distance for distance display.
            const dxPos = roverMesh.position.x - wp.pos.x;
            const dzPos = roverMesh.position.z - wp.pos.z;
            const dist = Math.sqrt(dxPos*dxPos + dzPos*dzPos);

            wp.div.innerText = `${wp.div.innerText.split(' ')[0]} ${Math.round(dist)}m`;
        });
    }

    function checkBoundary(force) {
        if(isFetchingMap && !force) return;
        const roverX = targetPos.x;
        const roverN = -targetPos.z;
        const distE = Math.abs(roverX - mapCenter.x);
        const distN = Math.abs(roverN - mapCenter.y);
        const limit = cfgRadius - cfgTolerance;

        if (force || distE > limit || distN > limit) {
            fetchMapSquare(roverX, roverN);
        }
    }

    async function fetchMapSquare(x, y) {
        if(isFetchingMap) return;
        isFetchingMap = true;
        try {
            const url = `/api/map?x=${x.toFixed(2)}&y=${y.toFixed(2)}&r=${cfgRadius}&s=${cfgMinScore}`;
            const response = await fetch(url);
            const buffer = await response.arrayBuffer();
            loadMapPoints(buffer);
            mapCenter = { x: x, y: y };
        } catch(e) { console.error(e); }
        isFetchingMap = false;
    }

    function loadMapPoints(buffer) {
        const view = new DataView(buffer);
        const count = view.getUint32(0, true);

        if(currentPoints) {
            scene.remove(currentPoints);
            currentPoints.geometry.dispose();
            currentPoints.material.dispose();
            currentPoints = null;
        }

        if(count === 0) {
            document.getElementById('stats').innerText = "Points: 0";
            return;
        }

        const pts = [];
        const colors = [];
        const c = new THREE.Color();
        const floats = new Float32Array(buffer, 4, count * 4);

        for(let i=0; i<floats.length; i+=4) {
            pts.push(floats[i], floats[i+1], -floats[i+2]);
            c.setHSL(floats[i+3] * 0.33, 1.0, 0.5);
            colors.push(c.r, c.g, c.b);
        }

        const geo = new THREE.BufferGeometry();
        geo.setAttribute('position', new THREE.Float32BufferAttribute(pts, 3));
        geo.setAttribute('color', new THREE.Float32BufferAttribute(colors, 3));
        const mat = new THREE.PointsMaterial({ size: 0.5, vertexColors: true });

        currentPoints = new THREE.Points(geo, mat);
        scene.add(currentPoints);
        document.getElementById('stats').innerText = "Points: " + count;
    }

    function onKey(e, p) {
        if(keys.hasOwnProperty(e.key.toLowerCase())) keys[e.key.toLowerCase()] = p;
        if(e.key === 'Shift') keys.shift = p;
        if(p && e.key==='f') window.toggleFollow();
        if(p && e.key===' ') window.snapToRover();
    }
    function onWindowResize() { camera.aspect = window.innerWidth / window.innerHeight; camera.updateProjectionMatrix(); renderer.setSize(window.innerWidth, window.innerHeight); }

    function animate() {
        requestAnimationFrame(animate);
        const now = performance.now();
        const dt = Math.min((now - lastTime) / 1000.0, 0.1);
        lastTime = now;

        prevRoverPos.copy(roverMesh.position);
        const lerpFactor = 5.0 * dt;
        roverMesh.position.lerp(targetPos, lerpFactor);
        const dRot = targetHeading - roverMesh.rotation.y;
        roverMesh.rotation.y += Math.atan2(Math.sin(dRot), Math.cos(dRot)) * lerpFactor;

        if(isFollowing) {
            camera.position.add(new THREE.Vector3().subVectors(roverMesh.position, prevRoverPos));
            controls.target.copy(roverMesh.position);
        } else {
            const spd = (keys.shift?15:5)*dt;
            const fwd = new THREE.Vector3(); camera.getWorldDirection(fwd); fwd.y=0; fwd.normalize();
            const rgt = new THREE.Vector3().crossVectors(fwd, camera.up).normalize();
            if(keys.w) camera.position.addScaledVector(fwd, spd);
            if(keys.s) camera.position.addScaledVector(fwd, -spd);
            if(keys.d) camera.position.addScaledVector(rgt, spd);
            if(keys.a) camera.position.addScaledVector(rgt, -spd);
            if(keys.q) camera.position.y += spd;
            if(keys.e) camera.position.y -= spd;
            controls.target.add(new THREE.Vector3(0,0,0).addScaledVector(fwd, (keys.w-keys.s)*spd).addScaledVector(rgt, (keys.d-keys.a)*spd));
        }
        controls.update();

        updateHUD();

        renderer.render(scene, camera);
    }
</script>
</body>
</html>
    )RAW_HTML";
}

Here is the caller graph for this function:

GenerateStaticHtml()

std::string VisualizationHandler::GenerateStaticHtml ( const std::vector< LiDARHandler::PointRow > &  vLidar )

private

Generates a static HTML page with embedded LiDAR data and embedded dependencies.

Parameters

vLidar

- Vector of LiDAR point rows to include in the HTML.

Returns

std::string - The generated HTML content as a string.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

{
    // 1. Load and Encode Assets
    std::string szThreeJS = Base64Encode(LoadFileToBuffer(constants::VISUALIZER_THREEJS_PATH));
    std::string szOrbitJS = Base64Encode(LoadFileToBuffer(constants::VISUALIZER_ORBITCONTROLS_PATH));

    if (szThreeJS.empty() || szOrbitJS.empty())
    {
        LOG_ERROR(logging::g_qSharedLogger, "VisualizationHandler: Cannot generate monolithic export. Missing assets.");
        return "<html><body>Error: Missing ThreeJS assets on rover. Ensure 'assets/three.module.js' and 'assets/OrbitControls.js' exist.</body></html>";
    }

    std::stringstream stdSS;
    stdSS << std::fixed << std::setprecision(3);

    // Write Header
    stdSS << R"RAW(
<!DOCTYPE html>
<html>
<head>
    <title>Mars Rover Static Export</title>
    <style>
        body { margin: 0; overflow: hidden; background: #222; font-family: sans-serif; }
        #ui-layer { position: absolute; top: 10px; left: 10px; color: #0f0; background: rgba(0,0,0,0.5); padding: 10px; border-radius: 5px; pointer-events: none; min-width: 250px; z-index: 10; }
        #marker-layer { position: absolute; top: 0; left: 0; width: 100%; height: 100%; pointer-events: none; overflow: hidden; }
        .hud-marker { position: absolute; padding: 4px 8px; background: rgba(0, 0, 0, 0.7); color: white; border: 2px solid white; border-radius: 4px; font-size: 14px; font-weight: bold; white-space: nowrap; transform: translate(-50%, -50%); transition: opacity 0.2s; }
        .hud-marker::after { content: ''; position: absolute; top: 50%; left: 50%; width: 0; height: 0; }
        #legend-layer { position: absolute; bottom: 20px; left: 10px; color: #fff; background: rgba(0,0,0,0.7); padding: 10px; border-radius: 5px; pointer-events: none; min-width: 150px; z-index: 10; }
        .legend-section { margin-bottom: 10px; border-bottom: 1px solid #555; padding-bottom: 5px; }
        .legend-item { display: flex; align-items: center; gap: 10px; margin-bottom: 5px; font-size: 12px; }
        .color-box { width: 15px; height: 15px; border: 1px solid #aaa; }
        .circle-box { width: 12px; height: 12px; border-radius: 50%; }
        .control-group { margin-bottom: 10px; pointer-events: auto; }
        label { display: block; font-size: 12px; color: #aaa; }
        input[type=range] { width: 100%; }
        .val-disp { float: right; color: #fff; }
        .btn-group { position: absolute; bottom: 20px; right: 20px; display: flex; gap: 10px; z-index: 10; }
        .hud-btn { padding: 10px 20px; background: #444; color: white; border: 2px solid #666; cursor: pointer; font-size: 16px; z-index: 999; }
        .hud-btn.active { background: #00aa00; border-color: #00ff00; }
        h3 { margin-top: 0; border-bottom: 1px solid #555; padding-bottom: 5px; }
    </style>
    <script type="importmap">
    {
        "imports": {
            "three": "data:text/javascript;base64,)RAW";

    // Inject ThreeJS Base64
    stdSS << szThreeJS;

    stdSS << R"RAW(",
            "three/addons/controls/OrbitControls.js": "data:text/javascript;base64,)RAW";

    // Inject OrbitControls Base64
    stdSS << szOrbitJS;

    stdSS << R"RAW("
        }
    }
    </script>
</head>
<body>
    <div id="ui-layer">
        <h3 id="settings-toggle" style="cursor: pointer; pointer-events: auto; margin: 0; border: none; padding: 0; user-select: none;">Static Export &#9654;</h3>
        <div id="settings-content" style="display: none; margin-top: 10px; border-top: 1px solid #555; padding-top: 10px;">
            <div class="control-group">
                <label style="color: #ccc; cursor: pointer; display: flex; align-items: center; gap: 5px;">
                    <input type="checkbox" id="cb-ground" checked> Lock Rover to Terrain Height
                </label>
            </div>
            <div class="control-group">
                <label>Min Score <span id="val-score" class="val-disp">0.0</span></label>
                <input type="range" id="sl-score" min="0.0" max="1.0" value="0.0" step="0.05">
            </div>
            <div id="stats" style="margin-top:5px; color: #aaa; font-size:12px;">Points: 0</div>
        </div>
    </div>
    <div id="legend-layer">
        <div class="legend-section" id="det-legend"><strong>Detections</strong></div>
        <div class="legend-section" id="state-legend"><strong>State Key</strong></div>
    </div>
    <div id="marker-layer"></div>
    <div class="btn-group">
        <button class="hud-btn" onclick="snapToRover()">Snap (Space)</button>
    </div>
)RAW";

    stdSS << "<script>\n";

    // LiDAR Data Loop.
    stdSS << "    const RAW_LIDAR = [";
    for (size_t siIter = 0; siIter < vLidar.size(); ++siIter)
    {
        const LiDARHandler::PointRow& stPoint = vLidar[siIter];
        stdSS << (stPoint.dEasting - m_stOriginUTM.dEasting) << "," << (stPoint.dAltitude - m_stOriginUTM.dAltitude) << ","
              << (stPoint.dNorthing - m_stOriginUTM.dNorthing) << "," << stPoint.dTraversalScore;
        if (siIter < vLidar.size() - 1)
            stdSS << ",";
    }
    stdSS << "];\n";

    // Path History Loop.
    {
        // Acquire lock for thread safety.
        std::lock_guard<std::mutex> lkPathLock(m_muPathMutex);
        stdSS << "    const RAW_PATH = [";

        // Loop through each point in the path history.
        for (size_t siIter = 0; siIter < m_vPathHistory.size(); ++siIter)
        {
            const DisplayPoint& stPoint = m_vPathHistory[siIter];
            stdSS << stPoint.fX << "," << stPoint.fY << "," << stPoint.fZ << "," << stPoint.nState;
            if (siIter < m_vPathHistory.size() - 1)
                stdSS << ",";
        }
        stdSS << "];\n";
    }

    // Planned Path Loop.
    {
        // Acquire lock for thread safety.
        std::lock_guard<std::mutex> lkPlannedPathLock(m_muPlannedPathMutex);
        stdSS << "    const RAW_PLANNED = [";

        // Loop through each point in the planned path.
        for (size_t siIter = 0; siIter < m_vPlannedPath.size(); ++siIter)
        {
            const DisplayPoint& stPoint = m_vPlannedPath[siIter];
            stdSS << stPoint.fX << "," << stPoint.fY << "," << stPoint.fZ;
            if (siIter < m_vPlannedPath.size() - 1)

Here is the call graph for this function:

Here is the caller graph for this function:

ThreadedContinuousCode()

void VisualizationHandler::ThreadedContinuousCode ( )

overrideprivatevirtual

The main continuous code for the VisualizationHandler.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

Implements AutonomyThread< void >.

{
    // Check that required global handlers are valid.
    if (globals::g_pStateMachineHandler == nullptr || globals::g_pNavigationBoard == nullptr)
    {
        return;
    }

    // Retrieve Rover UTM Position.
    geoops::RoverPose stRoverPose    = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
    geoops::UTMCoordinate stRoverUTM = stRoverPose.GetUTMCoordinate();

    // Set origin if not set.
    if (!m_bOriginSet)
    {
        // Only set origin if we have a valid position.
        if (std::abs(stRoverUTM.dEasting) > 1.0 || std::abs(stRoverUTM.dNorthing) > 1.0)
        {
            m_stOriginUTM = stRoverUTM;
            m_bOriginSet  = true;
            LOG_DEBUG(logging::g_qSharedLogger, "VisualizationHandler: Origin set to E:{}, N:{}", m_stOriginUTM.dEasting, m_stOriginUTM.dNorthing);
            LOG_INFO(logging::g_qSharedLogger, "VisualizationHandler: WebServer has been started on http://0.0.0.0:{}!", m_nPort);
        }
    }

    // Update Data if origin is set.
    if (m_bOriginSet)
    {
        this->UpdatePathHistory(stRoverUTM);
        this->UpdateGoalBeacons(stRoverUTM);
        this->UpdateDetections();

        static std::chrono::system_clock::time_point tmLastAuxUpdate = std::chrono::system_clock::now();
        // Update auxiliary data at 1 Hz.
        if (std::chrono::duration_cast<std::chrono::seconds>(std::chrono::system_clock::now() - tmLastAuxUpdate).count() >= 1)
        {
            this->UpdatePlannedPath();
            this->UpdateWaypoints();
            tmLastAuxUpdate = std::chrono::system_clock::now();
        }
    }
}

Here is the call graph for this function:

PooledLinearCode()

void VisualizationHandler::PooledLinearCode ( )

overrideprivatevirtual

The pooled linear code for the VisualizationHandler. This is not used.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

Implements AutonomyThread< void >.

{}

---

The documentation for this class was generated from the following files:

• src/handlers/VisualizationHandler.h
• src/handlers/VisualizationHandler.cpp
