LiDARHandler Class Reference

The LiDARHandler class manages runtime queries against a LiDAR point cloud database for autonomy navigation. More...

#include <LiDARHandler.h>

Classes
struct	PointFilter
	Struct for filtering LiDAR points during queries. More...
struct	PointRow
	Struct representing a single LiDAR point row from the database. More...

Public Member Functions
	LiDARHandler ()
	Construct a new LiDARHandler::LiDARHandler object.
	LiDARHandler (const LiDARHandler &pOther)=delete
LiDARHandler &	operator= (const LiDARHandler &pOther)=delete
	~LiDARHandler ()
	Destroy the LiDARHandler::LiDARHandler object.
bool	OpenDB (const std::string &szDBPath)
	Initializes the LiDARHandler by opening the DuckDB database.
bool	CloseDB ()
	Closes the currently open LiDAR DuckDB connection.
std::vector< PointRow >	GetLiDARData (const PointFilter &stPointFilter)
	Retrieves LiDAR data points from DuckDB based on the specified filter.
bool	DeclareLiDARObstacle (const geoops::UTMCoordinate &stPoint, double dRadius)
	Modifies all LiDAR points in radius to reflect bad terrain.
bool	IsDBOpen ()
	Checks if the database is currently open.

Private Member Functions
template<typename T >
void	AddRangeFilter (std::vector< std::string > &vClauses, duckdb::vector< duckdb::Value > &vBindValues, const char *pColumn, const std::optional< PointFilter::Range< T > > &stdOptRange)
	Adds a range filter to the SQL query clauses and dynamically bound values.

Private Attributes
std::unique_ptr< duckdb::DuckDB >	m_pDB
bool	m_bIsDBOpen
std::shared_mutex	m_muQueryMutex

Detailed Description

The LiDARHandler class manages runtime queries against a LiDAR point cloud database for autonomy navigation.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-01-22

Constructor & Destructor Documentation

LiDARHandler()

LiDARHandler::LiDARHandler

(

)

Construct a new LiDARHandler::LiDARHandler object.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-07-13

{
    // Ensure smart pointers are null natively.
    m_pDB       = nullptr;
    m_bIsDBOpen = false;
}

~LiDARHandler()

LiDARHandler::~LiDARHandler

(

)

Destroy the LiDARHandler::LiDARHandler object.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om), Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2025-05-20

{
    this->CloseDB();    // Ensure the database is closed on destruction.
}

Here is the call graph for this function:

Member Function Documentation

OpenDB()

bool LiDARHandler::OpenDB

(

const std::string &

szDBPath

)

Initializes the LiDARHandler by opening the DuckDB database.

This method securely opens the DuckDB file and instantiates a persistent connection object. The connection is opened in default Read/Write mode to allow the autonomy system to dynamically modify the terrain and declare obstacles at runtime.

Parameters

szDBPath

Relative or absolute path to the DuckDB database file.

Returns

true - If the database was successfully opened.

false - If there was an error opening the database.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2026-05-01

{
    // Check if the file actually exists on disk before doing anything.
    if (!std::filesystem::exists(szDBPath))
    {
        LOG_ERROR(logging::g_qSharedLogger, "Failed to open DuckDB: File does not exist at '{}'", szDBPath);
        return false;
    }

    // Acquire a write lock on the mutex to ensure thread safety.
    std::unique_lock<std::shared_mutex> lkWriteLock(m_muQueryMutex);

    // Reset existing connection if already open (fixing the previous race condition)
    if (m_bIsDBOpen)
    {
        LOG_WARNING(logging::g_qSharedLogger, "Database is already open. Closing existing connection before opening a new one.");
        m_pDB.reset();
        m_bIsDBOpen = false;
    }

    try
    {
        // Instantiate the DuckDB instance.
        m_pDB = std::make_unique<duckdb::DuckDB>(szDBPath);
    }
    catch (const duckdb::Exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "Failed to open DuckDB at '{}': {}", szDBPath, e.what());
        return false;
    }
    catch (const std::exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "Standard exception while opening DuckDB: {}", e.what());
        return false;
    }

    m_bIsDBOpen = true;
    LOG_INFO(logging::g_qSharedLogger, "Successfully opened DuckDB analytics engine at '{}'.", szDBPath);

    return true;
}

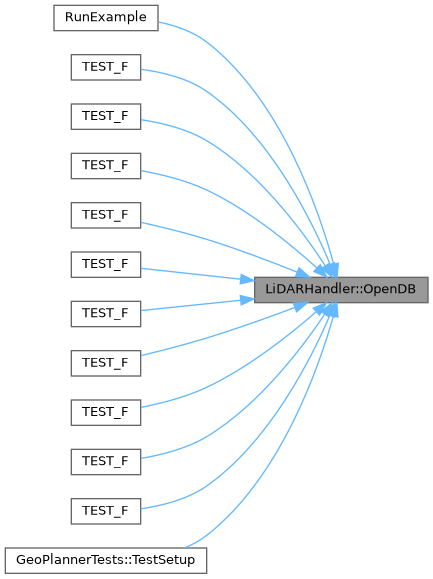

Here is the caller graph for this function:

CloseDB()

bool LiDARHandler::CloseDB

(

)

Closes the currently open LiDAR DuckDB connection.

Returns

true - If the database was successfully closed.

false - If there was an error closing the database.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-07-13

{
    std::unique_lock<std::shared_mutex> lkWriteLock(m_muQueryMutex);

    if (m_bIsDBOpen)
    {
        // Smart pointers automatically release resources and close database locks
        // when reset. This avoids SQLite's manual finalize() memory leak issues.
        m_pDB.reset();
        m_bIsDBOpen = false;
    }

    return true;
}

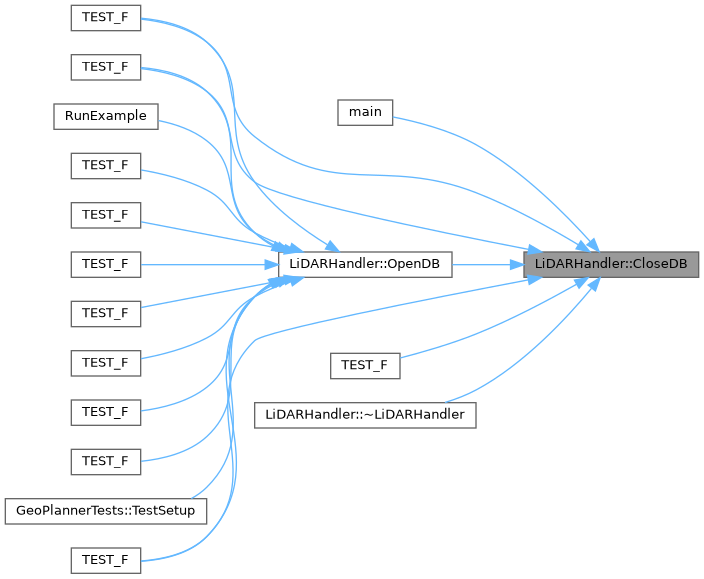

Here is the caller graph for this function:

GetLiDARData()

std::vector< LiDARHandler::PointRow > LiDARHandler::GetLiDARData

(

const PointFilter &

stPointFilter

)

Retrieves LiDAR data points from DuckDB based on the specified filter.

Parameters

stPointFilter

- The filter criteria to apply when querying LiDAR data.

Returns

std::vector<LiDARHandler::PointRow> - Queried rows from the database.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-07-13

{
    std::shared_lock<std::shared_mutex> lkReadLock(m_muQueryMutex);
    std::chrono::time_point<std::chrono::high_resolution_clock> tmStartTime = std::chrono::high_resolution_clock::now();

    if (!m_bIsDBOpen)
    {
        LOG_ERROR(logging::g_qSharedLogger, "Database is not open.");
        return {};
    }

    // Build dynamic WHERE clauses. DuckDB binds values natively into vectors.
    std::vector<std::string> vClauses;
    duckdb::vector<duckdb::Value> vBindValues;

    // Spatial bounds are applied directly to the columns. DuckDB uses underlying
    // block Zonemaps to instantly skip unneeded file blocks on disk.
    vClauses.emplace_back("p.easting BETWEEN ? AND ?");
    vBindValues.push_back(duckdb::Value(stPointFilter.dEasting - stPointFilter.dRadius));
    vBindValues.push_back(duckdb::Value(stPointFilter.dEasting + stPointFilter.dRadius));

    vClauses.emplace_back("p.northing BETWEEN ? AND ?");
    vBindValues.push_back(duckdb::Value(stPointFilter.dNorthing - stPointFilter.dRadius));
    vBindValues.push_back(duckdb::Value(stPointFilter.dNorthing + stPointFilter.dRadius));

    // Optional classification filter
    if (stPointFilter.szClassification && !stPointFilter.szClassification->empty())
    {
        vClauses.emplace_back("c.label = ?");
        vBindValues.push_back(duckdb::Value(*stPointFilter.szClassification));
    }

    // Add optional filters for metrics using COALESCE to safely treat NULL edge-points as 0.0.
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.normal_x, 0.0)", stPointFilter.dNormalX);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.normal_y, 0.0)", stPointFilter.dNormalY);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.normal_z, 0.0)", stPointFilter.dNormalZ);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.slope, 0.0)", stPointFilter.dSlope);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.rough, 0.0)", stPointFilter.dRoughness);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.curvature, 0.0)", stPointFilter.dCurvature);
    this->AddRangeFilter(vClauses, vBindValues, "COALESCE(p.trav_score, 0.0)", stPointFilter.dTraversalScore);

    // Construct final SQL query string.
    std::ostringstream stdOSS;
    stdOSS << "SELECT p.id, p.easting, p.northing, p.altitude, z.label, c.label,"
           << " COALESCE(p.normal_x, 0.0), COALESCE(p.normal_y, 0.0), COALESCE(p.normal_z, 0.0),"
           << " COALESCE(p.slope, 0.0), COALESCE(p.rough, 0.0), COALESCE(p.curvature, 0.0), COALESCE(p.trav_score, 0.0)"
           << " FROM ProcessedLiDARPoints AS p"
           << " LEFT JOIN Zones AS z ON p.zone_id = z.id"
           << " LEFT JOIN Classifications AS c ON p.class_code = c.code"
           << " WHERE ";

    for (size_t siIter = 0; siIter < vClauses.size(); ++siIter)
    {
        if (siIter > 0)
            stdOSS << " AND ";
        stdOSS << vClauses[siIter];
    }

    std::vector<PointRow> vResults;

    try
    {
        // Thread-local connection to avoid stepping on pending chunk states
        duckdb::Connection stLocalConn(*m_pDB);

        // DuckDB Prepared Statements protect against injections and compile the plan
        duckdb::unique_ptr<duckdb::PreparedStatement> stPreparedStmt = stLocalConn.Prepare(stdOSS.str());
        if (stPreparedStmt->HasError())
        {
            LOG_ERROR(logging::g_qSharedLogger, "Failed to prepare DuckDB SQL: {}", stPreparedStmt->GetError());
            return {};
        }

        // Execute the query passing the bound values
        duckdb::unique_ptr<duckdb::QueryResult> stResult = stPreparedStmt->Execute(vBindValues);
        if (stResult->HasError())
        {
            LOG_ERROR(logging::g_qSharedLogger, "Execution Error: {}", stResult->GetError());
            return {};
        }

        // DuckDB extracts data in vector chunks. Iterating via Fetch() is extremely performant
        // and naturally manages memory without locking threads.
        while (duckdb::unique_ptr<duckdb::DataChunk> stChunk = stResult->Fetch())
        {
            size_t siRows = stChunk->size();
            for (size_t siIter = 0; siIter < siRows; siIter++)
            {
                PointRow stRow;

                // Extract native datatypes directly from the memory chunk.
                stRow.nID              = stChunk->GetValue(0, siIter).GetValue<int32_t>();
                stRow.dEasting         = stChunk->GetValue(1, siIter).GetValue<double>();
                stRow.dNorthing        = stChunk->GetValue(2, siIter).GetValue<double>();
                stRow.dAltitude        = stChunk->GetValue(3, siIter).IsNull() ? 0.0 : stChunk->GetValue(3, siIter).GetValue<double>();

                duckdb::Value valZone  = stChunk->GetValue(4, siIter);
                stRow.szZone           = valZone.IsNull() ? "Unknown" : valZone.GetValue<std::string>();

                duckdb::Value valClass = stChunk->GetValue(5, siIter);
                stRow.szClassification = valClass.IsNull() ? "Unclassified" : valClass.GetValue<std::string>();

                // Metrics are guaranteed to be non-null due to the COALESCE in the SELECT clause.
                stRow.dNormalX        = stChunk->GetValue(6, siIter).GetValue<double>();
                stRow.dNormalY        = stChunk->GetValue(7, siIter).GetValue<double>();
                stRow.dNormalZ        = stChunk->GetValue(8, siIter).GetValue<double>();
                stRow.dSlope          = stChunk->GetValue(9, siIter).GetValue<double>();
                stRow.dRoughness      = stChunk->GetValue(10, siIter).GetValue<double>();
                stRow.dCurvature      = stChunk->GetValue(11, siIter).GetValue<double>();
                stRow.dTraversalScore = stChunk->GetValue(12, siIter).GetValue<double>();

                vResults.push_back(stRow);
            }
        }
    }
    catch (const duckdb::Exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "DuckDB threw an exception in GetLiDARData: {}", e.what());
        return {};
    }
    catch (const std::exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "A standard exception was thrown in GetLiDARData: {}", e.what());
        return {};
    }

    std::chrono::time_point<std::chrono::high_resolution_clock> tmEndTime = std::chrono::high_resolution_clock::now();
    double dQueryTime                                                     = std::chrono::duration<double>(tmEndTime - tmStartTime).count();

    if (dQueryTime > 0.2)
    {
        LOG_WARNING(logging::g_qSharedLogger, "Query took {:.2f} seconds to execute.", dQueryTime);
    }
    else
    {
        LOG_DEBUG(logging::g_qSharedLogger, "Query took {} seconds to execute.", dQueryTime);
    }

    if (vResults.empty())
    {
        LOG_WARNING(logging::g_qSharedLogger, "Query returned no results.");
    }
    return vResults;
}

Here is the call graph for this function:

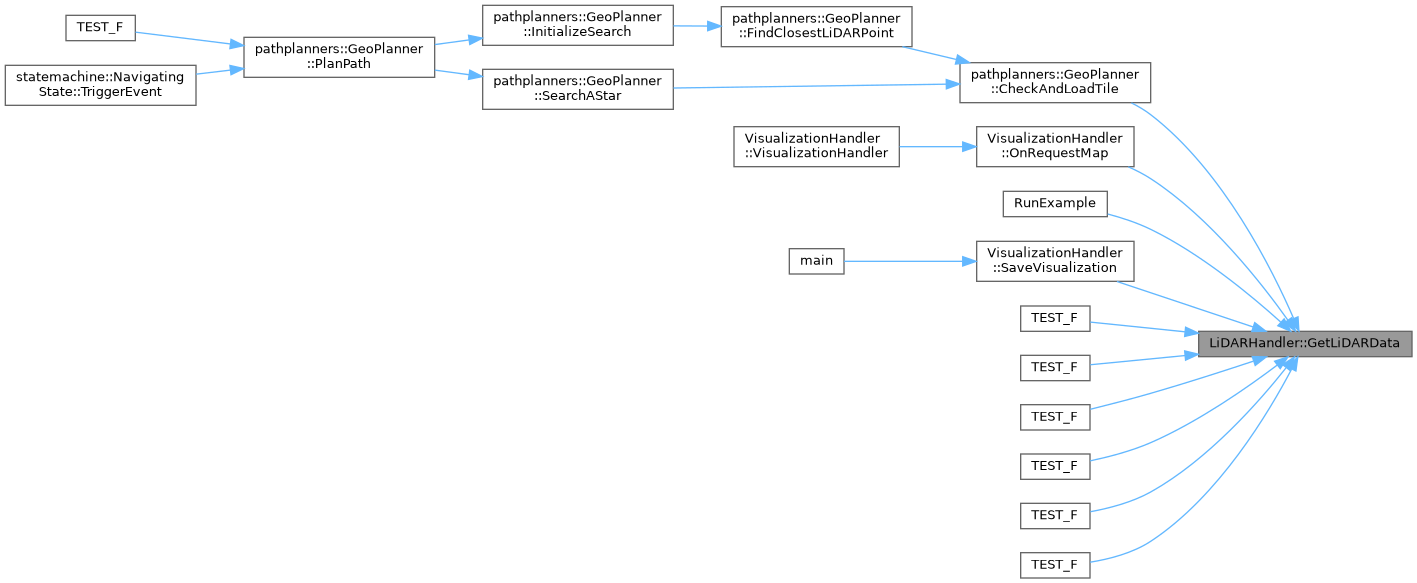

Here is the caller graph for this function:

DeclareLiDARObstacle()

bool LiDARHandler::DeclareLiDARObstacle	(	const geoops::UTMCoordinate &	stPoint,
		double	dRadius
	)

Modifies all LiDAR points in radius to reflect bad terrain.

Parameters

stPoint	- Center UTM coordinate of obstacle
dRadius	- Radius of obstacle

Returns

true - If the data points were successfully modified.

false - If the modification failed.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om), Sam Nolte (samno.nosp@m.lte0.nosp@m.302@g.nosp@m.mail.nosp@m..com)

Date

2026-05-01

{
    // Acquire a write lock on the mutex to ensure thread safety.
    std::unique_lock<std::shared_mutex> lkWriteLock(m_muQueryMutex);

    // Check if the database is open.
    if (!m_bIsDBOpen)
    {
        LOG_ERROR(logging::g_qSharedLogger, "Database is not open.");
        return false;
    }

    // Prepare the SQL statement for updating data.
    // DuckDB zonemaps replace the need for the old RTree index table.
    const char* pSQL = R"(
        UPDATE ProcessedLiDARPoints
        SET trav_score = 0.01
        WHERE easting BETWEEN ? AND ?
          AND northing BETWEEN ? AND ?
          AND (easting - ?) * (easting - ?) + (northing - ?) * (northing - ?) <= ?
    )";

    // Bind values to the prepared statement
    duckdb::vector<duckdb::Value> vBindValues;

    // Bounding box (zonemap fast-filter)
    vBindValues.push_back(duckdb::Value(stPoint.dEasting - dRadius));
    vBindValues.push_back(duckdb::Value(stPoint.dEasting + dRadius));
    vBindValues.push_back(duckdb::Value(stPoint.dNorthing - dRadius));
    vBindValues.push_back(duckdb::Value(stPoint.dNorthing + dRadius));

    // Radial distance check (exact filtering)
    vBindValues.push_back(duckdb::Value(stPoint.dEasting));
    vBindValues.push_back(duckdb::Value(stPoint.dEasting));
    vBindValues.push_back(duckdb::Value(stPoint.dNorthing));
    vBindValues.push_back(duckdb::Value(stPoint.dNorthing));

    // Pass the squared radius directly so we don't need ? * ? in the SQL
    vBindValues.push_back(duckdb::Value(dRadius * dRadius));

    int64_t nRowsUpdated = 0;
    try
    {
        // Thread-local connection to safely issue commands without bleeding pending states
        duckdb::Connection stLocalConn(*m_pDB);

        duckdb::unique_ptr<duckdb::PreparedStatement> stPreparedStmt = stLocalConn.Prepare(pSQL);
        if (stPreparedStmt->HasError())
        {
            LOG_ERROR(logging::g_qSharedLogger, "Failed to prepare DuckDB SQL: {}", stPreparedStmt->GetError());
            return false;
        }

        // Execute the statement.
        auto stResult = stPreparedStmt->Execute(vBindValues);
        if (stResult->HasError())
        {
            LOG_ERROR(logging::g_qSharedLogger, "Failed to update obstacle data: {}", stResult->GetError());
            return false;
        }

        // DuckDB UPDATE queries return a single column/row chunk containing the number of updated rows.
        // It's critical to loop over Fetch() until it returns null to exhaust the result set.
        while (auto stChunk = stResult->Fetch())
        {
            if (stChunk->size() > 0 && nRowsUpdated == 0)
            {
                nRowsUpdated = stChunk->GetValue(0, 0).GetValue<int64_t>();
            }
        }
    }
    catch (const duckdb::Exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "DuckDB threw an exception in DeclareLiDARObstacle: {}", e.what());
        return false;
    }
    catch (const std::exception& e)
    {
        LOG_ERROR(logging::g_qSharedLogger, "A standard exception was thrown in DeclareLiDARObstacle: {}", e.what());
        return false;
    }

    // Log LiDAR changes
    LOG_INFO(logging::g_qSharedLogger,
             "Created new obstacle at ({}, {}), radius: {}. Updated {} points",
             (int) stPoint.dEasting,
             (int) stPoint.dNorthing,
             (int) dRadius,
             nRowsUpdated);

    return true;
}

Here is the call graph for this function:

IsDBOpen()

bool LiDARHandler::IsDBOpen

(

)

Checks if the database is currently open.

Returns

true - If the database is open.

false - If the database is not open.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-07-14

{
    std::shared_lock<std::shared_mutex> lkReadLock(m_muQueryMutex);
    return m_bIsDBOpen;
}

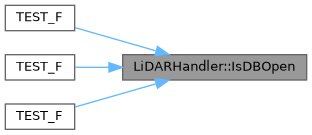

Here is the caller graph for this function:

AddRangeFilter()

template<typename T >

void LiDARHandler::AddRangeFilter ( std::vector< std::string > &  vClauses, duckdb::vector< duckdb::Value > &  vBindValues, const char *  pColumn, const std::optional< PointFilter::Range< T > > &  stdOptRange  )

private

Adds a range filter to the SQL query clauses and dynamically bound values.

Template Parameters

T	- The data type of the range values.

Parameters

vClauses	- The vector of SQL clauses to which the range filter will be added.
vBindValues	- The duckdb value container storing runtime query parameters.
pColumn	- The name of the column to apply the range filter on.
stdOptRange	- The optional range to filter by.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-07-14

{
    if (stdOptRange)
    {
        vClauses.emplace_back(std::string(pColumn) + " BETWEEN ? AND ?");
        vBindValues.push_back(duckdb::Value(stdOptRange->tMin));
        vBindValues.push_back(duckdb::Value(stdOptRange->tMax));
    }
}

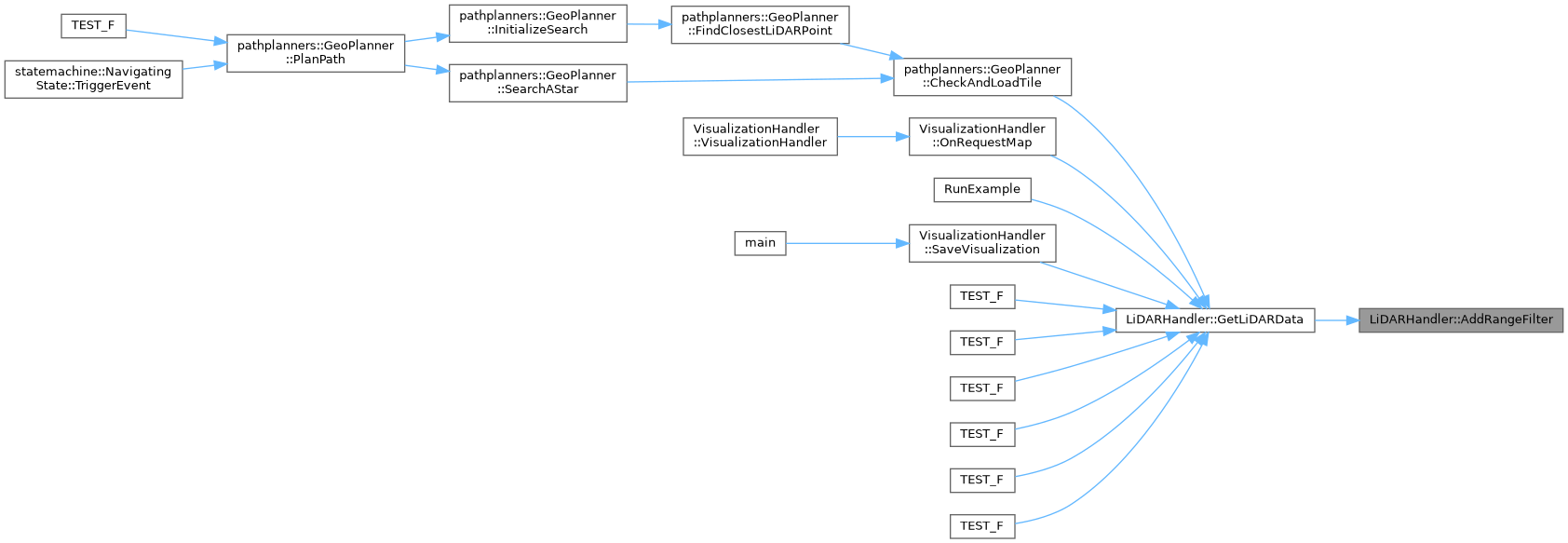

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/handlers/LiDARHandler.h
• src/handlers/LiDARHandler.cpp
