duckdb::BoxRendererImplementation Struct Reference

Inheritance diagram for duckdb::BoxRendererImplementation:

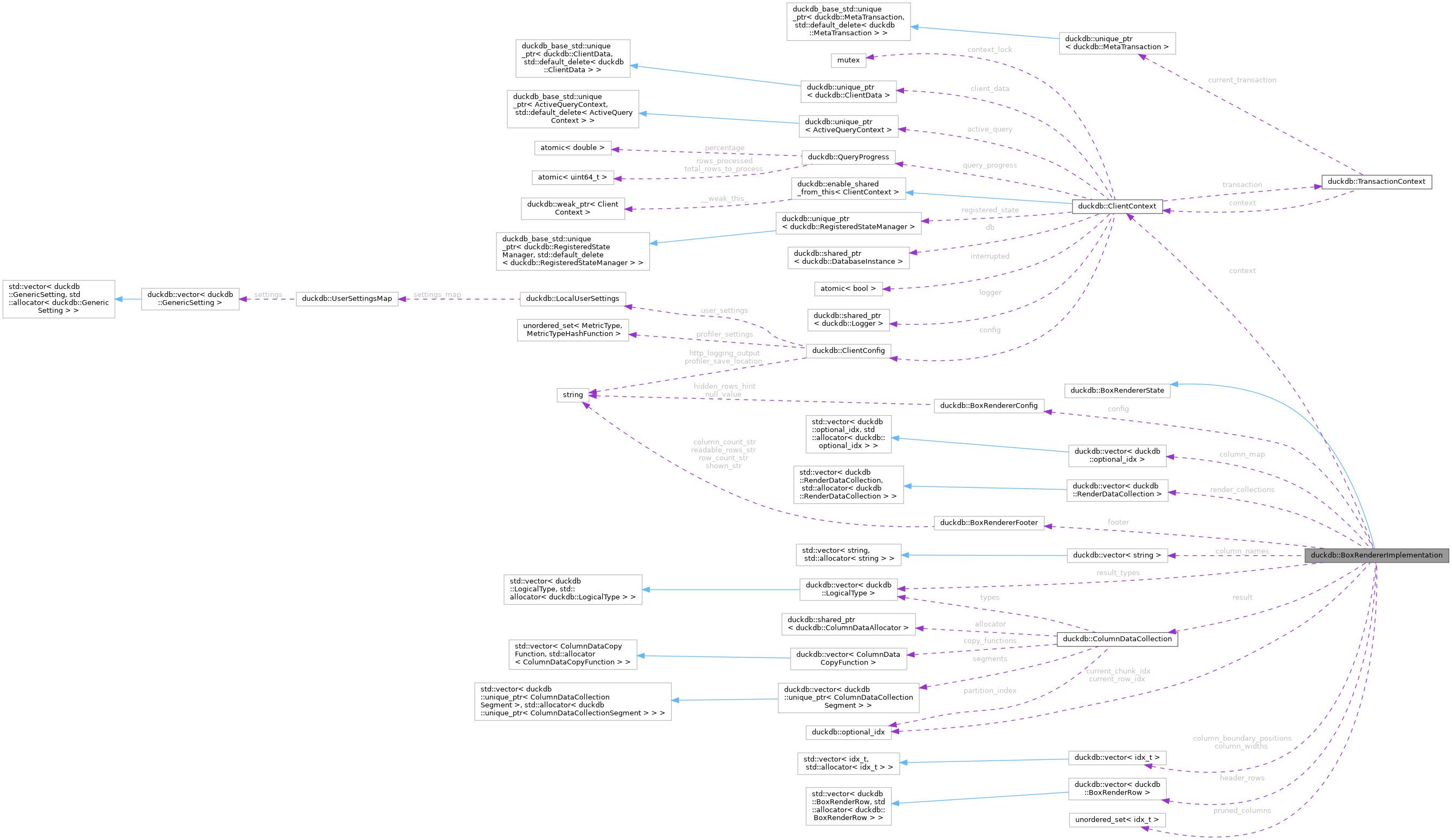

Collaboration diagram for duckdb::BoxRendererImplementation:

Public Member Functions
	BoxRendererImplementation (BoxRendererConfig config, ClientContext &context, const vector< string > &names, const ColumnDataCollection &result)
idx_t	TotalRenderWidth () override
void	Render (BaseResultRenderer &ss) override

Private Member Functions
void	Initialize ()
void	RenderValue (BaseResultRenderer &ss, const string &value, idx_t column_width, ResultRenderType render_mode, const vector< HighlightingAnnotation > &annotations, ValueRenderAlignment alignment=ValueRenderAlignment::MIDDLE, optional_idx render_width=optional_idx(), const char *vertical=nullptr)
string	RenderType (const LogicalType &type)
ValueRenderAlignment	TypeAlignment (const LogicalType &type)
void	ConvertRenderVector (Vector &vector, Vector &render_lengths, idx_t count, const LogicalType &original_type, idx_t null_render_length)
void	FetchTopCollection (RenderDataCollection &top_collection, const ColumnDataCollection &result, idx_t chunk_idx, idx_t row_idx, idx_t top_rows, idx_t bottom_rows)
void	FetchBottomCollection (RenderDataCollection &bottom_collection, const ColumnDataCollection &result, idx_t bottom_rows)
vector< RenderDataCollection >	FetchRenderCollections (const ColumnDataCollection &result, idx_t top_rows, idx_t bottom_rows)
vector< RenderDataCollection >	PivotCollections (vector< RenderDataCollection > input, idx_t row_count)
void	ComputeRenderWidths (vector< RenderDataCollection > &collections, idx_t min_width, idx_t max_width)
void	RenderHeader (BaseResultRenderer &ss)
void	RenderValues (BaseResultRenderer &ss, vector< RenderDataCollection > &collections)
void	RenderRow (BaseResultRenderer &ss, BoxRenderRow &row)
void	RenderDivider (BaseResultRenderer &ss, const BoxRenderRow &prev_row, const BoxRenderRow &next_row)
void	PotentiallyExpandRow (BoxRenderRow &row, vector< BoxRenderRow > &rows, idx_t max_rows_per_row, bool is_first_row)
void	UpdateColumnCountFooter (idx_t column_count, const unordered_set< idx_t > &pruned_columns)
string	TruncateValue (const string &value, idx_t column_width, idx_t &pos, idx_t &current_render_width)
void	ComputeRowFooter (idx_t row_count, idx_t rendered_rows)
void	RenderFooter (BaseResultRenderer &ss, idx_t row_count, idx_t column_count)
string	FormatNumber (const string &input)
string	ConvertRenderValue (const string &input, const LogicalType &type)
string	ConvertRenderValue (const string &input)
void	RenderLayoutLine (BaseResultRenderer &ss, const char *layout, const char *boundary, const char *left_corner, const char *right_corner)
string	TryFormatLargeNumber (const string &numeric)
	Try to format a large number in a readable way (e.g. 1234567 -> 1.23 million)
bool	CanPrettyPrint (const BoxRenderValue &render_value)
bool	CanHighlight (const BoxRenderValue &render_value)
void	PrettyPrintValue (BoxRenderValue &render_value, idx_t max_rows, idx_t max_width)
void	HighlightValue (BoxRenderValue &render_value)

Private Attributes
BoxRendererConfig	config
ClientContext &	context
vector< string >	column_names
vector< LogicalType >	result_types
const ColumnDataCollection &	result
vector< idx_t >	column_widths
vector< idx_t >	column_boundary_positions
idx_t	total_render_length = 0
vector< BoxRenderRow >	header_rows
BoxRendererFooter	footer
unordered_set< idx_t >	pruned_columns
vector< optional_idx >	column_map
bool	expand_rows = false
bool	is_first_row = true
idx_t	max_rows_per_row = 1
vector< RenderDataCollection >	render_collections
idx_t	top_rows = 0
idx_t	bottom_rows = 0
optional_idx	current_chunk_idx
optional_idx	current_row_idx

Constructor & Destructor Documentation

BoxRendererImplementation()

duckdb::BoxRendererImplementation::BoxRendererImplementation	(	BoxRendererConfig	config,
		ClientContext &	context,
		const vector< string > &	names,
		const ColumnDataCollection &	result
	)

    : config(std::move(config_p)), context(context), column_names(names), result(result) {
    result_types = result.Types();
    Initialize();
}

Member Function Documentation

TotalRenderWidth()

idx_t duckdb::BoxRendererImplementation::TotalRenderWidth ( )

inlineoverridevirtual

Implements duckdb::BoxRendererState.

                                      {
        return total_render_length;
    }

Render()

void duckdb::BoxRendererImplementation::Render ( BaseResultRenderer &  ss )

overridevirtual

Implements duckdb::BoxRendererState.

                                                             {
    ss.SetResultTypes(result.Types());

    RenderHeader(ss);
    while (true) {
        // render the values
        RenderValues(ss, render_collections);

        if (!current_chunk_idx.IsValid()) {
            // we are done - render the footer
            break;
        }
        // we have more data to fetch
        render_collections.clear();
        auto column_count = result.ColumnCount();
        render_collections.emplace_back(context, column_count);
        render_collections.emplace_back(context, column_count);
        FetchTopCollection(render_collections[0], result, current_chunk_idx.GetIndex(), current_row_idx.GetIndex(),
                           top_rows, bottom_rows);
    }

    // render the row count and column count
    idx_t column_count = result_types.size();
    RenderFooter(ss, result.Count(), column_count);
}

Initialize()

void duckdb::BoxRendererImplementation::Initialize ( )

private

                                           {
    if (result.ColumnCount() != column_names.size()) {
        throw InternalException("Error in BoxRenderer::Render - unaligned columns and names");
    }
    auto max_width = config.max_width;
    if (max_width == 0) {
        if (Printer::IsTerminal(OutputStream::STREAM_STDOUT)) {
            max_width = Printer::TerminalWidth();
        } else {
            max_width = 120;
        }
    }
    // we do not support max widths under 80
    max_width = MaxValue<idx_t>(80, max_width);

    // figure out how many/which rows to render
    idx_t row_count = result.Count();
    idx_t rows_to_render = MinValue<idx_t>(row_count, config.max_rows);
    if (row_count <= config.max_rows + 3) {
        // hiding rows adds 3 extra rows
        // so hiding rows makes no sense if we are only slightly over the limit
        // if we are 1 row over the limit hiding rows will actually increase the number of lines we display!
        // in this case render all the rows
        rows_to_render = row_count;
    }
    if (rows_to_render == row_count) {
        top_rows = row_count;
        bottom_rows = 0;
    } else {
        top_rows = rows_to_render / 2 + (rows_to_render % 2 != 0 ? 1 : 0);
        bottom_rows = rows_to_render - top_rows;
    }
    ComputeRowFooter(row_count, top_rows + bottom_rows);

    // fetch the top and bottom render collections from the result
    render_collections = FetchRenderCollections(result, top_rows, bottom_rows);
    if (config.render_mode == RenderMode::COLUMNS && rows_to_render > 0) {
        render_collections = PivotCollections(std::move(render_collections), row_count);
    }

    // for each column, figure out the width
    // start off by figuring out the name of the header by looking at the column name and column type
    idx_t min_width = footer.must_show_footer ? footer.render_length : 0;
    ComputeRenderWidths(render_collections, min_width, max_width);

    // render boundaries for the individual columns
    for (idx_t c = 0; c < column_widths.size(); c++) {
        idx_t render_boundary;
        if (c == 0) {
            render_boundary = column_widths[c] + 2;
        } else {
            render_boundary = column_boundary_positions[c - 1] + column_widths[c] + 3;
        }
        column_boundary_positions.push_back(render_boundary);
    }
}

RenderValue()

void duckdb::BoxRendererImplementation::RenderValue ( BaseResultRenderer &  ss, const string &  value, idx_t  column_width, ResultRenderType  render_mode, const vector< HighlightingAnnotation > &  annotations, ValueRenderAlignment  alignment = ValueRenderAlignment::MIDDLE, optional_idx  render_width = optional_idx(), const char *  vertical = nullptr  )

private

                                                                  {
    idx_t render_width;
    if (render_width_input.IsValid()) {
        render_width = render_width_input.GetIndex();
        if (render_width != Utf8Proc::RenderWidth(value)) {
            throw InternalException("Misaligned render width provided for string \"%s\"", value);
        }
    } else {
        render_width = Utf8Proc::RenderWidth(value);
    }

    const_reference<string> render_value(value);
    string small_value;
    idx_t max_render_pos = value.size();
    if (render_width > column_width) {
        // the string is too large to fit in this column!
        // the size of this column must have been reduced
        // figure out how much of this value we can render
        idx_t pos = 0;
        idx_t current_render_width = config.DOTDOTDOT_LENGTH;
        small_value = TruncateValue(value, column_width, pos, current_render_width);
        max_render_pos = small_value.size();
        small_value += config.DOTDOTDOT;
        render_width = current_render_width;
        render_value = const_reference<string>(small_value);
    }
    auto padding_count = (column_width - render_width) + 2;
    idx_t lpadding;
    idx_t rpadding;
    switch (alignment) {
    case ValueRenderAlignment::LEFT:
        lpadding = 1;
        rpadding = padding_count - 1;
        break;
    case ValueRenderAlignment::MIDDLE:
        lpadding = padding_count / 2;
        rpadding = padding_count - lpadding;
        break;
    case ValueRenderAlignment::RIGHT:
        lpadding = padding_count - 1;
        rpadding = 1;
        break;
    default:
        throw InternalException("Unrecognized value renderer alignment");
    }
    ss << (vertical ? vertical : config.VERTICAL);
    ss << string(lpadding, ' ');
    if (!annotations.empty()) {
        // if we have annotations split up the rendering between annotations
        idx_t pos = 0;
        ResultRenderType active_render_mode = render_mode;
        for (auto &annotation : annotations) {
            if (annotation.start >= max_render_pos) {
                break;
            }
            auto render_end = MinValue<idx_t>(max_render_pos, annotation.start);
            ss.Render(active_render_mode, render_value.get().substr(pos, render_end - pos));
            active_render_mode = annotation.render_mode;
            pos = render_end;
        }
        if (pos < render_value.get().size()) {
            ss.Render(active_render_mode, render_value.get().substr(pos, render_value.get().size() - pos));
        }
    } else {
        ss.Render(render_mode, render_value.get());
    }
    ss << string(rpadding, ' ');
}

RenderType()

string duckdb::BoxRendererImplementation::RenderType ( const LogicalType &  type )

private

                                                                    {
    if (type.HasAlias()) {
        return StringUtil::Lower(type.ToString());
    }
    switch (type.id()) {
    case LogicalTypeId::TINYINT:
        return "int8";
    case LogicalTypeId::SMALLINT:
        return "int16";
    case LogicalTypeId::INTEGER:
        return "int32";
    case LogicalTypeId::BIGINT:
        return "int64";
    case LogicalTypeId::HUGEINT:
        return "int128";
    case LogicalTypeId::UTINYINT:
        return "uint8";
    case LogicalTypeId::USMALLINT:
        return "uint16";
    case LogicalTypeId::UINTEGER:
        return "uint32";
    case LogicalTypeId::UBIGINT:
        return "uint64";
    case LogicalTypeId::UHUGEINT:
        return "uint128";
    case LogicalTypeId::LIST: {
        auto child = RenderType(ListType::GetChildType(type));
        return child + "[]";
    }
    default:
        return StringUtil::Lower(type.ToString());
    }
}

TypeAlignment()

ValueRenderAlignment duckdb::BoxRendererImplementation::TypeAlignment ( const LogicalType &  type )

private

                                                                                     {
    switch (type.id()) {
    case LogicalTypeId::TINYINT:
    case LogicalTypeId::SMALLINT:
    case LogicalTypeId::INTEGER:
    case LogicalTypeId::BIGINT:
    case LogicalTypeId::HUGEINT:
    case LogicalTypeId::UTINYINT:
    case LogicalTypeId::USMALLINT:
    case LogicalTypeId::UINTEGER:
    case LogicalTypeId::UBIGINT:
    case LogicalTypeId::UHUGEINT:
    case LogicalTypeId::DECIMAL:
    case LogicalTypeId::FLOAT:
    case LogicalTypeId::DOUBLE:
        return ValueRenderAlignment::RIGHT;
    default:
        return ValueRenderAlignment::LEFT;
    }
}

ConvertRenderVector()

void duckdb::BoxRendererImplementation::ConvertRenderVector ( Vector &  vector, Vector &  render_lengths, idx_t  count, const LogicalType &  original_type, idx_t  null_render_length  )

private

                                                                                                                {
    vector.Flatten(count);
    auto data = FlatVector::GetData<string_t>(vector);
    auto &validity = FlatVector::Validity(vector);
    auto render_length_data = FlatVector::GetData<uint64_t>(render_lengths);
    for (idx_t r = 0; r < count; r++) {
        if (!validity.RowIsValid(r)) {
            // null - no need to convert
            // set render length to render length of NULL
            render_length_data[r] = null_render_length;
            continue;
        }
        // non-null - convert value
        auto result_str = ConvertRenderValue(data[r].GetString(), original_type);
        render_length_data[r] = Utf8Proc::RenderWidth(result_str);
        data[r] = StringVector::AddString(vector, result_str);
    }
}

FetchTopCollection()

void duckdb::BoxRendererImplementation::FetchTopCollection ( RenderDataCollection &  top_collection, const ColumnDataCollection &  result, idx_t  chunk_idx, idx_t  row_idx, idx_t  top_rows, idx_t  bottom_rows  )

private

                                                                                      {
    auto column_count = result.ColumnCount();

    DataChunk fetch_result;
    fetch_result.Initialize(context, result.Types());

    DataChunk insert_result;
    top_collection.InitializeChunk(insert_result);

    idx_t null_render_length = Utf8Proc::RenderWidth(config.null_value);

    current_chunk_idx = optional_idx();
    current_row_idx = optional_idx();
    while (row_idx < top_rows) {
        if (context.IsInterrupted()) {
            break;
        }
        fetch_result.Reset();
        insert_result.Reset();
        // fetch the next chunk
        result.FetchChunk(chunk_idx, fetch_result);
        idx_t insert_count = MinValue<idx_t>(fetch_result.size(), top_rows - row_idx);

        // cast all columns to varchar
        for (idx_t c = 0; c < column_count; c++) {
            auto &source_vector = fetch_result.data[c];
            auto &target_vector = top_collection.Values(insert_result, c);
            auto &render_lengths = top_collection.RenderLengths(insert_result, c);
            VectorOperations::Cast(context, source_vector, target_vector, insert_count);
            ConvertRenderVector(target_vector, render_lengths, insert_count, source_vector.GetType(),
                                null_render_length);
        }
        insert_result.SetCardinality(insert_count);

        // construct the render collection
        top_collection.render_values->Append(insert_result);

        // if we have are constructing a footer
        if (config.large_number_rendering == LargeNumberRendering::FOOTER) {
            D_ASSERT(insert_count == 1);
            vector<string> readable_numbers;
            readable_numbers.resize(column_count);
            bool all_readable = true;
            for (idx_t c = 0; c < column_count; c++) {
                if (!result.Types()[c].IsNumeric()) {
                    // not a numeric type - cannot summarize
                    all_readable = false;
                    break;
                }
                // add a readable rendering of the value (i.e. "1234567" becomes "1.23 million")
                // we only add the rendering if the string is big
                auto &values = top_collection.Values(insert_result, c);
                auto numeric_val = values.GetValue(0).ToString();
                readable_numbers[c] = TryFormatLargeNumber(numeric_val);
                if (readable_numbers[c].empty()) {
                    all_readable = false;
                    break;
                }
                readable_numbers[c] = "(" + readable_numbers[c] + ")";
            }
            insert_result.Reset();
            if (all_readable) {
                for (idx_t c = 0; c < column_count; c++) {
                    auto &values = top_collection.Values(insert_result, c);
                    auto &render_widths = top_collection.RenderLengths(insert_result, c);
                    values.SetValue(0, Value(readable_numbers[c]));
                    render_widths.SetValue(0, Value::UBIGINT(Utf8Proc::RenderWidth(readable_numbers[c])));
                }
                insert_result.SetCardinality(1);
                top_collection.render_values->Append(insert_result);
            } else {
                config.large_number_rendering = LargeNumberRendering::NONE;
            }
        }

        chunk_idx++;
        row_idx += fetch_result.size();
        if (bottom_rows == 0 && row_idx >= config.max_analyze_rows && config.render_mode == RenderMode::ROWS) {
            // stop fetching for now - store current position
            current_chunk_idx = chunk_idx;
            current_row_idx = row_idx;
            break;
        }
    }
}

FetchBottomCollection()

void duckdb::BoxRendererImplementation::FetchBottomCollection ( RenderDataCollection &  bottom_collection, const ColumnDataCollection &  result, idx_t  bottom_rows  )

private

                                                                                                             {
    if (bottom_rows == 0) {
        return;
    }
    auto column_count = result.ColumnCount();

    DataChunk fetch_result;
    fetch_result.Initialize(context, result.Types());

    DataChunk insert_result;
    bottom_collection.InitializeChunk(insert_result);

    idx_t null_render_length = Utf8Proc::RenderWidth(config.null_value);
    // fetch the bottom rows from the ColumnDataCollection
    // first fetch all required chunks
    idx_t fetched_row_count = 0;
    vector<unique_ptr<DataChunk>> chunks;
    idx_t chunk_idx = result.ChunkCount() - 1;
    while (fetched_row_count < bottom_rows) {
        // fetch the current chunk
        auto fetch_chunk = make_uniq<DataChunk>();
        fetch_chunk->Initialize(context, result.Types());
        result.FetchChunk(chunk_idx, *fetch_chunk);

        fetched_row_count += fetch_chunk->size();
        chunks.push_back(std::move(fetch_chunk));
        if (fetched_row_count >= bottom_rows) {
            // fetched all required rows - break
            break;
        }
        // fetch another chunk
        if (chunk_idx == 0) {
            throw InternalException("Failed to fetch enough rows");
        }
        chunk_idx--;
    }
    // invert the chunks and start converting
    std::reverse(chunks.begin(), chunks.end());

    for (idx_t i = 0; i < chunks.size(); i++) {
        // skip over any extra rows
        auto &chunk = *chunks[i];
        idx_t offset = i == 0 ? fetched_row_count - bottom_rows : 0;
        idx_t insert_count = chunk.size() - offset;

        if (offset > 0) {
            // invert the rows
            SelectionVector slice_sel(insert_count);
            for (idx_t r = 0; r < insert_count; r++) {
                slice_sel.set_index(r, offset + r);
            }
            chunk.Slice(slice_sel, insert_count);
            chunk.Flatten();
        }

        for (idx_t c = 0; c < column_count; c++) {
            auto &source_vector = chunk.data[c];
            auto &target_vector = bottom_collection.Values(insert_result, c);
            auto &render_lengths = bottom_collection.RenderLengths(insert_result, c);
            VectorOperations::Cast(context, source_vector, target_vector, insert_count);
            ConvertRenderVector(target_vector, render_lengths, insert_count, source_vector.GetType(),
                                null_render_length);
        }
        insert_result.SetCardinality(insert_count);
        // construct the render collection
        bottom_collection.render_values->Append(insert_result);
    }
}

FetchRenderCollections()

vector< RenderDataCollection > duckdb::BoxRendererImplementation::FetchRenderCollections ( const ColumnDataCollection &  result, idx_t  top_rows, idx_t  bottom_rows  )

private

                                                                                                                  {
    auto column_count = result.ColumnCount();
    vector<RenderDataCollection> collections;
    collections.emplace_back(context, column_count);
    collections.emplace_back(context, column_count);

    auto &top_collection = collections.front();
    auto &bottom_collection = collections.back();

    if (config.large_number_rendering == LargeNumberRendering::FOOTER) {
        if (config.render_mode != RenderMode::ROWS || result.Count() != 1) {
            // large number footer can only be constructed (1) if we have a single row, and (2) in ROWS mode
            config.large_number_rendering = LargeNumberRendering::NONE;
        }
    }

    // fetch the top rows from the ColumnDataCollection
    FetchTopCollection(top_collection, result, 0, 0, top_rows, bottom_rows);
    // fetch the bottom rows (if any)
    FetchBottomCollection(bottom_collection, result, bottom_rows);
    return collections;
}

PivotCollections()

vector< RenderDataCollection > duckdb::BoxRendererImplementation::PivotCollections ( vector< RenderDataCollection >  input, idx_t  row_count  )

private

                                                                                          {
    auto &top = input.front();
    auto &bottom = input.back();

    vector<LogicalType> new_types;
    vector<string> new_names;
    new_names.emplace_back("Column");
    new_names.emplace_back("Type");
    new_types.emplace_back(LogicalType::VARCHAR);
    new_types.emplace_back(LogicalType::VARCHAR);
    for (idx_t r = 0; r < top.render_values->Count(); r++) {
        new_names.emplace_back("Row " + to_string(r + 1));
        new_types.emplace_back(LogicalType::VARCHAR);
    }
    for (idx_t r = 0; r < bottom.render_values->Count(); r++) {
        auto row_index = row_count - bottom.render_values->Count() + r + 1;
        new_names.emplace_back("Row " + to_string(row_index));
        new_types.emplace_back(LogicalType::VARCHAR);
    }
    vector<RenderDataCollection> result;
    result.emplace_back(context, new_names.size());
    DataChunk row_chunk;
    result.front().InitializeChunk(row_chunk);
    auto &res_coll = *result.front().render_values;
    ColumnDataAppendState append_state;
    res_coll.InitializeAppend(append_state);
    for (idx_t c = 0; c < column_names.size(); c++) {
        vector<column_t> column_ids {c * 2, c * 2 + 1};
        auto row_index = row_chunk.size();
        idx_t current_index = 0;
        auto &column_name = column_names[c];
        auto type_name = RenderType(result_types[c]);
        row_chunk.SetValue(current_index++, row_index, column_name);
        row_chunk.SetValue(current_index++, row_index, Value::UBIGINT(Utf8Proc::RenderWidth(column_name)));
        row_chunk.SetValue(current_index++, row_index, type_name);
        row_chunk.SetValue(current_index++, row_index, Value::UBIGINT(Utf8Proc::RenderWidth(type_name)));
        for (auto &collection : input) {
            for (auto &chunk : collection.render_values->Chunks(column_ids)) {
                if (context.IsInterrupted()) {
                    break;
                }
                for (idx_t r = 0; r < chunk.size(); r++) {
                    auto val = chunk.GetValue(0, r);
                    auto length = chunk.GetValue(1, r);
                    row_chunk.SetValue(current_index++, row_index, val);
                    row_chunk.SetValue(current_index++, row_index, length);
                }
            }
        }
        row_chunk.SetCardinality(row_chunk.size() + 1);
        if (row_chunk.size() == STANDARD_VECTOR_SIZE || c + 1 == column_names.size()) {
            res_coll.Append(append_state, row_chunk);
            row_chunk.Reset();
        }
    }
    column_names = std::move(new_names);
    result_types = std::move(new_types);
    return result;
}

ComputeRenderWidths()

void duckdb::BoxRendererImplementation::ComputeRenderWidths ( vector< RenderDataCollection > &  collections, idx_t  min_width, idx_t  max_width  )

private

                                                                     {
    auto column_count = result_types.size();

    // prepare the header / type for rendering
    // header / type
    BoxRenderRow header_row;
    BoxRenderRow type_row;
    for (idx_t c = 0; c < column_count; c++) {
        auto column_name = ConvertRenderValue(column_names[c]);
        idx_t column_name_width = Utf8Proc::RenderWidth(column_name);
        idx_t column_type_width = 0;

        header_row.values.emplace_back(column_name, ResultRenderType::COLUMN_NAME, ValueRenderAlignment::MIDDLE,
                                       optional_idx(), column_name_width);
        if (config.render_mode == RenderMode::ROWS) {
            auto column_type = RenderType(result_types[c]);
            column_type_width = Utf8Proc::RenderWidth(RenderType(result_types[c]));
            type_row.values.emplace_back(column_type, ResultRenderType::COLUMN_TYPE, ValueRenderAlignment::MIDDLE,
                                         optional_idx(), column_type_width);
        }
        column_widths.push_back(MaxValue<idx_t>(column_name_width, column_type_width));
    }
    header_rows.push_back(std::move(header_row));
    if (config.render_mode == RenderMode::ROWS) {
        header_rows.push_back(std::move(type_row));
    }

    // scan the render widths in the collection to figure out the
    vector<column_t> column_ids;
    for (idx_t c = 0; c < column_count; c++) {
        column_ids.push_back(c * 2 + 1);
    }
    for (auto &collection : collections) {
        for (auto &chunk : collection.render_values->Chunks(column_ids)) {
            for (idx_t c = 0; c < column_count; c++) {
                auto render_widths = FlatVector::GetData<uint64_t>(chunk.data[c]);
                for (idx_t r = 0; r < chunk.size(); r++) {
                    if (render_widths[r] > column_widths[c]) {
                        column_widths[c] = render_widths[r];
                    }
                }
            }
        }
    }

    bool shortened_columns = false;
    // figure out the total length
    // we start off with a pipe (|)
    total_render_length = 1;
    for (idx_t c = 0; c < column_widths.size(); c++) {
        // each column has a space at the beginning, and a space plus a pipe (|) at the end
        // hence + 3
        total_render_length += column_widths[c] + 3;
    }
    if (total_render_length < min_width) {
        // if there are hidden rows we should always display that
        // stretch up the first column until we have space to show the row count
        column_widths[0] += min_width - total_render_length;
        total_render_length = min_width;
    }
    // now we need to constrain the length
    if (total_render_length > max_width) {
        auto original_widths = column_widths;
        // before we remove columns, check if we can just reduce the size of columns
        vector<idx_t> max_shorten_amount;
        idx_t total_max_shorten_amount = 0;
        for (auto &w : column_widths) {
            if (w <= config.max_col_width) {
                max_shorten_amount.push_back(0);
                continue;
            }
            auto max_diff = w - config.max_col_width;
            max_shorten_amount.push_back(max_diff);
            total_max_shorten_amount += max_diff;
        }
        idx_t shorten_amount_required = total_render_length - max_width;
        if (total_max_shorten_amount >= shorten_amount_required) {
            // we can get below the max width by shortening
            // try to shorten everything to the same size
            // i.e. if we have one long column and one small column, we would prefer to shorten only the long column

            // map of "shorten amount required -> column index"
            map<idx_t, vector<idx_t>> shorten_amount_required_map;
            for (idx_t col_idx = 0; col_idx < max_shorten_amount.size(); col_idx++) {
                shorten_amount_required_map[max_shorten_amount[col_idx]].push_back(col_idx);
            }
            vector<idx_t> actual_shorten_amounts;
            actual_shorten_amounts.resize(max_shorten_amount.size());

            while (shorten_amount_required > 0) {
                // find the columns with the longest width
                auto entry = shorten_amount_required_map.rbegin();
                auto largest_width = entry->first;
                auto &column_list = entry->second;
                // shorten these columns to the next-shortest width
                // move to the second-largest entry - this is the target entry
                entry++;
                auto second_largest_width = entry == shorten_amount_required_map.rend() ? 0 : entry->first;
                auto max_shorten_width = largest_width - second_largest_width;
                D_ASSERT(max_shorten_width > 0);

                auto total_potential_shorten_width = max_shorten_width * column_list.size();
                if (total_potential_shorten_width >= shorten_amount_required) {
                    // we can reach the shorten amount required just by shortening this set of columns
                    // shorten the columns equally
                    idx_t shorten_amount_per_column = shorten_amount_required / column_list.size();
                    for (auto &column_idx : column_list) {
                        actual_shorten_amounts[column_idx] += shorten_amount_per_column;
                        shorten_amount_required -= shorten_amount_per_column;
                    }

                    // because of truncation, we might still need to shorten columns by a single unit
                    for (idx_t i = column_list.size(); i > 0 && shorten_amount_required > 0; i--) {
                        actual_shorten_amounts[column_list[i - 1]]++;
                        shorten_amount_required--;
                    }
                    if (shorten_amount_required != 0) {
                        throw InternalException("Shorten amount required has tob e zero now");
                    }

                    // we are now done
                    break;
                }
                if (entry == shorten_amount_required_map.rend()) {
                    throw InternalException(
                        "ColumnRenderer - we could not reach the shorten amount required but we ran out of columns?");
                }
                // we need to shorten all columns to the width of the next-largest column
                for (auto &column_idx : column_list) {
                    actual_shorten_amounts[column_idx] += max_shorten_width;
                }
                // add all columns to the second-largest list of columns
                auto &second_largest_column_list = entry->second;
                second_largest_column_list.insert(second_largest_column_list.end(), column_list.begin(),
                                                  column_list.end());
                // delete this entry from the shorten map and continue
                shorten_amount_required_map.erase(largest_width);
                shorten_amount_required -= total_potential_shorten_width;
            }

            // now perform the shortening
            for (idx_t c = 0; c < actual_shorten_amounts.size(); c++) {
                if (actual_shorten_amounts[c] == 0) {
                    continue;
                }
                D_ASSERT(actual_shorten_amounts[c] < column_widths[c]);
                column_widths[c] -= actual_shorten_amounts[c];
                total_render_length -= actual_shorten_amounts[c];
                shortened_columns = true;
            }
        } else {
            // we cannot get below the max width by shortening
            // set everything that is wider than the col width to the max col width
            // afterwards - we need to prune columns
            for (auto &w : column_widths) {
                if (w <= config.max_col_width) {
                    continue;
                }
                total_render_length -= w - config.max_col_width;
                w = config.max_col_width;
                shortened_columns = true;
            }
            D_ASSERT(total_render_length > max_width);
        }

        if (total_render_length > max_width) {
            // the total length is still too large
            // we need to remove columns!
            // first, we add 6 characters to the total length
            // this is what we need to add the "..." in the middle
            total_render_length += 3 + config.DOTDOTDOT_LENGTH;
            // now select columns to prune
            // we select columns in zig-zag order starting from the middle
            // e.g. if we have 10 columns, we remove #5, then #4, then #6, then #3, then #7, etc
            int64_t offset = 0;
            while (total_render_length > max_width) {
                auto c = NumericCast<idx_t>(NumericCast<int64_t>(column_count) / 2 + offset);
                total_render_length -= column_widths[c] + 3;
                pruned_columns.insert(c);
                if (offset >= 0) {
                    offset = -offset - 1;
                } else {
                    offset = -offset;
                }
            }

            // if we have any space left after truncating columns we can try to increase the size of columns again
            idx_t space_left = max_width - total_render_length;
            for (idx_t c = 0; c < column_widths.size() && space_left > 0; c++) {
                if (pruned_columns.find(c) != pruned_columns.end()) {
                    // only increase size of visible columns
                    continue;
                }
                if (column_widths[c] >= original_widths[c]) {
                    continue;
                }
                idx_t increase_amount = MinValue<idx_t>(space_left, original_widths[c] - column_widths[c]);
                column_widths[c] += increase_amount;
                space_left -= increase_amount;
                total_render_length += increase_amount;
            }
        }
    }

    // update the footer with the column counts
    UpdateColumnCountFooter(column_count, pruned_columns);

    bool added_split_column = false;
    vector<idx_t> new_widths;
    for (idx_t c = 0; c < column_count; c++) {
        if (pruned_columns.find(c) == pruned_columns.end()) {
            column_map.push_back(c);
            new_widths.push_back(column_widths[c]);
        } else if (!added_split_column) {
            // "..."
            column_map.push_back(optional_idx());
            new_widths.push_back(config.DOTDOTDOT_LENGTH);
            added_split_column = true;
        }
    }
    column_widths = std::move(new_widths);
    column_count = column_widths.size();

    // prune columns from the header rows
    for (auto &header_row : header_rows) {
        vector<BoxRenderValue> new_rows;
        for (auto &c : column_map) {
            if (!c.IsValid()) {
                // split column - skip
                continue;
            }
            new_rows.push_back(std::move(header_row.values[c.GetIndex()]));
        }
        header_row.values = std::move(new_rows);
    }

    idx_t row_count = 0;
    for (auto &collection : collections) {
        row_count += collection.render_values->Count();
    }

    // check if we shortened any columns that would be rendered and if we can expand them
    // we only expand columns in the ".mode rows", and only if we haven't hidden any columns
    if (shortened_columns && config.render_mode == RenderMode::ROWS && row_count > 0 &&
        row_count + 5 < config.max_rows && pruned_columns.empty()) {
        max_rows_per_row = MaxValue<idx_t>(1, config.max_rows <= 5 ? 0 : (config.max_rows - 5) / row_count);
        if (max_rows_per_row > 1) {
            // we can expand rows - check if we should expand any rows
            expand_rows = true;
        }
    }
}

RenderHeader()

void duckdb::BoxRendererImplementation::RenderHeader ( BaseResultRenderer &  ss )

private

                                                                   {
    // render the header
    RenderLayoutLine(ss, config.HORIZONTAL, config.TMIDDLE, config.LTCORNER, config.RTCORNER);

    vector<BoxRenderRow> rows_to_render;
    for (auto &row : header_rows) {
        if (expand_rows) {
            PotentiallyExpandRow(row, rows_to_render, max_rows_per_row, is_first_row);
        } else {
            rows_to_render.push_back(std::move(row));
        }
    }
    for (auto &row : rows_to_render) {
        if (context.IsInterrupted()) {
            return;
        }
        RenderRow(ss, row);
    }
    if (result.Count() > 0) {
        BoxRenderRow separator(RenderRowType::SEPARATOR);
        RenderRow(ss, separator);
    }
}

RenderValues()

void duckdb::BoxRendererImplementation::RenderValues ( BaseResultRenderer &  ss, vector< RenderDataCollection > &  collections  )

private

                                                                                                              {
    // render the values
    vector<column_t> columns_to_scan;
    vector<column_t> scan_indexes;
    for (idx_t c = 0; c < column_map.size(); c++) {
        auto column_idx = column_map[c];
        if (column_idx.IsValid()) {
            auto scan_column_idx = column_idx.GetIndex();
            columns_to_scan.push_back(scan_column_idx);
            scan_indexes.push_back(scan_column_idx * 2);
            scan_indexes.push_back(scan_column_idx * 2 + 1);
        }
    }

    // prepare the values for rendering
    bool render_divider = false;
    vector<BoxRenderRow> last_rendered_rows;
    idx_t row_idx = 0;
    bool is_first_collection = true;
    for (auto &render_collection : collections) {
        auto &collection = *render_collection.render_values;
        if (collection.Count() == 0) {
            continue;
        }
        if (!is_first_collection) {
            render_divider = true;
        }
        is_first_collection = false;

        for (auto &chunk : collection.Chunks(scan_indexes)) {
            vector<BoxRenderRow> chunk_rows;
            chunk_rows.resize(chunk.size());
            for (idx_t c = 0; c < columns_to_scan.size(); c++) {
                auto &string_vector = render_collection.Values(chunk, c);
                auto &render_lengths_vector = render_collection.RenderLengths(chunk, c);

                auto string_data = FlatVector::GetData<string_t>(string_vector);
                auto render_length_data = FlatVector::GetData<uint64_t>(render_lengths_vector);
                for (idx_t r = 0; r < chunk.size(); r++) {
                    if (context.IsInterrupted()) {
                        return;
                    }
                    string render_value;
                    ResultRenderType render_type;
                    ValueRenderAlignment alignment;
                    optional_idx column_idx;
                    if (FlatVector::IsNull(string_vector, r)) {
                        render_value = config.null_value;
                        render_type = ResultRenderType::NULL_VALUE;
                    } else {
                        render_value = string_data[r].GetString();
                        render_type = ResultRenderType::VALUE;
                    }
                    if (config.render_mode == RenderMode::ROWS) {
                        // in rows mode we select alignment for each column based on the type
                        column_idx = columns_to_scan[c];
                        alignment = TypeAlignment(result_types[column_idx.GetIndex()]);
                    } else {
                        // in columns mode we left-align the header rows, and right-align the values
                        switch (c) {
                        case 0:
                            render_type = ResultRenderType::COLUMN_NAME;
                            alignment = ValueRenderAlignment::LEFT;
                            break;
                        case 1:
                            render_type = ResultRenderType::COLUMN_TYPE;
                            alignment = ValueRenderAlignment::LEFT;
                            break;
                        default:
                            render_type = ResultRenderType::VALUE;
                            alignment = ValueRenderAlignment::RIGHT;
                            // for columns rendering mode - the type for this value is determined by the row index
                            column_idx = row_idx + r;
                            break;
                        }
                    }
                    if (config.large_number_rendering == LargeNumberRendering::FOOTER) {
                        // when rendering the large number footer we align to the middle
                        alignment = ValueRenderAlignment::MIDDLE;
                        if (row_idx + r == 1) {
                            // large number footers should be rendered as NULL values
                            render_type = ResultRenderType::NULL_VALUE;
                        }
                    }
                    auto render_length = render_length_data[r];
                    chunk_rows[r].values.emplace_back(std::move(render_value), render_type, alignment, column_idx,
                                                      render_length);
                }
            }
            row_idx += chunk.size();
            vector<BoxRenderRow> rows_to_render;
            for (auto &row : chunk_rows) {
                if (context.IsInterrupted()) {
                    return;
                }
                if (render_divider) {
                    RenderDivider(ss, last_rendered_rows.back(), row);
                    render_divider = false;
                }
                if (expand_rows) {
                    PotentiallyExpandRow(row, rows_to_render, max_rows_per_row, is_first_row);
                } else {
                    rows_to_render.push_back(std::move(row));
                }
                is_first_row = false;
            }
            for (auto &row : rows_to_render) {
                if (context.IsInterrupted()) {
                    return;
                }
                RenderRow(ss, row);
            }
            last_rendered_rows = std::move(rows_to_render);
        }
    }
}

RenderRow()

void duckdb::BoxRendererImplementation::RenderRow ( BaseResultRenderer &  ss, BoxRenderRow &  row  )

private

                                                                                   {
    auto column_count = column_widths.size();
    if (row.row_type == RenderRowType::SEPARATOR) {
        // render separator
        RenderLayoutLine(ss, config.HORIZONTAL, config.MIDDLE, config.LMIDDLE, config.RMIDDLE);
        return;
    }
    if (row.row_type == RenderRowType::DIVIDER) {
        throw InternalException("Divider should be rendered before");
    }
    // render row values
    idx_t value_idx = 0;
    BoxRenderValue split_value(config.DOTDOTDOT, ResultRenderType::LAYOUT, ValueRenderAlignment::MIDDLE, optional_idx(),
                               1);
    for (idx_t column_idx = 0; column_idx < column_count; column_idx++) {
        auto &render_value = column_map[column_idx].IsValid() ? row.values[value_idx++] : split_value;
        auto render_mode = render_value.render_mode;
        auto alignment = render_value.alignment;
        if (render_mode == ResultRenderType::NULL_VALUE || render_mode == ResultRenderType::VALUE) {
            ss.SetValueColumn(render_value.column_idx);
            if (!render_value.decomposed && CanHighlight(render_value)) {
                HighlightValue(render_value);
            }
        }
        RenderValue(ss, render_value.text, column_widths[column_idx], render_mode, render_value.annotations, alignment,
                    render_value.render_width);
    }
    ss << config.VERTICAL;
    ss << '\n';
}

RenderDivider()

void duckdb::BoxRendererImplementation::RenderDivider ( BaseResultRenderer &  ss, const BoxRenderRow &  prev_row, const BoxRenderRow &  next_row  )

private

                                                                            {
    // generate three new rows
    const idx_t divider_row_count = 3;
    vector<BoxRenderRow> divider_rows;
    for (idx_t d = 0; d < divider_row_count; d++) {
        divider_rows.emplace_back(RenderRowType::ROW_VALUES);
    }

    // now generate the dividers for each of the columns
    for (idx_t c = 0; c < prev_row.values.size(); c++) {
        string str;
        auto &prev_value = prev_row.values[c];
        auto &next_value = next_row.values[c];
        ValueRenderAlignment alignment = prev_value.alignment;
        if (alignment == ValueRenderAlignment::MIDDLE) {
            // for middle alignment we don't have to do anything - just push a dot
            str = config.DOT;
        } else {
            // for left / right alignment we want to be in the middle of the prev / next value
            auto top_length = MinValue<idx_t>(column_widths[c], Utf8Proc::RenderWidth(prev_value.text));
            auto bottom_length = MinValue<idx_t>(column_widths[c], Utf8Proc::RenderWidth(next_value.text));
            auto dot_length = MinValue<idx_t>(top_length, bottom_length);
            if (top_length == 0) {
                dot_length = bottom_length;
            } else if (bottom_length == 0) {
                dot_length = top_length;
            }
            if (dot_length > 1) {
                auto padding = dot_length - 1;
                idx_t left_padding, right_padding;
                switch (alignment) {
                case ValueRenderAlignment::LEFT:
                    left_padding = padding / 2;
                    right_padding = padding - left_padding;
                    break;
                case ValueRenderAlignment::RIGHT:
                    right_padding = padding / 2;
                    left_padding = padding - right_padding;
                    break;
                default:
                    throw InternalException("Unrecognized value renderer alignment");
                }
                str = string(left_padding, ' ') + config.DOT + string(right_padding, ' ');
            } else {
                if (dot_length == 0) {
                    // everything is empty
                    alignment = ValueRenderAlignment::MIDDLE;
                }
                str = config.DOT;
            }
        }
        for (idx_t d = 0; d < divider_row_count; d++) {
            divider_rows[d].values.emplace_back(str, ResultRenderType::LAYOUT, alignment);
        }
    }
    for (auto &divider : divider_rows) {
        RenderRow(ss, divider);
    }
}

PotentiallyExpandRow()

void duckdb::BoxRendererImplementation::PotentiallyExpandRow ( BoxRenderRow &  row, vector< BoxRenderRow > &  rows, idx_t  max_rows_per_row, bool  is_first_row  )

private

                                                                                                {
    // check if this row has truncated columns
    vector<BoxRenderRow> extra_rows;
    for (idx_t c = 0; c < row.values.size(); c++) {
        if (CanPrettyPrint(row.values[c])) {
            PrettyPrintValue(row.values[c], max_rows_per_row, column_widths[c]);
            if (CanHighlight(row.values[c])) {
                HighlightValue(row.values[c]);
            }
            // FIXME: hacky
            row.values[c].render_width = column_widths[c] + 1;
        }
        auto render_width = row.values[c].render_width.GetIndex();
        if (render_width <= column_widths[c]) {
            // not shortened - skip
            continue;
        }
        // this value was shortened! try to stretch it out
        // first truncate what appears on the first row
        idx_t current_row = 0;
        idx_t current_pos = 0;
        idx_t current_render_width = 0;
        auto full_value = row.values[c].text;
        auto annotations = row.values[c].annotations;
        idx_t annotation_idx = 0;
        ResultRenderType active_render_mode = ResultRenderType::VALUE;
        row.values[c].annotations.clear();
        row.values[c].text = TruncateValue(full_value, column_widths[c], current_pos, current_render_width);
        row.values[c].render_width = current_render_width;
        row.values[c].decomposed = true;
        // copy over annotations
        for (; annotation_idx < annotations.size(); annotation_idx++) {
            if (annotations[annotation_idx].start >= current_pos) {
                break;
            }
            row.values[c].annotations.push_back(annotations[annotation_idx]);
        }
        while (current_pos < full_value.size()) {
            if (current_row >= extra_rows.size()) {
                if (extra_rows.size() >= max_rows_per_row + 1) {
                    // we need to add an extra row but there's no space anymore - break
                    break;
                }
                // add a new row with empty values
                extra_rows.emplace_back();
                for (auto &current_val : row.values) {
                    extra_rows.back().values.emplace_back(string(), current_val.render_mode, current_val.alignment,
                                                          current_val.column_idx);
                }
            }
            bool can_add_extra_row = current_row + 1 < extra_rows.size() || extra_rows.size() < max_rows_per_row;
            auto &extra_row = extra_rows[current_row++];
            idx_t start_pos = current_pos;
            // stretch out the remainder on this row
            current_render_width = 0;
            if (can_add_extra_row) {
                // if we can add an extra row after this row truncate it
                extra_row.values[c].text =
                    TruncateValue(full_value, column_widths[c], current_pos, current_render_width);
            } else {
                // if we cannot add an extra row after this just throw all remaining text on this row
                extra_row.values[c].text = full_value.substr(current_pos);
                current_render_width = Utf8Proc::RenderWidth(extra_row.values[c].text);
                current_pos = full_value.size();
            }
            extra_row.values[c].render_width = current_render_width;
            extra_row.values[c].decomposed = true;
            // copy over annotations
            if (active_render_mode != ResultRenderType::VALUE) {
                extra_row.values[c].annotations.emplace_back(active_render_mode, 0);
            }
            for (; annotation_idx < annotations.size(); annotation_idx++) {
                if (annotations[annotation_idx].start >= current_pos) {
                    break;
                }
                annotations[annotation_idx].start -= start_pos;
                extra_row.values[c].annotations.push_back(annotations[annotation_idx]);
                active_render_mode = annotations[annotation_idx].render_mode;
            }
        }
    }
    // add an extra separator for all but the first row
    if (!is_first_row) {
        rows.emplace_back(RenderRowType::SEPARATOR);
    }
    rows.push_back(std::move(row));
    for (auto &extra_row : extra_rows) {
        rows.push_back(std::move(extra_row));
    }
}

UpdateColumnCountFooter()

void duckdb::BoxRendererImplementation::UpdateColumnCountFooter ( idx_t  column_count, const unordered_set< idx_t > &  pruned_columns  )

private

                                                                                                    {
    if (pruned_columns.empty()) {
        // no pruned columns - no need to update the footer
        return;
    }
    if (config.render_mode == RenderMode::COLUMNS) {
        // in columns mode - pruned columns really means pruned rows
        footer.has_hidden_rows = true;
        idx_t shown_row_count = column_count - pruned_columns.size();
        footer.shown_str = to_string(shown_row_count - 2) + " shown";
    } else {
        footer.has_hidden_columns = true;
        idx_t shown_column_count = column_count - pruned_columns.size();
        footer.column_count_str += " (" + to_string(shown_column_count) + " shown)";
    }
}

TruncateValue()

string duckdb::BoxRendererImplementation::TruncateValue ( const string &  value, idx_t  column_width, idx_t &  pos, idx_t &  current_render_width  )

private

                                                                             {
    return BoxRenderer::TruncateValue(value, column_width, pos, current_render_width);
}

ComputeRowFooter()

void duckdb::BoxRendererImplementation::ComputeRowFooter ( idx_t  row_count, idx_t  rendered_rows  )

private

                                                                                     {
    footer.column_count_str = to_string(result.ColumnCount()) + " column";
    if (result.ColumnCount() > 1) {
        footer.column_count_str += "s";
    }
    footer.row_count_str = FormatNumber(to_string(row_count)) + " rows";
    bool has_limited_rows = config.limit > 0 && row_count == config.limit;
    if (has_limited_rows) {
        footer.row_count_str = "? rows";
    }
    if (config.large_number_rendering == LargeNumberRendering::FOOTER && !has_limited_rows) {
        string readable_str = TryFormatLargeNumber(to_string(row_count));
        if (!readable_str.empty()) {
            footer.readable_rows_str = to_string(row_count) + " total";
            footer.row_count_str = readable_str + " rows";
        }
    }
    footer.has_hidden_rows = rendered_rows < row_count;
    if (footer.has_hidden_rows) {
        if (has_limited_rows) {
            footer.shown_str += ">" + FormatNumber(to_string(config.limit - 1)) + " rows, ";
        }
        footer.shown_str += FormatNumber(to_string(rendered_rows)) + " shown";
    }
    footer.must_show_footer = has_limited_rows || footer.has_hidden_rows || row_count == 0;
    footer.render_length = MaxValue<idx_t>(MaxValue<idx_t>(footer.row_count_str.size(), footer.shown_str.size() + 2),
                                           footer.readable_rows_str.size() + 2) +
                           4;
}

RenderFooter()

void duckdb::BoxRendererImplementation::RenderFooter ( BaseResultRenderer &  ss, idx_t  row_count, idx_t  column_count  )

private

                                                                                                        {
    auto &row_count_str = footer.row_count_str;
    auto &column_count_str = footer.column_count_str;
    auto &readable_rows_str = footer.readable_rows_str;
    auto &shown_str = footer.shown_str;
    auto &has_hidden_columns = footer.has_hidden_columns;
    auto &has_hidden_rows = footer.has_hidden_rows;
    // check if we can merge the row_count_str, readable_rows_str and the shown_str
    auto minimum_length = row_count_str.size() + column_count_str.size() + 6;
    bool render_rows_and_columns = total_render_length >= minimum_length &&
                                   ((has_hidden_columns && row_count > 0) || (row_count >= 10 && column_count > 1));
    bool render_rows = total_render_length >= footer.render_length && (row_count == 0 || row_count >= 10);
    bool render_anything = true;
    if (!render_rows && !render_rows_and_columns) {
        render_anything = false;
    }
    // render the bottom of the result values, if there are any
    RenderLayoutLine(ss, config.HORIZONTAL, config.DMIDDLE, config.LDCORNER, config.RDCORNER);
    if (!render_anything) {
        return;
    }
    idx_t padding = total_render_length - row_count_str.size() - 4;
    if (render_rows_and_columns) {
        padding -= column_count_str.size();
    }
    string extra_render_str;
    // do we have to space to render the minimum_row_length and the shown string on the same row?
    idx_t shown_size = readable_rows_str.size() + shown_str.size() + (readable_rows_str.empty() ? 3 : 5);
    if (has_hidden_rows && padding >= shown_size) {
        // we have space - render it here
        extra_render_str = " (";
        extra_render_str += shown_str;
        if (!readable_rows_str.empty()) {
            extra_render_str += ", " + readable_rows_str;
        }
        extra_render_str += ")";
        D_ASSERT(extra_render_str.size() == shown_size);
        padding -= shown_size;
        readable_rows_str = string();
        shown_str = string();
    }

    ss << "  ";
    if (render_rows_and_columns) {
        ss.Render(ResultRenderType::FOOTER, row_count_str);
        if (!extra_render_str.empty()) {
            ss.Render(ResultRenderType::FOOTER, extra_render_str);
        }
        // can we add the hidden rows hint to this line?
        if ((has_hidden_columns || has_hidden_rows) && !config.hidden_rows_hint.empty() &&
            padding >= config.hidden_rows_hint.size() + 10) {
            // we can
            padding -= config.hidden_rows_hint.size();
            auto lpadding = padding / 2;
            auto rpadding = padding - lpadding;
            ss << string(lpadding, ' ');
            ss.Render(ResultRenderType::FOOTER, config.hidden_rows_hint);
            ss << string(rpadding, ' ');
        } else {
            // we can't - don't render it
            ss << string(padding, ' ');
        }
        ss.Render(ResultRenderType::FOOTER, column_count_str);
    } else if (render_rows) {
        idx_t lpadding = padding / 2;
        idx_t rpadding = padding - lpadding;
        ss << string(lpadding, ' ');
        ss.Render(ResultRenderType::FOOTER, row_count_str);
        if (!extra_render_str.empty()) {
            ss.Render(ResultRenderType::FOOTER, extra_render_str);
        }
        ss << string(rpadding, ' ');
    }
    ss << '\n';
    if (!readable_rows_str.empty() || !shown_str.empty()) {
        // we still need to render the readable rows/shown strings
        // check if we can merge the two onto one row
        idx_t combined_shown_length = readable_rows_str.size() + shown_str.size() + 4;
        if (!readable_rows_str.empty() && !shown_str.empty() && combined_shown_length <= total_render_length) {
            // we can! merge them
            ss << "  ";
            ss.Render(ResultRenderType::FOOTER, shown_str);
            ss << string(total_render_length - combined_shown_length, ' ');
            ss.Render(ResultRenderType::FOOTER, readable_rows_str);
            ss << '\n';
            readable_rows_str = string();
            shown_str = string();
        }
        ValueRenderAlignment alignment =
            render_rows_and_columns ? ValueRenderAlignment::LEFT : ValueRenderAlignment::MIDDLE;
        vector<HighlightingAnnotation> annotations;
        if (!shown_str.empty()) {
            RenderValue(ss, "(" + shown_str + ")", total_render_length - 4, ResultRenderType::FOOTER, annotations,
                        alignment, optional_idx(), " ");
            ss << '\n';
        }
        if (!readable_rows_str.empty()) {
            RenderValue(ss, "(" + readable_rows_str + ")", total_render_length - 4, ResultRenderType::FOOTER,
                        annotations, alignment, optional_idx(), " ");
            ss << '\n';
        }
    }
}

FormatNumber()

string duckdb::BoxRendererImplementation::FormatNumber ( const string &  input )

private

                                                                  {
    if (config.large_number_rendering == LargeNumberRendering::ALL) {
        // when large number rendering is set to ALL, we try to format all numbers as large numbers
        auto number = TryFormatLargeNumber(input);
        if (!number.empty()) {
            return number;
        }
    }
    if (config.decimal_separator == '\0' && config.thousand_separator == '\0') {
        // no thousand separator
        return input;
    }
    // first check how many digits there are (preceding any decimal point)
    idx_t character_count = 0;
    for (auto c : input) {
        if (!StringUtil::CharacterIsDigit(c)) {
            break;
        }
        character_count++;
    }
    // find the position of the first thousand separator
    idx_t separator_position = character_count % 3 == 0 ? 3 : character_count % 3;
    // now add the thousand separators
    string result;
    for (idx_t c = 0; c < character_count; c++) {
        if (c == separator_position && config.thousand_separator != '\0') {
            result += config.thousand_separator;
            separator_position += 3;
        }
        result += input[c];
    }
    // add any remaining characters
    for (idx_t c = character_count; c < input.size(); c++) {
        if (input[c] == '.' && config.decimal_separator != '\0') {
            result += config.decimal_separator;
        } else {
            result += input[c];
        }
    }
    return result;
}

ConvertRenderValue() [1/2]

string duckdb::BoxRendererImplementation::ConvertRenderValue ( const string &  input, const LogicalType &  type  )

private

                                                                                                 {
    switch (type.id()) {
    case LogicalTypeId::TINYINT:
    case LogicalTypeId::SMALLINT:
    case LogicalTypeId::INTEGER:
    case LogicalTypeId::BIGINT:
    case LogicalTypeId::HUGEINT:
    case LogicalTypeId::UTINYINT:
    case LogicalTypeId::USMALLINT:
    case LogicalTypeId::UINTEGER:
    case LogicalTypeId::UBIGINT:
    case LogicalTypeId::UHUGEINT:
    case LogicalTypeId::DECIMAL:
    case LogicalTypeId::FLOAT:
    case LogicalTypeId::DOUBLE:
        return FormatNumber(input);
    default:
        return ConvertRenderValue(input);
    }
}

ConvertRenderValue() [2/2]

string duckdb::BoxRendererImplementation::ConvertRenderValue ( const string &  input )

private

                                                                        {
    string result;
    result.reserve(input.size());
    for (idx_t c = 0; c < input.size(); c++) {
        data_t byte_value = const_data_ptr_cast(input.c_str())[c];
        if (byte_value < 32) {
            // ASCII control character
            result += "\\";
            switch (input[c]) {
            case 7:
                // bell
                result += 'a';
                break;
            case 8:
                // backspace
                result += 'b';
                break;
            case 9:
                // tab
                result += 't';
                break;
            case 10:
                // newline
                result += 'n';
                break;
            case 11:
                // vertical tab
                result += 'v';
                break;
            case 12:
                // form feed
                result += 'f';
                break;
            case 13:
                // cariage return
                result += 'r';
                break;
            case 27:
                // escape
                result += 'e';
                break;
            default:
                result += to_string(byte_value);
                break;
            }
        } else {
            result += input[c];
        }
    }
    return result;
}

RenderLayoutLine()

void duckdb::BoxRendererImplementation::RenderLayoutLine ( BaseResultRenderer &  ss, const char *  layout, const char *  boundary, const char *  left_corner, const char *  right_corner  )

private

                                                                                                    {
    // render the top line
    ss << left_corner;
    idx_t column_index = 0;
    for (idx_t k = 0; k < total_render_length - 2; k++) {
        if (column_index < column_boundary_positions.size() && k == column_boundary_positions[column_index]) {
            ss << boundary;
            column_index++;
        } else {
            ss << layout;
        }
    }
    ss << right_corner;
    ss << '\n';
}

TryFormatLargeNumber()

string duckdb::BoxRendererImplementation::TryFormatLargeNumber ( const string &  numeric )

private

Try to format a large number in a readable way (e.g. 1234567 -> 1.23 million)

                                                                            {
    return BoxRenderer::TryFormatLargeNumber(numeric, config.decimal_separator);
}

CanPrettyPrint()

bool duckdb::BoxRendererImplementation::CanPrettyPrint ( const BoxRenderValue &  render_value )

private

                                                                                 {
    if (!render_value.column_idx.IsValid()) {
        return false;
    }
    auto &type = result.Types()[render_value.column_idx.GetIndex()];
    return type.IsJSONType() || type.IsNested();
}

CanHighlight()

bool duckdb::BoxRendererImplementation::CanHighlight ( const BoxRenderValue &  render_value )

private

                                                                               {
    if (!render_value.column_idx.IsValid()) {
        return false;
    }
    auto &type = result.Types()[render_value.column_idx.GetIndex()];
    return type.IsJSONType() || type.IsNested();
}

PrettyPrintValue()

void duckdb::BoxRendererImplementation::PrettyPrintValue ( BoxRenderValue &  render_value, idx_t  max_rows, idx_t  max_width  )

private

                                                                                                              {
    if (!CanPrettyPrint(render_value)) {
        return;
    }
    JSONFormatter::FormatValue(render_value, max_rows, max_width);
}

HighlightValue()

void duckdb::BoxRendererImplementation::HighlightValue ( BoxRenderValue &  render_value )

private

                                                                           {
    if (!CanHighlight(render_value)) {
        return;
    }
    JSONHighlighter highlighter(render_value);
    highlighter.Process(render_value.text);
}

---

The documentation for this struct was generated from the following file:

• external/duckdb/duckdb.cpp
