statemachine::StuckState Class Reference

The StuckState class implements the Stuck state for the Autonomy State Machine. More...

#include <StuckState.h>

Inheritance diagram for statemachine::StuckState:

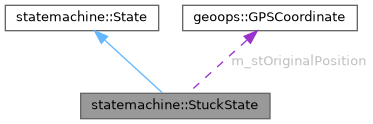

Collaboration diagram for statemachine::StuckState:

Public Member Functions
	StuckState ()
	Construct a new State object.
void	Run () override
	Run the state machine. Returns the next state.
States	TriggerEvent (Event eEvent) override
	Trigger an event in the state machine. Returns the next state.
Public Member Functions inherited from statemachine::State
	State (States eState)
	Construct a new State object.
virtual	~State ()=default
	Destroy the State object.
States	GetState () const
	Accessor for the State private member.
virtual std::string	ToString () const
	Accessor for the State private member. Returns the state as a string.
virtual bool	operator== (const State &other) const
	Checks to see if the current state is equal to the passed state.
virtual bool	operator!= (const State &other) const
	Checks to see if the current state is not equal to the passed state.

Protected Member Functions
void	Start () override
	This method is called when the state is first started. It is used to initialize the state.
void	Exit () override
	This method is called when the state is exited. It is used to clean up the state.

Private Types
enum class	AttemptType { eReverseCurrentHeading , eReverseLeft , eReverseRight , eGiveUp }

Private Member Functions
bool	SamePosition (const geoops::GPSCoordinate &stOriginalPosition, const geoops::GPSCoordinate &stCurrPosition)
	Checks if the rover is approximately in the same position.
void	DeclareObstacle ()
	Adds the area in front of the rover as an obstacle by modifying the area's trav-score in LiDAR data.
void	ModifyPath ()
	Modify stored path to reflect new obstacle and store it for use in returning state.
void	SplicePath (std::vector< geoops::Waypoint > &vPath, const geoops::UTMCoordinate &stObstaclePosition)
	Removes all points within stuck area in path and re-path plans all deleted paths segments.

Private Attributes
bool	m_bInitialized
States	m_eTriggeringState
AttemptType	m_eAttemptType
geoops::GPSCoordinate	m_stOriginalPosition
double	m_dOriginalHeading
bool	m_bIsCurrentlyAligning
std::chrono::system_clock::time_point	m_tmStuckStartTime
std::chrono::system_clock::time_point	m_tmAlignStartTime

Detailed Description

The StuckState class implements the Stuck state for the Autonomy State Machine.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu), Jason Pittman (jspen.nosp@m.cerp.nosp@m.ittma.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-01-17

Member Enumeration Documentation

AttemptType

enum class statemachine::StuckState::AttemptType

strongprivate

            {
                eReverseCurrentHeading,
                eReverseLeft,
                eReverseRight,
                eGiveUp
            };

Constructor & Destructor Documentation

StuckState()

statemachine::StuckState::StuckState

(

)

Construct a new State object.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

                           : State(States::eStuck)
    {
        LOG_INFO(logging::g_qConsoleLogger, "Entering State: {}", ToString());

        m_bInitialized = false;

        if (!m_bInitialized)
        {
            Start();
            m_bInitialized = true;
        }
    }

Here is the call graph for this function:

Member Function Documentation

SamePosition()

bool statemachine::StuckState::SamePosition ( const geoops::GPSCoordinate &  stOriginalPosition, const geoops::GPSCoordinate &  stCurrPosition  )

private

Checks if the rover is approximately in the same position.

Note

The threshold that defines how far away we need to be from the original point to be considered a different position is constants::STUCK_SAME_POINT_PROXIMITY.

Parameters

stLastPosition	- Original position the rover was located.
stCurrPosition	- Current position the rover is located.

Returns

true - The rover is in the same position.

false - The rover is in a different position.

Author

Jason Pittman (jspen.nosp@m.cerp.nosp@m.ittma.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-02-14

    {
        double dDistance = geoops::CalculateGeoMeasurement(stOriginalPosition, stCurrPosition).dDistanceMeters;
        return dDistance <= constants::STUCK_SAME_POINT_PROXIMITY;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

DeclareObstacle()

void statemachine::StuckState::DeclareObstacle ( )

private

Adds the area in front of the rover as an obstacle by modifying the area's trav-score in LiDAR data.

Note

Uses constants::STUCK_OBSTACLE_RADIUS for the declared obstacle's radius and constants::STUCK_OBSTACLE_DISTANCE for distance in front of the rover that is declared an obstacle

Author

Sam Nolte (samno.nosp@m.lte0.nosp@m.302@g.nosp@m.mail.nosp@m..com)

Date

2026-01-27

    {
        // Convert from compass degrees to unit circle radians.
        double dRadians = (90.0 - m_dOriginalHeading) * M_PI / 180.0;
        if (dRadians < 0)
        {
            dRadians += 2 * M_PI;
        }

        // Get the obstacle's origin.
        geoops::UTMCoordinate stObstaclePosition = globals::g_pStateMachineHandler->SmartRetrieveRoverPose().GetUTMCoordinate();
        stObstaclePosition.dEasting += std::cos(dRadians) * constants::STUCK_OBSTACLE_DISTANCE;
        stObstaclePosition.dNorthing += std::sin(dRadians) * constants::STUCK_OBSTACLE_DISTANCE;

        // Add to waypoint handler obstacle list
        globals::g_pWaypointHandler->AddObstacle(stObstaclePosition, constants::STUCK_OBSTACLE_RADIUS);
    }

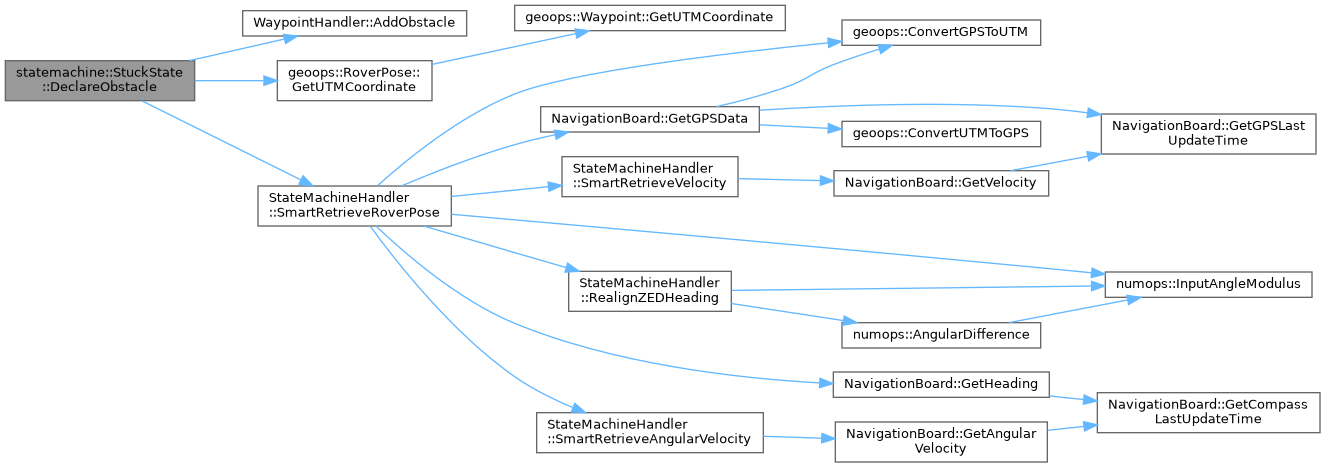

Here is the call graph for this function:

Here is the caller graph for this function:

ModifyPath()

void statemachine::StuckState::ModifyPath ( )

private

Modify stored path to reflect new obstacle and store it for use in returning state.

1) Filter out any points that are a specific distance away from the obstacle 2) Connect the rover position to the path to the first node of the vector by path-planning. If the rover is inside the obstacle, then first path plan it to the close edge of the obstacle. 3) Iteratively go through the points of the path vector. If the point is inside the obstacle remove it. If the next point isn't being removed then connect the "hole" in the path by path-planning

Author

Sam Nolte (samno.nosp@m.lte0.nosp@m.302@g.nosp@m.mail.nosp@m..com), Sam Hajdukiewicz (saman.nosp@m.thah.nosp@m.ajduk.nosp@m.iewi.nosp@m.cz@gm.nosp@m.ail..nosp@m.com)

Date

2026-04-13

    {
        // Get the rover's pose AFTER stuck state has ran
        geoops::RoverPose stCurrentRoverPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();

        // Get the obstacle's origin
        int nObstacleIndex                       = globals::g_pWaypointHandler->GetObstaclesCount();
        geoops::UTMCoordinate stObstaclePosition = globals::g_pWaypointHandler->RetrieveObstacleAtIndex(nObstacleIndex - 1).GetUTMCoordinate();

        // Get saved rover path
        std::vector<geoops::Waypoint> vRefPath          = globals::g_pWaypointHandler->RetrievePath("stuckPath");
        std::vector<geoops::Waypoint> vRevSearchRefPath = (m_eTriggeringState == States::eSearchPattern) ? vRefPath : std::vector<geoops::Waypoint>();

        if (vRefPath.empty())
        {
            LOG_WARNING(logging::g_qSharedLogger, "Stuck state received empty path to modify!");
            globals::g_pWaypointHandler->StorePath("unstuckPath", vRefPath);
            if (m_eTriggeringState == States::eSearchPattern)
            {
                globals::g_pWaypointHandler->StorePath("RevSpiralPath", vRevSearchRefPath);
            }
            return;
        }

        // Get the point on the obstacle's border which the rover came from.
        double dHeadingRad = (90.0 - m_dOriginalHeading) * M_PI / 180.0;
        if (dHeadingRad < 0)
        {
            dHeadingRad += 2 * M_PI;
        }

        // Grab starting coordinate and goal (edge of obstacle behind rover) coordinate.
        geoops::UTMCoordinate stStartCoordinate = stCurrentRoverPose.GetUTMCoordinate();
        geoops::UTMCoordinate stGoalCoordinate  = stObstaclePosition;

        // Get goal coordinate easting and northing.
        stGoalCoordinate.dEasting -= std::cos(dHeadingRad) * constants::STUCK_OBSTACLE_RADIUS;
        stGoalCoordinate.dNorthing -= std::sin(dHeadingRad) * constants::STUCK_OBSTACLE_RADIUS;

        std::vector<geoops::Waypoint> vSplicePathCoordinates;
        std::vector<geoops::Waypoint>::iterator it = vRefPath.begin();

        int nPointsAdded                           = 0;
        int nPointsRemoved                         = 0;

        // TODO: closest point is not necessarily current point in path (thinking of seach state drifting)
        // Find the node closest to the rover's current position to determine what has already been passed.
        std::vector<geoops::Waypoint>::iterator itClosest = vRefPath.begin();
        double dMinDistSq                                 = std::numeric_limits<double>::max();
        for (std::vector<geoops::Waypoint>::iterator itSearch = vRefPath.begin(); itSearch != vRefPath.end(); ++itSearch)
        {
            // Get easting and northing coordinates and determine the distance squared.
            double dx      = itSearch->GetUTMCoordinate().dEasting - stCurrentRoverPose.GetUTMCoordinate().dEasting;
            double dy      = itSearch->GetUTMCoordinate().dNorthing - stCurrentRoverPose.GetUTMCoordinate().dNorthing;
            double dDistSq = dx * dx + dy * dy;

            // If our distance is too small, update the minimum value and closest iterator point.
            if (dDistSq < dMinDistSq)
            {
                dMinDistSq = dDistSq;
                itClosest  = itSearch;
            }
        }

        // Delete all points in the path prior to the closest point, as they are behind the rover.
        if (itClosest != vRefPath.begin())
        {
            nPointsRemoved += std::distance(vRefPath.begin(), itClosest);
            it = vRefPath.erase(vRefPath.begin(), itClosest);
        }

        LOG_INFO(logging::g_qSharedLogger, "Stuck state path filter removed {} elements: ", nPointsRemoved);
        nPointsRemoved = 0;

        // If rover is in the obstacle, then path it out first and connect it to previous path
        double dx = stCurrentRoverPose.GetUTMCoordinate().dEasting - stObstaclePosition.dEasting;
        double dy = stCurrentRoverPose.GetUTMCoordinate().dNorthing - stObstaclePosition.dNorthing;
        if (dx * dx + dy * dy <= constants::STUCK_OBSTACLE_RADIUS * constants::STUCK_OBSTACLE_RADIUS)
        {
            geoops::UTMCoordinate stFirstNodeOfOriginalPath = vRefPath.front().GetUTMCoordinate();

            // Splice in a new path from rover's current location to outside of the obstacle
            vSplicePathCoordinates = globals::g_pGeoPlanner->PlanPath(globals::g_pLiDARHandler, stStartCoordinate, stGoalCoordinate);
            it                     = vRefPath.insert(vRefPath.begin(), vSplicePathCoordinates.begin(), vSplicePathCoordinates.end());
            it += vSplicePathCoordinates.size();
            nPointsAdded += vSplicePathCoordinates.size();

            // Splice in a new path from outside of the obstacle to the end of the previous path
            stStartCoordinate      = (vSplicePathCoordinates.size() >= 2) ? std::prev(vSplicePathCoordinates.end())->GetUTMCoordinate() : stStartCoordinate;
            vSplicePathCoordinates = globals::g_pGeoPlanner->PlanPath(globals::g_pLiDARHandler, stStartCoordinate, stFirstNodeOfOriginalPath);
            if (vSplicePathCoordinates.size() >= 3)
            {
                it = vRefPath.insert(it, std::next(vSplicePathCoordinates.begin()), std::prev(vSplicePathCoordinates.end()));
                nPointsAdded += vSplicePathCoordinates.size() - 2;
            }
            LOG_INFO(logging::g_qSharedLogger, "Stuck State was within obstacle: {} nodes added, {} nodes removed", nPointsAdded, nPointsRemoved);
        }

        // Else if rover is not inside obstacle, then just connect it to previous path
        else
        {
            // Splice in a new path from rover's current location to the end of the previous path
            stGoalCoordinate       = vRefPath.front().GetUTMCoordinate();
            vSplicePathCoordinates = globals::g_pGeoPlanner->PlanPath(globals::g_pLiDARHandler, stStartCoordinate, stGoalCoordinate);
            if (vSplicePathCoordinates.size() >= 2)
            {
                it = vRefPath.insert(vRefPath.begin(), vSplicePathCoordinates.begin(), std::prev(vSplicePathCoordinates.end()));
                nPointsAdded += vSplicePathCoordinates.size() - 1;
            }
            LOG_INFO(logging::g_qSharedLogger, "Stuck State was not within obstacle: {} nodes added, {} nodes removed", nPointsAdded, nPointsRemoved);
        }

        // Remove all points that are in stuck zone and re path-plan deleted path segments.
        SplicePath(vRefPath, stObstaclePosition);
        if (m_eTriggeringState == States::eSearchPattern)
        {
            SplicePath(vRevSearchRefPath, stObstaclePosition);
        }

        // Save path for use in returning state
        globals::g_pWaypointHandler->StorePath("unstuckPath", vRefPath);
        if (m_eTriggeringState == States::eSearchPattern)
        {
            globals::g_pWaypointHandler->StorePath("RevSpiralPath", vRevSearchRefPath);
        }
    }

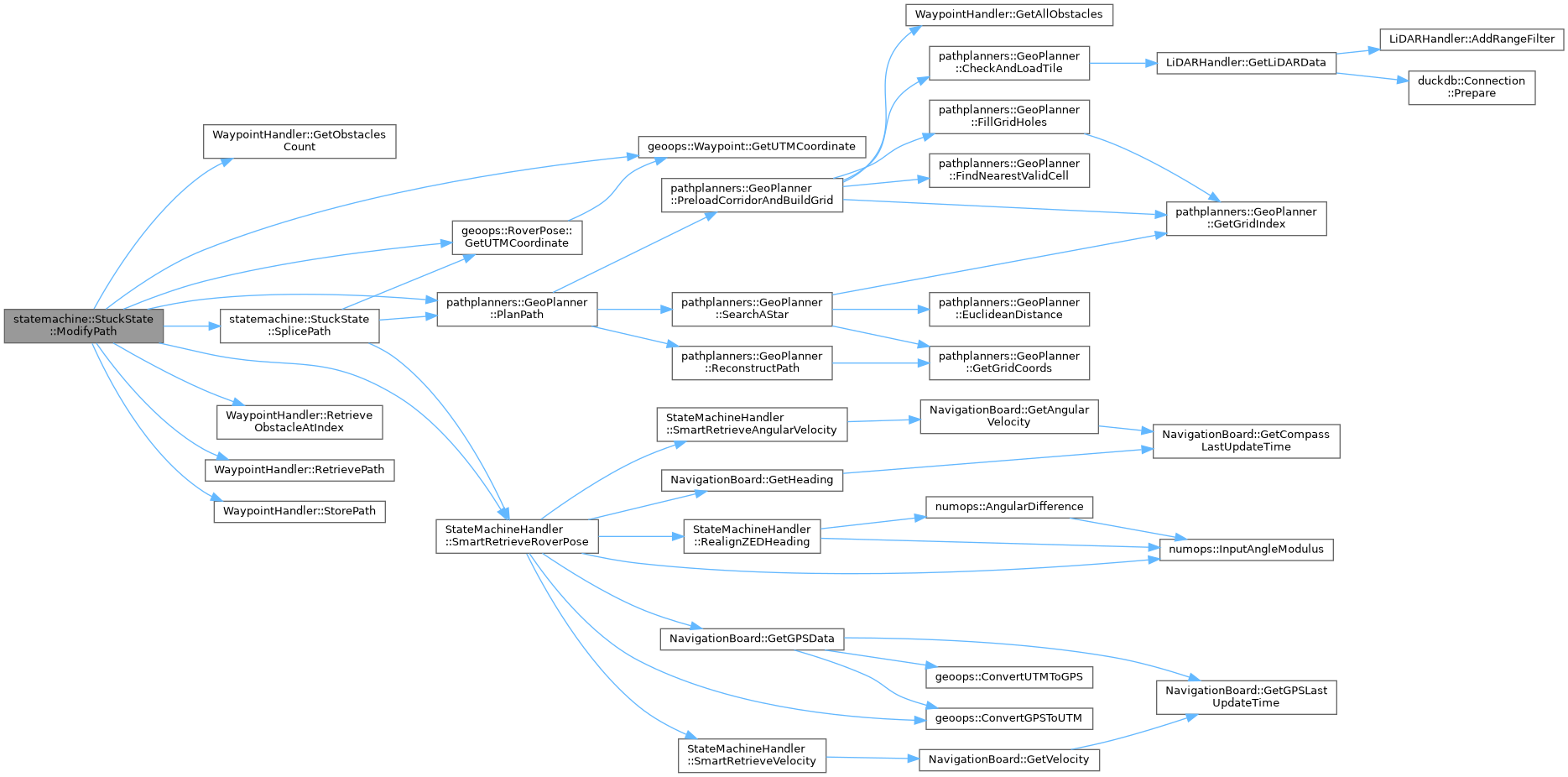

Here is the call graph for this function:

Here is the caller graph for this function:

SplicePath()

void statemachine::StuckState::SplicePath ( std::vector< geoops::Waypoint > &  vPath, const geoops::UTMCoordinate &  stObstaclePosition  )

private

Removes all points within stuck area in path and re-path plans all deleted paths segments.

Author

Sam Nolte (samno.nosp@m.lte0.nosp@m.302@g.nosp@m.mail.nosp@m..com)

Date

2026-05-19

    {
        if (vPath.size() < 2)
        {
            return;
        }

        geoops::RoverPose stCurrentRoverPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
        geoops::UTMCoordinate stStartCoordinate;
        geoops::UTMCoordinate stGoalCoordinate;
        std::vector<geoops::Waypoint> vSplicePathCoordinates;
        std::vector<geoops::Waypoint>::iterator it = vPath.begin();

        int nPointsAdded                           = 0;
        int nPointsRemoved                         = 0;

        bool bLastDeleted                          = false;
        while (it != std::prev(vPath.end()))
        {
            double dDifferenceX = it->GetUTMCoordinate().dEasting - stObstaclePosition.dEasting;
            double dDifferenceY = it->GetUTMCoordinate().dNorthing - stObstaclePosition.dNorthing;

            // If path coord is inside stuck zone, then remove it.
            if (dDifferenceX * dDifferenceX + dDifferenceY * dDifferenceY <= constants::STUCK_OBSTACLE_RADIUS * constants::STUCK_OBSTACLE_RADIUS)
            {
                bLastDeleted = true;
                it           = vPath.erase(it);
                ++nPointsRemoved;
            }
            // If the previous node was deleted, then connect the dots correctly by splicing a new path in between.
            else if (bLastDeleted)
            {
                // Plan a new path to the next remaining path node.
                stStartCoordinate      = (it != vPath.begin()) ? std::prev(it)->GetUTMCoordinate() : stCurrentRoverPose.GetUTMCoordinate();
                stGoalCoordinate       = it->GetUTMCoordinate();
                vSplicePathCoordinates = globals::g_pGeoPlanner->PlanPath(globals::g_pLiDARHandler, stStartCoordinate, stGoalCoordinate);
                if (vSplicePathCoordinates.size() >= 3)
                {
                    bLastDeleted = false;
                    it           = vPath.insert(it, std::next(vSplicePathCoordinates.begin()), std::prev(vSplicePathCoordinates.end()));
                    it += vSplicePathCoordinates.size() - 1;
                    nPointsAdded += vSplicePathCoordinates.size() - 2;
                }
            }
            else
            {
                ++it;
            }
        }
        // If last node is deleted and while loop ends then still connect the path to goal
        if (bLastDeleted)
        {
            // Plan a new path to the next remaining path node
            stStartCoordinate      = std::prev(it)->GetUTMCoordinate();
            stGoalCoordinate       = it->GetUTMCoordinate();
            vSplicePathCoordinates = globals::g_pGeoPlanner->PlanPath(globals::g_pLiDARHandler, stStartCoordinate, stGoalCoordinate);
            vPath.insert(it, std::next(vSplicePathCoordinates.begin()), std::prev(vSplicePathCoordinates.end()));
            nPointsAdded += vSplicePathCoordinates.size() - 2;
        }

        LOG_INFO(logging::g_qSharedLogger, "Stuck State Splice modified path: {} nodes added, {} nodes removed", nPointsAdded, nPointsRemoved);
    }

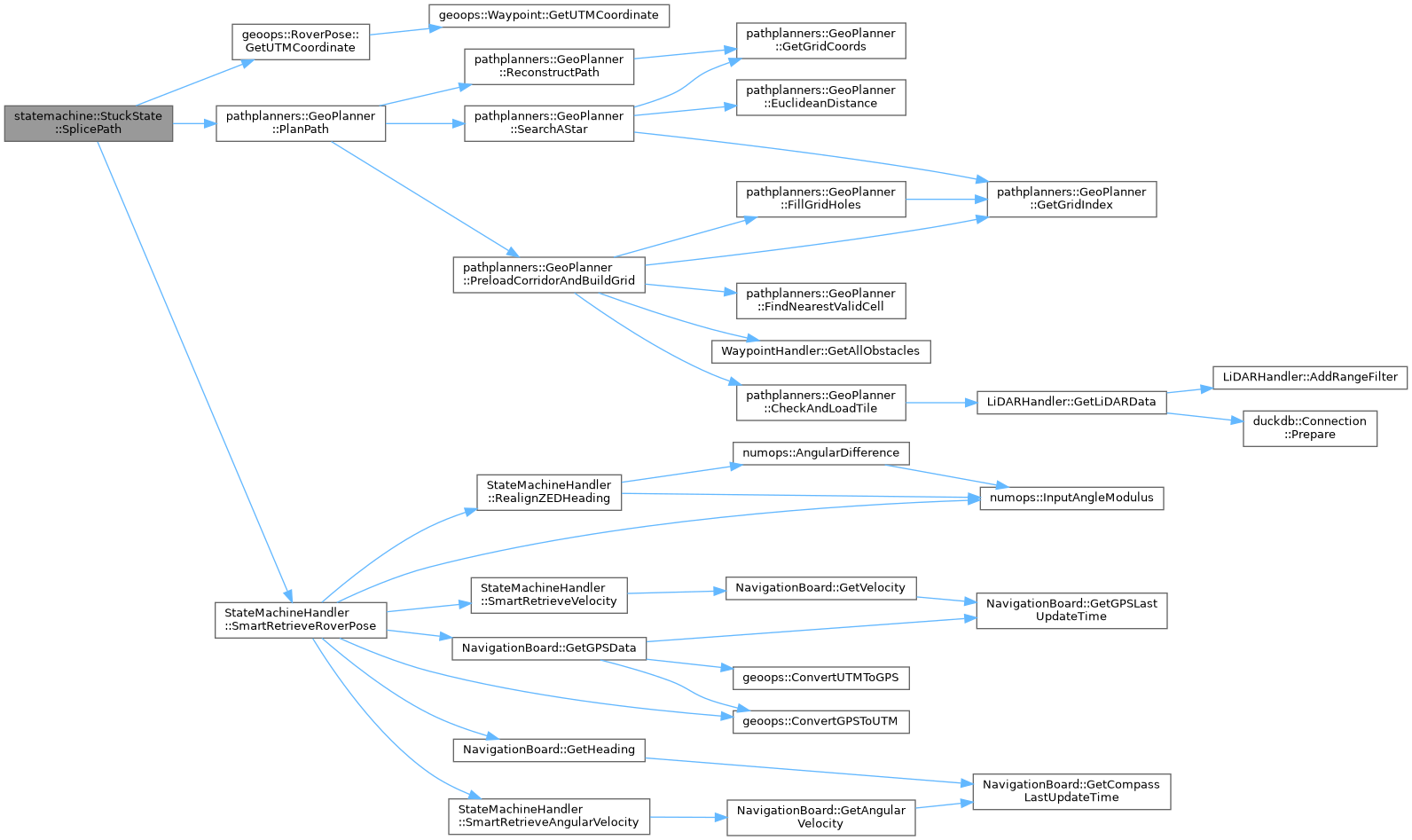

Here is the call graph for this function:

Here is the caller graph for this function:

Start()

void statemachine::StuckState::Start ( )

overrideprotectedvirtual

This method is called when the state is first started. It is used to initialize the state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

Reimplemented from statemachine::State.

    {
        // Schedule the next run of the state's logic
        LOG_INFO(logging::g_qSharedLogger, "StuckState: Scheduling next run of state logic.");

        // Initialize member variables.
        m_dOriginalHeading     = 0;
        m_bIsCurrentlyAligning = false;
        m_eAttemptType         = AttemptType::eReverseCurrentHeading;

        // Store the state that got stuck and triggered a stuck event.
        m_eTriggeringState = globals::g_pStateMachineHandler->GetPreviousState();

        // Store the postion and heading where the rover get stuck.
        geoops::RoverPose stStartRoverPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
        m_stOriginalPosition               = stStartRoverPose.GetGPSCoordinate();
        m_dOriginalHeading                 = stStartRoverPose.GetCompassHeading();
        // Get state start time.
        m_tmStuckStartTime = std::chrono::system_clock::now();

        // Stop drivetrain.
        globals::g_pDriveBoard->SendStop();

        // Declare area in front of rover as an obstacle
        DeclareObstacle();
    }

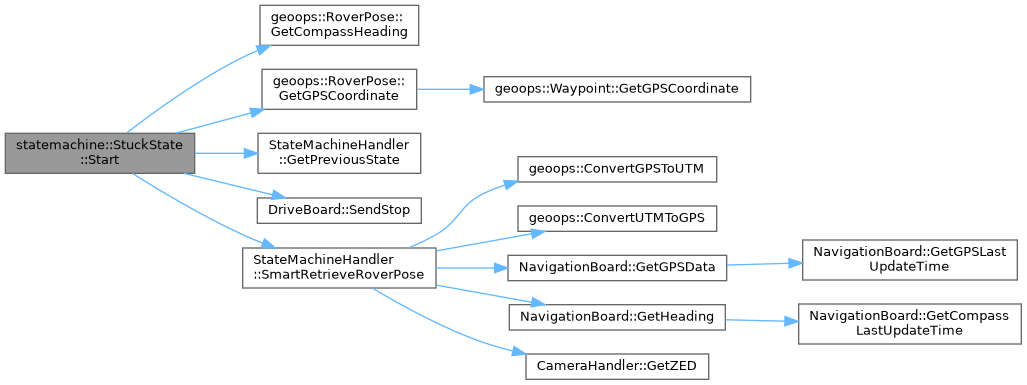

Here is the call graph for this function:

Here is the caller graph for this function:

Exit()

void statemachine::StuckState::Exit ( )

overrideprotectedvirtual

This method is called when the state is exited. It is used to clean up the state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

Reimplemented from statemachine::State.

    {
        // Clean up the state before exiting
        LOG_INFO(logging::g_qSharedLogger, "StuckState: Exiting state.");
    }

Here is the caller graph for this function:

Run()

void statemachine::StuckState::Run ( )

overridevirtual

Run the state machine. Returns the next state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu), Jason Pittman (jspen.nosp@m.cerp.nosp@m.ittma.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om), clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om), Sam Nolte (samno.nosp@m.lte0.nosp@m.302@g.nosp@m.mail.nosp@m..com)

Date

2024-01-17

Implements statemachine::State.

    {
        // Submit logger message.
        LOG_DEBUG(logging::g_qSharedLogger, "StuckState: Running state-specific behavior.");

        // Store the current postion and heading.
        geoops::RoverPose stCurrentRoverPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();
        // Get current time.
        std::chrono::system_clock::time_point tmCurrentTime = std::chrono::system_clock::now();

        // Check if we are unstuck from our starting spot.
        if (!this->SamePosition(m_stOriginalPosition, stCurrentRoverPose.GetGPSCoordinate()))
        {
            // Submit logger message.
            LOG_NOTICE(logging::g_qSharedLogger,
                       "StuckState: Rover has successfully unstuckith itself! A total of {} seconds was wasted being stuck.",
                       std::chrono::duration_cast<std::chrono::seconds>(tmCurrentTime - m_tmStuckStartTime).count());
            // Handing unstuck event. Destroy this unstuck state.
            globals::g_pStateMachineHandler->HandleEvent(Event::eUnstuck, false);
        }
        else
        {
            // Perform unstuck logic.
            switch (m_eAttemptType)
            {
                // On the first attempt we use the rover's original heading so alignment would already be completed.
                case AttemptType::eReverseCurrentHeading:
                {
                    // Submit logger message.
                    LOG_INFO(logging::g_qSharedLogger, "StuckState: Maintaining current heading and reversing...");
                    // Update stuck type enum for if we are still stuck after reversing.
                    m_eAttemptType = AttemptType::eReverseLeft;
                    // Handle reversing event. Save current state.
                    globals::g_pStateMachineHandler->HandleEvent(Event::eReverse, true);
                    break;
                }
                // On the second attempt align the rover constants::STUCK_ALIGN_DEGREES degrees to the right of the original heading instead.
                case AttemptType::eReverseLeft:
                {
                    // Check if we are already realigning.
                    if (!m_bIsCurrentlyAligning)
                    {
                        // Submit logger message.
                        LOG_INFO(logging::g_qSharedLogger, "StuckState: Aligning rover heading {} degrees clockwise...", constants::STUCK_ALIGN_DEGREES);
                        // Set aligning toggle.
                        m_bIsCurrentlyAligning = true;
                        // Update start heading.
                        m_dOriginalHeading = stCurrentRoverPose.GetCompassHeading();
                        // Update start time.
                        m_tmAlignStartTime = std::chrono::system_clock::now();
                    }
                    else
                    {
                        // Calculate time elapsed since realignment was started.
                        double dTimeElapsed = std::chrono::duration_cast<std::chrono::milliseconds>(tmCurrentTime - m_tmAlignStartTime).count() / 1000.0;
                        // Calculate the goal realignment heading.
                        double dGoalHeading = numops::InputAngleModulus<double>(m_dOriginalHeading + constants::STUCK_ALIGN_DEGREES, 0, 360);
                        // Calculate total rotation degrees so far.
                        double dRealignmentDegrees = numops::AngularDifference<double>(stCurrentRoverPose.GetCompassHeading(), dGoalHeading);

                        // Align drivetrain to a certain heading with 0 forward/reverse power.
                        diffdrive::DrivePowers stTurnPowers = globals::g_pDriveBoard->CalculateMove(0.0,
                                                                                                    dGoalHeading,
                                                                                                    stCurrentRoverPose.GetCompassHeading(),
                                                                                                    diffdrive::DifferentialControlMethod::eArcadeDrive);
                        // Send drive powers.
                        globals::g_pDriveBoard->SendDrive(stTurnPowers);

                        // Check if we have successfully realigned.
                        if (dRealignmentDegrees <= constants::STUCK_ALIGN_TOLERANCE)
                        {
                            // Submit logger message.
                            LOG_INFO(logging::g_qSharedLogger, "StuckState: Realignment complete! Reversing...");
                            // Update stuck type enum for if we are still stuck after reversing.
                            m_eAttemptType = AttemptType::eReverseRight;
                            // Reset currently aligning toggle.
                            m_bIsCurrentlyAligning = false;
                            // Handle reversing event.
                            globals::g_pStateMachineHandler->HandleEvent(Event::eReverse, true);
                        }
                        // If not aligned yet, check if we hit the timeout.
                        else if (dTimeElapsed >= constants::STUCK_HEADING_ALIGN_TIMEOUT)
                        {
                            // Submit logger message.
                            LOG_NOTICE(logging::g_qSharedLogger,
                                       "StuckState: Rotated/Realigned {} degrees in {} seconds before timeout was reached. Rover is still stuck...",
                                       constants::STUCK_ALIGN_DEGREES - dRealignmentDegrees,
                                       dTimeElapsed);
                            // Update stuck type enum for if we are still stuck after reversing.
                            m_eAttemptType = AttemptType::eReverseRight;
                            // Reset currently aligning toggle.
                            m_bIsCurrentlyAligning = false;
                            // Handle reversing event.
                            globals::g_pStateMachineHandler->HandleEvent(Event::eReverse, true);
                        }
                    }
                    break;
                }
                // For the third do it constants::STUCK_ALIGN_DEGREES degrees to the left of the original heading.
                case AttemptType::eReverseRight:
                {
                    // Check if we are already realigning.
                    if (!m_bIsCurrentlyAligning)
                    {
                        // Submit logger message.
                        LOG_INFO(logging::g_qSharedLogger, "StuckState: Aligning rover heading {} degrees counter-clockwise...", constants::STUCK_ALIGN_DEGREES);
                        // Set aligning toggle.
                        m_bIsCurrentlyAligning = true;

                        // Update start heading.
                        m_dOriginalHeading = stCurrentRoverPose.GetCompassHeading();
                        // Update start time.
                        m_tmAlignStartTime = std::chrono::system_clock::now();
                    }
                    else
                    {
                        // Calculate time elapsed since realignment was started.
                        double dTimeElapsed = std::chrono::duration_cast<std::chrono::milliseconds>(tmCurrentTime - m_tmAlignStartTime).count() / 1000.0;
                        // Calculate the goal realignment heading.
                        double dGoalHeading = numops::InputAngleModulus<double>(m_dOriginalHeading - constants::STUCK_ALIGN_DEGREES, 0, 360);
                        // Calculate total rotation degrees so far.
                        double dRealignmentDegrees = numops::AngularDifference<double>(stCurrentRoverPose.GetCompassHeading(), dGoalHeading);

                        // Align drivetrain to a certain heading with 0 forward/reverse power.
                        diffdrive::DrivePowers stTurnPowers = globals::g_pDriveBoard->CalculateMove(0.0,
                                                                                                    dGoalHeading,
                                                                                                    stCurrentRoverPose.GetCompassHeading(),
                                                                                                    diffdrive::DifferentialControlMethod::eArcadeDrive);
                        // Send drive powers.
                        globals::g_pDriveBoard->SendDrive(stTurnPowers);

                        // Check if we have successfully realigned.
                        if (dRealignmentDegrees <= constants::STUCK_ALIGN_TOLERANCE)
                        {
                            // Submit logger message.
                            LOG_INFO(logging::g_qSharedLogger, "StuckState: Realignment complete! Reversing...");
                            // Update stuck type enum for if we are still stuck after reversing.
                            m_eAttemptType = AttemptType::eGiveUp;
                            // Reset currently aligning toggle.
                            m_bIsCurrentlyAligning = false;
                            // Handle reversing event.
                            globals::g_pStateMachineHandler->HandleEvent(Event::eReverse, true);
                        }
                        // If not aligned yet, check if we hit the timeout.
                        else if (dTimeElapsed >= constants::STUCK_HEADING_ALIGN_TIMEOUT)
                        {
                            // Submit logger message.
                            LOG_NOTICE(logging::g_qSharedLogger,
                                       "StuckState: Rotated/Realigned {} degrees in {} seconds before timeout was reached. Rover is still stuck...",
                                       constants::STUCK_ALIGN_DEGREES - dRealignmentDegrees,
                                       dTimeElapsed);
                            // Update stuck type enum for if we are still stuck after reversing.
                            m_eAttemptType = AttemptType::eGiveUp;
                            // Reset currently aligning toggle.
                            m_bIsCurrentlyAligning = false;
                            // Handle reversing event.
                            globals::g_pStateMachineHandler->HandleEvent(Event::eReverse, true);
                        }
                    }
                    break;
                }
                case AttemptType::eGiveUp:
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger, "StuckState: After multiple attempts, autonomy was unable to get the rover unstuck. Giving Up...");
                    // Return to idle.
                    globals::g_pStateMachineHandler->HandleEvent(Event::eAbort);
                    break;
                }
                default:
                {
                    // Submit logger message.
                    LOG_ERROR(logging::g_qSharedLogger, "StuckState: Unknown attempt type!");
                    // Return to idle.
                    globals::g_pStateMachineHandler->HandleEvent(Event::eAbort);
                    break;
                }
            }
        }
    }

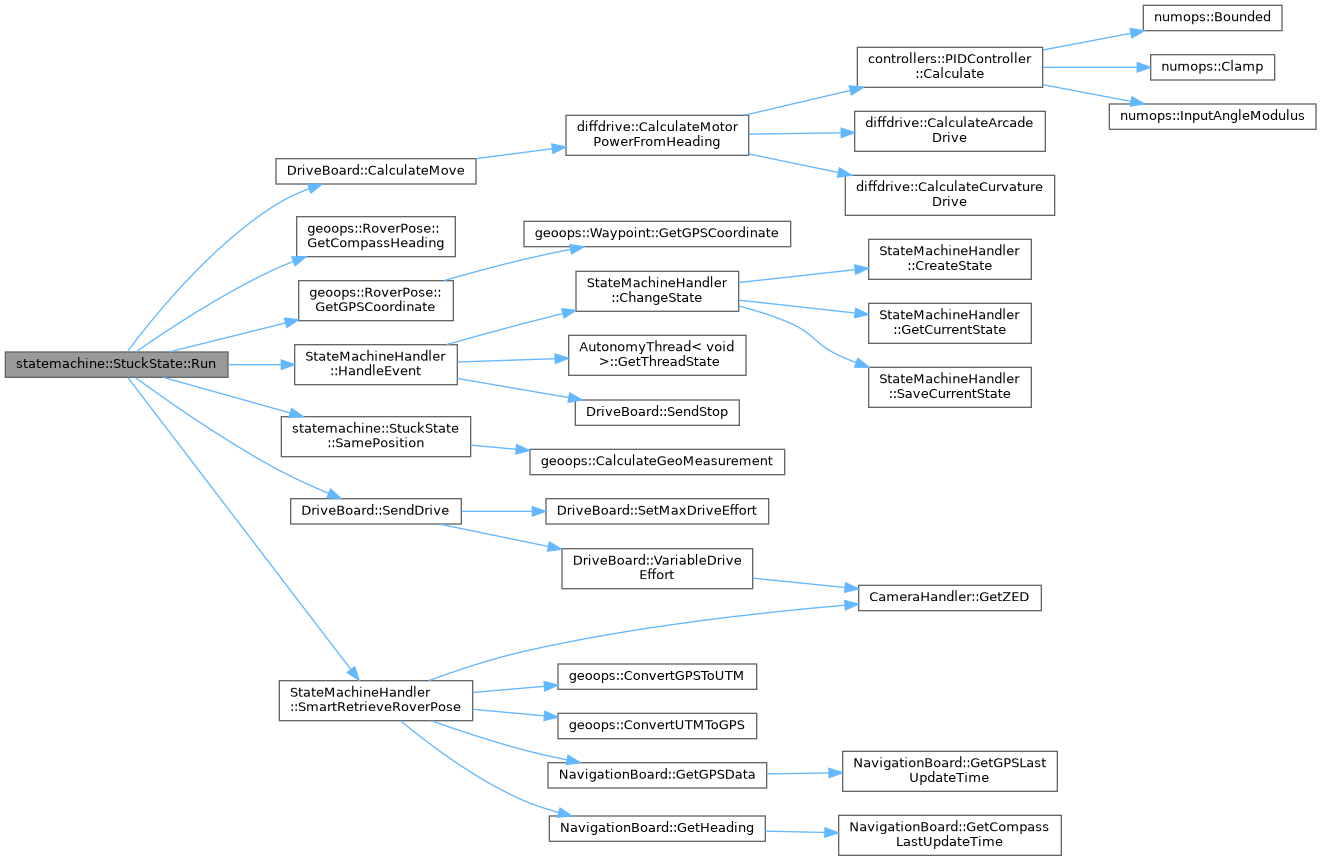

Here is the call graph for this function:

TriggerEvent()

States statemachine::StuckState::TriggerEvent ( Event  eEvent )

overridevirtual

Trigger an event in the state machine. Returns the next state.

Parameters

eEvent

- The event to trigger.

Returns

std::shared_ptr<State> - The next state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu), clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-01-17

Implements statemachine::State.

    {
        // Create instance variables.
        States eNextState       = States::eStuck;
        bool bCompleteStateExit = true;

        switch (eEvent)
        {
            case Event::eStart:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "StuckState: Handling Start event.");
                // Send multimedia command to update state display.
                globals::g_pMultimediaBoard->SendLightingState(MultimediaBoard::MultimediaBoardLightingState::eAutonomy);
                break;
            }
            case Event::eAbort:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "StuckState: Handling Abort event.");
                // Send multimedia command to update state display.
                globals::g_pMultimediaBoard->SendLightingState(MultimediaBoard::MultimediaBoardLightingState::eOff);
                // Change state.
                eNextState = States::eIdle;
                break;
            }
            case Event::eReverse:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "StuckState: Handling Reverse event.");
                // Change state.
                eNextState = States::eReversing;
                break;
            }
            case Event::eUnstuck:
            {
                // Modify referenced rover path to reflect new obstacle
                ModifyPath();
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "StuckState: Handling Unstuck event.");
                // Change state back to the state that originally got stuck.
                eNextState = m_eTriggeringState;
                break;
            }
            default:
            {
                LOG_WARNING(logging::g_qSharedLogger, "StuckState: Handling unknown event.");
                eNextState = States::eIdle;
                break;
            }
        }

        if (eNextState != States::eStuck)
        {
            LOG_INFO(logging::g_qSharedLogger, "StuckState: Transitioning to {} State.", StateToString(eNextState));

            // Exit the current state
            if (bCompleteStateExit)
            {
                Exit();
            }
        }

        return eNextState;
    }

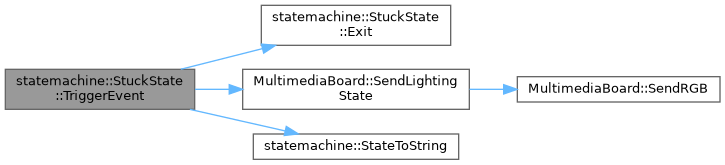

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/states/StuckState.h
• src/states/StuckState.cpp
