statemachine::ApproachingMarkerState Class Reference

The ApproachingMarkerState class implements the Approaching Marker state for the Autonomy State Machine. More...

#include <ApproachingMarkerState.h>

Inheritance diagram for statemachine::ApproachingMarkerState:

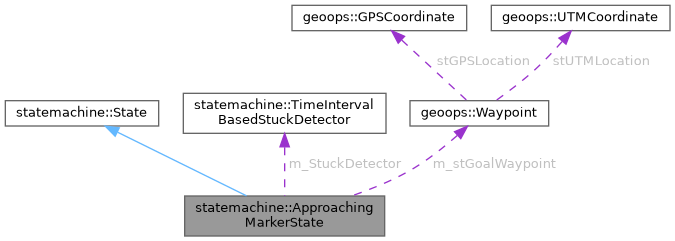

Collaboration diagram for statemachine::ApproachingMarkerState:

Public Member Functions
	ApproachingMarkerState ()
	Accessor for the State private member. Returns the state as a string.
void	Run () override
	Run the state machine. Returns the next state.
States	TriggerEvent (Event eEvent) override
	Trigger an event in the state machine. Returns the next state.
Public Member Functions inherited from statemachine::State
	State (States eState)
	Construct a new State object.
virtual	~State ()=default
	Destroy the State object.
States	GetState () const
	Accessor for the State private member.
virtual std::string	ToString () const
	Accessor for the State private member. Returns the state as a string.
virtual bool	operator== (const State &other) const
	Checks to see if the current state is equal to the passed state.
virtual bool	operator!= (const State &other) const
	Checks to see if the current state is not equal to the passed state.

Protected Member Functions
void	Start () override
	This method is called when the state is first started. It is used to initialize the state.
void	Exit () override
	This method is called when the state is exited. It is used to clean up the state.

Private Attributes
std::vector< std::shared_ptr< TagDetector > >	m_vTagDetectors
statemachine::TimeIntervalBasedStuckDetector	m_StuckDetector
States	m_eTriggeringState
bool	m_bInitialized
geoops::Waypoint	m_stGoalWaypoint
double	m_dHeadingSetPoint
double	m_dDistanceFromTag
bool	m_bDriveBackwards
geoops::Waypoint	m_stLastGeolocatedPosition
bool	m_bHasLastGeolocatedPosition
bool	m_bHasSeenTarget
std::chrono::system_clock::time_point	m_tmLastSeenTime
std::chrono::system_clock::time_point	m_tmLastLogTime
bool	m_bAlreadyPrintedLost
bool	m_bAlreadyPrintedVisualLostFallback

Detailed Description

The ApproachingMarkerState class implements the Approaching Marker state for the Autonomy State Machine.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

Constructor & Destructor Documentation

ApproachingMarkerState()

statemachine::ApproachingMarkerState::ApproachingMarkerState

(

)

Accessor for the State private member. Returns the state as a string.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu), Sam Hajdukiewicz (saman.nosp@m.thah.nosp@m.ajduk.nosp@m.iewi.nosp@m.cz@gm.nosp@m.ail..nosp@m.com)

Date

2024-01-17

                                                   : State(States::eApproachingMarker)
    {
        LOG_INFO(logging::g_qConsoleLogger, "Entering State: {}", ToString());

        m_bInitialized  = false;

        m_StuckDetector = statemachine::TimeIntervalBasedStuckDetector(constants::APPROACH_MARKER_STUCK_CHECK_ATTEMPTS, constants::APPROACH_MARKER_STUCK_CHECK_INTERVAL);

        if (!m_bInitialized)
        {
            Start();
            m_bInitialized = true;
        }
    }

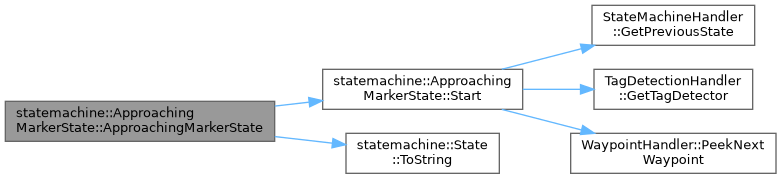

Here is the call graph for this function:

Member Function Documentation

Start()

void statemachine::ApproachingMarkerState::Start ( )

overrideprotectedvirtual

This method is called when the state is first started. It is used to initialize the state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu), Sam Hajdukiewicz (saman.nosp@m.thah.nosp@m.ajduk.nosp@m.iewi.nosp@m.cz@gm.nosp@m.ail..nosp@m.com)

Date

2024-01-17

Reimplemented from statemachine::State.

    {
        // Schedule the next run of the state's logic.
        LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Scheduling next run of state logic.");

        // Initialize target parameters.
        m_stGoalWaypoint   = globals::g_pWaypointHandler->PeekNextWaypoint();
        m_eTriggeringState = globals::g_pStateMachineHandler->GetPreviousState();

        // Schedule the next run of the state's logic.
        LOG_INFO(logging::g_qSharedLogger,
                 "ApproachingMarkerState: Started. Goal Waypoint -> Lat: {:.6f}, Lon: {:.6f}, Radius: {:.2f}m, Target ID: {}. Previous State: {}",
                 m_stGoalWaypoint.GetGPSCoordinate().dLatitude,
                 m_stGoalWaypoint.GetGPSCoordinate().dLongitude,
                 m_stGoalWaypoint.dRadius,
                 m_stGoalWaypoint.nID,
                 StateToString(m_eTriggeringState));

        // Fetch detectors.
        m_vTagDetectors = {globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eHeadMainCam),
                           globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eRearCam)};

        LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Fetched {} tag detectors for tracking.", m_vTagDetectors.size());

        // Reset all persistent tracking variables for a clean slate.
        m_dHeadingSetPoint                  = 0.0;
        m_dDistanceFromTag                  = 0.0;
        m_bDriveBackwards                   = false;
        m_bHasLastGeolocatedPosition        = false;
        m_bHasSeenTarget                    = false;
        m_bAlreadyPrintedLost               = false;
        m_bAlreadyPrintedVisualLostFallback = false;
        m_tmLastSeenTime                    = std::chrono::system_clock::now();
        m_tmLastLogTime                     = std::chrono::system_clock::now();
    }

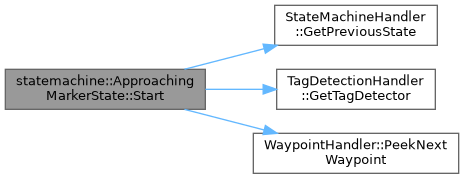

Here is the call graph for this function:

Here is the caller graph for this function:

Exit()

void statemachine::ApproachingMarkerState::Exit ( )

overrideprotectedvirtual

This method is called when the state is exited. It is used to clean up the state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

Reimplemented from statemachine::State.

    {
        // Clean up the state before exiting.
        LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Exiting state.");
    }

Here is the caller graph for this function:

Run()

void statemachine::ApproachingMarkerState::Run ( )

overridevirtual

Run the state machine. Returns the next state.

Author

sam_hajdukiewicz (saman.nosp@m.thah.nosp@m.ajduk.nosp@m.iewi.nosp@m.cz@gm.nosp@m.ail..nosp@m.com)

Date

2024-01-17

STATE LOGIC FLOW:

1. Geofence Check: Verify the rover is within the goal waypoint's radius.
2. Target Identification: Find the closest target across all cameras using screen area %.
3. Navigation Decision Tree: -> Target Unseen: Coast on last heading -> Drive to last GPS -> Timeout & Exit. -> Target Detected: Toggle Forward/Reverse based on camera (Front vs Rear).

• Good Depth (> 0.0m): Calculate absolute GPS heading and save to history.
• Bad Depth (== 0.0m): Fallback to pure relative vision heading (Yaw).

1. Execution: Send drive commands, check proximity for success, and run stuck detection.

Implements statemachine::State.

    {

        LOG_DEBUG(logging::g_qSharedLogger, "ApproachingMarkerState: Running state-specific behavior.");

        // Get the current rover pose and add to plot.
        geoops::RoverPose stCurrentRoverPose = globals::g_pStateMachineHandler->SmartRetrieveRoverPose();

        // 1. Boundary Check: Verify rover radius from marker waypoint.
        geoops::GeoMeasurement stCurrentMeasurement = geoops::CalculateGeoMeasurement(m_stGoalWaypoint.GetGPSCoordinate(), stCurrentRoverPose.GetGPSCoordinate());
        if (stCurrentMeasurement.dDistanceMeters > m_stGoalWaypoint.dRadius)
        {
            LOG_WARNING(logging::g_qSharedLogger,
                        "ApproachingMarkerState: Rover broke geofence! Radius threshold is {} m, current distance is {:.2f} m. Triggering MarkerUnseen.",
                        m_stGoalWaypoint.dRadius,
                        stCurrentMeasurement.dDistanceMeters);
            globals::g_pStateMachineHandler->HandleEvent(Event::eMarkerUnseen);
            return;
        }

        // 2. Identify target marker.
        tagdetectutils::ArucoTag stBestArucoTag;
        tagdetectutils::ArucoTag stBestTorchTag;    // Used as placeholder for ML torch tag structure
        statemachine::IdentifyTargetMarker(m_vTagDetectors, stBestArucoTag, stBestTorchTag, m_stGoalWaypoint.nID);

        std::chrono::system_clock::time_point tmCurrentTime = std::chrono::system_clock::now();
        double dSecondsSinceLastSeen                        = std::chrono::duration_cast<std::chrono::milliseconds>(tmCurrentTime - m_tmLastSeenTime).count() / 1000.0;
        bool bMarkerDetected                                = (stBestArucoTag.nID != -1 || stBestTorchTag.dConfidence != 0.0);

        // Clear stale session data if re-entered after a long time.
        if (dSecondsSinceLastSeen > constants::APPROACH_MARKER_LOST_GIVE_UP_TIME + 5.0)
        {
            m_bHasLastGeolocatedPosition = false;
        }

        std::string szCameraOrigin   = "Unknown/None";
        std::string szTagModelSource = "None";
        double dCurrentTagYaw        = 0.0;
        double dCurrentTagConf       = 0.0;

        // 3. Update tracking states.
        if (!bMarkerDetected)
        {
            // Marker unseen.
            if (dSecondsSinceLastSeen > constants::APPROACH_MARKER_LOST_GIVE_UP_TIME)
            {
                LOG_WARNING(logging::g_qSharedLogger,
                            "ApproachingMarkerState: Tag has been unseen for {:.2f}s (Threshold: {:.2f}s). Giving up and triggering MarkerUnseen.",
                            dSecondsSinceLastSeen,
                            constants::APPROACH_MARKER_LOST_GIVE_UP_TIME);
                globals::g_pStateMachineHandler->HandleEvent(Event::eMarkerUnseen);
                return;
            }

            if (!m_bAlreadyPrintedLost)
            {
                m_bAlreadyPrintedLost = true;
                LOG_WARNING(logging::g_qSharedLogger, "ApproachingMarkerState: Tracking lost! No valid markers/tags detected across any camera.");
            }

            // Fallback 1: Drive to last known geolocated position if available.
            if (m_bHasLastGeolocatedPosition)
            {
                geoops::GeoMeasurement stLastMeasurement =
                    geoops::CalculateGeoMeasurement(stCurrentRoverPose.GetUTMCoordinate(), m_stLastGeolocatedPosition.GetUTMCoordinate());
                m_dHeadingSetPoint = stLastMeasurement.dStartRelativeBearing;
                m_dDistanceFromTag = stLastMeasurement.dDistanceMeters;

                if (!m_bAlreadyPrintedVisualLostFallback)
                {
                    LOG_NOTICE(logging::g_qSharedLogger,
                               "ApproachingMarkerState: [FALLBACK 1] Visual lost. Driving to last known geolocated UTM: [{:.2f}E, {:.2f}N]. Current Dist: {:.2f}m, "
                               "Target Bearing: {:.2f} degrees, Reverse: {}",
                               m_stLastGeolocatedPosition.GetUTMCoordinate().dEasting,
                               m_stLastGeolocatedPosition.GetUTMCoordinate().dNorthing,
                               m_dDistanceFromTag,
                               m_dHeadingSetPoint,
                               m_bDriveBackwards);
                    m_bAlreadyPrintedVisualLostFallback = true;
                }
            }
            // Fallback 2: Coast along last known heading (Handles 0.0 distance depth dropouts).
            else if (m_bHasSeenTarget)
            {
                if (!m_bAlreadyPrintedVisualLostFallback)
                {
                    LOG_NOTICE(
                        logging::g_qSharedLogger,
                        "ApproachingMarkerState: [FALLBACK 2] Visual lost & no geolocation history. Coasting along last known heading. Target Bearing: {:.2f} degrees, "
                        "Reverse: {}",
                        m_dHeadingSetPoint,
                        m_bDriveBackwards);
                    m_bAlreadyPrintedVisualLostFallback = true;
                }
            }
            // Wait in place: We have never seen the marker.
            else
            {
                globals::g_pDriveBoard->SendStop();
                return;
            }
        }
        else
        {
            // Marker detected.
            if (m_bAlreadyPrintedLost)
            {
                LOG_NOTICE(logging::g_qSharedLogger, "ApproachingMarkerState: Tracking regained! Target marker re-acquired.");
            }

            // Reset temporal trackers.
            m_tmLastSeenTime                            = tmCurrentTime;
            m_bAlreadyPrintedLost                       = false;
            m_bAlreadyPrintedVisualLostFallback         = false;
            m_bHasSeenTarget                            = true;

            std::shared_ptr<TagDetector> pFrontDetector = globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eHeadMainCam);
            std::shared_ptr<TagDetector> pRearDetector  = globals::g_pTagDetectionHandler->GetTagDetector(TagDetectionHandler::TagDetectors::eRearCam);

            // Handle specific tag logic tracking.
            if (stBestArucoTag.nID != -1)
            {
                szTagModelSource = "OpenCV ArUco (ID: " + std::to_string(stBestArucoTag.nID) + ")";
                dCurrentTagYaw   = stBestArucoTag.dYawAngle;
                dCurrentTagConf  = stBestArucoTag.dConfidence;

                if (pFrontDetector != nullptr && stBestArucoTag.szDetectorUUID == pFrontDetector->GetThreadUUID())
                {
                    m_bDriveBackwards = false;
                    szCameraOrigin    = "Head Main Camera";
                }
                else if (pRearDetector != nullptr && stBestArucoTag.szDetectorUUID == pRearDetector->GetThreadUUID())
                {
                    m_bDriveBackwards = true;
                    szCameraOrigin    = "Rear Camera";
                }
                else
                {
                    szCameraOrigin = "Unknown Camera";
                }

                m_dDistanceFromTag = stBestArucoTag.dStraightLineDistance;

                // Require distance to be greater than 0.0 to use Geolocation absolute tracking.
                if (stBestArucoTag.stGeolocatedPosition.eType != geoops::WaypointType::eUNKNOWN && m_dDistanceFromTag > 0.0)
                {
                    geoops::GeoMeasurement stTagMeasurement =
                        geoops::CalculateGeoMeasurement(stCurrentRoverPose.GetUTMCoordinate(), stBestArucoTag.stGeolocatedPosition.GetUTMCoordinate());
                    m_dHeadingSetPoint           = stTagMeasurement.dStartRelativeBearing;
                    m_stLastGeolocatedPosition   = stBestArucoTag.stGeolocatedPosition;
                    m_bHasLastGeolocatedPosition = true;
                }
                else
                {
                    // Fallback to pure relative tracking (Current Heading + Yaw Angle).
                    double dVisionYawOffset = stBestArucoTag.dYawAngle;
                    if (m_bDriveBackwards)
                    {
                        dVisionYawOffset += 180.0;
                    }
                    m_dHeadingSetPoint = numops::InputAngleModulus(dVisionYawOffset + stCurrentRoverPose.GetCompassHeading(), 0.0, 360.0);
                }
            }
            else if (stBestTorchTag.dConfidence != 0.0)
            {
                szTagModelSource = "ML Torch Model";
                dCurrentTagYaw   = stBestTorchTag.dYawAngle;
                dCurrentTagConf  = stBestTorchTag.dConfidence;

                if (pFrontDetector != nullptr && stBestTorchTag.szDetectorUUID == pFrontDetector->GetThreadUUID())
                {
                    m_bDriveBackwards = false;
                    szCameraOrigin    = "Head Main Camera";
                }
                else if (pRearDetector != nullptr && stBestTorchTag.szDetectorUUID == pRearDetector->GetThreadUUID())
                {
                    m_bDriveBackwards = true;
                    szCameraOrigin    = "Rear Camera";
                }
                else
                {
                    szCameraOrigin = "Unknown Camera";
                }

                m_dDistanceFromTag = stBestTorchTag.dStraightLineDistance;

                // Require distance to be greater than 0.0 to use Geolocation absolute tracking.
                if (stBestTorchTag.stGeolocatedPosition.eType != geoops::WaypointType::eUNKNOWN && m_dDistanceFromTag > 0.0)
                {
                    geoops::GeoMeasurement stTagMeasurement =
                        geoops::CalculateGeoMeasurement(stCurrentRoverPose.GetUTMCoordinate(), stBestTorchTag.stGeolocatedPosition.GetUTMCoordinate());
                    m_dHeadingSetPoint           = stTagMeasurement.dStartRelativeBearing;
                    m_stLastGeolocatedPosition   = stBestTorchTag.stGeolocatedPosition;
                    m_bHasLastGeolocatedPosition = true;
                }
                else
                {
                    // Fallback to pure relative tracking (Current Heading + Yaw Angle).
                    double dVisionYawOffset = stBestTorchTag.dYawAngle;
                    if (m_bDriveBackwards)
                    {
                        dVisionYawOffset += 180.0;
                    }
                    m_dHeadingSetPoint = numops::InputAngleModulus(dVisionYawOffset + stCurrentRoverPose.GetCompassHeading(), 0.0, 360.0);
                }
            }
        }

        // 4. Execute Move Commands.
        diffdrive::DrivePowers stDrivePowers = globals::g_pDriveBoard->CalculateMove(constants::APPROACH_MARKER_MOTOR_POWER,
                                                                                     m_dHeadingSetPoint,
                                                                                     stCurrentRoverPose.GetCompassHeading(),
                                                                                     diffdrive::DifferentialControlMethod::eArcadeDrive,
                                                                                     m_bDriveBackwards,    // Reverse control flag.
                                                                                     false,
                                                                                     false,
                                                                                     false);
        globals::g_pDriveBoard->SendDrive(stDrivePowers);

        // 5. Output periodic logging (1Hz).
        if (std::chrono::duration_cast<std::chrono::seconds>(tmCurrentTime - m_tmLastLogTime).count() >= 1)
        {
            m_tmLastLogTime = tmCurrentTime;

            if (bMarkerDetected)
            {
                std::string szTrackingType = (m_bHasLastGeolocatedPosition && m_dDistanceFromTag > 0.0) ? "Absolute (GPS Geolocation)" : "Relative (Vision Yaw Angle)";

                LOG_NOTICE(logging::g_qSharedLogger,
                           "ApproachingMarkerState Status:\n"
                           "  >> Detection   : Source: {}, Camera: {}\n"
                           "  >> Target      : Conf: {:.2f}%, Dist: {:.2f}m, Yaw: {:.2f} degrees\n"
                           "  >> Tracking    : Mode: {}, Reverse: {}\n"
                           "  >> Navigation  : Curr Hdg: {:.2f} degrees, Tgt Hdg: {:.2f} degrees",
                           szTagModelSource,
                           szCameraOrigin,
                           dCurrentTagConf * 100.0,
                           m_dDistanceFromTag,
                           dCurrentTagYaw,
                           szTrackingType,
                           m_bDriveBackwards ? "TRUE" : "FALSE",
                           stCurrentRoverPose.GetCompassHeading(),
                           m_dHeadingSetPoint);
            }
            else
            {
                LOG_NOTICE(logging::g_qSharedLogger,
                           "ApproachingMarkerState Status: Marker not visible. Executing fallback logic. Target Hdg: {:.2f} degrees, Reverse: {}, Est. Dist: {:.2f}m",
                           m_dHeadingSetPoint,
                           m_bDriveBackwards,
                           m_dDistanceFromTag);
            }
        }

        // 6. Check if target is reached.
        if (m_dDistanceFromTag != 0.0 && m_dDistanceFromTag < constants::APPROACH_MARKER_PROXIMITY_THRESHOLD)
        {
            LOG_NOTICE(logging::g_qSharedLogger,
                       "ApproachingMarkerState: SUCCESS! Rover has reached the target marker! (Distance: {:.2f}m < Threshold: {:.2f}m)",
                       m_dDistanceFromTag,
                       constants::APPROACH_MARKER_PROXIMITY_THRESHOLD);

            globals::g_pStateMachineHandler->HandleEvent(Event::eReachedMarker, true);
            return;
        }

        // 7. Check if the rover is stuck.
        if (constants::APPROACH_MARKER_ENABLE_STUCK_DETECT &&
            m_StuckDetector.CheckIfStuck(globals::g_pStateMachineHandler->SmartRetrieveVelocity(),
                                         globals::g_pStateMachineHandler->SmartRetrieveAngularVelocity(),
                                         constants::APPROACH_MARKER_STUCK_CHECK_VEL_THRESH * globals::g_pDriveBoard->GetMaxDriveEffort(),
                                         constants::APPROACH_MARKER_STUCK_CHECK_ROT_THRESH))
        {
            LOG_WARNING(logging::g_qSharedLogger,
                        "ApproachingMarkerState: Rover has become stuck! Triggering Stuck event. Curr Vel: {:.2f}, Ang Vel: {:.2f}",
                        globals::g_pStateMachineHandler->SmartRetrieveVelocity(),
                        globals::g_pStateMachineHandler->SmartRetrieveAngularVelocity());
            globals::g_pStateMachineHandler->HandleEvent(Event::eStuck, true);
            return;
        }
    }

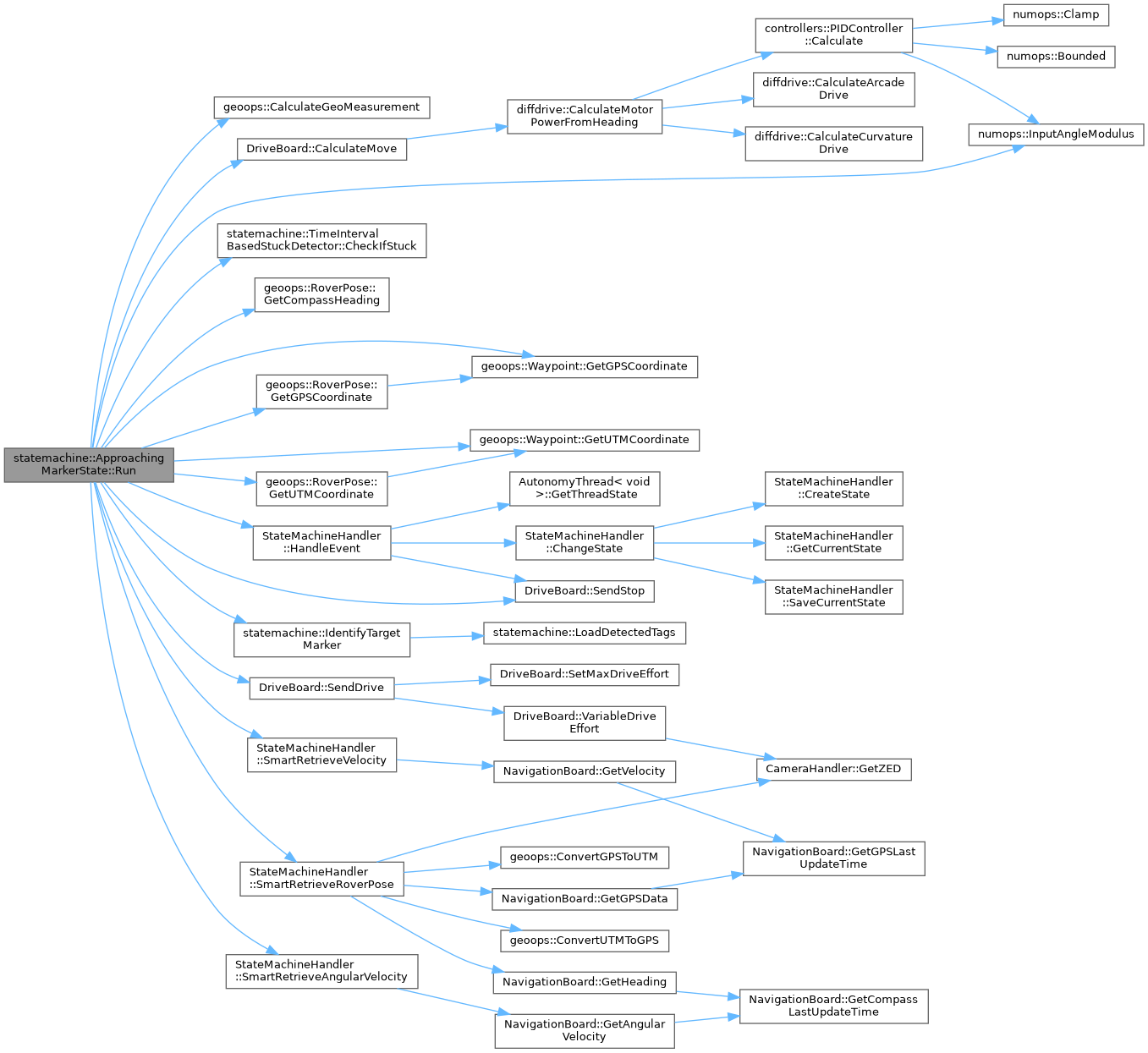

Here is the call graph for this function:

TriggerEvent()

States statemachine::ApproachingMarkerState::TriggerEvent ( Event  eEvent )

overridevirtual

Trigger an event in the state machine. Returns the next state.

Parameters

eEvent

- The event to trigger.

Returns

std::shared_ptr<State> - The next state.

Author

Eli Byrd (edbgk.nosp@m.k@ms.nosp@m.t.edu)

Date

2024-01-17

Implements statemachine::State.

    {
        // Create instance variables.
        States eNextState       = States::eApproachingMarker;
        bool bCompleteStateExit = true;

        switch (eEvent)
        {
            case Event::eReachedMarker:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Handling ReachedMarker event.");

                if (constants::APPROACH_MARKER_VERIFY_POSITION)
                {
                    eNextState = States::eVerifyingMarker;
                }
                else
                {
                    globals::g_pMultimediaBoard->SendLightingState(MultimediaBoard::MultimediaBoardLightingState::eReachedGoal);
                    globals::g_pWaypointHandler->PopNextWaypoint();
                    globals::g_pStateMachineHandler->ClearSavedStates();
                    LOG_NOTICE(logging::g_qSharedLogger, "ApproachingMarkerState: Cleared old search pattern state and approaching marker state from saved states.");
                    eNextState = States::eIdle;
                }
                break;
            }
            case Event::eStart:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Handling Start event.");
                globals::g_pMultimediaBoard->SendLightingState(MultimediaBoard::MultimediaBoardLightingState::eAutonomy);
                break;
            }
            case Event::eMarkerUnseen:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Handling MarkerUnseen event.");
                // Change states.
                eNextState = m_eTriggeringState;
                break;
            }
            case Event::eAbort:
            {
                // Submit logger message.
                LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Handling Abort event.");
                // Send multimedia command to update state display.
                globals::g_pMultimediaBoard->SendLightingState(MultimediaBoard::MultimediaBoardLightingState::eOff);
                // Change state.
                eNextState = States::eIdle;
                break;
            }
            default:
            {
                LOG_WARNING(logging::g_qSharedLogger, "ApproachingMarkerState: Handling unknown event ({}), defaulting to Idle.", static_cast<int>(eEvent));
                eNextState = States::eIdle;
                break;
            }
        }

        if (eNextState != States::eApproachingMarker)
        {
            LOG_INFO(logging::g_qSharedLogger, "ApproachingMarkerState: Transitioning to {} State.", StateToString(eNextState));

            // Exit the current state.
            if (bCompleteStateExit)
            {
                Exit();
            }
        }

        return eNextState;
    }

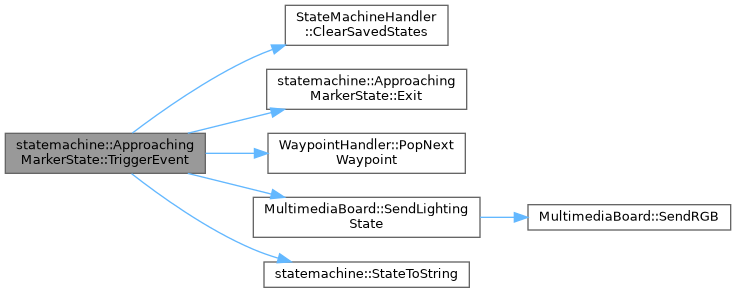

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/states/ApproachingMarkerState.h
• src/states/ApproachingMarkerState.cpp
