duckdb::PartialBlockManager Class Reference

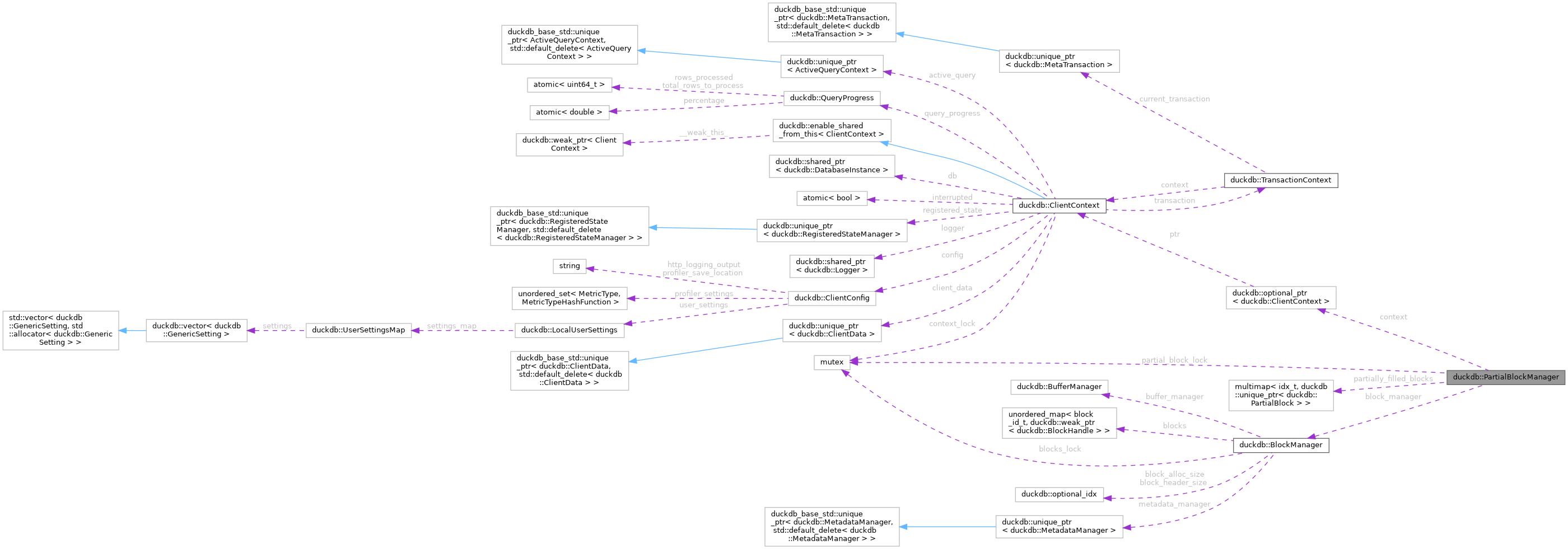

Collaboration diagram for duckdb::PartialBlockManager:

Public Member Functions
	PartialBlockManager (QueryContext context, BlockManager &block_manager, PartialBlockType partial_block_type, optional_idx max_partial_block_size=optional_idx(), uint32_t max_use_count=DEFAULT_MAX_USE_COUNT)
PartialBlockAllocation	GetBlockAllocation (uint32_t segment_size)
void	RegisterPartialBlock (PartialBlockAllocation allocation)
	Register a partially filled block that is filled with "segment_size" entries.
void	ClearBlocks ()
	Clear remaining blocks without writing them to disk.
void	Rollback ()
	Rollback all data written by this partial block manager.
void	Merge (PartialBlockManager &other)
	Merge this block manager into another one.
void	FlushPartialBlocks ()
	Flush any remaining partial blocks to disk.
unique_ptr< PartialBlock >	CreatePartialBlock (ColumnData &data, ColumnSegment &segment, PartialBlockState state, BlockManager &block_manager)
unique_lock< mutex >	GetLock ()
block_id_t	GetFreeBlockId ()
BlockManager &	GetBlockManager () const
	Returns a reference to the underlying block manager.
optional_ptr< ClientContext >	GetClientContext () const
	Returns the optional client context.

Static Public Attributes
static constexpr const idx_t	DEFAULT_MAX_USE_COUNT = 1u << 20
	Max number of shared references to a block. No effective limit by default.
static constexpr const idx_t	MAX_BLOCK_MAP_SIZE = 1u << 31

Protected Member Functions
virtual void	AllocateBlock (PartialBlockState &state, uint32_t segment_size)
bool	GetPartialBlock (idx_t segment_size, unique_ptr< PartialBlock > &state)
bool	HasBlockAllocation (uint32_t segment_size)

Protected Attributes
optional_ptr< ClientContext >	context
BlockManager &	block_manager
PartialBlockType	partial_block_type
mutex	partial_block_lock
multimap< idx_t, unique_ptr< PartialBlock > >	partially_filled_blocks
uint32_t	max_partial_block_size
	The maximum size (in bytes) at which a partial block will be considered a partial block.
uint32_t	max_use_count

Detailed Description

Enables sharing blocks across some scope. Scope is whatever we want to share blocks across. It may be an entire checkpoint or just a single row group. In any case, they must share a block manager.

Member Function Documentation

GetLock()

unique_lock< mutex > duckdb::PartialBlockManager::GetLock ( )

inline

                                 {
        return unique_lock<mutex>(partial_block_lock);
    }

GetPartialBlock()

bool duckdb::PartialBlockManager::GetPartialBlock ( idx_t  segment_size, unique_ptr< PartialBlock > &  state  )

protected

Try to obtain a partially filled block that can fit "segment_size" bytes If successful, returns true and returns the block_id and offset_in_block to write to Otherwise, returns false

Member Data Documentation

MAX_BLOCK_MAP_SIZE

constexpr const idx_t duckdb::PartialBlockManager::MAX_BLOCK_MAP_SIZE = 1u << 31

staticconstexpr

No point letting map size grow unbounded. We'll drop blocks with the least free space first.

context

optional_ptr<ClientContext> duckdb::PartialBlockManager::context

protected

The optional client context in which we use the partial block manager. The SingleFileCheckpointWriter contains a partial block manager, and the destructor of AttachedDatabase invokes CreateCheckpoint with that checkpoint writer. Thus, we're using the optional client context instead of a reference.

partially_filled_blocks

multimap<idx_t, unique_ptr<PartialBlock> > duckdb::PartialBlockManager::partially_filled_blocks

protected

A map of (available space -> PartialBlock) for partially filled blocks This is a multimap because there might be outstanding partial blocks with the same amount of left-over space

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.cpp
