ZEDCam Class Reference

This class implements and interfaces with the most common ZEDSDK cameras and features. It is designed in such a way that multiple other classes/threads can safely call any method of an object of this class withing resource corruption or slowdown of the camera. More...

#include <ZEDCam.h>

Inheritance diagram for ZEDCam:

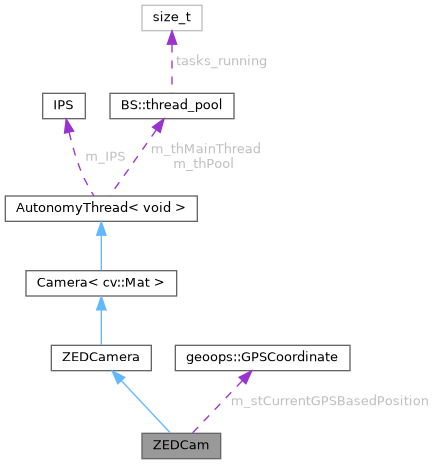

Collaboration diagram for ZEDCam:

Public Member Functions
	ZEDCam (const int nPropResolutionX, const int nPropResolutionY, const int nPropFramesPerSecond, const double dPropHorizontalFOV, const double dPropVerticalFOV, const bool bEnableRecordingFlag=false, const bool bExportSVORecordingFlag=false, const float fMinSenseDistance=constants::ZED_DEFAULT_MINIMUM_DISTANCE, const float fMaxSenseDistance=constants::ZED_DEFAULT_MAXIMUM_DISTANCE, const bool bMemTypeGPU=false, const bool bUseHalfDepthPrecision=false, const int nNumFrameRetrievalThreads=10, const unsigned int unCameraSerialNumber=0)
	Construct a new Zed Cam:: Zed Cam object.

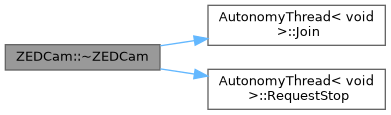

	~ZEDCam ()
	Destroy the Zed Cam:: Zed Cam object.
std::future< bool >	RequestFrameCopy (cv::Mat &cvFrame) override
	Requests a regular BGRA image from the LEFT eye of the zed camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. Remember this code will be ran in whatever class/thread calls it.
std::future< bool >	RequestFrameCopy (cv::cuda::GpuMat &cvGPUFrame) override
	Grabs a regular BGRA image from the LEFT eye of the zed camera and stores it in a GPU mat. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. Remember this code will be ran in whatever class/thread calls it.
std::future< bool >	RequestDepthCopy (cv::Mat &cvDepth, const bool bRetrieveMeasure=true) override
	Requests a depth measure or image from the camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. This image has the same shape as a grayscale image, but the values represent the depth in MILLIMETERS. The ZEDSDK will always return this measure in MILLIMETERS.
std::future< bool >	RequestDepthCopy (cv::cuda::GpuMat &cvGPUDepth, const bool bRetrieveMeasure=true) override
	Requests a depth measure or image from the camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. This image has the same shape as a grayscale image, but the values represent the depth in MILLIMETERS. The ZEDSDK will always return this measure in MILLIMETERS.
std::future< bool >	RequestPointCloudCopy (cv::Mat &cvPointCloud) override
	Requests a point cloud image from the camera. This image has the same resolution as a normal image but with three XYZ values replacing the old color values in the 3rd dimension. The units and sign of the XYZ values are determined by ZED_MEASURE_UNITS and ZED_COORD_SYSTEM constants set in AutonomyConstants.h.
std::future< bool >	RequestPointCloudCopy (cv::cuda::GpuMat &cvGPUPointCloud) override
	Grabs a point cloud image from the camera. This image has the same resolution as a normal image but with three XYZ values replacing the old color values in the 3rd dimension. The units and sign of the XYZ values are determined by ZED_MEASURE_UNITS and ZED_COORD_SYSTEM constants set in AutonomyConstants.h.
std::future< bool >	RequestPositionalPoseCopy (Pose &stPose) override
	Requests the current pose of the camera relative to it's start pose or the origin of the set pose. Puts a Pose pointer into a queue so a copy of a pose from the camera can be written to it. If positional tracking is not enabled, this method will return false and the ZEDCam::Pose may be uninitialized.
std::future< bool >	RequestFloorPlaneCopy (sl::Plane &slPlane) override
	Requests the current floor plane of the camera relative to it's current pose. Puts a Plane pointer into a queue so a copy of the floor plane from the camera can be written to it. If positional tracking is not enabled, this method will return false and the sl::Plane may be uninitialized.
std::future< bool >	RequestSensorsCopy (sl::SensorsData &slSensorsData) override
	Requests the most up to date sensors data from the camera. This data include IMU pose and raw values, barometer, magnetometer, and temperature data.
std::future< bool >	RequestObjectsCopy (std::vector< sl::ObjectData > &vObjectData) override
	Requests a current copy of the tracked objects from the camera. Puts a pointer to a vector containing sl::ObjectData into a queue so a copy of a frame from the camera can be written to it.
std::future< bool >	RequestBatchedObjectsCopy (std::vector< sl::ObjectsBatch > &vBatchedObjectData) override
	If batching is enabled, this requests the normal objects and passes them to the the internal batching queue of the zed api. This performs short-term re-identification with deep learning and trajectories filtering. Batching must have been set to enabled when EnableObjectDetection() was called. Most of the time the vector will be empty and will be filled every ZED_OBJDETECTION_BATCH_LATENCY.
sl::ERROR_CODE	ResetPositionalTracking () override
	Resets the cameras X,Y,Z translation and Roll,Pitch,Yaw orientation back to 0. THINK CAREFULLY! Do you actually want to reset this? It will also realign the coordinate system to whichever way the camera happens to be facing.
sl::ERROR_CODE	TrackCustomBoxObjects (std::vector< ZedObjectData > &vCustomObjects) override
	A vector containing CustomBoxObjectData objects. These objects simply store information about your detected objects from an external object detection model. You will need to take your inference results and package them into a sl::CustomBoxObjectData so the the ZEDSDK can properly interpret your detections.
sl::ERROR_CODE	RebootCamera () override
	Performs a hardware reset of the ZED2 or ZED2i camera.
sl::ERROR_CODE	EnablePositionalTracking (const float fExpectedCameraHeightFromFloorTolerance=constants::ZED_DEFAULT_FLOOR_PLANE_ERROR) override
	Enable the positional tracking functionality of the camera.
void	DisablePositionalTracking () override
	Disable to positional tracking functionality of the camera.
void	SetPositionalPose (const double dX, const double dY, const double dZ, const double dXO, const double dYO, const double dZO) override
	Sets the pose of the positional tracking of the camera. XYZ will point in their respective directions according to ZED_COORD_SYSTEM defined in AutonomyConstants.h.
sl::ERROR_CODE	EnableSpatialMapping () override
	Enabled the spatial mapping feature of the camera. Pose tracking will be enabled if it is not already.
void	DisableSpatialMapping () override
	Disabled the spatial mapping feature of the camera.
sl::ERROR_CODE	EnableObjectDetection (const bool bEnableBatching=false) override
	Enables the object detection and tracking feature of the camera.
void	DisableObjectDetection () override
	Disables the object detection and tracking feature of the camera.
bool	GetCameraIsOpen () override
	Accessor for the current status of the camera.
bool	GetUsingGPUMem () const override
	Accessor for if this ZED is storing it's frames in GPU memory.
std::string	GetCameraModel () override
	Accessor for the model enum from the ZEDSDK and represents the camera model as a string.
unsigned int	GetCameraSerial () override
	Accessor for the camera's serial number.
bool	GetPositionalTrackingEnabled () override
	Accessor for if the positional tracking functionality of the camera has been enabled and functioning.
sl::PositionalTrackingStatus	GetPositionalTrackingState () override
	Accessor for the current positional tracking status of the camera.
sl::SPATIAL_MAPPING_STATE	GetSpatialMappingState () override
	Accessor for the current state of the camera's spatial mapping feature.
sl::SPATIAL_MAPPING_STATE	ExtractSpatialMapAsync (std::future< sl::Mesh > &fuMeshFuture) override
	Retrieve the built spatial map from the camera. Spatial mapping must be enabled. This method takes in an std::future<sl::FusedPointCloud> to eventually store the map in. It returns a enum code representing the successful scheduling of building the map. Any code other than SPATIAL_MAPPING_STATE::OK means the future will never be filled.
bool	GetObjectDetectionEnabled () override
	Accessor for if the cameras object detection and tracking feature is enabled.
Public Member Functions inherited from ZEDCamera
	ZEDCamera (const int nPropResolutionX, const int nPropResolutionY, const int nPropFramesPerSecond, const double dPropHorizontalFOV, const double dPropVerticalFOV, const bool bEnableRecordingFlag, const bool bMemTypeGPU, const bool bUseHalfDepthPrecision, const int nNumFrameRetrievalThreads, const unsigned int unCameraSerialNumber)
	Construct a new ZEDCamera object.
virtual	~ZEDCamera ()=default
	Destroy the ZEDCamera object.
Public Member Functions inherited from Camera< cv::Mat >
	Camera (const int nPropResolutionX, const int nPropResolutionY, const int nPropFramesPerSecond, const PIXEL_FORMATS ePropPixelFormat, const double dPropHorizontalFOV, const double dPropVerticalFOV, const bool bEnableRecordingFlag, const int nNumFrameRetrievalThreads=5)
	Construct a new Camera object.
virtual	~Camera ()
	Destroy the Camera object.
void	SetEnableRecordingFlag (const bool bEnableRecordingFlag)
	Mutator for the Enable Recording Flag private member.
void	SetCameraPoseOffset (const Pose &stPoseOffset)
	Mutator for the Camera Pose Offset private member.
void	SetCameraPoseOffset (const double dPosX, const double dPosY, const double dPosZ, const double dQX, const double dQY, const double dQZ, const double dQW)
	Mutator for the Camera Pose Offset private member.
cv::Size	GetPropResolution () const
	Accessor for the Prop Resolution private member.
int	GetPropFramesPerSecond () const
	Accessor for the Prop Frames Per Second private member.
PIXEL_FORMATS	GetPropPixelFormat () const
	Accessor for the Prop Pixel Format private member.
double	GetPropHorizontalFOV () const
	Accessor for the Prop Horizontal F O V private member.
double	GetPropVerticalFOV () const
	Accessor for the Prop Vertical F O V private member.
bool	GetEnableRecordingFlag () const
	Accessor for the Enable Recording Flag private member.
Pose	GetCameraPoseOffset () const
	Accessor for the Camera Pose Offset private member.
Public Member Functions inherited from AutonomyThread< void >
	AutonomyThread ()
	Construct a new Autonomy Thread object.
virtual	~AutonomyThread ()
	Destroy the Autonomy Thread object. If the parent object or main thread is destroyed or exited while this thread is still running, a race condition will occur. Stopping and joining the thread here insures that the main program can't exit if the user forgot to stop and join the thread.
void	Start ()
	When this method is called, it starts a new thread that runs the code within the ThreadedContinuousCode method. This is the users main code that will run the important and continuous code for the class.
void	RequestStop ()
	Signals threads to stop executing user code, terminate. DOES NOT JOIN. This method will not force the thread to exit, if the user code is not written properly and contains WHILE statement or any other long-executing or blocking code, then the thread will not exit until the next iteration.
void	Join ()
	Waits for thread to finish executing and then closes thread. This method will block the calling code until thread is finished.
bool	Joinable () const
	Check if the code within the thread and all pools created by it are finished executing and the thread is ready to be closed.
AutonomyThreadState	GetThreadState () const
	Accessor for the Threads State private member.
std::string	GetThreadUUID () const
	Accessor for the Thread U U I D private member.
IPS &	GetIPS ()
	Accessor for the Frame I P S private member.
void	SetMainThreadPriority (AutonomyThreadPriority ePriority)
	Set the OS priority for the main continuous thread.
void	SetPoolThreadPriority (AutonomyThreadPriority ePriority)
	Set the OS priority for the highly parallelized pool threads.

Private Member Functions

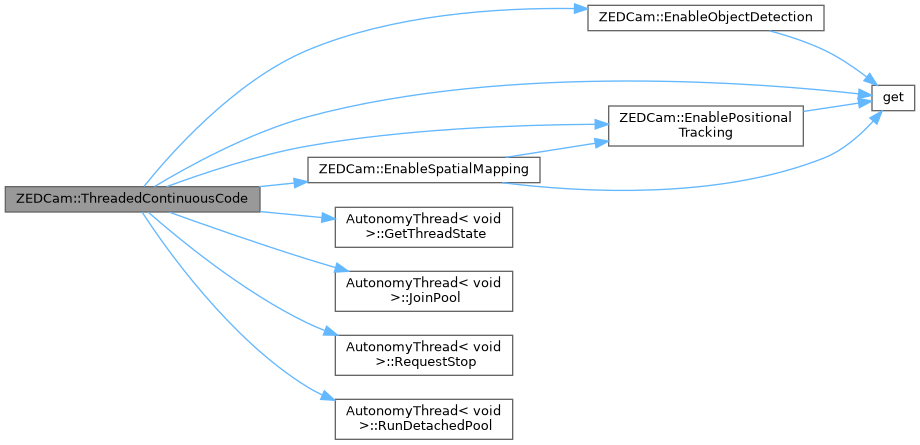

void	ThreadedContinuousCode () override
	The code inside this private method runs in a separate thread, but still has access to this*. This method continuously calls the grab() function of the ZEDSDK, which updates all frames (RGB, depth, cloud) and all other data such as positional and spatial mapping. Then a thread pool is started and joined once per iteration to mass copy the frames and/or measure to any other thread waiting in the queues.

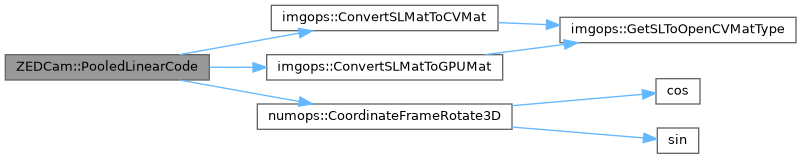

void	PooledLinearCode () override
	This method holds the code that is ran in the thread pool started by the ThreadedLinearCode() method. It copies the data from the different data objects to references of the same type stored in a queue filled by the Request methods.

Private Attributes
sl::Camera	m_slCamera
std::shared_mutex	m_muCameraMutex
sl::InitParameters	m_slCameraParams
sl::RuntimeParameters	m_slRuntimeParams
sl::RecordingParameters	m_slRecordingParams
sl::MEASURE	m_slDepthMeasureType
sl::PositionalTrackingParameters	m_slPoseTrackingParams
sl::Pose	m_slCameraPose
sl::Plane	m_slFloorPlane
sl::Transform	m_slFloorTrackingTransform
sl::SensorsData	m_slSensorsData
sl::SpatialMappingParameters	m_slSpatialMappingParams
sl::ObjectDetectionParameters	m_slObjectDetectionParams
sl::BatchParameters	m_slObjectDetectionBatchParams
sl::Objects	m_slDetectedObjects
std::vector< sl::ObjectsBatch >	m_slDetectedObjectsBatched
sl::MEM	m_slMemoryType
sl::MODEL	m_slCameraModel
float	m_fExpectedCameraHeightFromFloorTolerance
bool	m_bCameraReopenAlreadyChecked
bool	m_bEnablePositionalTrackingFlag
bool	m_bEnableSpatialMappingFlag
bool	m_bEnableObjectDetectionFlag
double	m_dPoseOffsetX
double	m_dPoseOffsetY
double	m_dPoseOffsetZ
double	m_dPoseOffsetXO
double	m_dPoseOffsetYO
double	m_dPoseOffsetZO
geoops::GPSCoordinate	m_stCurrentGPSBasedPosition
sl::Mat	m_slFrame
sl::Mat	m_slDepthImage
sl::Mat	m_slDepthMeasure
sl::Mat	m_slPointCloud
std::queue< containers::FrameFetchContainer< cv::cuda::GpuMat > >	m_qGPUFrameCopySchedule
std::queue< containers::DataFetchContainer< std::vector< ZedObjectData > > >	m_qCustomBoxIngestSchedule
std::queue< containers::DataFetchContainer< Pose > >	m_qPoseCopySchedule
std::queue< containers::DataFetchContainer< sl::Plane > >	m_qFloorCopySchedule
std::queue< containers::DataFetchContainer< sl::SensorsData > >	m_qSensorsCopySchedule
std::queue< containers::DataFetchContainer< std::vector< sl::ObjectData > > >	m_qObjectDataCopySchedule
std::queue< containers::DataFetchContainer< std::vector< sl::ObjectsBatch > > >	m_qObjectBatchedDataCopySchedule
std::shared_mutex	m_muCustomBoxIngestMutex
std::shared_mutex	m_muPoseCopyMutex
std::shared_mutex	m_muFloorCopyMutex
std::shared_mutex	m_muSensorsCopyMutex
std::shared_mutex	m_muObjectDataCopyMutex
std::shared_mutex	m_muObjectBatchedDataCopyMutex
bool	m_bQueueTogglesAlreadyReset
std::atomic< bool >	m_bNormalFramesQueued
std::atomic< bool >	m_bDepthFramesQueued
std::atomic< bool >	m_bPointCloudsQueued
std::atomic< bool >	m_bPosesQueued
std::atomic< bool >	m_bFloorsQueued
std::atomic< bool >	m_bSensorsQueued
std::atomic< bool >	m_bObjectsQueued
std::atomic< bool >	m_bBatchedObjectsQueued

Additional Inherited Members
Public Types inherited from AutonomyThread< void >
enum	AutonomyThreadState
enum	AutonomyThreadPriority
Protected Member Functions inherited from AutonomyThread< void >
void	RunPool (const unsigned int nNumTasksToQueue, const unsigned int nNumThreads=2, const bool bForceStopCurrentThreads=false)
	When this method is called, it starts/adds tasks to a thread pool that runs nNumTasksToQueue copies of the code within the PooledLinearCode() method using nNumThreads number of threads. This is meant to be used as an internal utility of the child class to further improve parallelization. Default value for nNumThreads is 2.
void	RunDetachedPool (const unsigned int nNumTasksToQueue, const unsigned int nNumThreads=2, const bool bForceStopCurrentThreads=false)
	When this method is called, it starts a thread pool full of threads that don't return std::futures (like a placeholder for the thread return type). This means the thread will not have a return type and there is no way to determine if the thread has finished other than calling the Join() method. Only use this if you want to 'set and forget'. It will be faster as it doesn't return futures. Runs PooledLinearCode() method code. This is meant to be used as an internal utility of the child class to further improve parallelization.
void	ParallelizeLoop (const int nNumThreads, const N tTotalIterations, F &&tLoopFunction)
	Given a ref-qualified looping function and an arbitrary number of iterations, this method will divide up the loop and run each section in a thread pool. This function must not return anything. This method will block until the loop has completed.
void	ClearPoolQueue ()
	Clears any tasks waiting to be ran in the queue, tasks currently running will remain running.
void	JoinPool ()
	Waits for pool to finish executing tasks. This method will block the calling code until thread is finished.
bool	PoolJoinable () const
	Check if the internal pool threads are done executing code and the queue is empty.
void	SetMainThreadIPSLimit (int nMaxIterationsPerSecond=0)
	Mutator for the Main Thread Max I P S private member.
int	GetPoolNumOfThreads ()
	Accessor for the Pool Num Of Threads private member.
int	GetPoolQueueLength ()
	Accessor for the Pool Queue Size private member.
std::vector< void >	GetPoolResults ()
	Accessor for the Pool Results private member. The action of getting results will destroy and remove them from this object. This method blocks if the thread is not finished, so no need to call JoinPool() before getting results.
int	GetMainThreadMaxIPS () const
	Accessor for the Main Thread Max I P S private member.
Protected Attributes inherited from ZEDCamera
const std::memory_order	ATOMIC_MEMORY_ORDER_METHOD = std::memory_order_relaxed
unsigned int	m_unCameraSerialNumber
Protected Attributes inherited from Camera< cv::Mat >
int	m_nPropResolutionX
int	m_nPropResolutionY
int	m_nPropFramesPerSecond
int	m_nNumFrameRetrievalThreads
PIXEL_FORMATS	m_ePropPixelFormat
double	m_dPropHorizontalFOV
double	m_dPropVerticalFOV
Pose	m_stCameraPoseOffset
std::atomic_bool	m_bEnableRecordingFlag
std::queue< containers::FrameFetchContainer< cv::Mat > >	m_qFrameCopySchedule
std::shared_mutex	m_muPoolScheduleMutex
std::shared_mutex	m_muFrameCopyMutex
Protected Attributes inherited from AutonomyThread< void >
IPS	m_IPS

Detailed Description

This class implements and interfaces with the most common ZEDSDK cameras and features. It is designed in such a way that multiple other classes/threads can safely call any method of an object of this class withing resource corruption or slowdown of the camera.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-21

Constructor & Destructor Documentation

ZEDCam()

ZEDCam::ZEDCam	(	const int	nPropResolutionX,
		const int	nPropResolutionY,
		const int	nPropFramesPerSecond,
		const double	dPropHorizontalFOV,
		const double	dPropVerticalFOV,
		const bool	bEnableRecordingFlag = false,
		const bool	bExportSVORecordingFlag = false,
		const float	fMinSenseDistance = constants::ZED_DEFAULT_MINIMUM_DISTANCE,
		const float	fMaxSenseDistance = constants::ZED_DEFAULT_MAXIMUM_DISTANCE,
		const bool	bMemTypeGPU = false,
		const bool	bUseHalfDepthPrecision = false,
		const int	nNumFrameRetrievalThreads = 10,
		const unsigned int	unCameraSerialNumber = 0
	)

Construct a new Zed Cam:: Zed Cam object.

Parameters

nPropResolutionX	- X res of camera. Must be smaller than ZED_BASE_RESOLUTION.
nPropResolutionY	- Y res of camera. Must be smaller than ZED_BASE_RESOLUTION.
nPropFramesPerSecond	- FPS camera is running at.
dPropHorizontalFOV	- The horizontal field of view.
dPropVerticalFOV	- The vertical field of view.
bEnableRecordingFlag	- Whether or not this camera should be recorded.
fMinSenseDistance	- The minimum distance to include in depth measures.
fMaxSenseDistance	- The maximum distance to include in depth measures.
bMemTypeGPU	- Whether or not to use the GPU memory for operations.
bUseHalfPrecision	- Whether or not to use a float16 instead of float32 for depth measurements.
bEnableFusionMaster	- Enables ZEDSDK Fusion integration for this camera. This camera will serve as the master instance for all fusion functions.
nNumFrameRetrievalThreads	- The number of threads to use for copying frames/data to requests.
unCameraSerialNumber	- The serial number of the camera to open.

Note

Do not set bEnableFusionMaster to true if you want to subscribe the camera to another camera! Only one camera should have Fusion enabled! To subscribe a camera to the camera running the master fusion instance, use the GetFusionInstance() and GetCameraSerial() functions. Refer to Fusion documentation for info on working with fusion functions: https://www.stereolabs.com/docs/api/classsl_1_1Fusion.html

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

                                                        :
    ZEDCamera(nPropResolutionX,
              nPropResolutionY,
              nPropFramesPerSecond,
              dPropHorizontalFOV,
              dPropVerticalFOV,
              bEnableRecordingFlag,
              bMemTypeGPU,
              bUseHalfDepthPrecision,
              nNumFrameRetrievalThreads,
              unCameraSerialNumber)
{
    // Assign member variables.
    bMemTypeGPU ? m_slMemoryType = sl::MEM::GPU : m_slMemoryType = sl::MEM::CPU;
    bUseHalfDepthPrecision ? m_slDepthMeasureType = sl::MEASURE::DEPTH_U16_MM : m_slDepthMeasureType = sl::MEASURE::DEPTH;
    m_dPoseOffsetX                  = 0.0;
    m_dPoseOffsetY                  = 0.0;
    m_dPoseOffsetZ                  = 0.0;
    m_dPoseOffsetXO                 = 0.0;
    m_dPoseOffsetYO                 = 0.0;
    m_dPoseOffsetZO                 = 0.0;
    m_bEnablePositionalTrackingFlag = false;
    m_bEnableSpatialMappingFlag     = false;
    m_bEnableObjectDetectionFlag    = false;
    m_bCameraReopenAlreadyChecked   = false;
    // Initialize queued toggles.
    m_bQueueTogglesAlreadyReset = false;
    m_bNormalFramesQueued       = false;
    m_bDepthFramesQueued        = false;
    m_bPointCloudsQueued        = false;
    m_bPosesQueued              = false;
    m_bFloorsQueued             = false;
    m_bObjectsQueued            = false;
    m_bBatchedObjectsQueued     = false;

    // Setup camera params.
    m_slCameraParams.camera_resolution      = constants::ZED_BASE_RESOLUTION;
    m_slCameraParams.camera_fps             = nPropFramesPerSecond;
    m_slCameraParams.coordinate_units       = constants::ZED_MEASURE_UNITS;
    m_slCameraParams.coordinate_system      = constants::ZED_COORD_SYSTEM;
    m_slCameraParams.sdk_verbose            = constants::ZED_SDK_VERBOSE;
    m_slCameraParams.depth_mode             = constants::ZED_DEPTH_MODE;
    m_slCameraParams.depth_minimum_distance = fMinSenseDistance;
    m_slCameraParams.depth_maximum_distance = fMaxSenseDistance;
    m_slCameraParams.depth_stabilization    = constants::ZED_DEPTH_STABILIZATION;
    // Only set serial number if necessary.
    if (unCameraSerialNumber != static_cast<unsigned int>(0))
    {
        m_slCameraParams.input.setFromSerialNumber(unCameraSerialNumber);
    }

    // Setup camera runtime params.
    m_slRuntimeParams.enable_fill_mode = constants::ZED_SENSING_FILL;
    // Setup SVO recording parameters.
    m_slRecordingParams.compression_mode = constants::ZED_SVO_COMPRESSION;
    m_slRecordingParams.bitrate          = constants::ZED_SVO_BITRATE;

    // Setup positional tracking parameters.
    m_slPoseTrackingParams.mode                  = constants::ZED_POSETRACK_MODE;
    m_slPoseTrackingParams.enable_area_memory    = constants::ZED_POSETRACK_AREA_MEMORY;
    m_slPoseTrackingParams.enable_pose_smoothing = constants::ZED_POSETRACK_POSE_SMOOTHING;
    m_slPoseTrackingParams.set_floor_as_origin   = constants::ZED_POSETRACK_FLOOR_IS_ORIGIN;
    m_slPoseTrackingParams.enable_imu_fusion     = constants::ZED_POSETRACK_ENABLE_IMU_FUSION;
    m_slPoseTrackingParams.depth_min_range       = constants::ZED_POSETRACK_USABLE_DEPTH_MIN;
    m_slPoseTrackingParams.set_gravity_as_origin = constants::ZED_POSETRACK_USE_GRAVITY_ORIGIN;

    // Setup spatial mapping parameters.
    m_slSpatialMappingParams.map_type          = constants::ZED_MAPPING_TYPE;
    m_slSpatialMappingParams.resolution_meter  = constants::ZED_MAPPING_RESOLUTION_METER;
    m_slSpatialMappingParams.save_texture      = true;
    m_slSpatialMappingParams.use_chunk_only    = constants::ZED_MAPPING_USE_CHUNK_ONLY;
    m_slSpatialMappingParams.stability_counter = constants::ZED_MAPPING_STABILITY_COUNTER;
    // Set or auto-set max depth range for mapping.
    if (constants::ZED_MAPPING_RANGE_METER <= 0)
    {
        // Automatically guess the best mapping depth range.
        m_slSpatialMappingParams.range_meter = m_slSpatialMappingParams.getRecommendedRange(constants::ZED_MAPPING_RESOLUTION_METER, m_slCamera);
    }
    else
    {
        // Manually set.
        m_slSpatialMappingParams.range_meter = constants::ZED_MAPPING_RANGE_METER;
    }

    // Setup object detection/tracking parameters.
    m_slObjectDetectionParams.detection_model      = sl::OBJECT_DETECTION_MODEL::CUSTOM_BOX_OBJECTS;
    m_slObjectDetectionParams.enable_tracking      = constants::ZED_OBJDETECTION_TRACK_OBJ;
    m_slObjectDetectionParams.enable_segmentation  = constants::ZED_OBJDETECTION_SEGMENTATION;
    m_slObjectDetectionParams.filtering_mode       = constants::ZED_OBJDETECTION_FILTERING;
    m_slObjectDetectionParams.prediction_timeout_s = constants::ZED_OBJDETECTION_TRACKING_PREDICTION_TIMEOUT;
    // Setup object detection/tracking batch parameters.
    m_slObjectDetectionBatchParams.enable            = false;
    m_slObjectDetectionBatchParams.id_retention_time = constants::ZED_OBJDETECTION_BATCH_RETENTION_TIME;
    m_slObjectDetectionBatchParams.latency           = constants::ZED_OBJDETECTION_BATCH_LATENCY;
    m_slObjectDetectionParams.batch_parameters       = m_slObjectDetectionBatchParams;

    // Attempt to open camera.
    sl::ERROR_CODE slReturnCode = m_slCamera.open(m_slCameraParams);
    // Check if the camera was successfully opened.
    if (m_slCamera.isOpened())
    {
        // Update camera serial number if camera was opened with autodetect.
        m_unCameraSerialNumber = m_slCamera.getCameraInformation().serial_number;
        // Update camera model.
        m_slCameraModel = m_slCamera.getCameraInformation().camera_model;
        // Check if the camera should record and output an SVO file.
        if (bExportSVORecordingFlag)
        {
            // Now that camera is opened get camera name and construct path.
            std::string szSVOFilePath = constants::LOGGING_OUTPUT_PATH_ABSOLUTE + "/" + logging::g_szProgramStartTimeString + "/" + this->GetCameraModel() + "_" +
                                        std::to_string(this->GetCameraSerial());
            m_slRecordingParams.video_filename = szSVOFilePath.c_str();
            // Enable recording.
            sl::ERROR_CODE slReturnCode = m_slCamera.enableRecording(m_slRecordingParams);
            // Check if recording was enabled successfully.
            if (slReturnCode == sl::ERROR_CODE::SUCCESS)
            {
                // Submit logger message.
                LOG_DEBUG(logging::g_qSharedLogger,
                          "Successfully enabled SVO recording for {} ZED stereo camera with serial number {}.",
                          this->GetCameraModel(),
                          m_unCameraSerialNumber);
            }
            else
            {
                // Submit logger message.
                LOG_ERROR(logging::g_qSharedLogger,
                          "Failed to enable SVO recording for {} ZED stereo camera with serial number {}. sl::ERROR_CODE is {}",
                          this->GetCameraModel(),
                          m_unCameraSerialNumber,
                          sl::toString(slReturnCode).c_str());
            }
        }

        // Submit logger message.
        LOG_INFO(logging::g_qSharedLogger, "{} ZED stereo camera with serial number {} has been successfully opened.", this->GetCameraModel(), m_unCameraSerialNumber);
    }
    else
    {
        // Submit logger message.
        LOG_ERROR(logging::g_qSharedLogger,
                  "Unable to open ZED stereo camera {} ({})! sl::ERROR_CODE is: {}",
                  sl::toString(m_slCameraModel).get(),
                  m_unCameraSerialNumber,
                  sl::toString(slReturnCode).get());
    }

    // Set max FPS of the ThreadedContinuousCode method.
    this->SetMainThreadIPSLimit(nPropFramesPerSecond);
}

Here is the call graph for this function:

~ZEDCam()

ZEDCam::~ZEDCam

(

)

Destroy the Zed Cam:: Zed Cam object.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

{
    // Stop threaded code.
    this->RequestStop();
    this->Join();

    // Close the ZEDCam.
    m_slCamera.close();

    // Submit logger message.
    LOG_INFO(logging::g_qSharedLogger, "ZED stereo camera with serial number {} has been successfully closed.", m_unCameraSerialNumber);
}

Here is the call graph for this function:

Member Function Documentation

RequestFrameCopy() [1/2]

std::future< bool > ZEDCam::RequestFrameCopy ( cv::Mat &  cvFrame )

overridevirtual

Requests a regular BGRA image from the LEFT eye of the zed camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. Remember this code will be ran in whatever class/thread calls it.

Parameters

cvFrame

- A reference to the cv::Mat to copy the normal frame to.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-09

Implements ZEDCamera.

{
    // Assemble the FrameFetchContainer.
    containers::FrameFetchContainer<cv::Mat> stContainer(cvFrame, PIXEL_FORMATS::eBGRA);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if frame queue toggle has already been set.
    if (!m_bNormalFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the frame queue is not empty.
        m_bNormalFramesQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestFrameCopy() [2/2]

std::future< bool > ZEDCam::RequestFrameCopy ( cv::cuda::GpuMat &  cvGPUFrame )

overridevirtual

Grabs a regular BGRA image from the LEFT eye of the zed camera and stores it in a GPU mat. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. Remember this code will be ran in whatever class/thread calls it.

Parameters

cvGPUFrame

- A reference to the cv::Mat to copy the normal frame to.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-09

Reimplemented from ZEDCamera.

{
    // Assemble the FrameFetchContainer.
    containers::FrameFetchContainer<cv::cuda::GpuMat> stContainer(cvGPUFrame, PIXEL_FORMATS::eBGRA);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qGPUFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if frame queue toggle has already been set.
    if (!m_bNormalFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the frame queue is not empty.
        m_bNormalFramesQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestDepthCopy() [1/2]

std::future< bool > ZEDCam::RequestDepthCopy ( cv::Mat &  cvDepth, const bool  bRetrieveMeasure = true  )

overridevirtual

Requests a depth measure or image from the camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. This image has the same shape as a grayscale image, but the values represent the depth in MILLIMETERS. The ZEDSDK will always return this measure in MILLIMETERS.

Parameters

cvDepth	- A reference to the cv::Mat to copy the depth frame to.
bRetrieveMeasure	- False to get depth IMAGE instead of MEASURE. Do not use the 8-bit grayscale depth image purposes other than displaying depth.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Implements ZEDCamera.

{
    // Create instance variables.
    PIXEL_FORMATS eFrameType;

    // Check if the container should be set to retrieve an image or a measure.
    bRetrieveMeasure ? eFrameType = PIXEL_FORMATS::eDepthMeasure : eFrameType = PIXEL_FORMATS::eDepthImage;
    // Assemble container.
    containers::FrameFetchContainer<cv::Mat> stContainer(cvDepth, eFrameType);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if frame queue toggle has already been set.
    if (!m_bDepthFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the frame queue is not empty.
        m_bDepthFramesQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestDepthCopy() [2/2]

std::future< bool > ZEDCam::RequestDepthCopy ( cv::cuda::GpuMat &  cvGPUDepth, const bool  bRetrieveMeasure = true  )

overridevirtual

Requests a depth measure or image from the camera. Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it. This image has the same shape as a grayscale image, but the values represent the depth in MILLIMETERS. The ZEDSDK will always return this measure in MILLIMETERS.

Parameters

cvGPUDepth	- A reference to the cv::Mat to copy the depth frame to.
bRetrieveMeasure	- False to get depth IMAGE instead of MEASURE. Do not use the 8-bit grayscale depth image purposes other than displaying depth.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Reimplemented from ZEDCamera.

{
    // Create instance variables.
    PIXEL_FORMATS eFrameType;

    // Check if the container should be set to retrieve an image or a measure.
    bRetrieveMeasure ? eFrameType = PIXEL_FORMATS::eDepthMeasure : eFrameType = PIXEL_FORMATS::eDepthImage;
    // Assemble container.
    containers::FrameFetchContainer<cv::cuda::GpuMat> stContainer(cvGPUDepth, eFrameType);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qGPUFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if frame queue toggle has already been set.
    if (!m_bDepthFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the frame queue is not empty.
        m_bDepthFramesQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestPointCloudCopy() [1/2]

std::future< bool > ZEDCam::RequestPointCloudCopy ( cv::Mat &  cvPointCloud )

overridevirtual

Requests a point cloud image from the camera. This image has the same resolution as a normal image but with three XYZ values replacing the old color values in the 3rd dimension. The units and sign of the XYZ values are determined by ZED_MEASURE_UNITS and ZED_COORD_SYSTEM constants set in AutonomyConstants.h.

A 4th value in the 3rd dimension exists as a float32 storing the BGRA values. Each color value is 8-bits and is in this order: 00000000 00000000 00000000 00000000 = 32 bits (float32) B G R A

Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it.

Parameters

cvPointCloud

- A reference to the cv::Mat to copy the point cloud frame to.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Implements ZEDCamera.

{
    // Assemble the FrameFetchContainer.
    containers::FrameFetchContainer<cv::Mat> stContainer(cvPointCloud, PIXEL_FORMATS::eXYZBGRA);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if point cloud queue toggle has already been set.
    if (!m_bPointCloudsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the point cloud queue is not empty.
        m_bPointCloudsQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestPointCloudCopy() [2/2]

std::future< bool > ZEDCam::RequestPointCloudCopy ( cv::cuda::GpuMat &  cvGPUPointCloud )

overridevirtual

Grabs a point cloud image from the camera. This image has the same resolution as a normal image but with three XYZ values replacing the old color values in the 3rd dimension. The units and sign of the XYZ values are determined by ZED_MEASURE_UNITS and ZED_COORD_SYSTEM constants set in AutonomyConstants.h.

A 4th value in the 3rd dimension exists as a float32 storing the BGRA values. Each color value is 8-bits and is in this order: 00000000 00000000 00000000 00000000 = 32 bits (float32) B G R A

Puts a frame pointer into a queue so a copy of a frame from the camera can be written to it.

Parameters

cvGPUPointCloud

- A reference to the cv::Mat to copy the point cloud frame to.

Returns

std::future<bool> - A future that should be waited on before the passed in frame is used. Value will be true if frame was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Reimplemented from ZEDCamera.

{
    // Assemble the FrameFetchContainer.
    containers::FrameFetchContainer<cv::cuda::GpuMat> stContainer(cvGPUPointCloud, PIXEL_FORMATS::eXYZBGRA);

    // Acquire lock on frame copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append frame fetch container to the schedule queue.
    m_qGPUFrameCopySchedule.push(stContainer);
    // Release lock on the frame schedule queue.
    lkSchedulers.unlock();

    // Check if point cloud queue toggle has already been set.
    if (!m_bPointCloudsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the point cloud queue is not empty.
        m_bPointCloudsQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedFrameStatus->get_future();
}

RequestPositionalPoseCopy()

std::future< bool > ZEDCam::RequestPositionalPoseCopy ( Pose &  stPose )

overridevirtual

Requests the current pose of the camera relative to it's start pose or the origin of the set pose. Puts a Pose pointer into a queue so a copy of a pose from the camera can be written to it. If positional tracking is not enabled, this method will return false and the ZEDCam::Pose may be uninitialized.

Parameters

stPose

- A reference to the ZEDCam::Pose object to copy the current camera pose to.

Returns

std::future<bool> - A future that should be waited on before the passed in sl::Pose is used. Value will be true if pose was successfully retrieved.

Note

If this camera is acting as the ZEDSDK Fusion master instance, then the positional pose returned will be from the Fusion instance. aka The Fused GNSS and visual inertial odometry will be returned.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Implements ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Check if positional tracking has been enabled.
    if (m_slCamera.isPositionalTrackingEnabled())
    {
        // Release lock.
        lkCameraLock.unlock();
        // Assemble the data container.
        containers::DataFetchContainer<Pose> stContainer(stPose);

        // Acquire lock on pose copy queue.
        std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
        // Append pose fetch container to the schedule queue.
        m_qPoseCopySchedule.push(stContainer);
        // Release lock on the pose schedule queue.
        lkSchedulers.unlock();

        // Check if pose queue toggle has already been set.
        if (!m_bPosesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
        {
            // Signify that the pose queue is not empty.
            m_bPosesQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
        }

        // Return the future from the promise stored in the container.
        return stContainer.pCopiedDataStatus->get_future();
    }
    else
    {
        // Release lock.
        lkCameraLock.unlock();
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger, "Attempted to get ZED positional pose but positional tracking is not enabled or is still initializing!");

        // Create dummy promise to return the future.
        std::promise<bool> pmDummyPromise;
        std::future<bool> fuDummyFuture = pmDummyPromise.get_future();
        // Set future value.
        pmDummyPromise.set_value(false);

        // Return unsuccessful.
        return fuDummyFuture;
    }
}

RequestFloorPlaneCopy()

std::future< bool > ZEDCam::RequestFloorPlaneCopy ( sl::Plane &  slPlane )

overridevirtual

Requests the current floor plane of the camera relative to it's current pose. Puts a Plane pointer into a queue so a copy of the floor plane from the camera can be written to it. If positional tracking is not enabled, this method will return false and the sl::Plane may be uninitialized.

Parameters

slPlane

- A reference to the sl::Plane object to copy the current camera floor plane to.

Returns

std::future<bool> - A future that should be waited on before the passed in sl::Plane is used. Value will be true if data was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-10-22

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Check if positional tracking has been enabled.
    if (m_slCamera.isPositionalTrackingEnabled())
    {
        // Release lock.
        lkCameraLock.unlock();
        // Assemble the data container.
        containers::DataFetchContainer<sl::Plane> stContainer(slPlane);

        // Acquire lock on pose copy queue.
        std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
        // Append data fetch container to the schedule queue.
        m_qFloorCopySchedule.push(stContainer);
        // Release lock on the pose schedule queue.
        lkSchedulers.unlock();

        // Check if pose queue toggle has already been set.
        if (!m_bFloorsQueued.load(std::memory_order_relaxed))
        {
            // Signify that the pose queue is not empty.
            m_bFloorsQueued.store(true, std::memory_order_relaxed);
        }

        // Return the future from the promise stored in the container.
        return stContainer.pCopiedDataStatus->get_future();
    }
    else
    {
        // Release lock.
        lkCameraLock.unlock();
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger, "Attempted to get ZED floor plane but positional tracking is not enabled!");

        // Create dummy promise to return the future.
        std::promise<bool> pmDummyPromise;
        std::future<bool> fuDummyFuture = pmDummyPromise.get_future();
        // Set future value.
        pmDummyPromise.set_value(false);

        // Return unsuccessful.
        return fuDummyFuture;
    }
}

RequestSensorsCopy()

std::future< bool > ZEDCam::RequestSensorsCopy ( sl::SensorsData &  slSensorsData )

overridevirtual

Requests the most up to date sensors data from the camera. This data include IMU pose and raw values, barometer, magnetometer, and temperature data.

Parameters

slSensorsData

- A reference to the sl::SensorsData struct to copy data into.

Returns

std::future<bool> - A future that should be waited on before the passed in sl::SensorsData is used. Value will be true if data was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-08-26

Reimplemented from ZEDCamera.

{
    // Assemble the data container.
    containers::DataFetchContainer<sl::SensorsData> stContainer(slSensorsData);

    // Acquire lock on sensors copy queue.
    std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Append sensors fetch container to the schedule queue.
    m_qSensorsCopySchedule.push(stContainer);
    // Release lock on the sensors schedule queue.
    lkSchedulers.unlock();

    // Check if sensors queue toggle has already been set.
    if (!m_bSensorsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
    {
        // Signify that the sensors queue is not empty.
        m_bSensorsQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
    }

    // Return the future from the promise stored in the container.
    return stContainer.pCopiedDataStatus->get_future();
}

RequestObjectsCopy()

std::future< bool > ZEDCam::RequestObjectsCopy ( std::vector< sl::ObjectData > &  vObjectData )

overridevirtual

Requests a current copy of the tracked objects from the camera. Puts a pointer to a vector containing sl::ObjectData into a queue so a copy of a frame from the camera can be written to it.

Parameters

vObjectData

- A vector that will have data copied to it containing sl::ObjectData objects.

Returns

std::future<bool> - A future that should be waited on before the passed in vector is used. Value will be true if data was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Check if object detection has been enabled.
    if (m_slCamera.isObjectDetectionEnabled())
    {
        // Release lock.
        lkCameraLock.unlock();
        // Assemble the data container.
        containers::DataFetchContainer<std::vector<sl::ObjectData>> stContainer(vObjectData);

        // Acquire lock on object copy queue.
        std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
        // Append data fetch container to the schedule queue.
        m_qObjectDataCopySchedule.push(stContainer);
        // Release lock on the object schedule queue.
        lkSchedulers.unlock();

        // Check if objects queue toggle has already been set.
        if (!m_bObjectsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
        {
            // Signify that the objects queue is not empty.
            m_bObjectsQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
        }

        // Return the future from the promise stored in the container.
        return stContainer.pCopiedDataStatus->get_future();
    }
    else
    {
        // Release lock.
        lkCameraLock.unlock();
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger, "Attempted to get ZED object data but object detection/tracking is not enabled!");

        // Create dummy promise to return the future.
        std::promise<bool> pmDummyPromise;
        std::future<bool> fuDummyFuture = pmDummyPromise.get_future();
        // Set future value.
        pmDummyPromise.set_value(false);

        // Return unsuccessful.
        return fuDummyFuture;
    }
}

RequestBatchedObjectsCopy()

std::future< bool > ZEDCam::RequestBatchedObjectsCopy ( std::vector< sl::ObjectsBatch > &  vBatchedObjectData )

overridevirtual

If batching is enabled, this requests the normal objects and passes them to the the internal batching queue of the zed api. This performs short-term re-identification with deep learning and trajectories filtering. Batching must have been set to enabled when EnableObjectDetection() was called. Most of the time the vector will be empty and will be filled every ZED_OBJDETECTION_BATCH_LATENCY.

Parameters

vBatchedObjectData

- A vector containing objects of sl::ObjectsBatch object that will have object data copied to.

Returns

std::future<bool> - A future that should be waited on before the passed in vector is used. Value will be true if data was successfully retrieved.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-30

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Check if object detection and batching has been enabled.
    if (m_slCamera.isObjectDetectionEnabled() && m_slObjectDetectionBatchParams.enable)
    {
        // Release lock.
        lkCameraLock.unlock();
        // Assemble the data container.
        containers::DataFetchContainer<std::vector<sl::ObjectsBatch>> stContainer(vBatchedObjectData);

        // Acquire lock on batched object copy queue.
        std::unique_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
        // Append data fetch container to the schedule queue.
        m_qObjectBatchedDataCopySchedule.push(stContainer);
        // Release lock on the data schedule queue.
        lkSchedulers.unlock();

        // Check if objects queue toggle has already been set.
        if (!m_bBatchedObjectsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
        {
            // Signify that the objects queue is not empty.
            m_bBatchedObjectsQueued.store(true, ATOMIC_MEMORY_ORDER_METHOD);
        }

        // Return the future from the promise stored in the container.
        return stContainer.pCopiedDataStatus->get_future();
    }
    else
    {
        // Release lock.
        lkCameraLock.unlock();
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger, "Attempted to get ZED batched object data but object detection/tracking is not enabled!");

        // Create dummy promise to return the future.
        std::promise<bool> pmDummyPromise;
        std::future<bool> fuDummyFuture = pmDummyPromise.get_future();
        // Set future value.
        pmDummyPromise.set_value(false);

        // Return unsuccessful.
        return fuDummyFuture;
    }
}

ResetPositionalTracking()

sl::ERROR_CODE ZEDCam::ResetPositionalTracking ( )

overridevirtual

Resets the cameras X,Y,Z translation and Roll,Pitch,Yaw orientation back to 0. THINK CAREFULLY! Do you actually want to reset this? It will also realign the coordinate system to whichever way the camera happens to be facing.

Returns

sl::ERROR_CODE - Status of the positional tracking reset.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Implements ZEDCamera.

{
    // Create new translation to set position back to user given values.
    sl::Translation slZeroTranslation(0, 0, 0);
    // Update offset member variables.
    m_dPoseOffsetX = 0.0;
    m_dPoseOffsetY = 0.0;
    m_dPoseOffsetZ = 0.0;
    // This will reset position and coordinate frame.
    sl::Rotation slZeroRotation;
    slZeroRotation.setEulerAngles(sl::float3(0.0, 0.0, 0.0), false);

    // Store new translation and rotation in a transform object.
    sl::Transform slZeroTransform(slZeroRotation, slZeroTranslation);

    // Submit logger message.
    LOG_NOTICE(logging::g_qSharedLogger, "Resetting positional tracking for camera {} ({})!", sl::toString(m_slCameraModel).get(), m_unCameraSerialNumber);

    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkWriteCameraLock(m_muCameraMutex);
    // Reset the positional tracking location of the camera.
    return m_slCamera.resetPositionalTracking(slZeroTransform);
}

Here is the call graph for this function:

TrackCustomBoxObjects()

sl::ERROR_CODE ZEDCam::TrackCustomBoxObjects ( std::vector< ZedObjectData > &  vCustomObjects )

overridevirtual

A vector containing CustomBoxObjectData objects. These objects simply store information about your detected objects from an external object detection model. You will need to take your inference results and package them into a sl::CustomBoxObjectData so the the ZEDSDK can properly interpret your detections.

Giving the bounding boxes of your detected objects to the ZEDSDK will enable positional tracking and velocity estimation for each object. Even when not in view. The IDs of objects will also become persistent.

Parameters

vCustomObjects

- A vector of sl::CustomBoxObjectData objects.

Returns

sl::ERROR_CODE - The return status of ingestion.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Reimplemented from ZEDCamera.

{
    // Create instance variables.
    std::vector<sl::CustomBoxObjectData> vCustomBoxData;

    // Repack detection data into sl specific object.
    for (ZedObjectData stObjectData : vCustomObjects)
    {
        // Create new sl CustomBoxObjectData struct.
        sl::CustomBoxObjectData slCustomBox;
        std::vector<sl::uint2> vCorners;

        // Assign simple attributes.
        slCustomBox.unique_object_id = sl::String(stObjectData.GetObjectUUID().c_str());
        slCustomBox.label            = stObjectData.nClassNumber;
        slCustomBox.probability      = stObjectData.fConfidence;
        slCustomBox.is_grounded      = stObjectData.bObjectRemainsOnFloorPlane;
        // Repackage object corner data.
        vCorners.emplace_back(sl::uint2(stObjectData.cvBoundingBox.x, stObjectData.cvBoundingBox.y));                                        // Top-left corner
        vCorners.emplace_back(sl::uint2(stObjectData.cvBoundingBox.x + stObjectData.cvBoundingBox.width, stObjectData.cvBoundingBox.y));     // Top-right corner
        vCorners.emplace_back(sl::uint2(stObjectData.cvBoundingBox.x, stObjectData.cvBoundingBox.y + stObjectData.cvBoundingBox.height));    // Bottom-left corner
        vCorners.emplace_back(sl::uint2(stObjectData.cvBoundingBox.x + stObjectData.cvBoundingBox.width,
                                        stObjectData.cvBoundingBox.y + stObjectData.cvBoundingBox.height));                                  // Bottom-right corner
        slCustomBox.bounding_box_2d = vCorners;

        // Append repackaged object to vector.
        vCustomBoxData.emplace_back(slCustomBox);
    }

    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkWriteCameraLock(m_muCameraMutex);
    // Give the custom box data to the zed api.
    sl::ERROR_CODE slReturnCode = m_slCamera.ingestCustomBoxObjects(vCustomBoxData);
    // Release lock.
    lkWriteCameraLock.unlock();

    // Check if successful.
    if (slReturnCode == sl::ERROR_CODE::SUCCESS)
    {
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger,
                    "Failed to ingest new objects for camera {} ({})! sl::ERROR_CODE is: {}",
                    sl::toString(m_slCameraModel).get(),
                    m_unCameraSerialNumber,
                    sl::toString(slReturnCode).get());
    }

    // Return error code.
    return slReturnCode;
}

Here is the call graph for this function:

RebootCamera()

sl::ERROR_CODE ZEDCam::RebootCamera ( )

overridevirtual

Performs a hardware reset of the ZED2 or ZED2i camera.

Returns

sl::ERROR_CODE - Whether or not the camera reboot was successful.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Implements ZEDCamera.

{
    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Reboot this camera and return the status code.
    return sl::Camera::reboot(m_unCameraSerialNumber);
}

EnablePositionalTracking()

sl::ERROR_CODE ZEDCam::EnablePositionalTracking ( const float  fExpectedCameraHeightFromFloorTolerance = constants::ZED_DEFAULT_FLOOR_PLANE_ERROR )

overridevirtual

Enable the positional tracking functionality of the camera.

Parameters

fExpectedCameraHeightFromFloorTolerance

- The expected height of the camera from the floor. This aids with floor plane detection.

Returns

sl::ERROR_CODE - Whether or not positional tracking was successfully enabled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-10-22

Implements ZEDCamera.

{
    // Assign member variable.
    m_fExpectedCameraHeightFromFloorTolerance = fExpectedCameraHeightFromFloorTolerance;

    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Enable pose tracking and store return code.
    sl::ERROR_CODE slReturnCode = m_slCamera.enablePositionalTracking(m_slPoseTrackingParams);
    // Release lock.
    lkCameraLock.unlock();

    // Check if positional tracking was enabled properly.
    if (slReturnCode != sl::ERROR_CODE::SUCCESS)
    {
        // Submit logger message.
        LOG_ERROR(logging::g_qSharedLogger,
                  "Failed to enable positional tracking for camera {} ({})! sl::ERROR_CODE is: {}",
                  sl::toString(m_slCameraModel).get(),
                  m_unCameraSerialNumber,
                  sl::toString(slReturnCode).get());
    }

    // Set flag.
    m_bEnablePositionalTrackingFlag = true;

    // Return error code.
    return slReturnCode;
}

Here is the call graph for this function:

Here is the caller graph for this function:

DisablePositionalTracking()

void ZEDCam::DisablePositionalTracking ( )

overridevirtual

Disable to positional tracking functionality of the camera.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-26

Implements ZEDCamera.

{
    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Disable pose tracking.
    m_slCamera.disablePositionalTracking();
    // Set flag.
    m_bEnablePositionalTrackingFlag = false;
}

SetPositionalPose()

void ZEDCam::SetPositionalPose ( const double  dX, const double  dY, const double  dZ, const double  dXO, const double  dYO, const double  dZO  )

overridevirtual

Sets the pose of the positional tracking of the camera. XYZ will point in their respective directions according to ZED_COORD_SYSTEM defined in AutonomyConstants.h.

Warning: This method is slow and should not be called in a loop. Setting the pose will temporarily block the entire camera from grabbed or copying frames to new threads. This method should only be called occasionally when absolutely needed.

Parameters

dX	- The X position of the camera in ZED_MEASURE_UNITS.
dY	- The Y position of the camera in ZED_MEASURE_UNITS.
dZ	- The Z position of the camera in ZED_MEASURE_UNITS.
dXO	- The tilt of the camera around the X axis in degrees. (0-360)
dYO	- The tilt of the camera around the Y axis in degrees. (0-360)
dZO	- The tilt of the camera around the Z axis in degrees. (0-360)

Returns

sl::ERROR_CODE - Whether or not the pose was set successfully.

Bug:

The ZEDSDK currently cannot handle resetting the positional pose with large translational (dX, dY, dZ) values without breaking positional tracking. This is because the values are floats and not doubles. To fix this I (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om), have decided to just handle the translation offsets internally. So when SetPositionalPose() is called is assigns the dX, dY, and dZ values to private member variables of this class, then the offsets are added the the pose in the PooledLinearCode() under the pose requests section. If StereoLabs fixes this in the future, I will go back to using the sl::Translation to reset positional tracking.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Implements ZEDCamera.

{
    // Update offset member variables.
    m_dPoseOffsetX = dX - m_slCameraPose.getTranslation().x;
    m_dPoseOffsetY = dY - m_slCameraPose.getTranslation().y;
    m_dPoseOffsetZ = dZ - m_slCameraPose.getTranslation().z;
    // Find the angular distance from current and desired pose angles. This is complicated because zed uses different angle ranges.
    m_dPoseOffsetXO =
        numops::InputAngleModulus(numops::AngularDifference(numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).x, 0.0, 360.0), dXO), 0.0, 360.0);
    m_dPoseOffsetYO =
        numops::InputAngleModulus(numops::AngularDifference(numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).y, 0.0, 360.0), dYO), 0.0, 360.0);
    m_dPoseOffsetZO =
        numops::InputAngleModulus(numops::AngularDifference(numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).z, 0.0, 360.0), dZO), 0.0, 360.0);
}

Here is the call graph for this function:

EnableSpatialMapping()

sl::ERROR_CODE ZEDCam::EnableSpatialMapping ( )

overridevirtual

Enabled the spatial mapping feature of the camera. Pose tracking will be enabled if it is not already.

Returns

sl::ERROR_CODE - Whether or not spatial mapping was successfully enabled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Create instance variables.
    sl::Pose slCameraPose;
    sl::ERROR_CODE slReturnCode = sl::ERROR_CODE::SUCCESS;

    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkReadCameraLock(m_muCameraMutex);
    // Check if positional tracking is enabled.
    if (!m_slCamera.isPositionalTrackingEnabled())
    {
        // Release lock.
        lkReadCameraLock.unlock();
        // Enable positional tracking.
        slReturnCode = this->EnablePositionalTracking();
    }
    else
    {
        // Release lock.
        lkReadCameraLock.unlock();
    }

    // Check if positional tracking is or was enabled successfully.
    if (slReturnCode == sl::ERROR_CODE::SUCCESS)
    {
        // Acquire write lock.
        std::unique_lock<std::shared_mutex> lkWriteCameraLock(m_muCameraMutex);
        // Call camera grab function once to ensure the camera is initialized with data.
        m_slCamera.grab(m_slRuntimeParams);
        // Enable spatial mapping.
        slReturnCode = m_slCamera.enableSpatialMapping(m_slSpatialMappingParams);
        // Release lock.
        lkWriteCameraLock.unlock();

        // Check if positional tracking was enabled properly.
        if (slReturnCode != sl::ERROR_CODE::SUCCESS)
        {
            // Submit logger message.
            LOG_ERROR(logging::g_qSharedLogger,
                      "Failed to enabled spatial mapping for camera {} ({})! sl::ERROR_CODE is: {}",
                      sl::toString(m_slCameraModel).get(),
                      m_unCameraSerialNumber,
                      sl::toString(slReturnCode).get());
        }
    }
    else
    {
        // Submit logger message.
        LOG_ERROR(logging::g_qSharedLogger,
                  "Failed to enabled spatial mapping for camera {} ({}) because positional tracking could not be enabled! sl::ERROR_CODE is: {}",
                  sl::toString(m_slCameraModel).get(),
                  m_unCameraSerialNumber,
                  sl::toString(slReturnCode).get());
    }

    // Set flag.
    m_bEnableSpatialMappingFlag = true;

    // Return error code.
    return slReturnCode;
}

Here is the call graph for this function:

Here is the caller graph for this function:

DisableSpatialMapping()

void ZEDCam::DisableSpatialMapping ( )

overridevirtual

Disabled the spatial mapping feature of the camera.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Disable spatial mapping.
    m_slCamera.disableSpatialMapping();
    // Set flag.
    m_bEnableSpatialMappingFlag = false;
}

EnableObjectDetection()

sl::ERROR_CODE ZEDCam::EnableObjectDetection ( const bool  bEnableBatching = false )

overridevirtual

Enables the object detection and tracking feature of the camera.

Returns

sl::ERROR_CODE - Whether or not object detection/tracking was successfully enabled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Check if batching should be turned on.
    bEnableBatching ? m_slObjectDetectionBatchParams.enable = true : m_slObjectDetectionBatchParams.enable = false;
    // Give batch params to detection params.
    m_slObjectDetectionParams.batch_parameters = m_slObjectDetectionBatchParams;

    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Enable object detection.
    sl::ERROR_CODE slReturnCode = m_slCamera.enableObjectDetection(m_slObjectDetectionParams);
    // Release lock.
    lkCameraLock.unlock();

    // Check if positional tracking was enabled properly.
    if (slReturnCode != sl::ERROR_CODE::SUCCESS)
    {
        // Submit logger message.
        LOG_ERROR(logging::g_qSharedLogger,
                  "Failed to enabled object detection for camera {} ({})! sl::ERROR_CODE is: {}",
                  sl::toString(m_slCameraModel).get(),
                  m_unCameraSerialNumber,
                  sl::toString(slReturnCode).get());
    }

    // Set flag.
    m_bEnableObjectDetectionFlag = true;

    // Return error code.
    return slReturnCode;
}

Here is the call graph for this function:

Here is the caller graph for this function:

DisableObjectDetection()

void ZEDCam::DisableObjectDetection ( )

overridevirtual

Disables the object detection and tracking feature of the camera.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire write lock.
    std::unique_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Disable object detection and tracking.
    m_slCamera.disableObjectDetection();
    // Set flag.
    m_bEnableObjectDetectionFlag = false;
}

GetCameraIsOpen()

bool ZEDCam::GetCameraIsOpen ( )

overridevirtual

Accessor for the current status of the camera.

Returns

true - Camera is currently opened and functional.

false - Camera is not opened and/or connected.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Implements Camera< cv::Mat >.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    return this->GetThreadState() == AutonomyThreadState::eRunning && m_slCamera.isOpened();
}

Here is the call graph for this function:

Here is the caller graph for this function:

GetUsingGPUMem()

bool ZEDCam::GetUsingGPUMem ( ) const

overridevirtual

Accessor for if this ZED is storing it's frames in GPU memory.

Returns

true - Using GPU memory for mats.

false - Using CPU memory for mats.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-09

Reimplemented from ZEDCamera.

{
    // Check if we are using GPU memory.
    return m_slMemoryType == sl::MEM::GPU;
}

GetCameraModel()

std::string ZEDCam::GetCameraModel ( )

overridevirtual

Accessor for the model enum from the ZEDSDK and represents the camera model as a string.

Returns

std::string - The model of the zed camera. Possible values: ZED, ZED_MINI, ZED_2, ZED_2i, ZED_X, ZED_X_MINI, UNDEFINED_UNKNOWN

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Implements ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Check if the camera is opened.
    if (m_slCamera.isOpened())
    {
        // Release lock.
        lkCameraLock.unlock();
        // Convert camera model to a string and return.
        return sl::toString(m_slCameraModel).get();
    }
    else
    {
        // Release lock.
        lkCameraLock.unlock();
        // Return the model string to show camera isn't opened.
        return "NOT_OPENED";
    }
}

Here is the caller graph for this function:

GetCameraSerial()

unsigned int ZEDCam::GetCameraSerial ( )

overridevirtual

Accessor for the camera's serial number.

Returns

unsigned int - The serial number of the camera.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Return the model string to show camera isn't opened.
    return m_unCameraSerialNumber;
}

Here is the caller graph for this function:

GetPositionalTrackingEnabled()

bool ZEDCam::GetPositionalTrackingEnabled ( )

overridevirtual

Accessor for if the positional tracking functionality of the camera has been enabled and functioning.

Returns

true - Positional tracking is enabled.

false - Positional tracking is not enabled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Implements ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    return m_slCamera.isPositionalTrackingEnabled() && m_slCamera.getPositionalTrackingStatus().odometry_status == sl::ODOMETRY_STATUS::OK;
}

GetPositionalTrackingState()

sl::PositionalTrackingStatus ZEDCam::GetPositionalTrackingState ( )

overridevirtual

Accessor for the current positional tracking status of the camera.

Returns

sl::PositionalTrackingStatus - The sl::PositionalTrackingStatus struct storing information about the current VIO positional tracking state.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-04-20

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    return m_slCamera.getPositionalTrackingStatus();
}

GetSpatialMappingState()

sl::SPATIAL_MAPPING_STATE ZEDCam::GetSpatialMappingState ( )

overridevirtual

Accessor for the current state of the camera's spatial mapping feature.

Returns

sl::SPATIAL_MAPPING_STATE - The enum value of the spatial mapping state.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Return the current spatial mapping state of the camera.
    return m_slCamera.getSpatialMappingState();
}

ExtractSpatialMapAsync()

sl::SPATIAL_MAPPING_STATE ZEDCam::ExtractSpatialMapAsync ( std::future< sl::Mesh > &  fuMeshFuture )

overridevirtual

Retrieve the built spatial map from the camera. Spatial mapping must be enabled. This method takes in an std::future<sl::FusedPointCloud> to eventually store the map in. It returns a enum code representing the successful scheduling of building the map. Any code other than SPATIAL_MAPPING_STATE::OK means the future will never be filled.

Parameters

std::future<sl::Mesh>

- The future to eventually store the map in.

Returns

sl::SPATIAL_MAPPING_STATE - Whether or not the building of the map was successfully scheduled. Anything other than OK means the future will never be filled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    // Get and store current state of spatial mapping.
    sl::SPATIAL_MAPPING_STATE slReturnState = m_slCamera.getSpatialMappingState();

    // Check if spatial mapping has been enabled and ready
    if (slReturnState == sl::SPATIAL_MAPPING_STATE::OK)
    {
        // Request that the ZEDSDK begin processing the spatial map for export.
        m_slCamera.requestSpatialMapAsync();

        // Start an async thread to wait for spatial map processing to finish. Return resultant future object.
        fuMeshFuture = std::async(std::launch::async,
                                  [this]()
                                  {
                                      // Create instance variables.
                                      sl::Mesh slSpatialMap;

                                      // Loop until map is finished generating or the camera unexpectedly closes.
                                      while (m_slCamera.getSpatialMapRequestStatusAsync() == sl::ERROR_CODE::FAILURE && m_slCamera.isOpened())
                                      {
                                          // Sleep for 10ms.
                                          std::this_thread::sleep_for(std::chrono::milliseconds(10));
                                      }

                                      // Check if the spatial map was exported successfully.
                                      if (m_slCamera.getSpatialMapRequestStatusAsync() == sl::ERROR_CODE::SUCCESS && m_slCamera.isOpened())
                                      {
                                          // Get and store the spatial map.
                                          m_slCamera.retrieveSpatialMapAsync(slSpatialMap);

                                          // Return spatial map.
                                          return slSpatialMap;
                                      }
                                      else
                                      {
                                          // Submit logger message.
                                          LOG_ERROR(logging::g_qSharedLogger,
                                                    "Failed to extract ZED spatial map. sl::ERROR_CODE is: {}",
                                                    sl::toString(m_slCamera.getSpatialMapRequestStatusAsync()).get());

                                          // Return empty point cloud.
                                          return sl::Mesh();
                                      }
                                  });
    }
    else
    {
        // Submit logger message.
        LOG_WARNING(logging::g_qSharedLogger, "ZED spatial mapping was never enabled, can't extract spatial map!");
    }

    // Return current spatial mapping state.
    return slReturnState;
}

GetObjectDetectionEnabled()

bool ZEDCam::GetObjectDetectionEnabled ( )

overridevirtual

Accessor for if the cameras object detection and tracking feature is enabled.

Returns

true - Object detection and tracking is enabled.

false - Object detection and tracking is not enabled.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-08-27

Reimplemented from ZEDCamera.

{
    // Acquire read lock.
    std::shared_lock<std::shared_mutex> lkCameraLock(m_muCameraMutex);
    return m_slCamera.isObjectDetectionEnabled();
}

ThreadedContinuousCode()

void ZEDCam::ThreadedContinuousCode ( )

overrideprivatevirtual

The code inside this private method runs in a separate thread, but still has access to this*. This method continuously calls the grab() function of the ZEDSDK, which updates all frames (RGB, depth, cloud) and all other data such as positional and spatial mapping. Then a thread pool is started and joined once per iteration to mass copy the frames and/or measure to any other thread waiting in the queues.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-01

Implements AutonomyThread< void >.

{
    // Acquire read lock for camera object.
    std::shared_lock<std::shared_mutex> lkReadCameraLock(m_muCameraMutex);
    // Check if camera is opened.
    if (!m_slCamera.isOpened())
    {
        // Release lock.
        lkReadCameraLock.unlock();

        // If this is the first iteration of the thread the camera probably isn't present so stop thread to save resources.
        if (this->GetThreadState() == AutonomyThreadState::eStarting)
        {
            // Shutdown threads for this ZEDCam.
            this->RequestStop();
            // Submit logger message.
            LOG_CRITICAL(logging::g_qSharedLogger,
                         "Camera start was attempted for ZED camera with serial number {}, but camera never properly opened or it has been closed/rebooted!",
                         m_unCameraSerialNumber);
        }
        else
        {
            std::chrono::time_point tmCurrentTime = std::chrono::system_clock::now();
            // Convert time point to seconds since epoch
            int nTimeSinceEpoch = std::chrono::duration_cast<std::chrono::seconds>(tmCurrentTime.time_since_epoch()).count();

            // Only try to reopen camera every 5 seconds.
            if (nTimeSinceEpoch % 5 == 0 && !m_bCameraReopenAlreadyChecked)
            {
                // Acquire write lock for camera object.
                std::unique_lock<std::shared_mutex> lkWriteCameraLock(m_muCameraMutex);
                // Attempt to reopen camera.
                sl::ERROR_CODE slReturnCode = m_slCamera.open(m_slCameraParams);
                // Release lock.
                lkWriteCameraLock.unlock();

                // Check if camera was reopened.
                if (slReturnCode == sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger, "ZED stereo camera with serial number {} has been reconnected and reopened!", m_unCameraSerialNumber);

                    // Check if positional tracking was enabled.
                    if (m_bEnablePositionalTrackingFlag)
                    {
                        slReturnCode = this->EnablePositionalTracking();

                        // Check if positional tracking was re-enabled successfully.
                        if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                        {
                            // Submit logger message.
                            LOG_ERROR(logging::g_qSharedLogger,
                                      "After reopening ZED stereo camera with serial number {}, positional tracking failed to reinitialize. sl::ERROR_CODE is: {}",
                                      m_unCameraSerialNumber,
                                      sl::toString(slReturnCode).get());
                        }
                    }
                    // Check if spatial mapping was enabled.
                    if (m_bEnableSpatialMappingFlag)
                    {
                        slReturnCode = this->EnableSpatialMapping();
                        // Check if spatial mapping was re-enabled successfully.
                        if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                        {
                            // Submit logger message.
                            LOG_ERROR(logging::g_qSharedLogger,
                                      "After reopening ZED stereo camera with serial number {}, spatial mapping failed to reinitialize. sl::ERROR_CODE is: {}",
                                      m_unCameraSerialNumber,
                                      sl::toString(slReturnCode).get());
                        }
                    }
                    // Check if object detection was enabled.
                    if (m_bEnableObjectDetectionFlag)
                    {
                        slReturnCode = this->EnableObjectDetection();

                        // Check if object detection was re-enabled successfully.
                        if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                        {
                            // Submit logger message.
                            LOG_ERROR(logging::g_qSharedLogger,
                                      "After reopening ZED stereo camera with serial number {}, object detection failed to reinitialize. sl::ERROR_CODE is: {}",
                                      m_unCameraSerialNumber,
                                      sl::toString(slReturnCode).get());
                        }
                    }
                }
                else
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Attempt to reopen ZED stereo camera with serial number {} has failed! Trying again in 5 seconds...",
                                m_unCameraSerialNumber);
                }

                // Set toggle.
                m_bCameraReopenAlreadyChecked = true;
            }
            else if (nTimeSinceEpoch % 5 != 0)
            {
                // Reset toggle.
                m_bCameraReopenAlreadyChecked = false;
            }
        }
    }
    else
    {
        // Release lock.
        lkReadCameraLock.unlock();
        // Acquire write lock for camera object.
        std::unique_lock<std::shared_mutex> lkWriteCameraLock(m_muCameraMutex);
        // Call generalized update method of zed api.
        sl::ERROR_CODE slReturnCode = m_slCamera.grab(m_slRuntimeParams);
        // Release camera lock.
        lkWriteCameraLock.unlock();

        // Check if new frame was computed successfully.
        if (slReturnCode == sl::ERROR_CODE::SUCCESS)
        {
            // Check if normal frames have been requested.
            if (m_bNormalFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
            {
                // Grab regular image and store it in member variable.
                slReturnCode = m_slCamera.retrieveImage(m_slFrame, constants::ZED_RETRIEVE_VIEW, m_slMemoryType, sl::Resolution(m_nPropResolutionX, m_nPropResolutionY));
                // Check that the regular frame was retrieved successfully.
                if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Unable to retrieve new frame image for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                sl::toString(m_slCameraModel).get(),
                                m_unCameraSerialNumber,
                                sl::toString(slReturnCode).get());
                }
            }

            // Check if depth frames have been requested.
            if (m_bDepthFramesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
            {
                // Grab depth measure and store it in member variable.
                slReturnCode = m_slCamera.retrieveMeasure(m_slDepthMeasure, m_slDepthMeasureType, m_slMemoryType, sl::Resolution(m_nPropResolutionX, m_nPropResolutionY));
                // Check that the regular frame was retrieved successfully.
                if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Unable to retrieve new depth measure for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                sl::toString(m_slCameraModel).get(),
                                m_unCameraSerialNumber,
                                sl::toString(slReturnCode).get());
                }

                // Grab depth grayscale image and store it in member variable.
                slReturnCode = m_slCamera.retrieveImage(m_slDepthImage, sl::VIEW::DEPTH, m_slMemoryType, sl::Resolution(m_nPropResolutionX, m_nPropResolutionY));
                // Check that the regular frame was retrieved successfully.
                if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Unable to retrieve new depth image for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                sl::toString(m_slCameraModel).get(),
                                m_unCameraSerialNumber,
                                sl::toString(slReturnCode).get());
                }
            }

            // Check if point clouds have been requested.
            if (m_bPointCloudsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
            {
                // Grab regular resized image and store it in member variable.
                slReturnCode = m_slCamera.retrieveMeasure(m_slPointCloud, sl::MEASURE::XYZBGRA, m_slMemoryType, sl::Resolution(m_nPropResolutionX, m_nPropResolutionY));
                // Check that the regular frame was retrieved successfully.
                if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Unable to retrieve new point cloud for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                sl::toString(m_slCameraModel).get(),
                                m_unCameraSerialNumber,
                                sl::toString(slReturnCode).get());
                }
            }

            // Check if positional tracking is enabled.
            if (m_slCamera.isPositionalTrackingEnabled())
            {
                // Check if poses have been requested.
                if (m_bPosesQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
                {
                    // Create instance variable for storing the result of retrieving the pose.
                    sl::POSITIONAL_TRACKING_STATE slPoseTrackReturnCode;

                    // Get normal vision tracking pose from camera.
                    slPoseTrackReturnCode = m_slCamera.getPosition(m_slCameraPose, sl::REFERENCE_FRAME::WORLD);
                    // Check that the regular frame was retrieved successfully.
                    if (slPoseTrackReturnCode != sl::POSITIONAL_TRACKING_STATE::OK)
                    {
                        // Submit logger message.
                        LOG_WARNING(logging::g_qSharedLogger,
                                    "Unable to retrieve new positional tracking pose for stereo camera {} ({})! sl::POSITIONAL_TRACKING_STATE is: {}",
                                    sl::toString(m_slCameraModel).get(),
                                    m_unCameraSerialNumber,
                                    sl::toString(slPoseTrackReturnCode).get());
                    }
                }

                // Check if floor planes are being requested.
                if (m_bFloorsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
                {
                    // Get the current pose of the camera.
                    slReturnCode = m_slCamera.findFloorPlane(m_slFloorPlane,
                                                             m_slFloorTrackingTransform,
                                                             m_slCameraPose.getTranslation().y,
                                                             m_slCameraPose.getRotationMatrix(),
                                                             m_fExpectedCameraHeightFromFloorTolerance);
                    // Check that the regular frame was retrieved successfully.
                    if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                    {
                        // Submit logger message.
                        LOG_WARNING(logging::g_qSharedLogger,
                                    "Unable to retrieve new floor plane for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                    sl::toString(m_slCameraModel).get(),
                                    m_unCameraSerialNumber,
                                    sl::toString(slReturnCode).get());
                    }
                }
            }

            // Get the IMU, barometer, magnetometer, and temperature sensor info from the camera.
            if (m_bSensorsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
            {
                // Get the sensor data from the camera.
                slReturnCode = m_slCamera.getSensorsData(m_slSensorsData, sl::TIME_REFERENCE::CURRENT);

                // Check if the sensor data was retrieved successfully.
                if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                {
                    // Submit logger message.
                    LOG_WARNING(logging::g_qSharedLogger,
                                "Unable to retrieve sensor data for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                sl::toString(m_slCameraModel).get(),
                                m_unCameraSerialNumber,
                                sl::toString(slReturnCode).get());
                }
            }

            // Check if object detection is enabled.
            if (m_slCamera.isObjectDetectionEnabled())
            {
                // Check if objects have been requested.
                if (m_bObjectsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
                {
                    // Get updated objects from camera.
                    slReturnCode = m_slCamera.retrieveObjects(m_slDetectedObjects);
                    // Check that the regular frame was retrieved successfully.
                    if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                    {
                        // Submit logger message.
                        LOG_WARNING(logging::g_qSharedLogger,
                                    "Unable to retrieve new object data for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                    sl::toString(m_slCameraModel).get(),
                                    m_unCameraSerialNumber,
                                    sl::toString(slReturnCode).get());
                    }
                }

                // Check if batched object data is enabled.
                if (m_slObjectDetectionBatchParams.enable)
                {
                    //  Check if batched objects have been requested.
                    if (m_bBatchedObjectsQueued.load(ATOMIC_MEMORY_ORDER_METHOD))
                    {
                        // Get updated batched objects from camera.
                        slReturnCode = m_slCamera.getObjectsBatch(m_slDetectedObjectsBatched);
                        // Check that the regular frame was retrieved successfully.
                        if (slReturnCode != sl::ERROR_CODE::SUCCESS)
                        {
                            // Submit logger message.
                            LOG_WARNING(logging::g_qSharedLogger,
                                        "Unable to retrieve new batched object data for stereo camera {} ({})! sl::ERROR_CODE is: {}",
                                        sl::toString(m_slCameraModel).get(),
                                        m_unCameraSerialNumber,
                                        sl::toString(slReturnCode).get());
                        }
                    }
                }
            }
            // Detection not enabled, but got requests.
            else if (m_bObjectsQueued.load(std::memory_order_relaxed) || m_bBatchedObjectsQueued.load(std::memory_order_relaxed))
            {
                // Submit logger message.
                LOG_WARNING(logging::g_qSharedLogger,
                            "Unable to retrieve new object data for stereo camera {} ({})! Object detection is disabled!",
                            sl::toString(m_slCameraModel).get(),
                            m_unCameraSerialNumber);
            }
        }
        else
        {
            // Submit logger message.
            LOG_ERROR(logging::g_qSharedLogger,
                      "Unable to update stereo camera {} ({}) frames, measurements, and sensors! sl::ERROR_CODE is: {}. Closing camera...",
                      sl::toString(m_slCameraModel).get(),
                      m_unCameraSerialNumber,
                      sl::toString(slReturnCode).get());

            // Release camera resources.
            m_slCamera.close();
        }
    }

    // Acquire a shared_lock on the frame copy queue.
    std::shared_lock<std::shared_mutex> lkSchedulers(m_muPoolScheduleMutex);
    // Check if any requests have been made.
    if (!m_qFrameCopySchedule.empty() || !m_qGPUFrameCopySchedule.empty() || !m_qCustomBoxIngestSchedule.empty() || !m_qPoseCopySchedule.empty() ||
        !m_qFloorCopySchedule.empty() || !m_qSensorsCopySchedule.empty() || !m_qObjectDataCopySchedule.empty() || !m_qObjectBatchedDataCopySchedule.empty())
    {
        // Add the length of all queues together to determine how many tasks need to be run.
        size_t siTotalQueueLength = m_qFrameCopySchedule.size() + m_qGPUFrameCopySchedule.size() + m_qCustomBoxIngestSchedule.size() + m_qPoseCopySchedule.size() +
                                    m_qFloorCopySchedule.size() + m_qSensorsCopySchedule.size() + m_qObjectDataCopySchedule.size() +
                                    m_qObjectBatchedDataCopySchedule.size();

        // Start the thread pool to copy member variables to requesting other threads. Num of tasks queued depends on number of member variables updates and requests.
        this->RunDetachedPool(siTotalQueueLength, m_nNumFrameRetrievalThreads);

        // Get current time.
        std::chrono::_V2::system_clock::duration tmCurrentTime = std::chrono::high_resolution_clock::now().time_since_epoch();
        // Only reset once every couple seconds.
        if (std::chrono::duration_cast<std::chrono::seconds>(tmCurrentTime).count() % 31 == 0 && !m_bQueueTogglesAlreadyReset)
        {
            // Reset queue counters.
            m_bNormalFramesQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bDepthFramesQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bPointCloudsQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bPosesQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bFloorsQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bSensorsQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bObjectsQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);
            m_bBatchedObjectsQueued.store(false, ATOMIC_MEMORY_ORDER_METHOD);

            // Set reset toggle.
            m_bQueueTogglesAlreadyReset = true;
        }
        // Crucial for toggle action. If time is not evenly devisable and toggles have previously been set, reset queue reset boolean.
        else if (m_bQueueTogglesAlreadyReset)
        {
            // Reset reset toggle.
            m_bQueueTogglesAlreadyReset = false;
        }

        // Wait for thread pool to finish.
        this->JoinPool();
    }

    // Release lock on frame copy queue.
    lkSchedulers.unlock();
}

Here is the call graph for this function:

PooledLinearCode()

void ZEDCam::PooledLinearCode ( )

overrideprivatevirtual

This method holds the code that is ran in the thread pool started by the ThreadedLinearCode() method. It copies the data from the different data objects to references of the same type stored in a queue filled by the Request methods.

Author

ClayJay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2023-09-08

Implements AutonomyThread< void >.

{
    //  Frame queue.
    // Check if we are using CPU or GPU mats.
    if (m_slMemoryType == sl::MEM::CPU)
    {
        // Acquire mutex for getting frames out of the queue.
        std::unique_lock<std::shared_mutex> lkFrameQueue(m_muFrameCopyMutex);
        // Check if the queue is empty.
        if (!m_qFrameCopySchedule.empty())
        {
            // Get frame container out of queue.
            containers::FrameFetchContainer<cv::Mat> stContainer = m_qFrameCopySchedule.front();
            // Pop out of queue.
            m_qFrameCopySchedule.pop();
            // Release lock.
            lkFrameQueue.unlock();

            // Determine which frame should be copied.
            switch (stContainer.eFrameType)
            {
                case PIXEL_FORMATS::eBGRA: *stContainer.pFrame = imgops::ConvertSLMatToCVMat(m_slFrame); break;
                case PIXEL_FORMATS::eDepthMeasure: *stContainer.pFrame = imgops::ConvertSLMatToCVMat(m_slDepthMeasure); break;
                case PIXEL_FORMATS::eDepthImage: *stContainer.pFrame = imgops::ConvertSLMatToCVMat(m_slDepthImage); break;
                case PIXEL_FORMATS::eXYZBGRA: *stContainer.pFrame = imgops::ConvertSLMatToCVMat(m_slPointCloud); break;
                default: *stContainer.pFrame = imgops::ConvertSLMatToCVMat(m_slFrame); break;
            }

            // Signal future that the frame has been successfully retrieved.
            stContainer.pCopiedFrameStatus->set_value(true);
        }

        // Check if anything has been added to the GPU queue.
        if (!m_qGPUFrameCopySchedule.empty())
        {
            // Submit logger error.
            LOG_ERROR(logging::g_qSharedLogger,
                      "ZEDCam ({}) is in CPU sl::Mat mode but a GPU mat has been added to the copy queue! Whichever thread queued the frame will now appear frozen if "
                      "future.get() is called. Either switch the camera to GPU Mat mode in AutonomyConstants.h or stop queueing frames of type cv::Mat.",
                      m_unCameraSerialNumber);
        }
    }
    // Use GPU mat.
    else
    {
        // Acquire mutex for getting frames out of the queue.
        std::unique_lock<std::shared_mutex> lkFrameQueue(m_muFrameCopyMutex);
        // Check if the queue is empty.
        if (!m_qGPUFrameCopySchedule.empty())
        {
            // Get frame container out of queue.
            containers::FrameFetchContainer<cv::cuda::GpuMat> stContainer = m_qGPUFrameCopySchedule.front();
            // Pop out of queue.
            m_qGPUFrameCopySchedule.pop();
            // Release lock.
            lkFrameQueue.unlock();

            // Determine which frame should be copied.
            switch (stContainer.eFrameType)
            {
                case PIXEL_FORMATS::eBGRA: *stContainer.pFrame = imgops::ConvertSLMatToGPUMat(m_slFrame); break;
                case PIXEL_FORMATS::eDepthMeasure: *stContainer.pFrame = imgops::ConvertSLMatToGPUMat(m_slDepthMeasure); break;
                case PIXEL_FORMATS::eDepthImage: *stContainer.pFrame = imgops::ConvertSLMatToGPUMat(m_slDepthImage); break;
                case PIXEL_FORMATS::eXYZBGRA: *stContainer.pFrame = imgops::ConvertSLMatToGPUMat(m_slPointCloud); break;
                default: *stContainer.pFrame = imgops::ConvertSLMatToGPUMat(m_slFrame); break;
            }

            // Signal future that the frame has been successfully retrieved.
            stContainer.pCopiedFrameStatus->set_value(true);
        }

        // Check if anything has been added to the GPU queue.
        if (!m_qFrameCopySchedule.empty())
        {
            // Submit logger error.
            LOG_ERROR(logging::g_qSharedLogger,
                      "ZEDCam ({}) is in GPU sl::Mat mode but a CPU mat has been added to the copy queue! Whichever thread queued the frame will now appear frozen if "
                      "future.get() is called. Either switch the camera to GPU Mat mode in AutonomyConstants.h or stop queueing frames of type cv::cuda::GpuMat.",
                      m_unCameraSerialNumber);
        }
    }

    //  Pose queue.
    // Acquire mutex for getting data out of the pose queue.
    std::unique_lock<std::shared_mutex> lkPoseQueue(m_muPoseCopyMutex);
    // Check if the queue is empty.
    if (!m_qPoseCopySchedule.empty())
    {
        // Get pose container out of queue.
        containers::DataFetchContainer<Pose> stContainer = m_qPoseCopySchedule.front();
        // Pop out of queue.
        m_qPoseCopySchedule.pop();
        // Release lock.
        lkPoseQueue.unlock();

        // Rotate the ZED position coordinate frame to realign with the UTM global coordinate frame.
        std::vector<numops::CoordinatePoint<double>> vPointCloud;
        vPointCloud.emplace_back(m_slCameraPose.getTranslation().x, m_slCameraPose.getTranslation().y, m_slCameraPose.getTranslation().z);
        // Get angle realignments.
        double dNewXO = numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).x + m_dPoseOffsetXO, 0.0, 360.0);
        double dNewYO = numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).y + m_dPoseOffsetYO, 0.0, 360.0);
        double dNewZO = numops::InputAngleModulus<double>(m_slCameraPose.getEulerAngles(false).z + m_dPoseOffsetZO, 0.0, 360.0);
        // Rotate coordinate frame.
        numops::CoordinateFrameRotate3D(vPointCloud, m_dPoseOffsetXO, m_dPoseOffsetYO, m_dPoseOffsetZO);
        // Repack values into pose.
        Pose stPose(vPointCloud[0].tX + m_dPoseOffsetX, vPointCloud[0].tY + m_dPoseOffsetY, vPointCloud[0].tZ + m_dPoseOffsetZ, dNewXO, dNewYO, dNewZO);

        // ISSUE NOTE: Might be in the future if we ever change our coordinate system on the ZED. This can be used to fix the directions of the Pose's coordinate system.
        // // Check ZED coordinate system.
        // switch (m_slCameraParams.coordinate_system)
        // {
        //     case sl::COORDINATE_SYSTEM::LEFT_HANDED_Y_UP:
        //     {
        //         // Realign based in the signedness of this coordinate system. Z is backwards.
        //         stPose.stTranslation.dZ *= -1;
        //         break;
        //     }
        //     default:
        //     {
        //         // No need to flip signs for other coordinate systems.
        //         break;
        //     }
        // }

        // Copy pose.
        *stContainer.pData = stPose;

        // Signal future that the data has been successfully retrieved.
        stContainer.pCopiedDataStatus->set_value(true);
    }
    else
    {
        // Release lock.
        lkPoseQueue.unlock();
    }

    //  Plane queue.
    // Acquire mutex for getting frames out of the plane queue.
    std::unique_lock<std::shared_mutex> lkPlaneQueue(m_muFloorCopyMutex);
    // Check if the queue is empty.
    if (!m_qFloorCopySchedule.empty())
    {
        // Get frame container out of queue.
        containers::DataFetchContainer<sl::Plane> stContainer = m_qFloorCopySchedule.front();
        // Pop out of queue.
        m_qFloorCopySchedule.pop();
        // Release lock.
        lkPlaneQueue.unlock();

        // Copy pose.
        *stContainer.pData = sl::Plane(m_slFloorPlane);

        // Signal future that the data has been successfully retrieved.
        stContainer.pCopiedDataStatus->set_value(true);
    }
    else
    {
        // Release lock.
        lkPlaneQueue.unlock();
    }

    //  Sensors queue.
    // Acquire mutex for getting frames out of the sensors queue.
    std::unique_lock<std::shared_mutex> lkSensorsQueue(m_muSensorsCopyMutex);
    // Check if the queue is empty.
    if (!m_qSensorsCopySchedule.empty())
    {
        // Get frame container out of queue.
        containers::DataFetchContainer<sl::SensorsData> stContainer = m_qSensorsCopySchedule.front();
        // Pop out of queue.
        m_qSensorsCopySchedule.pop();
        // Release lock.
        lkSensorsQueue.unlock();

        // Copy pose.
        *stContainer.pData = sl::SensorsData(m_slSensorsData);

        // Signal future that the data had been successfully retrieved.
        stContainer.pCopiedDataStatus->set_value(true);
    }
    else
    {
        // Release lock.
        lkSensorsQueue.unlock();
    }

    //  ObjectData queue.
    // Acquire mutex for getting data out of the pose queue.
    std::unique_lock<std::shared_mutex> lkObjectDataQueue(m_muObjectDataCopyMutex);
    // Check if the queue is empty.
    if (!m_qObjectDataCopySchedule.empty())
    {
        // Get frame container out of queue.
        containers::DataFetchContainer<std::vector<sl::ObjectData>> stContainer = m_qObjectDataCopySchedule.front();
        // Pop out of queue.
        m_qObjectDataCopySchedule.pop();
        // Release lock.
        lkObjectDataQueue.unlock();

        // Make copy of object vector. (Apparently the assignment operator actually does a deep copy)
        *stContainer.pData = m_slDetectedObjects.object_list;

        // Signal future that the data has been successfully retrieved.
        stContainer.pCopiedDataStatus->set_value(true);
    }
    else
    {
        // Release lock.
        lkObjectDataQueue.unlock();
    }

    //  ObjectData Batched queue.
    // Acquire mutex for getting data out of the pose queue.
    std::unique_lock<std::shared_mutex> lkObjectBatchedDataQueue(m_muObjectBatchedDataCopyMutex);
    // Check if the queue is empty.
    if (!m_qObjectBatchedDataCopySchedule.empty())
    {
        // Get frame container out of queue.
        containers::DataFetchContainer<std::vector<sl::ObjectsBatch>> stContainer = m_qObjectBatchedDataCopySchedule.front();
        // Pop out of queue.
        m_qObjectBatchedDataCopySchedule.pop();
        // Release lock.
        lkObjectBatchedDataQueue.unlock();

        // Make copy of object vector. (Apparently the assignment operator actually does a deep copy)
        *stContainer.pData = m_slDetectedObjectsBatched;

        // Signal future that the data has been successfully retrieved.
        stContainer.pCopiedDataStatus->set_value(true);
    }
    else
    {
        // Release lock.
        lkObjectBatchedDataQueue.unlock();
    }
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/vision/cameras/ZEDCam.h
• src/vision/cameras/ZEDCam.cpp
