duckdb::MergeSortTree< E, O, CMP, F, C > Struct Template Reference

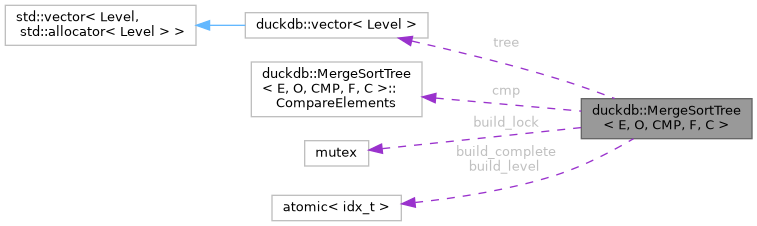

Collaboration diagram for duckdb::MergeSortTree< E, O, CMP, F, C >:

Classes
struct	CompareElements

Public Types
using	ElementType = E
using	OffsetType = O
using	Elements = vector< ElementType >
using	Offsets = vector< OffsetType >
using	Level = pair< Elements, Offsets >
using	Tree = vector< Level >
using	RunElement = pair< ElementType, idx_t >
using	RunElements = array< RunElement, F >
using	Games = array< RunElement, F - 1 >

Public Member Functions
	MergeSortTree (const CMP &cmp=CMP())
Elements &	LowestLevel ()
const Elements &	LowestLevel () const
Elements &	Allocate (idx_t count)
void	Build ()
pair< idx_t, idx_t >	SelectNth (const SubFrames &frames, idx_t n) const
ElementType	NthElement (idx_t i) const
template<typename L >
void	AggregateLowerBound (const idx_t lower, const idx_t upper, const E needle, L aggregate) const
void	Print () const

Public Attributes
Tree	tree
CompareElements	cmp

Static Public Attributes
static constexpr ElementType	INVALID = std::numeric_limits<ElementType>::max()
static constexpr auto	FANOUT = F
static constexpr auto	CASCADING = C

Protected Member Functions
bool	TryNextRun (idx_t &level_idx, idx_t &run_idx)
void	BuildRun (idx_t level_idx, idx_t run_idx)
RunElement	StartGames (Games &losers, const RunElements &elements, const RunElement &sentinel)
RunElement	ReplayGames (Games &losers, idx_t slot_idx, const RunElement &insert_val)

Static Protected Member Functions
static idx_t	LowestCascadingLevel ()

Protected Attributes
mutex	build_lock
	Parallel build machinery.
atomic< idx_t >	build_level
atomic< idx_t >	build_complete
idx_t	build_run
idx_t	build_run_length
idx_t	build_num_runs

Constructor & Destructor Documentation

MergeSortTree()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

duckdb::MergeSortTree< E, O, CMP, F, C >::MergeSortTree ( const CMP &  cmp = CMP() )

inlineexplicit

                                                   : cmp(cmp) {
    }

Member Function Documentation

LowestLevel() [1/2]

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

Elements & duckdb::MergeSortTree< E, O, CMP, F, C >::LowestLevel ( )

inline

                                   {
        return tree[0].first;
    }

LowestLevel() [2/2]

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

const Elements & duckdb::MergeSortTree< E, O, CMP, F, C >::LowestLevel ( ) const

inline

                                               {
        return tree[0].first;
    }

Allocate()

template<typename E , typename O , typename CMP , uint64_t F, uint64_t C>

vector< E > & duckdb::MergeSortTree< E, O, CMP, F, C >::Allocate

(

idx_t

count

)

                                                               {
    const auto fanout = F;
    const auto cascading = C;
    Elements lowest_level(count);
    tree.emplace_back(Level(std::move(lowest_level), Offsets()));

    for (idx_t child_run_length = 1; child_run_length < count;) {
        const auto run_length = child_run_length * fanout;
        const auto num_runs = (count + run_length - 1) / run_length;

        Elements elements;
        elements.resize(count);

        //  Allocate cascading pointers only if there is room
        Offsets cascades;
        if (cascading > 0 && run_length > cascading) {
            const auto num_cascades = fanout * num_runs * (run_length / cascading + 2);
            cascades.resize(num_cascades);
        }

        //  Insert completed level and move up to the next one
        tree.emplace_back(std::move(elements), std::move(cascades));
        child_run_length = run_length;
    }

    //  Set up for parallel build
    build_level = 1;
    build_complete = 0;
    build_run = 0;
    build_run_length = fanout;
    build_num_runs = (count + build_run_length - 1) / build_run_length;

    return LowestLevel();
}

Build()

template<typename E , typename O , typename CMP , uint64_t F, uint64_t C>

void duckdb::MergeSortTree< E, O, CMP, F, C >::Build

(

)

                                           {
    //  Fan in parent levels until we are at the top
    //  Note that we don't build the top layer as that would just be all the data.
    while (build_level.load() < tree.size()) {
        idx_t level_idx;
        idx_t run_idx;
        if (TryNextRun(level_idx, run_idx)) {
            BuildRun(level_idx, run_idx);
        } else {
            std::this_thread::yield();
        }
    }
}

SelectNth()

template<typename E , typename O , typename CMP , uint64_t F, uint64_t C>

pair< idx_t, idx_t > duckdb::MergeSortTree< E, O, CMP, F, C >::SelectNth	(	const SubFrames &	frames,
		idx_t	n
	)		const

                                                                                                   {
    // Handle special case of a one-element tree
    if (tree.size() < 2) {
        return {0, 0};
    }

    //  The first level contains a single run,
    //  so the only thing we need is any cascading pointers
    auto level_no = tree.size() - 2;
    idx_t level_width = 1;
    for (idx_t i = 0; i < level_no; ++i) {
        level_width *= FANOUT;
    }

    // Find Nth element in a top-down traversal
    idx_t result = 0;

    // First, handle levels with cascading pointers
    const auto min_cascaded = LowestCascadingLevel();
    if (level_no > min_cascaded) {
        //  Initialise the cascade indicies from the previous level
        using CascadeRange = pair<idx_t, idx_t>;
        std::array<CascadeRange, 3> cascades;
        const auto &level = tree[level_no + 1].first;
        for (idx_t f = 0; f < frames.size(); ++f) {
            const auto &frame = frames[f];
            auto &cascade_idx = cascades[f];
            const auto lower_idx =
                UnsafeNumericCast<idx_t>(std::lower_bound(level.begin(), level.end(), frame.start) - level.begin());
            cascade_idx.first = lower_idx / CASCADING * FANOUT;
            const auto upper_idx =
                UnsafeNumericCast<idx_t>(std::lower_bound(level.begin(), level.end(), frame.end) - level.begin());
            cascade_idx.second = upper_idx / CASCADING * FANOUT;
        }

        //  Walk the cascaded levels
        for (; level_no >= min_cascaded; --level_no) {
            //  The cascade indicies into this level are in the previous level
            const auto &level_cascades = tree[level_no + 1].second;

            // Go over all children until we found enough in range
            const auto *level_data = tree[level_no].first.data();
            while (true) {
                idx_t matched = 0;
                std::array<CascadeRange, 3> matches;
                for (idx_t f = 0; f < frames.size(); ++f) {
                    const auto &frame = frames[f];
                    auto &cascade_idx = cascades[f];
                    auto &match = matches[f];

                    const auto lower_begin = level_data + level_cascades[cascade_idx.first];
                    const auto lower_end = level_data + level_cascades[cascade_idx.first + FANOUT];
                    match.first =
                        UnsafeNumericCast<idx_t>(std::lower_bound(lower_begin, lower_end, frame.start) - level_data);

                    const auto upper_begin = level_data + level_cascades[cascade_idx.second];
                    const auto upper_end = level_data + level_cascades[cascade_idx.second + FANOUT];
                    match.second =
                        UnsafeNumericCast<idx_t>(std::lower_bound(upper_begin, upper_end, frame.end) - level_data);

                    matched += idx_t(match.second - match.first);
                }
                if (matched > n) {
                    //  Too much in this level, so move down to leftmost child candidate within the cascade range
                    for (idx_t f = 0; f < frames.size(); ++f) {
                        auto &cascade_idx = cascades[f];
                        auto &match = matches[f];
                        cascade_idx.first = (match.first / CASCADING + 2 * result) * FANOUT;
                        cascade_idx.second = (match.second / CASCADING + 2 * result) * FANOUT;
                    }
                    break;
                }

                //  Not enough in this child, so move right
                for (idx_t f = 0; f < frames.size(); ++f) {
                    auto &cascade_idx = cascades[f];
                    ++cascade_idx.first;
                    ++cascade_idx.second;
                }
                ++result;
                n -= matched;
            }
            result *= FANOUT;
            level_width /= FANOUT;
        }
    }

    //  Continue with the uncascaded levels (except the first)
    for (; level_no > 0; --level_no) {
        const auto &level = tree[level_no].first;
        auto range_begin = level.begin() + UnsafeNumericCast<int64_t>(result * level_width);
        auto range_end = range_begin + UnsafeNumericCast<int64_t>(level_width);
        while (range_end < level.end()) {
            idx_t matched = 0;
            for (idx_t f = 0; f < frames.size(); ++f) {
                const auto &frame = frames[f];
                const auto lower_match = std::lower_bound(range_begin, range_end, frame.start);
                const auto upper_match = std::lower_bound(lower_match, range_end, frame.end);
                matched += idx_t(upper_match - lower_match);
            }
            if (matched > n) {
                //  Too much in this level, so move down to leftmost child candidate
                //  Since we have no cascade pointers left, this is just the start of the next level.
                break;
            }
            //  Not enough in this child, so move right
            range_begin = range_end;
            range_end += UnsafeNumericCast<int64_t>(level_width);
            ++result;
            n -= matched;
        }
        result *= FANOUT;
        level_width /= FANOUT;
    }

    // The last level
    const auto *level_data = tree[level_no].first.data();
    ++n;

    const auto count = tree[level_no].first.size();
    for (const auto limit = MinValue<idx_t>(result + FANOUT, count); result < limit; ++result) {
        const auto v = level_data[result];
        for (const auto &frame : frames) {
            n -= (v >= frame.start) && (v < frame.end);
        }
        if (!n) {
            break;
        }
    }

    return {result, n};
}

NthElement()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

ElementType duckdb::MergeSortTree< E, O, CMP, F, C >::NthElement ( idx_t  i ) const

inline

                                                 {
        if (tree.empty() || tree.front().first.empty()) {
            return INVALID;
        }
        return tree.front().first[i];
    }

AggregateLowerBound()

template<typename E , typename O , typename CMP , uint64_t F, uint64_t C>

template<typename L >

void duckdb::MergeSortTree< E, O, CMP, F, C >::AggregateLowerBound	(	const idx_t	lower,
		const idx_t	upper,
		const E	needle,
		L	aggregate
	)		const

                                                                            {
    if (lower >= upper) {
        return;
    }

    D_ASSERT(upper <= tree[0].first.size());

    using IdxRange = std::pair<idx_t, idx_t>;

    // Find the entry point into the tree
    IdxRange run_idx(lower, upper - 1);
    idx_t level_width = 1;
    idx_t level = 0;
    IdxRange prev_run_idx;
    IdxRange curr;
    if (run_idx.first == run_idx.second) {
        curr.first = curr.second = run_idx.first;
    } else {
        do {
            prev_run_idx.second = run_idx.second;
            run_idx.first /= FANOUT;
            run_idx.second /= FANOUT;
            level_width *= FANOUT;
            ++level;
        } while (run_idx.first != run_idx.second);
        curr.second = prev_run_idx.second * level_width / FANOUT;
        curr.first = curr.second;
    }

    // Aggregate layers using the cascading indices
    if (level > LowestCascadingLevel()) {
        IdxRange cascading_idx;
        // Find the initial cascading idcs
        {
            IdxRange entry;
            entry.first = run_idx.first * level_width;
            entry.second = std::min(entry.first + level_width, static_cast<idx_t>(tree[0].first.size()));
            auto *level_data = tree[level].first.data();
            auto entry_idx = NumericCast<idx_t>(
                std::lower_bound(level_data + entry.first, level_data + entry.second, needle) - level_data);
            cascading_idx.first = cascading_idx.second =
                (entry_idx / CASCADING + 2 * (entry.first / level_width)) * FANOUT;

            // We have to slightly shift the initial CASCADING idcs because at the top level
            // we won't be exactly on a boundary
            auto correction = (prev_run_idx.second - run_idx.second * FANOUT);
            cascading_idx.first -= (FANOUT - correction);
            cascading_idx.second += correction;
        }

        // Aggregate all layers until we reach a layer without cascading indices
        // For the first layer, we already checked we have cascading indices available, otherwise
        // we wouldn't have even searched the entry points. Hence, we use a `do-while` instead of `while`
        do {
            --level;
            level_width /= FANOUT;
            auto *level_data = tree[level].first.data();
            auto &cascading_idcs = tree[level + 1].second;
            // Left side of tree
            // Handle all completely contained runs
            cascading_idx.first += FANOUT - 1;
            while (curr.first - lower >= level_width) {
                // Search based on cascading info from previous level
                const auto *search_begin = level_data + cascading_idcs[cascading_idx.first];
                const auto *search_end = level_data + cascading_idcs[cascading_idx.first + FANOUT];
                const auto run_pos = std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data;
                // Compute runBegin and pass it to our callback
                const auto run_begin = curr.first - level_width;
                aggregate(level, run_begin, NumericCast<idx_t>(run_pos));
                // Update state for next round
                curr.first -= level_width;
                --cascading_idx.first;
            }
            // Handle the partial last run to find the cascading entry point for the next level
            if (curr.first != lower) {
                const auto *search_begin = level_data + cascading_idcs[cascading_idx.first];
                const auto *search_end = level_data + cascading_idcs[cascading_idx.first + FANOUT];
                auto idx = NumericCast<idx_t>(std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data);
                cascading_idx.first = (idx / CASCADING + 2 * (lower / level_width)) * FANOUT;
            }

            // Right side of tree
            // Handle all completely contained runs
            while (upper - curr.second >= level_width) {
                // Search based on cascading info from previous level
                const auto *search_begin = level_data + cascading_idcs[cascading_idx.second];
                const auto *search_end = level_data + cascading_idcs[cascading_idx.second + FANOUT];
                const auto run_pos = std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data;
                // Compute runBegin and pass it to our callback
                const auto run_begin = curr.second;
                aggregate(level, run_begin, NumericCast<idx_t>(run_pos));
                // Update state for next round
                curr.second += level_width;
                ++cascading_idx.second;
            }
            // Handle the partial last run to find the cascading entry point for the next level
            if (curr.second != upper) {
                const auto *search_begin = level_data + cascading_idcs[cascading_idx.second];
                const auto *search_end = level_data + cascading_idcs[cascading_idx.second + FANOUT];
                auto idx = NumericCast<idx_t>(std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data);
                cascading_idx.second = (idx / CASCADING + 2 * (upper / level_width)) * FANOUT;
            }
        } while (level >= LowestCascadingLevel());
    }

    // Handle lower levels which won't have cascading info
    if (level) {
        while (--level) {
            level_width /= FANOUT;
            auto *level_data = tree[level].first.data();
            // Left side
            while (curr.first - lower >= level_width) {
                const auto *search_end = level_data + curr.first;
                const auto *search_begin = search_end - level_width;
                const auto run_pos =
                    NumericCast<idx_t>(std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data);
                const auto run_begin = NumericCast<idx_t>(search_begin - level_data);
                aggregate(level, run_begin, run_pos);
                curr.first -= level_width;
            }
            // Right side
            while (upper - curr.second >= level_width) {
                const auto *search_begin = level_data + curr.second;
                const auto *search_end = search_begin + level_width;
                const auto run_pos =
                    NumericCast<idx_t>(std::lower_bound(search_begin, search_end, needle, cmp.cmp) - level_data);
                const auto run_begin = NumericCast<idx_t>(search_begin - level_data);
                aggregate(level, run_begin, run_pos);
                curr.second += level_width;
            }
        }
    }

    // The last layer
    {
        auto *level_data = tree[0].first.data();
        // Left side
        auto lower_it = lower;
        while (lower_it != curr.first) {
            const auto *search_begin = level_data + lower_it;
            const auto run_begin = lower_it;
            const auto run_pos = run_begin + cmp.cmp(*search_begin, needle);
            aggregate(level, run_begin, run_pos);
            ++lower_it;
        }
        // Right side
        while (curr.second != upper) {
            const auto *search_begin = level_data + curr.second;
            const auto run_begin = curr.second;
            const auto run_pos = run_begin + cmp.cmp(*search_begin, needle);
            aggregate(level, run_begin, run_pos);
            ++curr.second;
        }
    }
}

TryNextRun()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

bool duckdb::MergeSortTree< E, O, CMP, F, C >::TryNextRun ( idx_t &  level_idx, idx_t &  run_idx  )

inlineprotected

                                                      {
        const auto fanout = F;

        lock_guard<mutex> stage_guard(build_lock);

        // Finished with this level?
        if (build_complete >= build_num_runs) {
            ++build_level;
            if (build_level >= tree.size()) {
                return false;
            }

            const auto count = LowestLevel().size();
            build_run_length *= fanout;
            build_num_runs = (count + build_run_length - 1) / build_run_length;
            build_run = 0;
            build_complete = 0;
        }

        // If all runs are in flight,
        // yield until the next level is ready
        if (build_run >= build_num_runs) {
            return false;
        }

        level_idx = build_level;
        run_idx = build_run++;

        return true;
    }

BuildRun()

template<typename E , typename O , typename CMP , uint64_t F, uint64_t C>

void duckdb::MergeSortTree< E, O, CMP, F, C >::BuildRun ( idx_t  level_idx, idx_t  run_idx  )

protected

                                                                            {
    //  Create each parent run by merging the child runs using a tournament tree
    //  https://en.wikipedia.org/wiki/K-way_merge_algorithm
    const auto fanout = F;
    const auto cascading = C;

    auto &elements = tree[level_idx].first;
    auto &cascades = tree[level_idx].second;
    const auto &child_level = tree[level_idx - 1];
    const auto count = elements.size();

    idx_t child_run_length = 1;
    auto run_length = child_run_length * fanout;
    for (idx_t l = 1; l < level_idx; ++l) {
        child_run_length = run_length;
        run_length *= fanout;
    }

    const RunElement SENTINEL(MergeSortTraits<ElementType>::SENTINEL(), MergeSortTraits<idx_t>::SENTINEL());

    //  Position markers for scanning the children.
    using Bounds = pair<OffsetType, OffsetType>;
    array<Bounds, fanout> bounds;
    //  Start with first element of each (sorted) child run
    RunElements players;
    const auto child_base = run_idx * run_length;
    for (idx_t child_run = 0; child_run < fanout; ++child_run) {
        const auto child_idx = child_base + child_run * child_run_length;
        bounds[child_run] = {OffsetType(MinValue<idx_t>(child_idx, count)),
                             OffsetType(MinValue<idx_t>(child_idx + child_run_length, count))};
        if (bounds[child_run].first != bounds[child_run].second) {
            players[child_run] = {child_level.first[child_idx], child_run};
        } else {
            //  Empty child
            players[child_run] = SENTINEL;
        }
    }

    //  Play the first round and extract the winner
    Games games;
    auto element_idx = child_base;
    auto cascade_idx = fanout * run_idx * (run_length / cascading + 2);
    auto winner = StartGames(games, players, SENTINEL);
    while (winner != SENTINEL) {
        // Add fractional cascading pointers
        // if we are on a fraction boundary
        if (!cascades.empty() && element_idx % cascading == 0) {
            for (idx_t i = 0; i < fanout; ++i) {
                cascades[cascade_idx++] = bounds[i].first;
            }
        }

        //  Insert new winner element into the current run
        elements[element_idx++] = winner.first;
        const auto child_run = winner.second;
        auto &child_idx = bounds[child_run].first;
        ++child_idx;

        //  Move to the next entry in the child run (if any)
        if (child_idx < bounds[child_run].second) {
            winner = ReplayGames(games, child_run, {child_level.first[child_idx], child_run});
        } else {
            winner = ReplayGames(games, child_run, SENTINEL);
        }
    }

    // Add terminal cascade pointers to the end
    if (!cascades.empty()) {
        for (idx_t j = 0; j < 2; ++j) {
            for (idx_t i = 0; i < fanout; ++i) {
                cascades[cascade_idx++] = bounds[i].first;
            }
        }
    }

    ++build_complete;
}

StartGames()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

RunElement duckdb::MergeSortTree< E, O, CMP, F, C >::StartGames ( Games &  losers, const RunElements &  elements, const RunElement &  sentinel  )

inlineprotected

                                                                                                  {
        const auto elem_nodes = elements.size();
        const auto game_nodes = losers.size();
        Games winners;

        //  Play the first round of games,
        //  placing the losers at the bottom of the game
        const auto base_offset = game_nodes / 2;
        auto losers_base = losers.data() + base_offset;
        auto winners_base = winners.data() + base_offset;

        const auto base_count = elem_nodes / 2;
        for (idx_t i = 0; i < base_count; ++i) {
            const auto &e0 = elements[i * 2 + 0];
            const auto &e1 = elements[i * 2 + 1];
            if (cmp(e0, e1)) {
                losers_base[i] = e1;
                winners_base[i] = e0;
            } else {
                losers_base[i] = e0;
                winners_base[i] = e1;
            }
        }

        //  Fill in any byes
        if (elem_nodes % 2) {
            winners_base[base_count] = elements.back();
            losers_base[base_count] = sentinel;
        }

        //  Pad to a power of 2
        const auto base_size = (game_nodes + 1) / 2;
        for (idx_t i = (elem_nodes + 1) / 2; i < base_size; ++i) {
            winners_base[i] = sentinel;
            losers_base[i] = sentinel;
        }

        //  Play the winners against each other
        //  and stick the losers in the upper levels of the tournament tree
        for (idx_t i = base_offset; i-- > 0;) {
            //  Indexing backwards
            const auto &e0 = winners[i * 2 + 1];
            const auto &e1 = winners[i * 2 + 2];
            if (cmp(e0, e1)) {
                losers[i] = e1;
                winners[i] = e0;
            } else {
                losers[i] = e0;
                winners[i] = e1;
            }
        }

        //  Return the final winner
        return winners[0];
    }

ReplayGames()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

RunElement duckdb::MergeSortTree< E, O, CMP, F, C >::ReplayGames ( Games &  losers, idx_t  slot_idx, const RunElement &  insert_val  )

inlineprotected

                                                                                        {
        RunElement smallest = insert_val;
        //  Start at a fake level below
        auto idx = slot_idx + losers.size();
        do {
            // Parent index
            idx = (idx - 1) / 2;
            // swap if out of order
            if (cmp(losers[idx], smallest)) {
                std::swap(losers[idx], smallest);
            }
        } while (idx);

        return smallest;
    }

LowestCascadingLevel()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

static idx_t duckdb::MergeSortTree< E, O, CMP, F, C >::LowestCascadingLevel ( )

inlinestaticprotected

                                        {
        idx_t level = 0;
        idx_t level_width = 1;
        while (level_width <= CASCADING) {
            ++level;
            level_width *= FANOUT;
        }
        return level;
    }

Print()

template<typename E = idx_t, typename O = idx_t, typename CMP = std::less<E>, uint64_t F = 32, uint64_t C = 32>

void duckdb::MergeSortTree< E, O, CMP, F, C >::Print ( ) const

inline

                       {
        std::ostringstream out;
        const char *separator = "    ";
        const char *group_separator = " || ";
        idx_t level_width = 1;
        idx_t number_width = 0;
        for (auto &level : tree) {
            for (auto &e : level.first) {
                if (e) {
                    idx_t digits = ceil(log10(fabs(e))) + (e < 0);
                    if (digits > number_width) {
                        number_width = digits;
                    }
                }
            }
        }
        for (auto &level : tree) {
            // Print the elements themself
            {
                out << 'd';
                for (size_t i = 0; i < level.first.size(); ++i) {
                    out << ((i && i % level_width == 0) ? group_separator : separator);
                    out << std::setw(NumericCast<int32_t>(number_width)) << level.first[i];
                }
                out << '\n';
            }
            // Print the pointers
            if (!level.second.empty()) {
                idx_t run_cnt = (level.first.size() + level_width - 1) / level_width;
                idx_t cascading_idcs_cnt = run_cnt * (2 + level_width / CASCADING) * FANOUT;
                for (idx_t child_nr = 0; child_nr < FANOUT; ++child_nr) {
                    out << " ";
                    for (idx_t idx = 0; idx < cascading_idcs_cnt; idx += FANOUT) {
                        out << ((idx && ((idx / FANOUT) % (level_width / CASCADING + 2) == 0)) ? group_separator
                                                                                               : separator);
                        out << std::setw(NumericCast<int32_t>(number_width)) << level.second[idx + child_nr];
                    }
                    out << '\n';
                }
            }
            level_width *= FANOUT;
        }

        Printer::Print(out.str());
    }

---

The documentation for this struct was generated from the following file:

• external/duckdb/duckdb.cpp
