yolomodel::pytorch::PyTorchInterpreter Class Reference

This class is designed to enable quick, easy, and robust inferencing of .pt yolo model. More...

#include <YOLOModel.hpp>

Collaboration diagram for yolomodel::pytorch::PyTorchInterpreter:

Public Types
enum class	HardwareDevices { eCPU , eCUDA }

Public Member Functions
	PyTorchInterpreter (std::string szModelPath, HardwareDevices eHardwareDevice=HardwareDevices::eCUDA)
	Construct a new PyTorchInterpreter object.
	~PyTorchInterpreter ()
	Destroy the PyTorchInterpreter object.
std::vector< Detection >	Inference (const cv::Mat &cvInputFrame, const float fMinObjectConfidence=0.85, const float fNMSThreshold=0.6)
	Given an input image forward the image through the YOLO model to run inference on the PyTorch model, then parse and repackage the output tensor data into a vector of easy-to-use Detection structs.
bool	IsReadyForInference () const
	Check if the model is ready for inference.

Private Member Functions
torch::Tensor	PreprocessImage (const cv::Mat &cvInputFrame, const torch::Device &trDevice)
	Given an input image, preprocess the image to match the input tensor shape of the model, then return the preprocessed image as a tensor.
void	ParseTensorOutputYOLOv5 (const torch::Tensor &trOutput, std::vector< int > &vClassIDs, std::vector< float > &vClassConfidences, std::vector< cv::Rect > &vBoundingBoxes, const cv::Size &cvInputFrameSize, const float fMinObjectConfidence)
	Given a tensor output from a YOLOv5 model, parse it's output into something more usable.
void	ParseTensorOutputYOLOv8 (const torch::Tensor &trOutput, std::vector< int > &vClassIDs, std::vector< float > &vClassConfidences, std::vector< cv::Rect > &vBoundingBoxes, const cv::Size &cvInputFrameSize, const float fMinObjectConfidence)
	Given a tensor output from a YOLOv5 model, parse it's output into something more usable.

Private Attributes
torch::jit::script::Module	m_trModel
torch::Device	m_trDevice = torch::kCPU
std::string	m_szModelPath
bool	m_bReady
std::string	m_szModelTask
cv::Size	m_cvModelInputSize
std::vector< std::string >	m_vClassLabels

Detailed Description

This class is designed to enable quick, easy, and robust inferencing of .pt yolo model.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-01-06

Member Enumeration Documentation

HardwareDevices

enum class yolomodel::pytorch::PyTorchInterpreter::HardwareDevices

strong

                {
                    eCPU,    // The CPU device.
                    eCUDA    // The CUDA device.
                };

Constructor & Destructor Documentation

PyTorchInterpreter()

yolomodel::pytorch::PyTorchInterpreter::PyTorchInterpreter ( std::string  szModelPath, HardwareDevices  eHardwareDevice = HardwareDevices::eCUDA  )

inline

Construct a new PyTorchInterpreter object.

Parameters

szModelPath	- The path to the model to open and inference.
trDevice	- The device to run the model on. Default is CUDA. Other options are CPU and MKLDNN.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-01-06

                {
                    // Initialize member variables.
                    m_szModelPath      = szModelPath;
                    m_bReady           = false;
                    m_cvModelInputSize = cv::Size(640, 640);
                    m_szModelTask      = "Unknown";
                    m_vClassLabels     = std::vector<std::string>();

                    // Translate the hardware device enum to a torch device.
                    switch (eHardwareDevice)
                    {
                        case HardwareDevices::eCPU: m_trDevice = torch::kCPU; break;
                        case HardwareDevices::eCUDA: m_trDevice = torch::kCUDA; break;
                        default: m_trDevice = torch::kCPU; break;
                    }

                    // Submit logger message.
                    LOG_INFO(logging::g_qSharedLogger, "Attempting to load model {} onto device {}", szModelPath, m_trDevice.str());

                    // Check if the model path is valid.
                    if (!std::filesystem::exists(szModelPath))
                    {
                        // Submit logger message.
                        LOG_ERROR(logging::g_qSharedLogger, "Model path {} does not exist!", szModelPath);
                        return;
                    }
                    // Check if the device is available.
                    if (!torch::cuda::is_available() && m_trDevice == torch::kCUDA)
                    {
                        // Submit logger message.
                        LOG_ERROR(logging::g_qSharedLogger, "CUDA device is not available, falling back to CPU.");
                        m_trDevice = torch::kCPU;
                        return;
                    }
                    else
                    {
                        // Submit logger message.
                        LOG_INFO(logging::g_qSharedLogger, "Using device: {}", m_trDevice.str());
                    }

                    // Finally, attempt to load the model.
                    try
                    {
                        // Load the model and set it to eval mode for inference.
                        torch::jit::ExtraFilesMap trExtraConfigFiles{{"config.txt", ""}};
                        m_trModel = torch::jit::load(szModelPath, m_trDevice, trExtraConfigFiles);
                        m_trModel.eval();

                        // Use nlohmann json to parse the config file.
                        nlohmann::json jConfig = nlohmann::json::parse(trExtraConfigFiles.at("config.txt"));
                        // Get the input image size for the model.
                        m_cvModelInputSize = cv::Size(jConfig["imgsz"][0], jConfig["imgsz"][1]);
                        m_szModelTask      = jConfig["task"];
                        for (const auto& item : jConfig["names"].items())
                        {
                            m_vClassLabels.push_back(item.value());
                        }
                        // Submit the config json as a debug message.
                        LOG_DEBUG(logging::g_qSharedLogger, "Model config: {}", jConfig.dump(4));

                        // Check if the model is empty.
                        if (m_trModel.get_methods().empty())
                        {
                            LOG_ERROR(logging::g_qSharedLogger, "Model is empty! Check if the correct model file was provided.");
                            return;
                        }
                        // Check if the model did not move to the expected device.
                        if (m_trModel.buffers().size() > 0)
                        {
                            // Get the device of the model.
                            torch::Device model_device = m_trModel.buffers().begin().operator->().device();
                            if (model_device != m_trDevice)
                            {
                                LOG_ERROR(logging::g_qSharedLogger, "Model did not move to the expected device! Model is on: {}", model_device.str());
                                return;
                            }
                        }

                        // Model is ready for inference.
                        LOG_INFO(logging::g_qSharedLogger,
                                 "Model successfully loaded and set to eval mode. The model is a {} model, and has {} classes.",
                                 m_szModelTask,
                                 m_vClassLabels.size());

                        // Set flag saying we are ready for inference.
                        m_bReady = true;
                    }
                    catch (const c10::Error& trError)
                    {
                        LOG_ERROR(logging::g_qSharedLogger, "Error loading model: {}", trError.what());
                    }
                }

~PyTorchInterpreter()

yolomodel::pytorch::PyTorchInterpreter::~PyTorchInterpreter ( )

inline

Destroy the PyTorchInterpreter object.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-01-06

                {
                    // Nothing to destroy.
                }

Member Function Documentation

Inference()

std::vector< Detection > yolomodel::pytorch::PyTorchInterpreter::Inference ( const cv::Mat &  cvInputFrame, const float  fMinObjectConfidence = 0.85, const float  fNMSThreshold = 0.6  )

inline

Given an input image forward the image through the YOLO model to run inference on the PyTorch model, then parse and repackage the output tensor data into a vector of easy-to-use Detection structs.

Parameters

cvInputFrame	- The RGB camera frame to run detection on.
fMinObjectConfidence	- Minimum confidence required for an object to be considered a valid detection
fNMSThreshold	- Threshold for Non-Maximum Suppression, controlling overlap between bounding box predictions.

Returns

std::vector<Detection> - A vector of structs containing information about the valid object detections in the given image.

Note

The input image MUST BE RGB format, otherwise you will likely experience prediction accuracy problems.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-01-06

                {
                    // Force single-threaded execution (if acceptable for your workload)
                    torch::set_num_threads(1);
                    // Create instance variables.
                    std::vector<Detection> vObjects;

                    // Preprocess the given image and pack int into an image.
                    torch::Tensor trTensorImage = PreprocessImage(cvInputFrame, m_trDevice);

                    // Perform inference.
                    std::vector<torch::jit::IValue> vInputs;
                    vInputs.push_back(trTensorImage);
                    torch::Tensor trOutputTensor;
                    try
                    {
                        trOutputTensor = m_trModel.forward(vInputs).toTensor();
                    }
                    catch (const c10::Error& trError)
                    {
                        LOG_ERROR(logging::g_qSharedLogger, "Error running inference: {}", trError.what());
                        return vObjects;
                    }

                    // Calculate the general stride sizes for YOLO based on input tensor shape.
                    int nImgSize  = m_cvModelInputSize.height;
                    int nP3Stride = std::pow((nImgSize / 8), 2);
                    int nP4Stride = std::pow((nImgSize / 16), 2);
                    int nP5Stride = std::pow((nImgSize / 32), 2);
                    // Calculate the proper prediction length for different YOLO versions.
                    int nYOLOv5AnchorsPerGridPoint = 3;
                    int nYOLOv8AnchorsPerGridPoint = 1;
                    int nYOLOv5TotalPredictionLength =
                        (nP3Stride * nYOLOv5AnchorsPerGridPoint) + (nP4Stride * nYOLOv5AnchorsPerGridPoint) + (nP5Stride * nYOLOv5AnchorsPerGridPoint);
                    int nYOLOv8TotalPredictionLength =
                        (nP3Stride * nYOLOv8AnchorsPerGridPoint) + (nP4Stride * nYOLOv8AnchorsPerGridPoint) + (nP5Stride * nYOLOv8AnchorsPerGridPoint);

                    // Parse the output tensor.
                    std::vector<int> vClassIDs;
                    std::vector<std::string> vClassLabels;
                    std::vector<float> vClassConfidences;
                    std::vector<cv::Rect> vBoundingBoxes;

                    // Get the largest dimension of our output tensor.
                    int nLargestDimension = *std::max_element(trOutputTensor.sizes().begin(), trOutputTensor.sizes().end());
                    // Check if the output tensor is YOLOv5 format.
                    if (nLargestDimension == nYOLOv5TotalPredictionLength)
                    {
                        // Parse inferenced output from tensor.
                        this->ParseTensorOutputYOLOv5(trOutputTensor, vClassIDs, vClassConfidences, vBoundingBoxes, cvInputFrame.size(), fMinObjectConfidence);
                    }
                    // Check if the output tensor is YOLOv8 format.
                    else if (nLargestDimension == nYOLOv8TotalPredictionLength)
                    {
                        // Parse inferenced output from tensor.
                        this->ParseTensorOutputYOLOv8(trOutputTensor, vClassIDs, vClassConfidences, vBoundingBoxes, cvInputFrame.size(), fMinObjectConfidence);
                    }

                    // Perform NMS to filter out bad/duplicate detections.
                    NonMaxSuppression(vObjects, vClassIDs, vClassConfidences, vBoundingBoxes, fMinObjectConfidence, fNMSThreshold);

                    // Loop through the final detections and set the class names for each detection based on the class ID.
                    for (size_t nIter = 0; nIter < vObjects.size(); ++nIter)
                    {
                        // Check if the class ID is valid.
                        if (vClassIDs[nIter] >= 0 && vClassIDs[nIter] < static_cast<int>(m_vClassLabels.size()))
                        {
                            vObjects[nIter].szClassName = m_vClassLabels[vClassIDs[nIter]];
                        }
                        else
                        {
                            vObjects[nIter].szClassName = "UnknownClass";
                        }
                    }

                    return vObjects;
                }

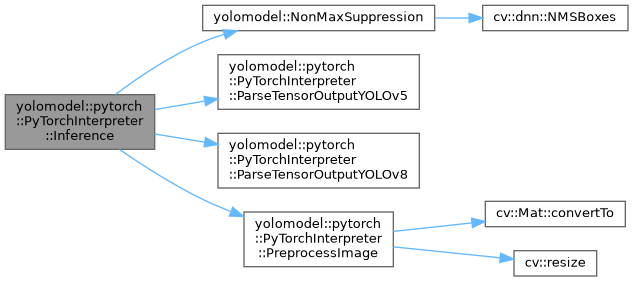

Here is the call graph for this function:

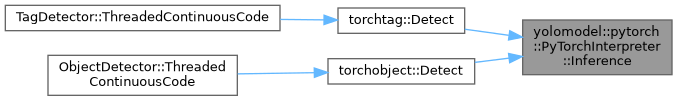

Here is the caller graph for this function:

IsReadyForInference()

bool yolomodel::pytorch::PyTorchInterpreter::IsReadyForInference ( ) const

inline

Check if the model is ready for inference.

Returns

true - Model is ready for inference.

false - Model is not ready for inference.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-02-13

{ return m_bReady; }

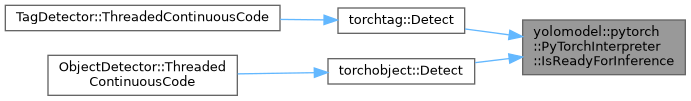

Here is the caller graph for this function:

PreprocessImage()

torch::Tensor yolomodel::pytorch::PyTorchInterpreter::PreprocessImage ( const cv::Mat &  cvInputFrame, const torch::Device &  trDevice  )

inlineprivate

Given an input image, preprocess the image to match the input tensor shape of the model, then return the preprocessed image as a tensor.

Parameters

cvInputFrame	- The input image to preprocess.
trDevice	- The device to run the model on.

Returns

torch::Tensor - The preprocessed image as a tensor.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-03-08

                {
                    // Resize the input image to match model and normalize it to 0-1.
                    cv::Mat cvResizedImage;
                    cv::resize(cvInputFrame, cvResizedImage, cv::Size(m_cvModelInputSize.width, m_cvModelInputSize.height), cv::INTER_LINEAR);
                    cvResizedImage.convertTo(cvResizedImage, CV_32FC3, 1.0 / 255.0);

                    // Convert OpenCV mat to a tensor.
                    torch::Tensor trTensorImage = torch::from_blob(cvResizedImage.data, {1, cvResizedImage.rows, cvResizedImage.cols, 3}, torch::kFloat);
                    trTensorImage               = trTensorImage.permute({0, 3, 1, 2});    // Convert to CxHxW format.
                    trTensorImage               = trTensorImage.to(trDevice);             // Move tensor to the specified hardware device.

                    return trTensorImage;
                }

Here is the call graph for this function:

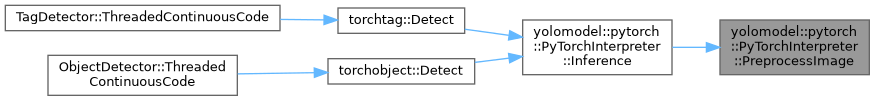

Here is the caller graph for this function:

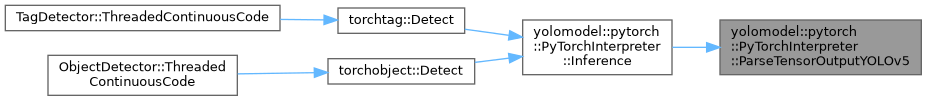

ParseTensorOutputYOLOv5()

void yolomodel::pytorch::PyTorchInterpreter::ParseTensorOutputYOLOv5 ( const torch::Tensor &  trOutput, std::vector< int > &  vClassIDs, std::vector< float > &  vClassConfidences, std::vector< cv::Rect > &  vBoundingBoxes, const cv::Size &  cvInputFrameSize, const float  fMinObjectConfidence  )

inlineprivate

Given a tensor output from a YOLOv5 model, parse it's output into something more usable.

Parameters

trOutput	- A reference to the output tensor from the model. The tensor should be of shape [1, 25200, 85] for YOLOv5.
vClassIDs	- A reference to a vector that will be filled with class IDs for each prediction. The class ID of a prediction will be chosen
vClassConfidences	- A reference to a vector that will be filled with the highest class confidence for
vBoundingBoxes	- A reference to a vector that will be filled with cv::Rect bounding box for each prediction.
cvInputFrameSize	- The size of the original input frame. This is used to scale the bounding boxes back to the original image size.
fMinObjectConfidence	- The minimum confidence for determining which predictions to keep. Predictions with a confidence below this value will be discarded.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-03-13

                {
                    /*
                     * For YOLOv5, you divide your image size, i.e. 640 by the P3, P4, P5 output strides of 8, 16, 32 to arrive at grid sizes
                     * of 80x80, 40x40, 20x20. Each grid point has 3 anchors by default (anchor box values: small, medium, large), and each anchor contains a vector 5 +
                     * nc long, where nc is the number of classes the model has. So for a 640 image, the output tensor will be [1, 25200, 85]
                     */
                    // Squeeze the batch dimension from the output tensor.
                    torch::Tensor trSqueezedOutput = trOutput.squeeze(0);

                    // Move the tensor to CPU if necessary. If we're using GPU and we don't move the tensor to CPU, we will get an error and it will be slow.
                    if (trSqueezedOutput.device().is_cuda())
                    {
                        trSqueezedOutput = trSqueezedOutput.to(torch::kCPU);
                    }
                    // Convert tensor to float if necessary.
                    if (trSqueezedOutput.scalar_type() != torch::kFloat32)
                    {
                        trSqueezedOutput = trSqueezedOutput.to(torch::kFloat32);
                    }
                    // Ensure tensor is contiguous in memory.
                    if (!trSqueezedOutput.is_contiguous())
                    {
                        trSqueezedOutput = trSqueezedOutput.contiguous();
                    }

                    // Create an accessor for fast element-wise access.
                    at::TensorAccessor trAccessor = trSqueezedOutput.accessor<float, 2>();
                    const int nNumDetections      = trSqueezedOutput.size(0);
                    const int nTotalValues        = trSqueezedOutput.size(1);    // equals 5 + number_of_classes

                    // Loop through each detection.
                    for (int i = 0; i < nNumDetections; i++)
                    {
                        // Get the objectness confidence. This is the 5th value for each grid/anchor prediction. (4th index)
                        float fObjectnessConfidence = trAccessor[i][4];

                        // Check if the object confidence is greater than or equal to the threshold.
                        if (fObjectnessConfidence < fMinObjectConfidence)
                        {
                            continue;
                        }

                        // Retrieve bounding box data.
                        float fCenterX = trAccessor[i][0];
                        float fCenterY = trAccessor[i][1];
                        float fWidth   = trAccessor[i][2];
                        float fHeight  = trAccessor[i][3];

                        // Scale bounding box to original image size.
                        int nLeft           = static_cast<int>((fCenterX - (0.5 * fWidth)) * cvInputFrameSize.width);
                        int nTop            = static_cast<int>((fCenterY - (0.5 * fHeight)) * cvInputFrameSize.height);
                        int nBoundingWidth  = static_cast<int>(fWidth * cvInputFrameSize.width);
                        int nBoundingHeight = static_cast<int>(fHeight * cvInputFrameSize.height);

                        // Repackaged bounding box data to be more readable.
                        cv::Rect cvBoundingBox(nLeft, nTop, nBoundingWidth, nBoundingHeight);

                        // Loop over class confidence values and find the class ID with the highest confidence.
                        float fClassConfidence = -1.0f;
                        int nClassID           = -1;
                        for (int j = 5; j < nTotalValues; j++)
                        {
                            float fConfidence = trAccessor[i][j];
                            if (fConfidence > fClassConfidence)
                            {
                                fClassConfidence = fConfidence;
                                nClassID         = j - 5;
                            }
                        }

                        // Only process detections that meet the minimum confidence.
                        if (fClassConfidence < fMinObjectConfidence)
                        {
                            continue;
                        }

                        // Add data to vectors.
                        vClassIDs.emplace_back(nClassID);
                        vClassConfidences.emplace_back(fClassConfidence);
                        vBoundingBoxes.emplace_back(cvBoundingBox);
                    }
                }

Here is the caller graph for this function:

ParseTensorOutputYOLOv8()

void yolomodel::pytorch::PyTorchInterpreter::ParseTensorOutputYOLOv8 ( const torch::Tensor &  trOutput, std::vector< int > &  vClassIDs, std::vector< float > &  vClassConfidences, std::vector< cv::Rect > &  vBoundingBoxes, const cv::Size &  cvInputFrameSize, const float  fMinObjectConfidence  )

inlineprivate

Given a tensor output from a YOLOv5 model, parse it's output into something more usable.

Parameters

trOutput	- A reference to the output tensor from the model.
vClassIDs	- A reference to a vector that will be filled with class IDs for each prediction. The class ID of a prediction will be choosen by the highest class confidence for that prediction.
vClassConfidences	- A reference to a vector that will be filled with the highest class confidence for that prediction.
vBoundingBoxes	- A reference to a vector that will be filled with cv::Rect bounding box for each prediction.
cvInputFrameSize	- The size of the original input frame before resizing. This is used to scale the bounding box back to the original size.
fMinObjectConfidence	- The minimum confidence required for an object to be considered a valid detection.

Note

For YOLOv8, you divide your image size, i.e. 640 by the P3, P4, P5 output strides of 8, 16, 32 to arrive at grid sizes of 80x80, 40x40, 20x20. Each grid point has 1 anchor, and each anchor contains a vector 4 + nc long, where nc is the number of classes the model has. So for a 640 image, the output tensor will be [1, 84, 8400] (80 classes). Notice how the larger dimensions is swapped when compared to YOLOv8.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2025-03-08

                {
                    /*
                     * Permute the output tensor shape to match the expected format of the model. If the model is YOLOv8, the output
                     * shape for a 640x640 image will be [1, 4 + nc, 8400] (nc = number of classes). Notice how the larger dimensions is swapped
                     * when compared to YOLOv5. We will permute the tensor to [1, 8400, 4 + nc] to make it easier to parse. Then squeeze the
                     * tensor to remove the batch dimension so the final shape will be [8400, 4 + nc]. Thanks pytorch for being cool with the
                     * permute function.
                     */
                    // Permute the tensor shape from [1, 4 + nc, 8400] to [1, 8400, 4 + nc]
                    // and then squeeze to remove the batch dimension, resulting in [8400, 4 + nc]
                    torch::Tensor trPermuteOutput = trOutput.permute({0, 2, 1}).squeeze(0);

                    // Move tensor to CPU if necessary. If we're using GPU and we don't move the tensor to CPU, we will get an error and it will be slow.
                    if (trPermuteOutput.device().is_cuda())
                    {
                        trPermuteOutput = trPermuteOutput.to(torch::kCPU);
                    }
                    // Convert tensor to float if necessary.
                    if (trPermuteOutput.scalar_type() != torch::kFloat32)
                    {
                        trPermuteOutput = trPermuteOutput.to(torch::kFloat32);
                    }
                    // Ensure tensor is contiguous in memory.
                    if (!trPermuteOutput.is_contiguous())
                    {
                        trPermuteOutput = trPermuteOutput.contiguous();
                    }

                    // Create an accessor for fast element-wise access.
                    at::TensorAccessor trAccessor = trPermuteOutput.accessor<float, 2>();
                    const int nNumDetections      = trPermuteOutput.size(0);
                    const int nTotalValues        = trPermuteOutput.size(1);    // equals 4 + number_of_classes

                    // Loop through each detection.
                    for (int i = 0; i < nNumDetections; i++)
                    {
                        float fClassConfidence = -1.0f;
                        int nClassID           = -1;

                        // Loop over class confidence values.
                        for (int j = 4; j < nTotalValues; j++)
                        {
                            float fConfidence = trAccessor[i][j];
                            if (fConfidence > fClassConfidence)
                            {
                                fClassConfidence = fConfidence;
                                nClassID         = j - 4;
                            }
                        }

                        // Only process detections that meet the minimum confidence.
                        if (fClassConfidence < fMinObjectConfidence)
                        {
                            continue;
                        }

                        // Retrieve bounding box data.
                        float fCenterX = trAccessor[i][0];
                        float fCenterY = trAccessor[i][1];
                        float fWidth   = trAccessor[i][2];
                        float fHeight  = trAccessor[i][3];

                        // Scale bounding box to original image size.
                        int nLeft      = static_cast<int>(fCenterX * cvInputFrameSize.width / 640.0f - (0.5f * fWidth * cvInputFrameSize.width / 640.0f));
                        int nTop       = static_cast<int>(fCenterY * cvInputFrameSize.height / 640.0f - (0.5f * fHeight * cvInputFrameSize.height / 640.0f));
                        int nBoxWidth  = static_cast<int>(fWidth * cvInputFrameSize.width / 640.0f);
                        int nBoxHeight = static_cast<int>(fHeight * cvInputFrameSize.height / 640.0f);
                        cv::Rect cvBoundingBox(nLeft, nTop, nBoxWidth, nBoxHeight);

                        // Append results.
                        vClassIDs.push_back(nClassID);
                        vClassConfidences.push_back(fClassConfidence);
                        vBoundingBoxes.push_back(cvBoundingBox);
                    }
                }

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/util/vision/YOLOModel.hpp
