duckdb::QueryProfiler Class Reference

QueryProfiler collects the profiling metrics of a query. More...

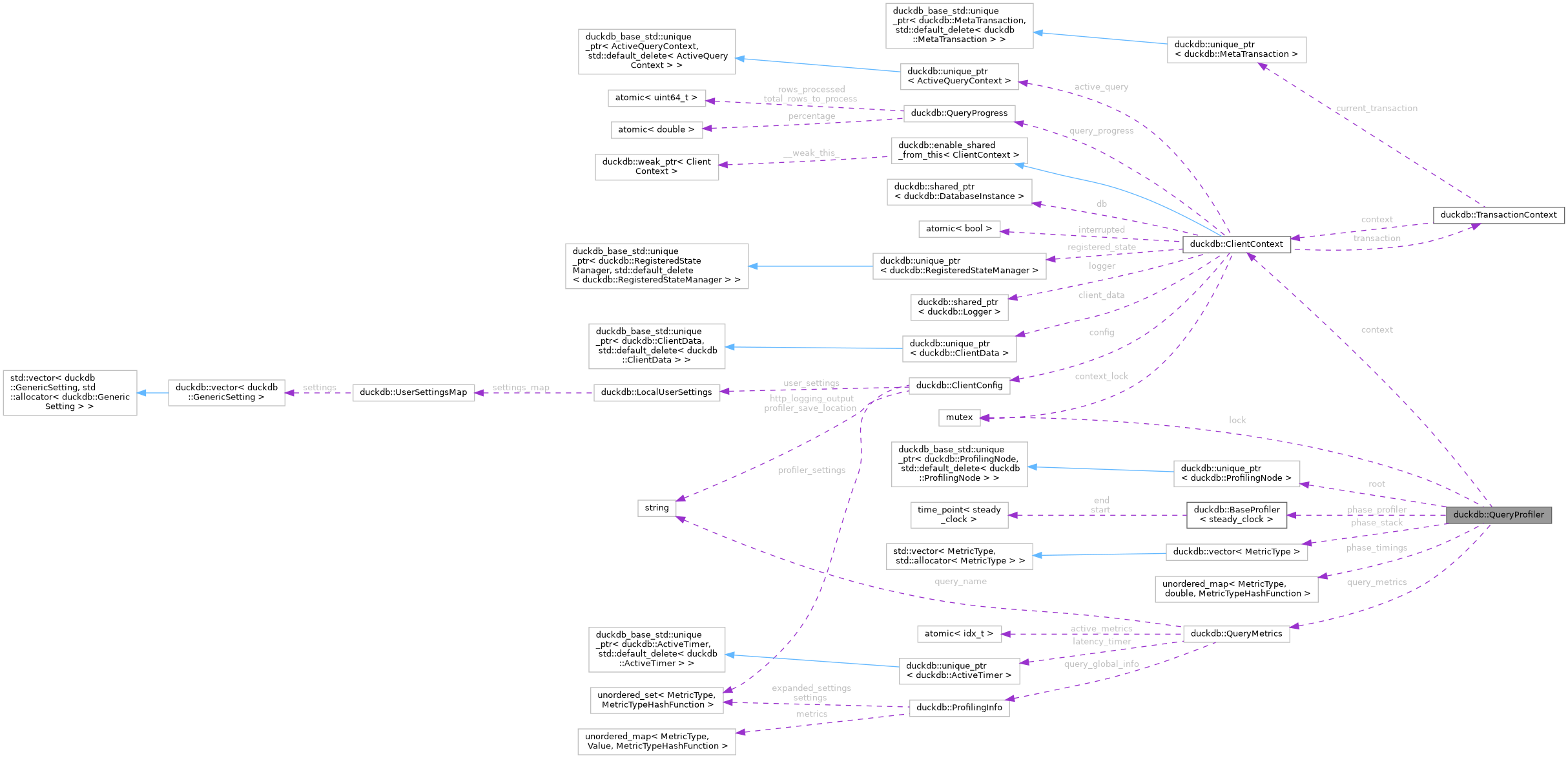

Collaboration diagram for duckdb::QueryProfiler:

Public Types
using	TreeMap = reference_map_t< const PhysicalOperator, reference< ProfilingNode > >

Public Member Functions
DUCKDB_API	QueryProfiler (ClientContext &context)
DUCKDB_API bool	IsEnabled () const
DUCKDB_API bool	IsDetailedEnabled () const
DUCKDB_API ProfilerPrintFormat	GetPrintFormat (ExplainFormat format=ExplainFormat::DEFAULT) const
DUCKDB_API bool	PrintOptimizerOutput () const
DUCKDB_API string	GetSaveLocation () const
DUCKDB_API void	Start (const string &query)
DUCKDB_API void	Reset ()
DUCKDB_API void	StartQuery (const string &query, bool is_explain_analyze=false, bool start_at_optimizer=false)
DUCKDB_API void	EndQuery ()
DUCKDB_API void	FinalizeMetrics ()
	Finalize query metrics for output; safe to call multiple times.
DUCKDB_API void	AddToCounter (MetricType type, const idx_t amount)
	Adds amount to a specific metric type.
DUCKDB_API ActiveTimer	StartTimer (MetricType type)
	Start/End a timer for a specific metric type.
DUCKDB_API void	StartExplainAnalyze ()
DUCKDB_API void	Flush (OperatorProfiler &profiler)
	Adds the timings gathered by an OperatorProfiler to this query profiler.
DUCKDB_API void	SetBlockedTime (const double &blocked_thread_time)
	Adds the top level query information to the global profiler.
DUCKDB_API void	StartPhase (MetricType phase_metric)
DUCKDB_API void	EndPhase ()
DUCKDB_API void	Initialize (const PhysicalOperator &root)
DUCKDB_API string	QueryTreeToString () const
DUCKDB_API void	QueryTreeToStream (std::ostream &str) const
DUCKDB_API void	Print ()
DUCKDB_API string	ToString (ExplainFormat format=ExplainFormat::DEFAULT) const
DUCKDB_API string	ToString (ProfilerPrintFormat format) const
DUCKDB_API void	ToLog () const
DUCKDB_API string	ToJSON () const
DUCKDB_API void	WriteToFile (const char *path, string &info) const
DUCKDB_API idx_t	GetBytesRead () const
DUCKDB_API idx_t	GetBytesWritten () const
idx_t	OperatorSize ()
void	Finalize (ProfilingNode &node)
optional_ptr< ProfilingNode >	GetRoot ()
	Return the root of the query tree.
DUCKDB_API void	GetRootUnderLock (const std::function< void(optional_ptr< ProfilingNode >)> &callback)
const TreeMap &	GetTreeMap () const

Static Public Member Functions
static DUCKDB_API QueryProfiler &	Get (ClientContext &context)
static Value	JSONSanitize (const Value &input)
static string	JSONSanitize (const string &text)
static string	DrawPadded (const string &str, idx_t width)

Private Types
using	PhaseTimingStorage = unordered_map< MetricType, double, MetricTypeHashFunction >
	A mapping of the phase names to the timings.
using	PhaseTimingItem = PhaseTimingStorage::value_type

Private Member Functions
unique_ptr< ProfilingNode >	CreateTree (const PhysicalOperator &root, const profiler_settings_t &settings, const idx_t depth=0)
void	Render (const ProfilingNode &node, std::ostream &str) const
string	RenderDisabledMessage (ProfilerPrintFormat format) const
void	MoveOptimizerPhasesToRoot ()
void	FinalizeMetricsInternal ()
bool	OperatorRequiresProfiling (const PhysicalOperatorType op_type)
ExplainFormat	GetExplainFormat (ProfilerPrintFormat format) const

Private Attributes
ClientContext &	context
bool	running
	Whether or not the query profiler is running.
std::mutex	lock
	The lock used for accessing the global query profiler or flushing information to it from a thread.
bool	query_requires_profiling
	Whether or not the query requires profiling.
unique_ptr< ProfilingNode >	root
	The root of the query tree.
QueryMetrics	query_metrics
	Top level query information.
TreeMap	tree_map
	A map of a Physical Operator pointer to a tree node.
bool	is_explain_analyze
	Whether or not we are running as part of a explain_analyze query.
bool	metrics_finalized
	Whether root metrics have been finalized for output.
Profiler	phase_profiler
	The timer used to time the individual phases of the planning process.
PhaseTimingStorage	phase_timings
vector< MetricType >	phase_stack
	The stack of currently active phases.

Detailed Description

QueryProfiler collects the profiling metrics of a query.

Member Function Documentation

ToString()

DUCKDB_API string duckdb::QueryProfiler::ToString

(

ExplainFormat

format = ExplainFormat::DEFAULT

)

const

return the printed as a string. Unlike ToString, which is always formatted as a string, the return value is formatted based on the current print format (see GetPrintFormat()).

Here is the call graph for this function:

Here is the caller graph for this function:

OperatorSize()

idx_t duckdb::QueryProfiler::OperatorSize ( )

inline

                         {
        return tree_map.size();
    }

GetRoot()

optional_ptr< ProfilingNode > duckdb::QueryProfiler::GetRoot ( )

inline

Return the root of the query tree.

                                          {
        return root.get();
    }

Here is the caller graph for this function:

GetRootUnderLock()

DUCKDB_API void duckdb::QueryProfiler::GetRootUnderLock ( const std::function< void(optional_ptr< ProfilingNode >)> &  callback )

inline

Provides access to the root of the query tree, but ensures there are no concurrent modifications. This can be useful when implementing continuous profiling or making customizations.

                                                                                                     {
        lock_guard<std::mutex> guard(lock);
        callback(GetRoot());
    }

Here is the call graph for this function:

GetTreeMap()

const TreeMap & duckdb::QueryProfiler::GetTreeMap ( ) const

inline

                                      {
        return tree_map;
    }

OperatorRequiresProfiling()

bool duckdb::QueryProfiler::OperatorRequiresProfiling ( const PhysicalOperatorType  op_type )

private

Check whether or not an operator type requires query profiling. If none of the ops in a query require profiling no profiling information is output.

---

The documentation for this class was generated from the following file:

• external/duckdb/duckdb.hpp
