duckdb::CatalogSet Class Reference

The Catalog Set stores (key, value) map of a set of CatalogEntries. More...

#include <duckdb.hpp>

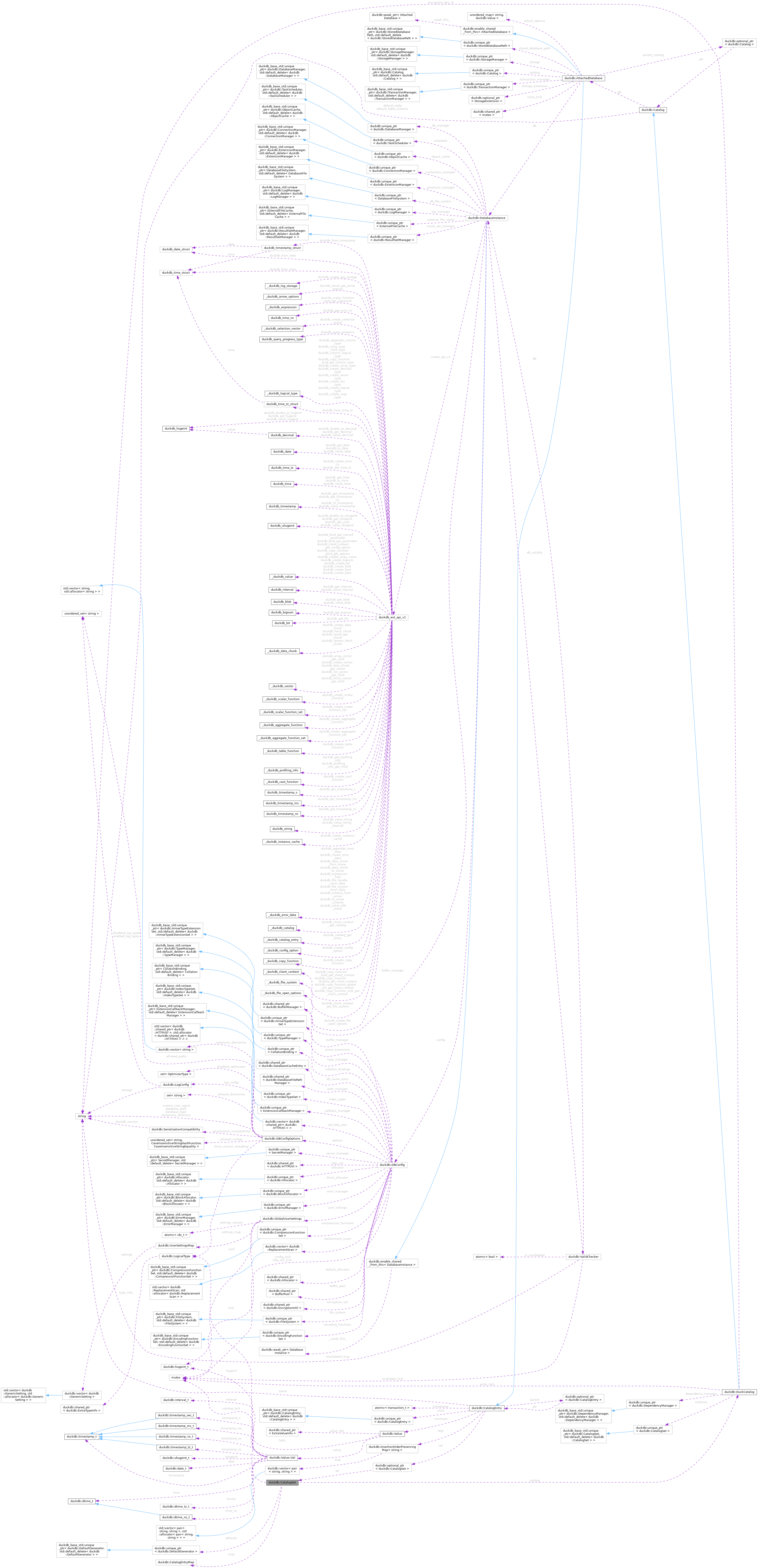

Collaboration diagram for duckdb::CatalogSet:

Classes
struct	EntryLookup

Public Member Functions
DUCKDB_API	CatalogSet (Catalog &catalog, unique_ptr< DefaultGenerator > defaults=nullptr)
DUCKDB_API bool	CreateEntry (CatalogTransaction transaction, const string &name, unique_ptr< CatalogEntry > value, const LogicalDependencyList &dependencies)
DUCKDB_API bool	CreateEntry (ClientContext &context, const string &name, unique_ptr< CatalogEntry > value, const LogicalDependencyList &dependencies)
DUCKDB_API bool	AlterEntry (CatalogTransaction transaction, const string &name, AlterInfo &alter_info)
DUCKDB_API bool	DropEntry (CatalogTransaction transaction, const string &name, bool cascade, bool allow_drop_internal=false)
DUCKDB_API bool	DropEntry (ClientContext &context, const string &name, bool cascade, bool allow_drop_internal=false)
DUCKDB_API void	VerifyExistenceOfDependency (transaction_t commit_id, CatalogEntry &entry)
	Verify that the entry referenced by the dependency is still alive.
DUCKDB_API void	CommitDrop (transaction_t commit_id, transaction_t start_time, CatalogEntry &entry)
	Verify we can still drop the entry while committing.
DUCKDB_API DuckCatalog &	GetCatalog ()
bool	AlterOwnership (CatalogTransaction transaction, ChangeOwnershipInfo &info)
void	CleanupEntry (CatalogEntry &catalog_entry)

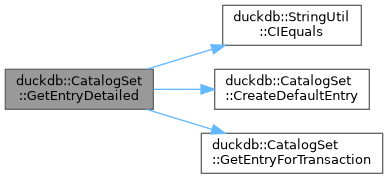

DUCKDB_API EntryLookup	GetEntryDetailed (CatalogTransaction transaction, const string &name)
	Returns the entry with the specified name.
DUCKDB_API optional_ptr< CatalogEntry >	GetEntry (CatalogTransaction transaction, const string &name)
DUCKDB_API optional_ptr< CatalogEntry >	GetEntry (ClientContext &context, const string &name)

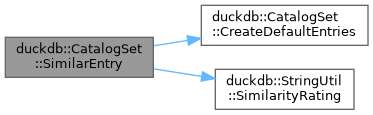

SimilarCatalogEntry	SimilarEntry (CatalogTransaction transaction, const string &name)
void	Undo (CatalogEntry &entry)
DUCKDB_API void	Scan (const std::function< void(CatalogEntry &)> &callback)
	Scan the catalog set, invoking the callback method for every committed entry.

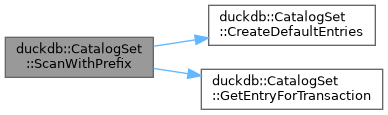

DUCKDB_API void	ScanWithPrefix (CatalogTransaction transaction, const std::function< void(CatalogEntry &)> &callback, const string &prefix)
	Scan the catalog set, invoking the callback method for every entry.
DUCKDB_API void	Scan (CatalogTransaction transaction, const std::function< void(CatalogEntry &)> &callback)
DUCKDB_API void	ScanWithReturn (CatalogTransaction transaction, const std::function< bool(CatalogEntry &)> &callback)
DUCKDB_API void	Scan (ClientContext &context, const std::function< void(CatalogEntry &)> &callback)
DUCKDB_API void	ScanWithReturn (ClientContext &context, const std::function< bool(CatalogEntry &)> &callback)
template<class T >
vector< reference< T > >	GetEntries (CatalogTransaction transaction)
DUCKDB_API bool	CreatedByOtherActiveTransaction (CatalogTransaction transaction, transaction_t timestamp)
DUCKDB_API bool	CommittedAfterStarting (CatalogTransaction transaction, transaction_t timestamp)
DUCKDB_API bool	HasConflict (CatalogTransaction transaction, transaction_t timestamp)
DUCKDB_API bool	UseTimestamp (CatalogTransaction transaction, transaction_t timestamp)
mutex &	GetCatalogLock ()
void	Verify (Catalog &catalog)
void	SetDefaultGenerator (unique_ptr< DefaultGenerator > defaults)
	Override the default generator - this should not be used after the catalog set has been used.

Static Public Member Functions
static bool	IsCommitted (transaction_t timestamp)
static void	UpdateTimestamp (CatalogEntry &entry, transaction_t timestamp)

Private Member Functions
bool	DropDependencies (CatalogTransaction transaction, const string &name, bool cascade, bool allow_drop_internal=false)

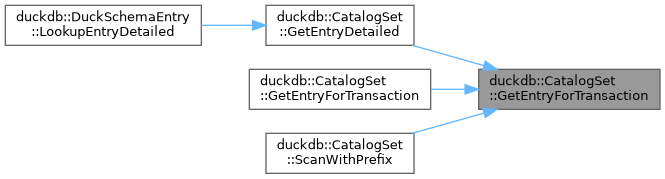

CatalogEntry &	GetEntryForTransaction (CatalogTransaction transaction, CatalogEntry &current, bool &visible)
CatalogEntry &	GetEntryForTransaction (CatalogTransaction transaction, CatalogEntry &current)
	Given a root entry, gets the entry valid for this transaction.
CatalogEntry &	GetCommittedEntry (CatalogEntry &current)
optional_ptr< CatalogEntry >	GetEntryInternal (CatalogTransaction transaction, const string &name)
	This method is used to retrieve an entry for the purpose of making a new version, through an alter/drop/create.
optional_ptr< CatalogEntry >	CreateCommittedEntry (unique_ptr< CatalogEntry > entry)

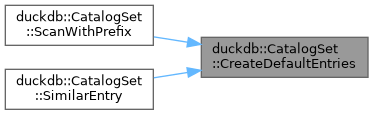

void	CreateDefaultEntries (CatalogTransaction transaction, unique_lock< mutex > &lock)
	Create all default entries.

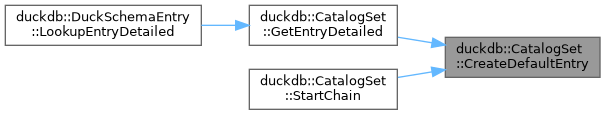

optional_ptr< CatalogEntry >	CreateDefaultEntry (CatalogTransaction transaction, const string &name, unique_lock< mutex > &lock)
	Attempt to create a default entry with the specified name. Returns the entry if successful, nullptr otherwise.
bool	DropEntryInternal (CatalogTransaction transaction, const string &name, bool allow_drop_internal=false)
bool	CreateEntryInternal (CatalogTransaction transaction, const string &name, unique_ptr< CatalogEntry > value, unique_lock< mutex > &read_lock, bool should_be_empty=true)
void	CheckCatalogEntryInvariants (CatalogEntry &value, const string &name)
bool	VerifyVacancy (CatalogTransaction transaction, CatalogEntry &entry)
	Verify that the previous entry in the chain is dropped.
bool	StartChain (CatalogTransaction transaction, const string &name, unique_lock< mutex > &read_lock)
	Start the catalog entry chain with a dummy node.
bool	RenameEntryInternal (CatalogTransaction transaction, CatalogEntry &old, const string &new_name, AlterInfo &alter_info, unique_lock< mutex > &read_lock)

Private Attributes
DuckCatalog &	catalog
mutex	catalog_lock
	The catalog lock is used to make changes to the data.
CatalogEntryMap	map
unique_ptr< DefaultGenerator >	defaults
	The generator used to generate default internal entries.

Detailed Description

The Catalog Set stores (key, value) map of a set of CatalogEntries.

Constructor & Destructor Documentation

CatalogSet()

duckdb::CatalogSet::CatalogSet ( Catalog &  catalog, unique_ptr< DefaultGenerator >  defaults = nullptr  )

explicit

    : catalog(catalog_p.Cast<DuckCatalog>()), defaults(std::move(defaults)) {
    D_ASSERT(catalog_p.IsDuckCatalog());
}

~CatalogSet()

duckdb::CatalogSet::~CatalogSet

(

)

                        {
}

Member Function Documentation

CreateEntry() [1/2]

bool duckdb::CatalogSet::CreateEntry	(	CatalogTransaction	transaction,
		const string &	name,
		unique_ptr< CatalogEntry >	value,
		const LogicalDependencyList &	dependencies
	)

Create an entry in the catalog set. Returns whether or not it was successful.

                                                                        {
    CheckCatalogEntryInvariants(*value, name);

    // Mark this entry as being created by the current active transaction
    value->timestamp = transaction.transaction_id;
    value->set = this;
    catalog.GetDependencyManager()->AddObject(transaction, *value, dependencies);

    // lock the catalog for writing
    lock_guard<mutex> write_lock(catalog.GetWriteLock());
    // lock this catalog set to disallow reading
    unique_lock<mutex> read_lock(catalog_lock);

    return CreateEntryInternal(transaction, name, std::move(value), read_lock);
}

CreateEntry() [2/2]

bool duckdb::CatalogSet::CreateEntry	(	ClientContext &	context,
		const string &	name,
		unique_ptr< CatalogEntry >	value,
		const LogicalDependencyList &	dependencies
	)

                                                                        {
    return CreateEntry(catalog.GetCatalogTransaction(context), name, std::move(value), dependencies);
}

AlterEntry()

bool duckdb::CatalogSet::AlterEntry	(	CatalogTransaction	transaction,
		const string &	name,
		AlterInfo &	alter_info
	)

                                                                                                     {
    // If the entry does not exist, we error
    auto entry = GetEntry(transaction, name);
    if (!entry) {
        return false;
    }
    if (!alter_info.allow_internal && entry->internal) {
        throw CatalogException("Cannot alter entry \"%s\" because it is an internal system entry", entry->name);
    }

    unique_ptr<CatalogEntry> value;
    if (alter_info.type == AlterType::SET_COMMENT) {
        // Copy the existing entry; we are only changing metadata here
        if (!transaction.context) {
            throw InternalException("Cannot AlterEntry::SET_COMMENT without client context");
        }
        value = entry->Copy(*transaction.context);
        value->comment = alter_info.Cast<SetCommentInfo>().comment_value;
    } else {
        // Use the existing entry to create the altered entry
        value = entry->AlterEntry(transaction, alter_info);
        if (!value) {
            // alter failed, but did not result in an error
            return true;
        }
    }

    // lock the catalog for writing
    unique_lock<mutex> write_lock(catalog.GetWriteLock());
    // lock this catalog set to disallow reading
    unique_lock<mutex> read_lock(catalog_lock);

    // fetch the entry again before doing the modification
    // this will catch any write-write conflicts between transactions
    entry = GetEntryInternal(transaction, name);

    // Mark this entry as being created by this transaction
    value->timestamp = transaction.transaction_id;
    value->set = this;

    if (!StringUtil::CIEquals(value->name, entry->name)) {
        if (!RenameEntryInternal(transaction, *entry, value->name, alter_info, read_lock)) {
            return false;
        }
    }
    auto new_entry = value.get();
    map.UpdateEntry(std::move(value));

    // push the old entry in the undo buffer for this transaction
    unique_ptr<CatalogEntry> entry_to_destroy;
    if (transaction.transaction) {
        // serialize the AlterInfo into a temporary buffer
        MemoryStream stream(Allocator::Get(*transaction.db));
        BinarySerializer serializer(stream);
        serializer.Begin();
        serializer.WriteProperty(100, "column_name", alter_info.GetColumnName());
        serializer.WriteProperty(101, "alter_info", &alter_info);
        serializer.End();

        DuckTransactionManager::Get(GetCatalog().GetAttached())
            .PushCatalogEntry(*transaction.transaction, new_entry->Child(), stream.GetData(), stream.GetPosition());
    } else {
        // if we don't have a transaction this alter is non-transactional
        // in that case we are able to just directly destroy the child (if there is any)
        entry_to_destroy = new_entry->TakeChild();
    }

    read_lock.unlock();
    write_lock.unlock();

    // Check the dependency manager to verify that there are no conflicting dependencies with this alter
    catalog.GetDependencyManager()->AlterObject(transaction, *entry, *new_entry, alter_info);
    return true;
}

DropEntry() [1/2]

bool duckdb::CatalogSet::DropEntry	(	CatalogTransaction	transaction,
		const string &	name,
		bool	cascade,
		bool	allow_drop_internal = false
	)

                                                                                                                     {
    if (!DropDependencies(transaction, name, cascade, allow_drop_internal)) {
        return false;
    }
    lock_guard<mutex> write_lock(catalog.GetWriteLock());
    lock_guard<mutex> read_lock(catalog_lock);
    return DropEntryInternal(transaction, name, allow_drop_internal);
}

DropEntry() [2/2]

bool duckdb::CatalogSet::DropEntry	(	ClientContext &	context,
		const string &	name,
		bool	cascade,
		bool	allow_drop_internal = false
	)

                                                                                                             {
    return DropEntry(catalog.GetCatalogTransaction(context), name, cascade, allow_drop_internal);
}

VerifyExistenceOfDependency()

void duckdb::CatalogSet::VerifyExistenceOfDependency	(	transaction_t	commit_id,
		CatalogEntry &	entry
	)

Verify that the entry referenced by the dependency is still alive.

Verify that the object referenced by the dependency still exists when we commit the dependency.

                                                                                         {
    auto &duck_catalog = GetCatalog();

    // Make sure that we don't see any uncommitted changes
    auto transaction_id = MAX_TRANSACTION_ID;
    // This will allow us to see all committed changes made before this COMMIT happened
    auto tx_start_time = commit_id;
    CatalogTransaction commit_transaction(duck_catalog.GetDatabase(), transaction_id, tx_start_time);

    D_ASSERT(entry.type == CatalogType::DEPENDENCY_ENTRY);
    auto &dep = entry.Cast<DependencyEntry>();
    duck_catalog.GetDependencyManager()->VerifyExistence(commit_transaction, dep);
}

CommitDrop()

void duckdb::CatalogSet::CommitDrop	(	transaction_t	commit_id,
		transaction_t	start_time,
		CatalogEntry &	entry
	)

Verify we can still drop the entry while committing.

Verify that no dependencies creations were committed since our transaction started, that reference the entry we're dropping

                                                                                                  {
    auto &duck_catalog = GetCatalog();

    entry.OnDrop();
    // Make sure that we don't see any uncommitted changes
    auto transaction_id = MAX_TRANSACTION_ID;
    // This will allow us to see all committed changes made before this COMMIT happened
    auto tx_start_time = commit_id;
    CatalogTransaction commit_transaction(duck_catalog.GetDatabase(), transaction_id, tx_start_time);

    duck_catalog.GetDependencyManager()->VerifyCommitDrop(commit_transaction, start_time, entry);
}

GetCatalog()

DuckCatalog & duckdb::CatalogSet::GetCatalog

(

)

                                    {
    return catalog;
}

AlterOwnership()

bool duckdb::CatalogSet::AlterOwnership	(	CatalogTransaction	transaction,
		ChangeOwnershipInfo &	info
	)

                                                                                         {
    // lock the catalog for writing
    unique_lock<mutex> write_lock(catalog.GetWriteLock());

    auto entry = GetEntryInternal(transaction, info.name);
    if (!entry) {
        return false;
    }
    optional_ptr<CatalogEntry> owner_entry;
    auto schema = catalog.GetSchema(transaction, info.owner_schema, OnEntryNotFound::RETURN_NULL);
    if (schema) {
        vector<CatalogType> entry_types {CatalogType::TABLE_ENTRY, CatalogType::SEQUENCE_ENTRY};
        for (auto entry_type : entry_types) {
            owner_entry = schema->GetEntry(transaction, entry_type, info.owner_name);
            if (owner_entry) {
                break;
            }
        }
    }
    if (!owner_entry) {
        throw CatalogException("CatalogElement \"%s.%s\" does not exist!", info.owner_schema, info.owner_name);
    }
    write_lock.unlock();
    catalog.GetDependencyManager()->AddOwnership(transaction, *owner_entry, *entry);
    return true;
}

CleanupEntry()

void duckdb::CatalogSet::CleanupEntry

(

CatalogEntry &

catalog_entry

)

                                                         {
    // destroy the backed up entry: it is no longer required
    lock_guard<mutex> write_lock(catalog.GetWriteLock());
    lock_guard<mutex> lock(catalog_lock);
    auto &parent = catalog_entry.Parent();
    map.DropEntry(catalog_entry);
    if (parent.deleted && !parent.HasChild() && !parent.HasParent()) {
        // The entry's parent is a tombstone and the entry had no child
        // clean up the mapping and the tombstone entry as well
        D_ASSERT(map.GetEntry(parent.name).get() == &parent);
        map.DropEntry(parent);
    }
}

GetEntryDetailed()

CatalogSet::EntryLookup duckdb::CatalogSet::GetEntryDetailed	(	CatalogTransaction	transaction,
		const string &	name
	)

Returns the entry with the specified name.

                                                                                                     {
    unique_lock<mutex> read_lock(catalog_lock);
    auto entry_value = map.GetEntry(name);
    if (entry_value) {
        // we found an entry for this name
        // check the version numbers

        auto &catalog_entry = *entry_value;
        bool visible;
        auto &current = GetEntryForTransaction(transaction, catalog_entry, visible);
        if (current.deleted) {
            if (!visible) {
                return EntryLookup {nullptr, EntryLookup::FailureReason::INVISIBLE};
            } else {
                return EntryLookup {nullptr, EntryLookup::FailureReason::DELETED};
            }
        }
        D_ASSERT(StringUtil::CIEquals(name, current.name));
        return EntryLookup {&current, EntryLookup::FailureReason::SUCCESS};
    }
    auto default_entry = CreateDefaultEntry(transaction, name, read_lock);
    if (!default_entry) {
        return EntryLookup {default_entry, EntryLookup::FailureReason::NOT_PRESENT};
    }
    return EntryLookup {default_entry, EntryLookup::FailureReason::SUCCESS};
}

Here is the call graph for this function:

Here is the caller graph for this function:

GetEntry() [1/2]

optional_ptr< CatalogEntry > duckdb::CatalogSet::GetEntry	(	CatalogTransaction	transaction,
		const string &	name
	)

                                                                                                  {
    auto lookup = GetEntryDetailed(transaction, name);
    return lookup.result;
}

GetEntry() [2/2]

optional_ptr< CatalogEntry > duckdb::CatalogSet::GetEntry	(	ClientContext &	context,
		const string &	name
	)

                                                                                          {
    return GetEntry(catalog.GetCatalogTransaction(context), name);
}

SimilarEntry()

SimilarCatalogEntry duckdb::CatalogSet::SimilarEntry	(	CatalogTransaction	transaction,
		const string &	name
	)

Gets the entry that is most similar to the given name (i.e. smallest levenshtein distance), or empty string if none is found. The returned pair consists of the entry name and the distance (smaller means closer).

                                                                                               {
    unique_lock<mutex> lock(catalog_lock);
    CreateDefaultEntries(transaction, lock);

    SimilarCatalogEntry result;
    for (auto &kv : map.Entries()) {
        auto entry_score = StringUtil::SimilarityRating(kv.first, name);
        if (entry_score > result.score) {
            result.score = entry_score;
            result.name = kv.first;
        }
    }
    return result;
}

Here is the call graph for this function:

Undo()

void duckdb::CatalogSet::Undo

(

CatalogEntry &

entry

)

Rollback <entry> to be the currently valid entry for a certain catalog entry

                                         {
    lock_guard<mutex> write_lock(catalog.GetWriteLock());
    lock_guard<mutex> lock(catalog_lock);

    // entry has to be restored
    // and entry->parent has to be removed ("rolled back")

    // i.e. we have to place (entry) as (entry->parent) again
    auto &to_be_removed_node = entry.Parent();
    to_be_removed_node.Rollback(entry);

    D_ASSERT(StringUtil::CIEquals(entry.name, to_be_removed_node.name));
    if (!to_be_removed_node.HasParent()) {
        to_be_removed_node.Child().SetAsRoot();
    }
    map.DropEntry(to_be_removed_node);

    if (entry.type == CatalogType::INVALID) {
        // This was the root of the entry chain
        map.DropEntry(entry);
    }
}

Here is the call graph for this function:

Scan() [1/3]

void duckdb::CatalogSet::Scan

(

const std::function< void(CatalogEntry &)> &

callback

)

Scan the catalog set, invoking the callback method for every committed entry.

                                                                       {
    // lock the catalog set
    lock_guard<mutex> lock(catalog_lock);
    for (auto &kv : map.Entries()) {
        auto &entry = *kv.second;
        auto &commited_entry = GetCommittedEntry(entry);
        if (!commited_entry.deleted) {
            callback(commited_entry);
        }
    }
}

ScanWithPrefix()

void duckdb::CatalogSet::ScanWithPrefix	(	CatalogTransaction	transaction,
		const std::function< void(CatalogEntry &)> &	callback,
		const string &	prefix
	)

Scan the catalog set, invoking the callback method for every entry.

                                                      {
    // lock the catalog set
    unique_lock<mutex> lock(catalog_lock);
    CreateDefaultEntries(transaction, lock);

    auto &entries = map.Entries();
    auto it = entries.lower_bound(prefix);
    auto end = entries.upper_bound(prefix + char(255));
    for (; it != end; it++) {
        auto &entry = *it->second;
        auto &entry_for_transaction = GetEntryForTransaction(transaction, entry);
        if (!entry_for_transaction.deleted) {
            callback(entry_for_transaction);
        }
    }
}

Here is the call graph for this function:

Scan() [2/3]

void duckdb::CatalogSet::Scan	(	CatalogTransaction	transaction,
		const std::function< void(CatalogEntry &)> &	callback
	)

                                                                                                       {
    // Lock the catalog set.
    unique_lock<mutex> lock(catalog_lock);
    CreateDefaultEntries(transaction, lock);

    for (auto &kv : map.Entries()) {
        auto &entry = *kv.second;
        auto &entry_for_transaction = GetEntryForTransaction(transaction, entry);
        if (!entry_for_transaction.deleted) {
            callback(entry_for_transaction);
        }
    }
}

ScanWithReturn() [1/2]

void duckdb::CatalogSet::ScanWithReturn	(	CatalogTransaction	transaction,
		const std::function< bool(CatalogEntry &)> &	callback
	)

                                                                                                                 {
    // Lock the catalog set.
    unique_lock<mutex> lock(catalog_lock);
    CreateDefaultEntries(transaction, lock);

    for (auto &kv : map.Entries()) {
        auto &entry = *kv.second;
        auto &entry_for_transaction = GetEntryForTransaction(transaction, entry);
        if (!entry_for_transaction.deleted) {
            if (!callback(entry_for_transaction)) {
                return;
            }
        }
    }
}

Scan() [3/3]

void duckdb::CatalogSet::Scan	(	ClientContext &	context,
		const std::function< void(CatalogEntry &)> &	callback
	)

                                                                                               {
    Scan(catalog.GetCatalogTransaction(context), callback);
}

ScanWithReturn() [2/2]

void duckdb::CatalogSet::ScanWithReturn	(	ClientContext &	context,
		const std::function< bool(CatalogEntry &)> &	callback
	)

                                                                                                         {
    ScanWithReturn(catalog.GetCatalogTransaction(context), callback);
}

GetEntries()

template<class T >

vector< reference< T > > duckdb::CatalogSet::GetEntries ( CatalogTransaction  transaction )

inline

                                                                    {
        vector<reference<T>> result;
        Scan(transaction, [&](CatalogEntry &entry) { result.push_back(entry.Cast<T>()); });
        return result;
    }

CreatedByOtherActiveTransaction()

bool duckdb::CatalogSet::CreatedByOtherActiveTransaction	(	CatalogTransaction	transaction,
		transaction_t	timestamp
	)

                                                                                                        {
    // True if this transaction is not committed yet and the entry was made by another active (not committed)
    // transaction
    return (timestamp >= TRANSACTION_ID_START && timestamp != transaction.transaction_id);
}

CommittedAfterStarting()

bool duckdb::CatalogSet::CommittedAfterStarting	(	CatalogTransaction	transaction,
		transaction_t	timestamp
	)

                                                                                               {
    // The entry has been committed after this transaction started, this is not our source of truth.
    return (timestamp < TRANSACTION_ID_START && timestamp > transaction.start_time);
}

HasConflict()

bool duckdb::CatalogSet::HasConflict	(	CatalogTransaction	transaction,
		transaction_t	timestamp
	)

                                                                                    {
    return CreatedByOtherActiveTransaction(transaction, timestamp) || CommittedAfterStarting(transaction, timestamp);
}

UseTimestamp()

bool duckdb::CatalogSet::UseTimestamp	(	CatalogTransaction	transaction,
		transaction_t	timestamp
	)

                                                                                     {
    if (timestamp == transaction.transaction_id) {
        // we created this version
        return true;
    }
    if (timestamp < transaction.start_time) {
        // this version was commited before we started the transaction
        return true;
    }
    return false;
}

IsCommitted()

bool duckdb::CatalogSet::IsCommitted ( transaction_t  timestamp )

static

FIXME: transaction_t itself should be a class that has these methods

                                                    {
    return timestamp < TRANSACTION_ID_START;
}

Here is the call graph for this function:

UpdateTimestamp()

void duckdb::CatalogSet::UpdateTimestamp ( CatalogEntry &  entry, transaction_t  timestamp  )

static

                                                                             {
    entry.timestamp = timestamp;
}

GetCatalogLock()

mutex & duckdb::CatalogSet::GetCatalogLock ( )

inline

                            {
        return catalog_lock;
    }

Verify()

void duckdb::CatalogSet::Verify

(

Catalog &

catalog

)

                                          {
    D_ASSERT(&catalog_p == &catalog);
    vector<reference<CatalogEntry>> entries;
    Scan([&](CatalogEntry &entry) { entries.push_back(entry); });
    for (auto &entry : entries) {
        entry.get().Verify(catalog_p);
    }
}

SetDefaultGenerator()

void duckdb::CatalogSet::SetDefaultGenerator

(

unique_ptr< DefaultGenerator >

defaults

)

Override the default generator - this should not be used after the catalog set has been used.

                                                                            {
    lock_guard<mutex> lock(catalog_lock);
    defaults = std::move(defaults_p);
}

DropDependencies()

bool duckdb::CatalogSet::DropDependencies ( CatalogTransaction  transaction, const string &  name, bool  cascade, bool  allow_drop_internal = false  )

private

                                                            {
    auto entry = GetEntry(transaction, name);
    if (!entry) {
        return false;
    }
    if (entry->internal && !allow_drop_internal) {
        throw CatalogException("Cannot drop entry \"%s\" because it is an internal system entry", entry->name);
    }
    // check any dependencies of this object
    D_ASSERT(entry->ParentCatalog().IsDuckCatalog());
    auto &duck_catalog = entry->ParentCatalog().Cast<DuckCatalog>();
    duck_catalog.GetDependencyManager()->DropObject(transaction, *entry, cascade);
    return true;
}

GetEntryForTransaction() [1/2]

CatalogEntry & duckdb::CatalogSet::GetEntryForTransaction ( CatalogTransaction  transaction, CatalogEntry &  current, bool &  visible  )

private

Given a root entry, gets the entry valid for this transaction, 'visible' is used to indicate whether the entry is actually visible to the transaction

                                                                                                                     {
    reference<CatalogEntry> entry(current);
    while (entry.get().HasChild()) {
        if (UseTimestamp(transaction, entry.get().timestamp)) {
            visible = true;
            return entry.get();
        }
        entry = entry.get().Child();
    }
    visible = false;
    return entry.get();
}

Here is the caller graph for this function:

GetEntryForTransaction() [2/2]

CatalogEntry & duckdb::CatalogSet::GetEntryForTransaction ( CatalogTransaction  transaction, CatalogEntry &  current  )

private

Given a root entry, gets the entry valid for this transaction.

                                                                                                      {
    bool visible;
    return GetEntryForTransaction(transaction, current, visible);
}

Here is the call graph for this function:

GetCommittedEntry()

CatalogEntry & duckdb::CatalogSet::GetCommittedEntry ( CatalogEntry &  current )

private

                                                                 {
    reference<CatalogEntry> entry(current);
    while (entry.get().HasChild()) {
        if (entry.get().timestamp < TRANSACTION_ID_START) {
            // this entry is committed: use it
            break;
        }
        entry = entry.get().Child();
    }
    return entry.get();
}

GetEntryInternal()

optional_ptr< CatalogEntry > duckdb::CatalogSet::GetEntryInternal ( CatalogTransaction  transaction, const string &  name  )

private

This method is used to retrieve an entry for the purpose of making a new version, through an alter/drop/create.

                                                                                                          {
    auto entry_value = map.GetEntry(name);
    if (!entry_value) {
        return nullptr;
    }
    auto &catalog_entry = *entry_value;

    // Check if this entry is visible to our snapshot
    if (HasConflict(transaction, catalog_entry.timestamp)) {
        // We intend to create a new version of the entry.
        // Another transaction has already made an edit to this catalog entry, because of limitations in the Catalog we
        // can't create an edit alongside this even if the other transaction might end up getting aborted. So we have to
        // abort the transaction.
        throw TransactionException("Catalog write-write conflict on alter with \"%s\"", catalog_entry.name);
    }
    // The entry is visible to our snapshot, check if it's deleted
    if (catalog_entry.deleted) {
        return nullptr;
    }
    return &catalog_entry;
}

CreateCommittedEntry()

optional_ptr< CatalogEntry > duckdb::CatalogSet::CreateCommittedEntry ( unique_ptr< CatalogEntry >  entry )

private

                                                                                          {
    auto existing_entry = map.GetEntry(entry->name);
    if (existing_entry) {
        // Return null if an entry by that name already exists
        return nullptr;
    }

    auto catalog_entry = entry.get();

    entry->set = this;
    // Give the entry commit id 0, so it is visible to all transactions
    entry->timestamp = 0;
    map.AddEntry(std::move(entry));

    return catalog_entry;
}

CreateDefaultEntries()

void duckdb::CatalogSet::CreateDefaultEntries ( CatalogTransaction  transaction, unique_lock< mutex > &  lock  )

private

Create all default entries.

                                                                                                   {
    if (!defaults || defaults->created_all_entries) {
        return;
    }
    auto unlock = !defaults->LockDuringCreate();
    // this catalog set has a default set defined:
    auto default_entries = defaults->GetDefaultEntries();
    for (auto &default_entry : default_entries) {
        auto entry_value = map.GetEntry(default_entry);
        if (!entry_value) {
            // we unlock during the CreateEntry, since it might reference other catalog sets...
            // specifically for views this can happen since the view will be bound
            if (unlock) {
                read_lock.unlock();
            }
            auto entry = defaults->CreateDefaultEntry(transaction, default_entry);
            if (!entry) {
                throw InternalException("Failed to create default entry for %s", default_entry);
            }

            if (unlock) {
                read_lock.lock();
            }
            CreateCommittedEntry(std::move(entry));
        }
    }
    defaults->created_all_entries = true;
}

Here is the caller graph for this function:

CreateDefaultEntry()

optional_ptr< CatalogEntry > duckdb::CatalogSet::CreateDefaultEntry ( CatalogTransaction  transaction, const string &  name, unique_lock< mutex > &  lock  )

private

Attempt to create a default entry with the specified name. Returns the entry if successful, nullptr otherwise.

                                                                                         {
    // no entry found with this name, check for defaults
    if (!defaults || defaults->created_all_entries) {
        // no defaults either: return null
        return nullptr;
    }
    auto unlock = !defaults->LockDuringCreate();
    if (unlock) {
        read_lock.unlock();
    }
    // this catalog set has a default map defined
    // check if there is a default entry that we can create with this name
    auto entry = defaults->CreateDefaultEntry(transaction, name);

    if (unlock) {
        read_lock.lock();
    }
    if (!entry) {
        // no default entry
        return nullptr;
    }
    // there is a default entry! create it
    auto result = CreateCommittedEntry(std::move(entry));
    if (result) {
        return result;
    }
    // we found a default entry, but failed
    // this means somebody else created the entry first
    // just retry?
    if (unlock) {
        read_lock.unlock();
    }
    return GetEntry(transaction, name);
}

Here is the caller graph for this function:

DropEntryInternal()

bool duckdb::CatalogSet::DropEntryInternal ( CatalogTransaction  transaction, const string &  name, bool  allow_drop_internal = false  )

private

                                                                                                               {
    // lock the catalog for writing
    // we can only delete an entry that exists
    auto entry = GetEntryInternal(transaction, name);
    if (!entry) {
        return false;
    }
    if (entry->internal && !allow_drop_internal) {
        throw CatalogException("Cannot drop entry \"%s\" because it is an internal system entry", entry->name);
    }

    // create a new tombstone entry and replace the currently stored one
    // set the timestamp to the timestamp of the current transaction
    // and point it at the tombstone node
    auto value = make_uniq<InCatalogEntry>(CatalogType::DELETED_ENTRY, entry->ParentCatalog(), entry->name);
    value->timestamp = transaction.transaction_id;
    value->set = this;
    value->deleted = true;
    auto value_ptr = value.get();
    map.UpdateEntry(std::move(value));

    // push the old entry in the undo buffer for this transaction
    if (transaction.transaction) {
        DuckTransactionManager::Get(GetCatalog().GetAttached())
            .PushCatalogEntry(*transaction.transaction, value_ptr->Child());
    }
    return true;
}

CreateEntryInternal()

bool duckdb::CatalogSet::CreateEntryInternal ( CatalogTransaction  transaction, const string &  name, unique_ptr< CatalogEntry >  value, unique_lock< mutex > &  read_lock, bool  should_be_empty = true  )

private

                                                                                          {
    auto entry_value = map.GetEntry(name);
    if (!entry_value) {
        // Add a dummy node to start the chain
        if (!StartChain(transaction, name, read_lock)) {
            return false;
        }
    } else if (should_be_empty) {
        // Verify that the entry is deleted, not altered by another transaction
        if (!VerifyVacancy(transaction, *entry_value)) {
            return false;
        }
    }

    // Finally add the new entry to the chain
    auto value_ptr = value.get();
    map.UpdateEntry(std::move(value));
    // Push the old entry in the undo buffer for this transaction, so it can be restored in the event of failure
    if (transaction.transaction) {
        DuckTransactionManager::Get(GetCatalog().GetAttached())
            .PushCatalogEntry(*transaction.transaction, value_ptr->Child());
    }
    return true;
}

CheckCatalogEntryInvariants()

void duckdb::CatalogSet::CheckCatalogEntryInvariants ( CatalogEntry &  value, const string &  name  )

private

                                                                                    {
    if (value.internal && !catalog.IsSystemCatalog() && name != DEFAULT_SCHEMA) {
        throw InternalException("Attempting to create internal entry \"%s\" in non-system catalog - internal entries "
                                "can only be created in the system catalog",
                                name);
    }
    if (!value.internal) {
        if (!value.temporary && catalog.IsSystemCatalog() && !IsDependencyEntry(value)) {
            throw InternalException(
                "Attempting to create non-internal entry \"%s\" in system catalog - the system catalog "
                "can only contain internal entries",
                name);
        }
        if (value.temporary && !catalog.IsTemporaryCatalog()) {
            throw InternalException("Attempting to create temporary entry \"%s\" in non-temporary catalog", name);
        }
        if (!value.temporary && catalog.IsTemporaryCatalog() && name != DEFAULT_SCHEMA) {
            throw InvalidInputException("Cannot create non-temporary entry \"%s\" in temporary catalog", name);
        }
    }
}

VerifyVacancy()

bool duckdb::CatalogSet::VerifyVacancy ( CatalogTransaction  transaction, CatalogEntry &  entry  )

private

Verify that the previous entry in the chain is dropped.

                                                                                  {
    if (HasConflict(transaction, entry.timestamp)) {
        // A transaction that is not visible to our snapshot has already made a change to this entry.
        // Because of Catalog limitations we can't push our change on this, even if the change was made by another
        // active transaction that might end up being aborted. So we have to cancel this transaction.
        throw TransactionException("Catalog write-write conflict on create with \"%s\"", entry.name);
    }
    // The entry is visible to our snapshot
    if (!entry.deleted) {
        return false;
    }
    return true;
}

StartChain()

bool duckdb::CatalogSet::StartChain ( CatalogTransaction  transaction, const string &  name, unique_lock< mutex > &  read_lock  )

private

Start the catalog entry chain with a dummy node.

                                                                                                             {
    D_ASSERT(!map.GetEntry(name));

    // check if there is a default entry
    auto entry = CreateDefaultEntry(transaction, name, read_lock);
    if (entry) {
        return false;
    }

    // first create a dummy deleted entry
    // so other transactions will see that instead of the entry that is to be added.
    auto dummy_node = make_uniq<InCatalogEntry>(CatalogType::INVALID, catalog, name);
    dummy_node->timestamp = 0;
    dummy_node->deleted = true;
    dummy_node->set = this;

    map.AddEntry(std::move(dummy_node));
    return true;
}

Here is the call graph for this function:

RenameEntryInternal()

bool duckdb::CatalogSet::RenameEntryInternal ( CatalogTransaction  transaction, CatalogEntry &  old, const string &  new_name, AlterInfo &  alter_info, unique_lock< mutex > &  read_lock  )

private

                                                                                           {
    auto &original_name = old.name;

    auto &context = *transaction.context;
    auto entry_value = map.GetEntry(new_name);
    if (entry_value) {
        auto &existing_entry = GetEntryForTransaction(transaction, *entry_value);
        if (!existing_entry.deleted) {
            // There exists an entry by this name that is not deleted
            old.UndoAlter(context, alter_info);
            throw CatalogException("Could not rename \"%s\" to \"%s\": another entry with this name already exists!",
                                   original_name, new_name);
        }
    }

    // Add a RENAMED_ENTRY before adding a DELETED_ENTRY, this makes it so that when this is committed
    // we know that this was not a DROP statement.
    auto renamed_tombstone = make_uniq<InCatalogEntry>(CatalogType::RENAMED_ENTRY, old.ParentCatalog(), original_name);
    renamed_tombstone->timestamp = transaction.transaction_id;
    renamed_tombstone->deleted = false;
    renamed_tombstone->set = this;
    if (!CreateEntryInternal(transaction, original_name, std::move(renamed_tombstone), read_lock,
                             /*should_be_empty = */ false)) {
        return false;
    }
    if (!DropEntryInternal(transaction, original_name, false)) {
        return false;
    }

    // Add the renamed entry
    // Start this off with a RENAMED_ENTRY node, for commit/cleanup/rollback purposes
    auto renamed_node = make_uniq<InCatalogEntry>(CatalogType::RENAMED_ENTRY, catalog, new_name);
    renamed_node->timestamp = transaction.transaction_id;
    renamed_node->deleted = false;
    renamed_node->set = this;
    return CreateEntryInternal(transaction, new_name, std::move(renamed_node), read_lock);
}

---

The documentation for this class was generated from the following files:

• external/duckdb/duckdb.hpp
• external/duckdb/duckdb.cpp
