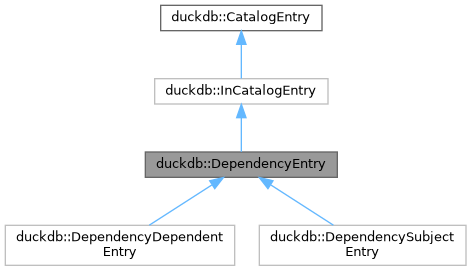

Inheritance diagram for duckdb::DependencyEntry:

[legend]

Collaboration diagram for duckdb::DependencyEntry:

[legend]

Public Member Functions
const MangledEntryName &	SubjectMangledName () const

const DependencySubject &	Subject () const

const MangledEntryName &	DependentMangledName () const

const DependencyDependent &	Dependent () const

virtual const CatalogEntryInfo &	EntryInfo () const =0

virtual const MangledEntryName &	EntryMangledName () const =0

virtual const CatalogEntryInfo &	SourceInfo () const =0

virtual const MangledEntryName &	SourceMangledName () const =0

DependencyEntryType	Side () const

Public Member Functions inherited from duckdb::InCatalogEntry
	InCatalogEntry (CatalogType type, Catalog &catalog, string name)

Catalog &	ParentCatalog () override

const Catalog &	ParentCatalog () const override

void	Verify (Catalog &catalog) override

Public Member Functions inherited from duckdb::CatalogEntry
	CatalogEntry (CatalogType type, Catalog &catalog, string name)

	CatalogEntry (CatalogType type, string name, idx_t oid)

virtual unique_ptr< CatalogEntry >	AlterEntry (ClientContext &context, AlterInfo &info)

virtual unique_ptr< CatalogEntry >	AlterEntry (CatalogTransaction transaction, AlterInfo &info)

virtual void	UndoAlter (ClientContext &context, AlterInfo &info)

virtual void	Rollback (CatalogEntry &prev_entry)

virtual void	OnDrop ()

virtual unique_ptr< CatalogEntry >	Copy (ClientContext &context) const

virtual unique_ptr< CreateInfo >	GetInfo () const

virtual void	SetAsRoot ()
	Sets the CatalogEntry as the new root entry (i.e. the newest entry)

virtual string	ToSQL () const
	Convert the catalog entry to a SQL string that can be used to re-construct the catalog entry.

virtual SchemaCatalogEntry &	ParentSchema ()

virtual const SchemaCatalogEntry &	ParentSchema () const

void	Serialize (Serializer &serializer) const

void	SetChild (unique_ptr< CatalogEntry > child)

unique_ptr< CatalogEntry >	TakeChild ()

bool	HasChild () const

bool	HasParent () const

CatalogEntry &	Child ()

CatalogEntry &	Parent ()

const CatalogEntry &	Parent () const

template<class TARGET >
TARGET &	Cast ()

template<class TARGET >
const TARGET &	Cast () const

Protected Member Functions
	DependencyEntry (Catalog &catalog, DependencyEntryType type, const MangledDependencyName &name, const DependencyInfo &info)

Protected Attributes
const MangledEntryName	dependent_name

const MangledEntryName	subject_name

const DependencyDependent	dependent

const DependencySubject	subject

Private Attributes
DependencyEntryType	side

Additional Inherited Members
Static Public Member Functions inherited from duckdb::CatalogEntry
static unique_ptr< CreateInfo >	Deserialize (Deserializer &deserializer)

Public Attributes inherited from duckdb::InCatalogEntry
Catalog &	catalog
	The catalog the entry belongs to.

Public Attributes inherited from duckdb::CatalogEntry
idx_t	oid
	The oid of the entry.

CatalogType	type
	The type of this catalog entry.

optional_ptr< CatalogSet >	set
	Reference to the catalog set this entry is stored in.

string	name
	The name of the entry.

bool	deleted
	Whether or not the object is deleted.

bool	temporary
	Whether or not the object is temporary and should not be added to the WAL.

bool	internal
	Whether or not the entry is an internal entry (cannot be deleted, not dumped, etc)

atomic< transaction_t >	timestamp
	Timestamp at which the catalog entry was created.

Value	comment
	(optional) comment on this entry

InsertionOrderPreservingMap< string >	tags
	(optional) extra data associated with this entry

Constructor & Destructor Documentation

◆ ~DependencyEntry()

duckdb::DependencyEntry::~DependencyEntry ( )

override

9012 {

9013}

◆ DependencyEntry()

duckdb::DependencyEntry::DependencyEntry	(	Catalog &	catalog,
		DependencyEntryType	type,
		const MangledDependencyName &	name,
		const DependencyInfo &	info
	)

protected

    : InCatalogEntry(CatalogType::DEPENDENCY_ENTRY, catalog, name.name),
      dependent_name(DependencyManager::MangleName(info.dependent.entry)),
      subject_name(DependencyManager::MangleName(info.subject.entry)), dependent(info.dependent), subject(info.subject),
      side(side) {
    D_ASSERT(info.dependent.entry.type != CatalogType::DEPENDENCY_ENTRY);
    D_ASSERT(info.subject.entry.type != CatalogType::DEPENDENCY_ENTRY);
    if (catalog.IsTemporaryCatalog()) {
        temporary = true;
    }
}

Member Function Documentation

◆ SubjectMangledName()

const MangledEntryName & duckdb::DependencyEntry::SubjectMangledName ( ) const

                                                                  {
    return subject_name;
}

◆ Subject()

const DependencySubject & duckdb::DependencyEntry::Subject ( ) const

                                                        {
    return subject;
}

◆ DependentMangledName()

const MangledEntryName & duckdb::DependencyEntry::DependentMangledName ( ) const

                                                                    {
    return dependent_name;
}

◆ Dependent()

const DependencyDependent & duckdb::DependencyEntry::Dependent ( ) const

                                                            {
    return dependent;
}

◆ Side()

DependencyEntryType duckdb::DependencyEntry::Side ( ) const

                                                {
    return side;
}

The documentation for this class was generated from the following file:

external/duckdb/duckdb.cpp
