Technical Documentation: Lidar Point Cloud Generation System

Project Goal: To develop a robust, high-performance tool within Unreal Engine capable of generating large-scale, georeferenced lidar point clouds. The primary objective is to emulate the format and structure of real-world USGS lidar datasets to facilitate high-fidelity “Sim-to-Real” testing for robotics applications.

Chapter 1: Architectural Overview and Key Design Decisions

The core challenge of this project was to scan a massive (4km x 4km) virtual landscape and export billions of data points without running out of memory or freezing the editor for an unacceptable amount of time. This required several key architectural decisions.

1.1: Core Technology: Grid-Based Ray Tracing in C++ To achieve the highest fidelity, we opted for a Grid-Based Ray Tracing method. This technique simulates an aerial lidar scanner by casting a dense grid of parallel rays from the sky downwards. The primary logic was implemented in C++ for three critical reasons:

• Performance: The sheer number of calculations (billions of ray casts) is far too slow to be handled by Blueprints. C++ provides the necessary speed.
• Precision: Geospatial coordinates require double precision to avoid significant errors over large distances. C++ handles doubles natively, whereas Blueprints primarily use floats.
• Memory Management: C++ provides the low-level control needed to manage memory efficiently, which is crucial for the chunking system.

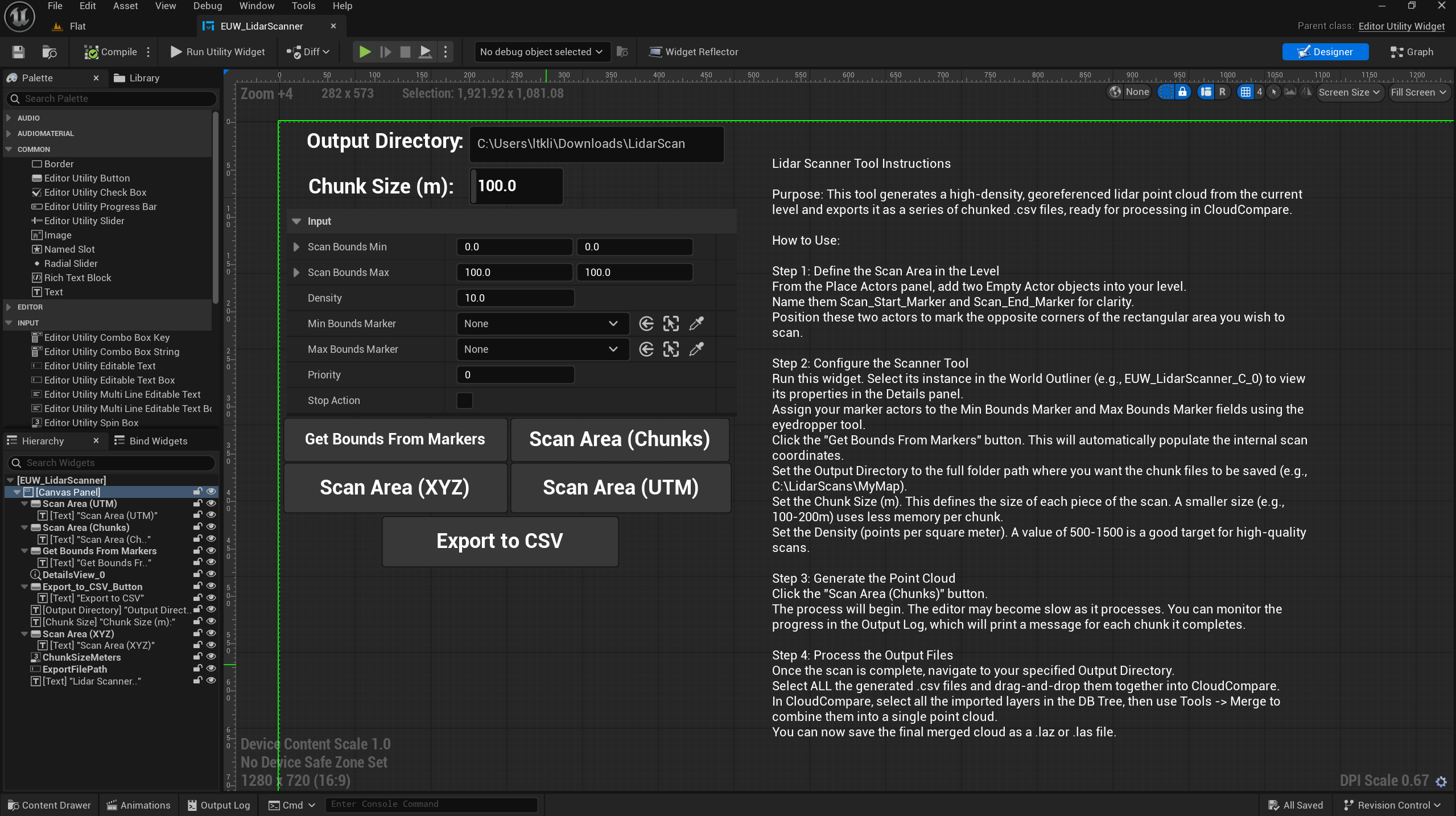

1.2: User Interface: The Editor Utility Widget While the core logic is C++, the user interface is a Blueprint Editor Utility Widget (EUW_LidarScanner). This provides a friendly, visual front-end that allows any team member (not just programmers) to use the tool. The Blueprint’s role is simply to gather user inputs and pass them to the C++ backend.

1.3: The Memory Challenge: A Chunking (Tiling) System Our initial prototype attempted to generate and store all points in a single large array in memory. This approach failed due to extreme memory consumption (roughly 1GB of RAM per million points), making it impossible to scan the full map.

• The Solution: We re-architected the system to use chunking. The C++ “manager” function divides the total scan area into a grid of smaller, manageable chunks (e.g., 200m x 200m). A “worker” function then processes only one chunk at a time, writing its results directly to a unique file on the disk before its memory is released. This ensures that memory usage remains low and constant, regardless of the total scan size.

1.4: The Performance Challenge: Parallel Processing The chunking system solved the memory issue, but processing hundreds of chunks sequentially was still time-consuming.

• The Solution: We identified that the processing of each chunk is completely independent. This “embarrassingly parallel” problem was a perfect candidate for multithreading. We implemented Unreal Engine’s ParallelFor task system, which distributes the processing of all chunks across all available CPU cores. This change resulted in a massive, near-linear speedup, reducing scan times from hours to minutes.

1.5: The Export Format: Intermediate CSV for CloudCompare Directly exporting to the complex, binary .laz format would require integrating a large, third-party C++ library, a significant and often fragile engineering task.

• The Solution: We opted to export each chunk to a simple, human-readable Comma-Separated Values (.csv) text file. This has several advantages:
  • Simplicity: Writing a text file requires only built-in Unreal C++ functions.
  • Debuggability: The output can be opened in any text editor or spreadsheet program to instantly verify the data.
  • Leverages Best-in-Class Tools: The industry-standard software CloudCompare is exceptionally good at importing, merging, and converting point cloud data. Our workflow offloads the final, complex file conversion to this dedicated tool, guaranteeing a 100% compliant .laz file.

Chapter 2: The C++ Implementation Details

The core of the system resides in the LidarScannerLibrary C++ class, which contains two primary functions.

2.1: The “Manager” Function: ScanWorldInChunks() This is the high-level function called by the Blueprint UI. Its responsibilities are:

1. Verify that a GeoReferencingSystem actor exists in the world.
2. Export a _CRS_Info.txt metadata file containing the UTM zone (Projected CRS) for the dataset.
3. Calculate the grid of chunks based on the total scan area and the user-defined chunk size.
4. Prepare a list (TArray) of “task” structs, where each task contains the specific bounds and output filename for one chunk.
5. Dispatch all tasks to the ParallelFor system to be executed across multiple CPU threads.

2.2: The “Worker” Function: ScanAndExportChunkToCSV() This function is executed by each thread from the ParallelFor loop. It performs the actual work on a single chunk:

1. Creates a temporary array to hold the points for only its assigned chunk.
2. Performs the nested loop for the ray-tracing grid.
3. For each successful ray hit:
   • It gets the hit location in Unreal coordinates.
   • It calls the GeoReferencingSystem’s EngineToProjected function to convert the location to FProjectedCoordinates (Easting, Northing, Altitude).
   • It performs classification logic by checking the tags of the hit actor.
   • It adds the final, complete FLidarPoint struct to its temporary array.
4. Once the scan for its chunk is complete, it formats the data into a series of strings.
5. It writes all the formatted strings to its assigned .csv file on disk using FFileHelper::SaveStringArrayToFile.

Chapter 3: The End-User Workflow (How to Use the Tool)

This guide outlines the complete process for a user to generate a point cloud.

Step 3.1: Scene Preparation

1. Place GeoReferencing Actor: Ensure a properly configured GeoReferencingSystem actor is present in the level. The Projected CRS and Origin Location must be set correctly.
2. Place Marker Actors: Add two Empty Actor objects to the level. Position them at opposite corners of the desired total scan area.

Step 3.2: Configure and Run the Scanner Tool

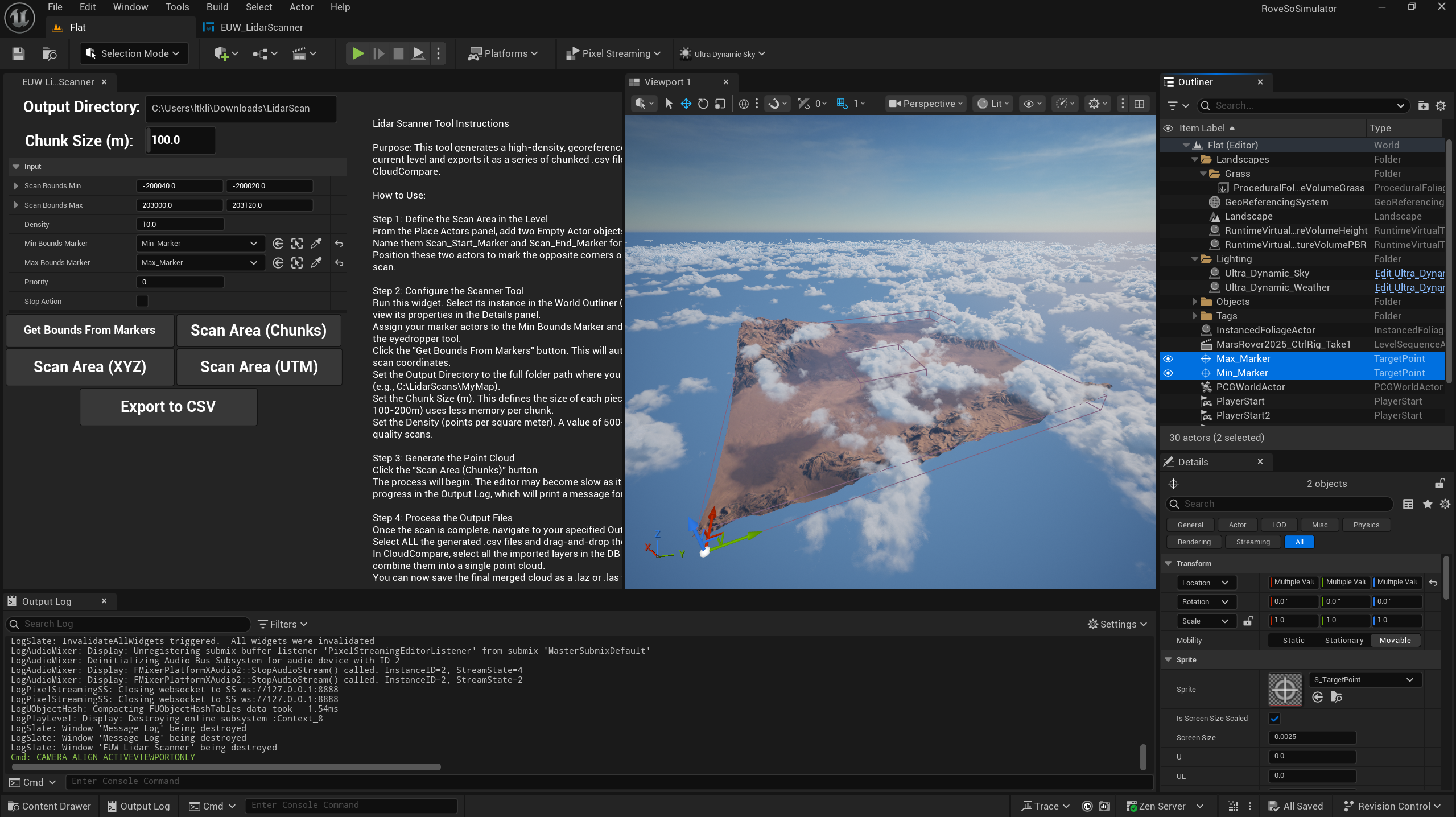

1. Launch the Widget: In the Content Browser, right-click the EUW_LidarScanner asset and select Run Editor Utility Widget.
2. Select the Widget Instance: In the World Outliner, click on the running widget instance to make its properties appear in the Details panel.
3. Assign Markers: Use the eyedropper tools to assign your two marker actors to the Min Bounds Marker and Max Bounds Marker fields.
4. Get Bounds: Click the “Get Bounds From Markers” button.
5. Set Parameters:
   • Output Directory: Provide the full path to a folder where the output files will be saved.
   • Chunk Size (m): A value of 100 to 500 is recommended. Smaller chunks use less RAM.
   • Density: Set the desired points per square meter.
6. Execute Scan: Click the “Scan Area (Chunks)” button. The process will run in the background. Progress can be monitored via the Output Log.

Step 3.3: Final Processing in CloudCompare

1. Import: Once the scan is complete, open the output directory. Select all the generated .csv files and drag them simultaneously into the CloudCompare window.
2. Merge: In CloudCompare’s DB Tree view, select all the newly imported layers. Navigate to Tools -> Merge. This will combine all chunks into a single entity.
3. Export: Select the final merged point cloud. Go to File -> Save. In the save dialog, choose the desired file type (.laz for compressed, .las for uncompressed) and save the final output file. The metadata from the _CRS_Info.txt file can be used to set the coordinate system information in the target application.
